Feature:

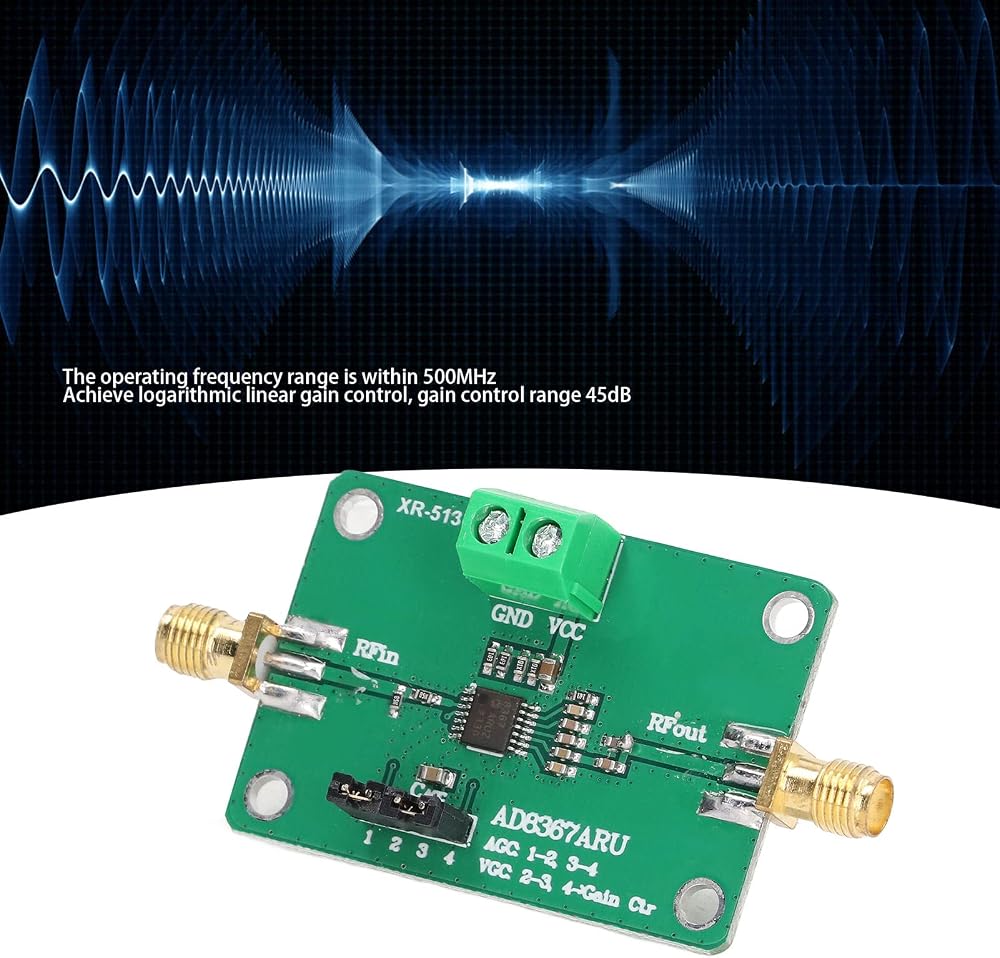

1. Operating Frequency: The operating frequency range of this intermediate frequency amplifier is within 500MHz

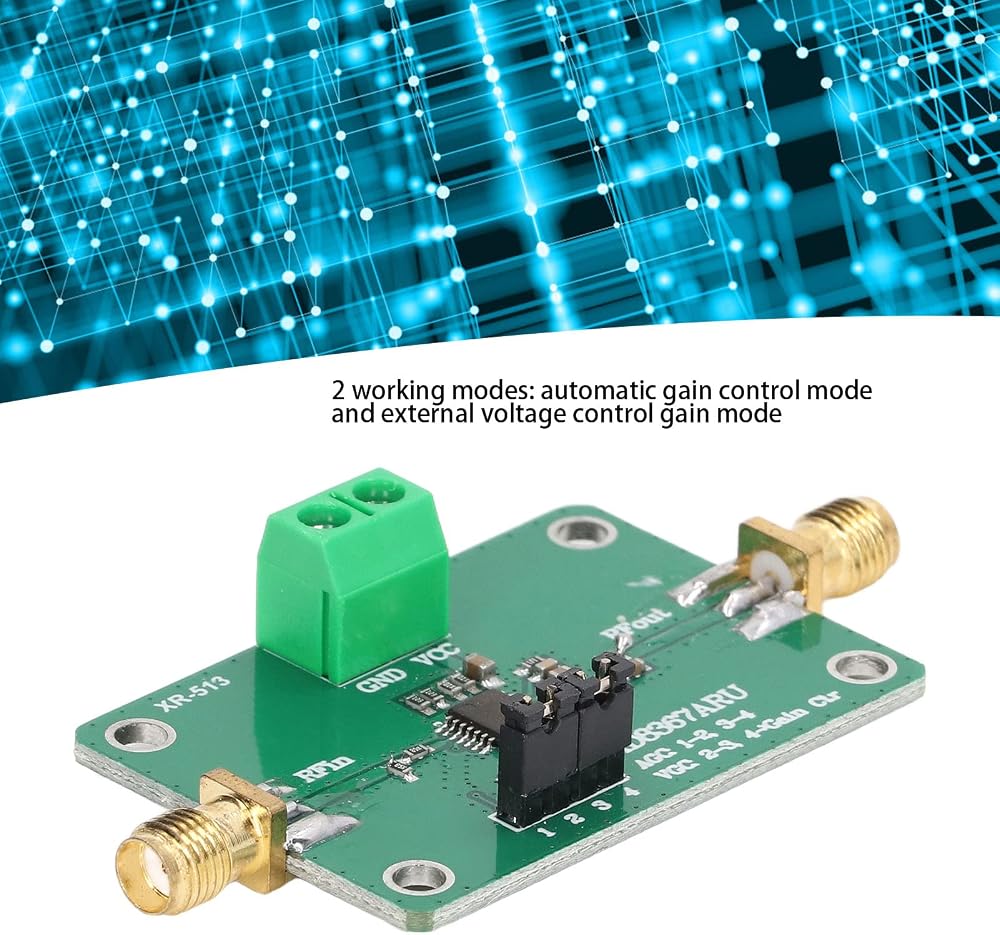

2. Automatic Gain Control Mode: The IF amplifier integrates squaring law detector, which can work in automatic gain control mode
3. External Voltage Controlled Gain Mode: The IF amplifier can be configured in conventional VGA mode for applied voltage control
4. 45dB Gain Control: The IF amplifier can achieve logarithmic linear gain control, and the gain control range is 45dB
5. Easy to Use: This amplifier is small in size and light weight, easy to assemble, which is a replacement for old module on the machine

Specification:

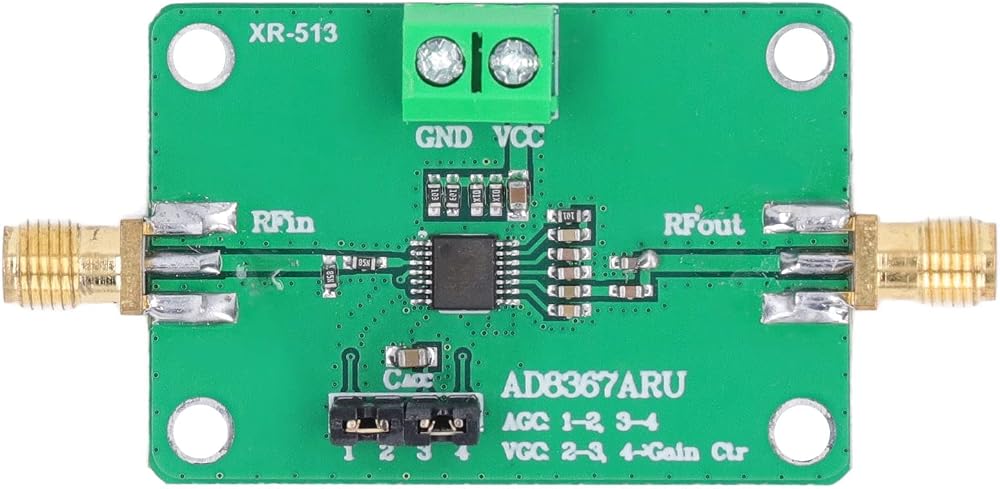

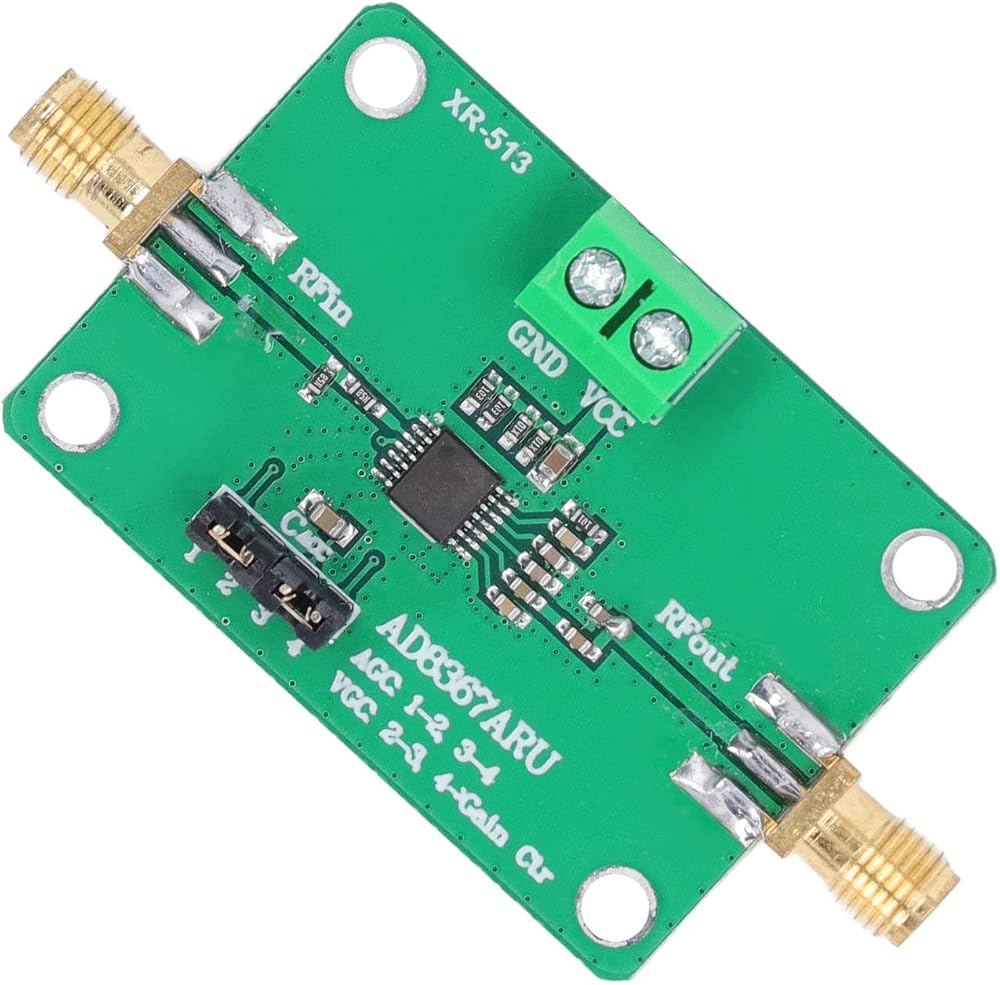

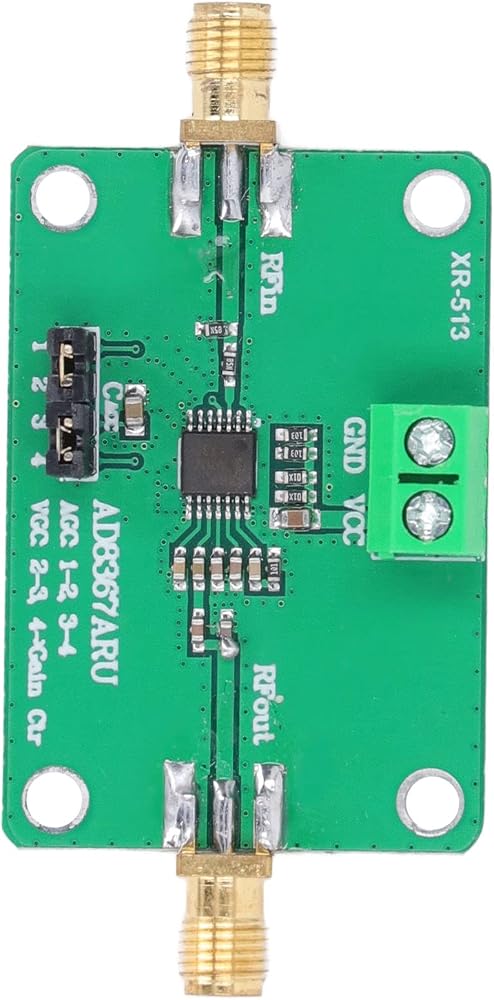

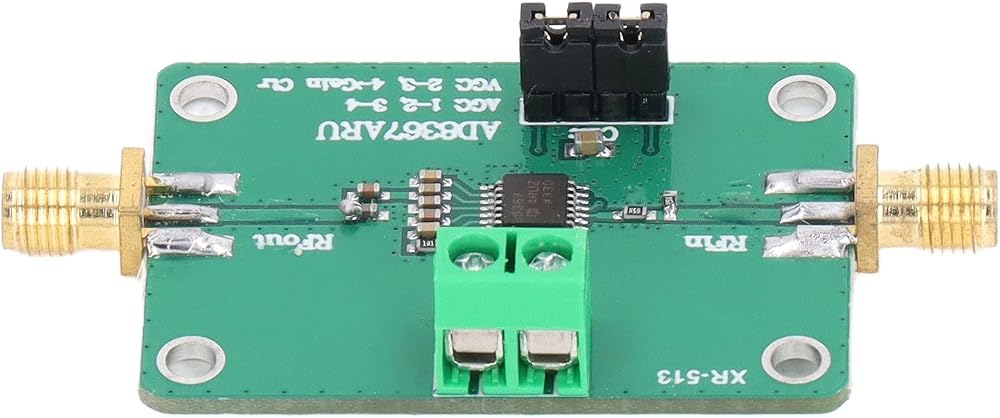

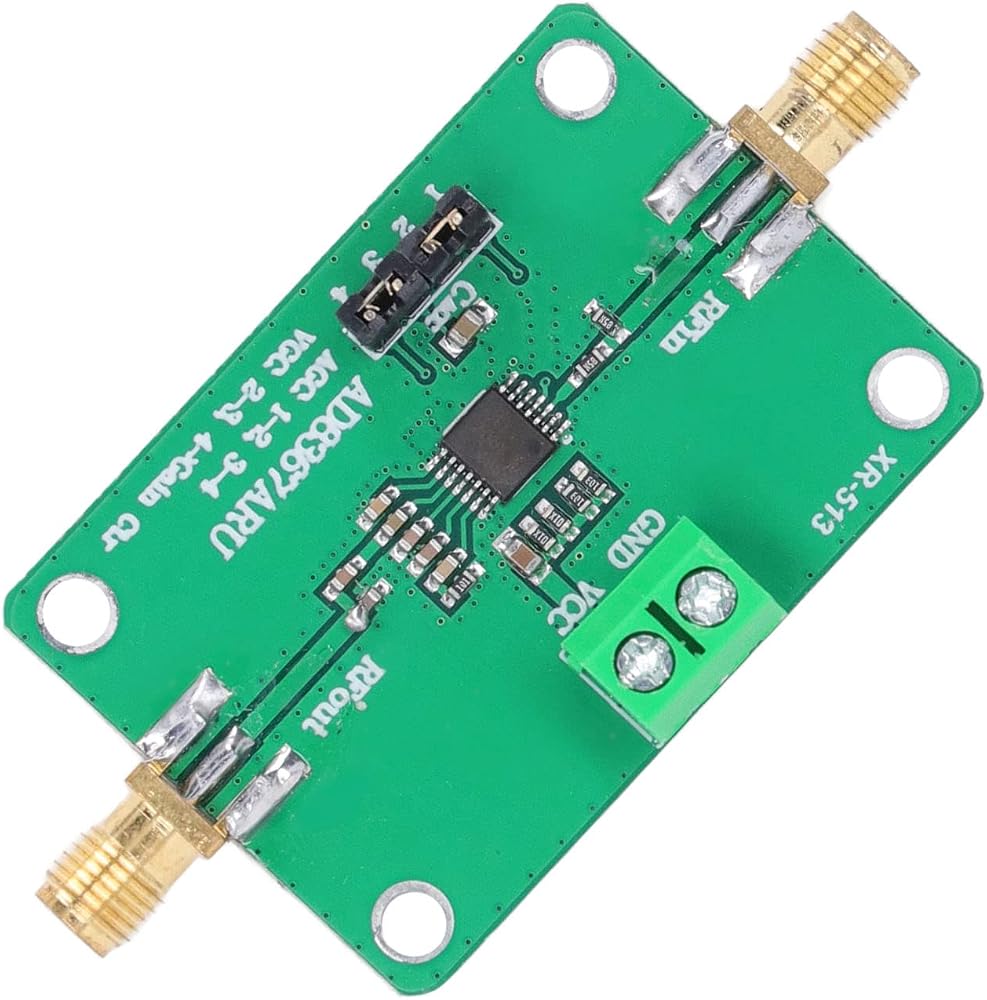

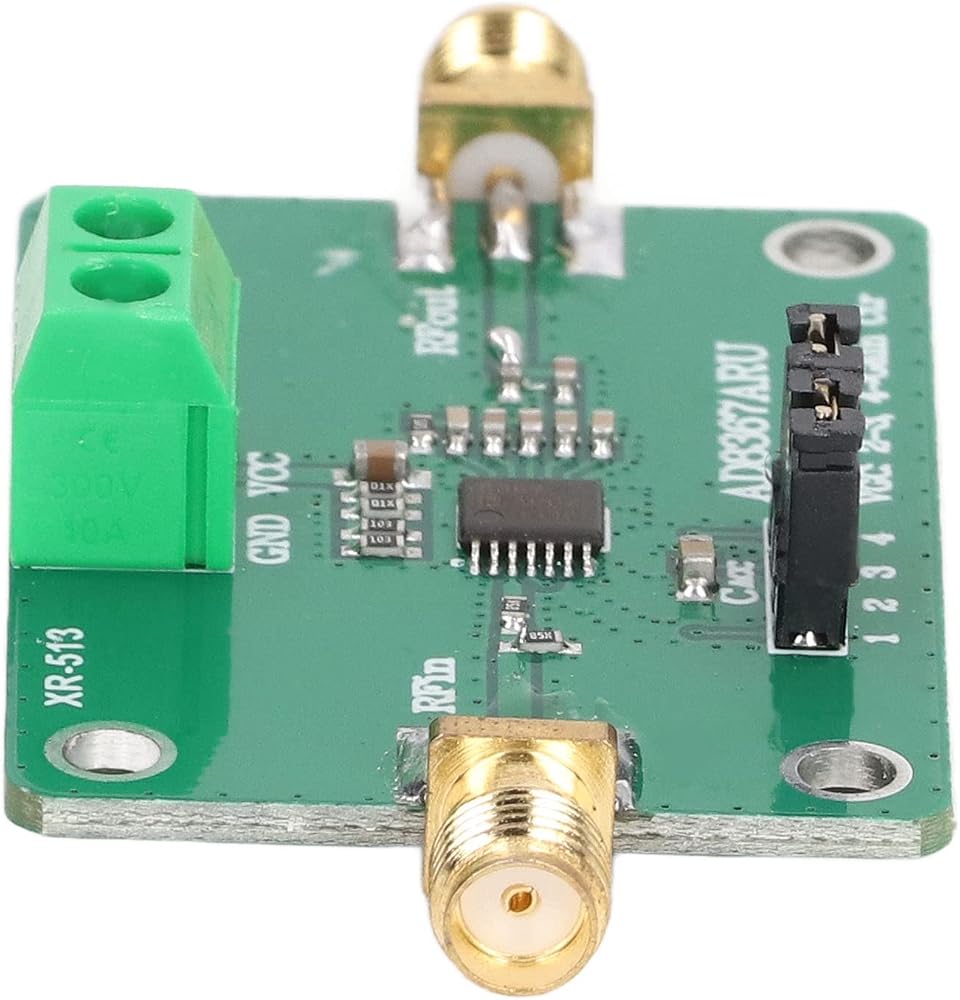

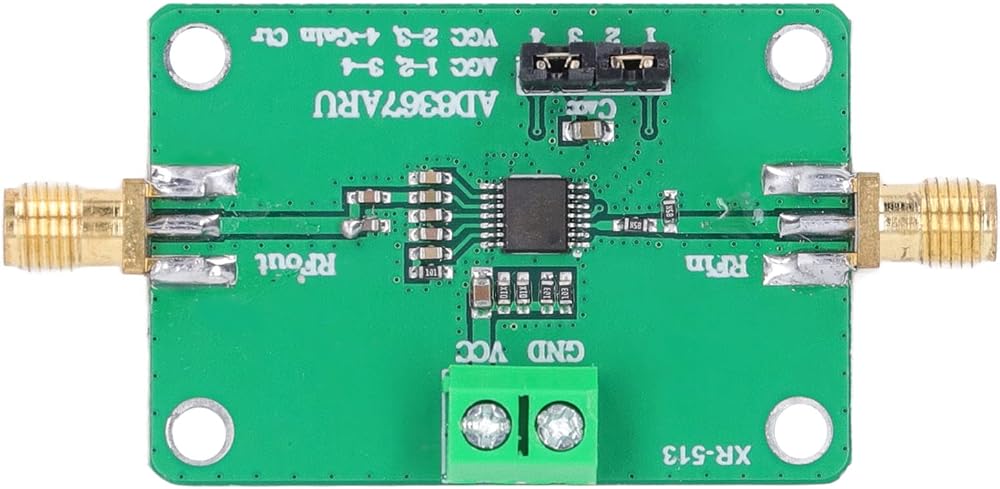

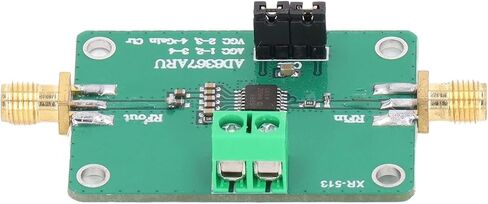

Item Type: IF Amplifier
Material: PCB
Working Voltage: 2.7-5.5V
Working Current: 28mA
Operating Frequency: 0.1-500MHz
Maximum Gain: 35dB
Maximum Output: 5dBm
AGC Range: 45dB
System Impedance: 50 ohms
Interface Form: SMA KE

Package List:
1 x IF Amplifier

Note:
Pay attention to the correct .
