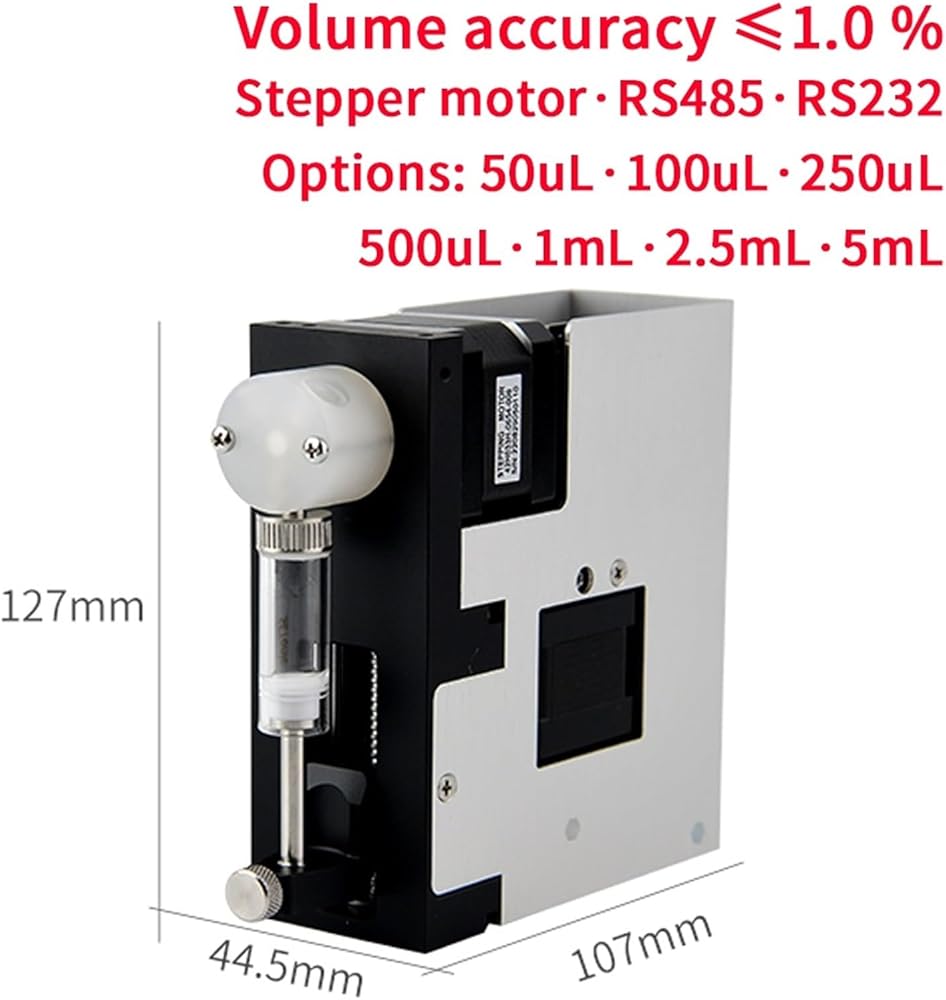

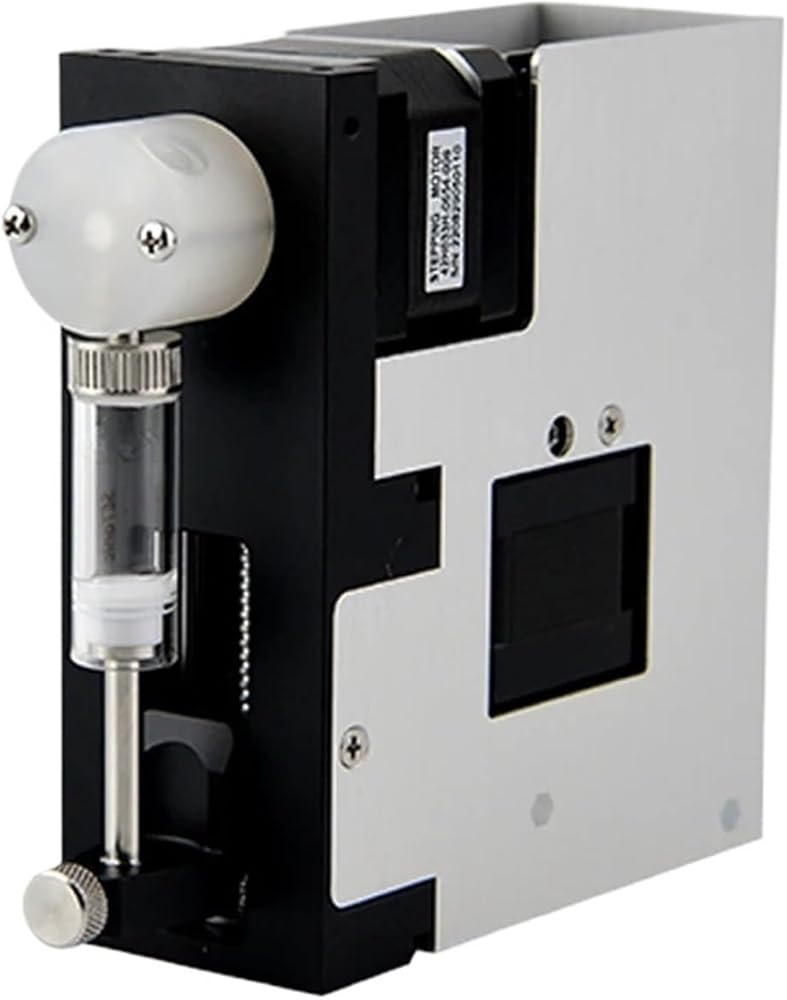

Multi Flow Syringe Pump 24V Stepper Motor High Precision
Lab Piston Pump RS-485 Communication
KSY30-V01is a compact product for precision fluid control, it supports RS485, RS232 and other control methods. It can automatically complete functions such as pipetting, diluting and dispensing.
Syringe pumps have the following advantages over peristaltic pumps:
Injection injection accuracy is an order of magnitude higher than that of peristaltic pumps
Syringe pumps do not have the pulsation problem of peristaltic pumps

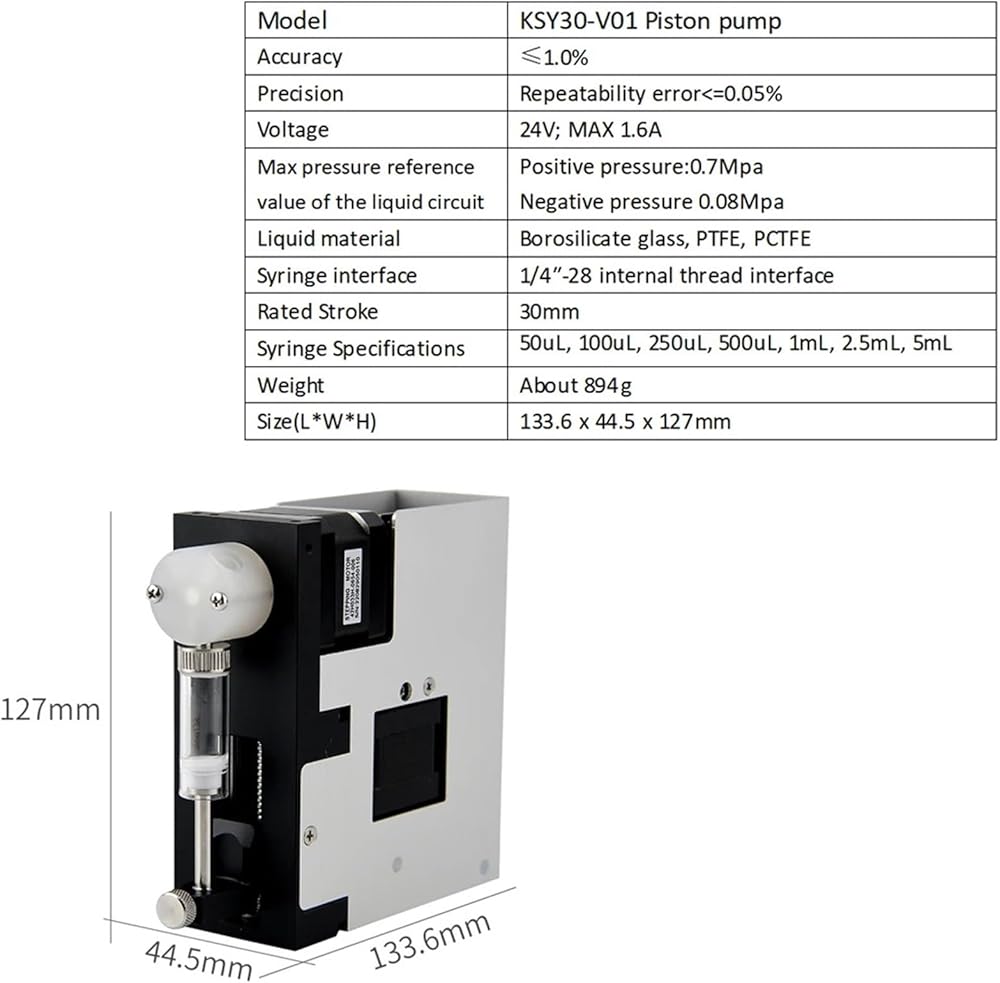

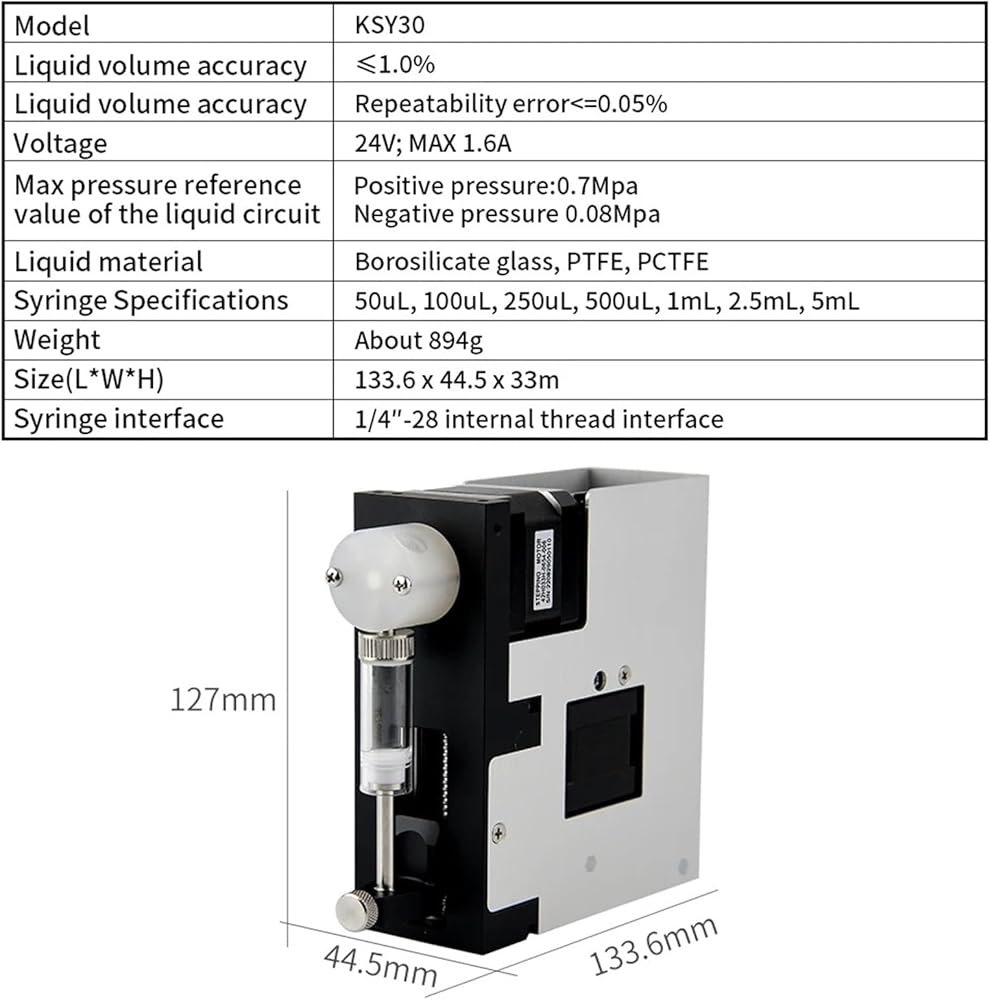

Technical parameters
Technical Parameters
KSY30-V01 Piston pump
Accuracy
1.0%(1 ml syringe and above)
Precision
Max pressure reference value of the liquid circuit
Positive pressure:0.7Mpa
Negative pressure 0.08Mpa
Liquid material
Borosilicate glass, PTFE, PCTFE
Rated stroke
30mm
Running time(per rated stroke)
1.26s-1200s
Syringe interface
1/4-28 internal thread interface
Syringe configuration
50uL, 100uL, 250uL, 500uL, 1mL, 2.5mL, 5mL
Syringe material
Borosilicate glass, stainless steel pushrod, PTFE
Transmission structure
Ball screw drive
Control steps and resolution
(standard mode)
Full stroke 3000 steps, control resolution is 0.01mm per step
Control steps and resolution
(micro step mode)
Full stroke 48000 steps, control resolution is 1 step 0.625um
Valve shift time
250ms (between two adjacent ports)
Valve type
Standard: 3-port Y-valve, : 3-port split valve, 4-port valve, T-valve, straight-through valve or no valve
The Max pressure reference value of the hydraulic circuit
0.68Mpa
Pipeline interface
1/4-28 internal thread interface

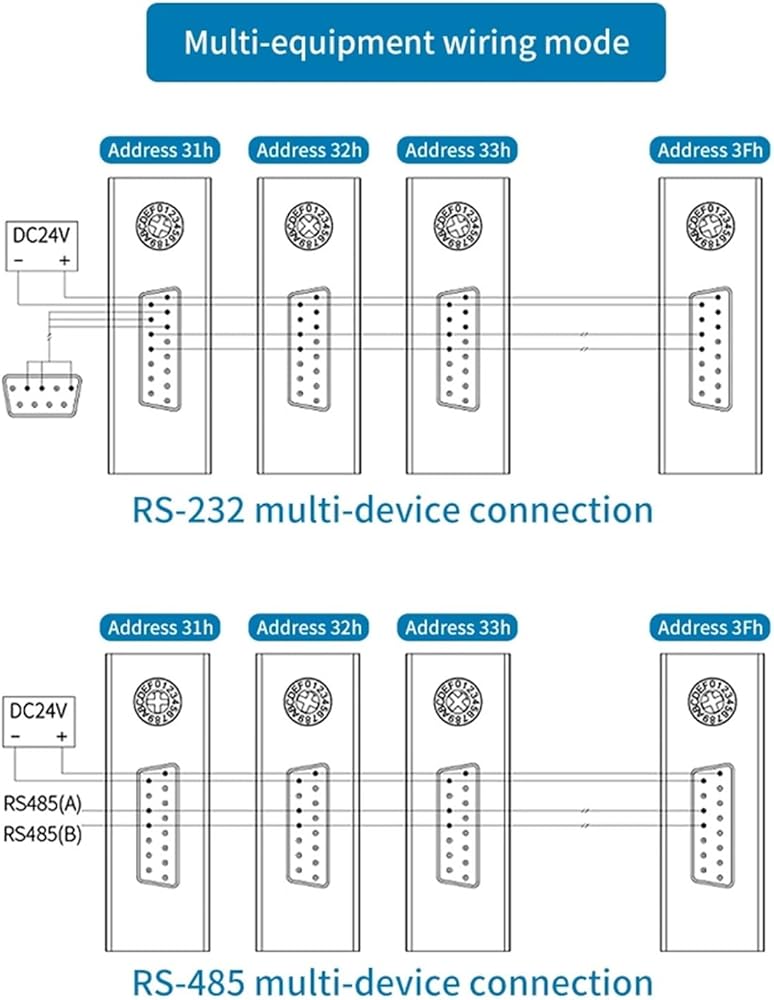

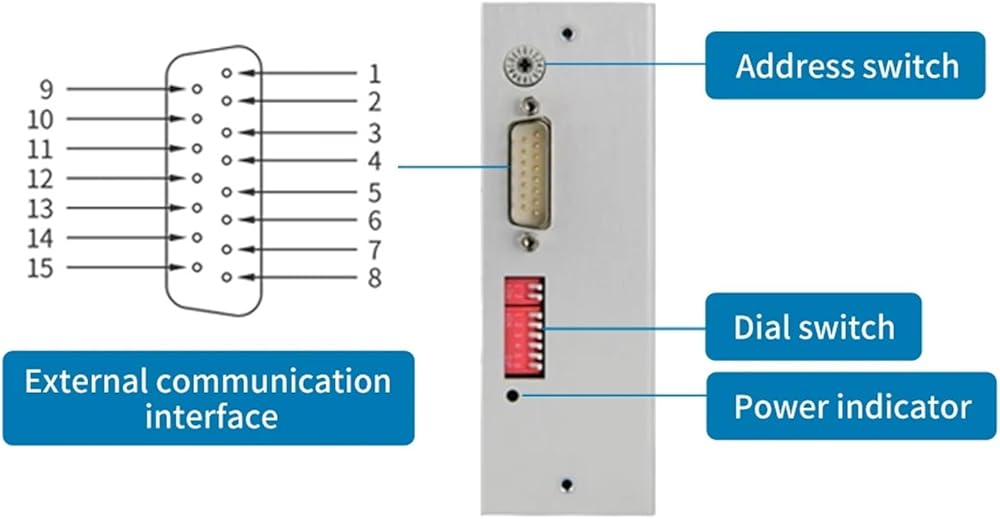

Communication Interface
RS485 or RS232 or CAN bus, external control input and output
Agreement
Data terminal, protocol (serial port) or CAN bus
Communication rate
9600bps or 38400bp
