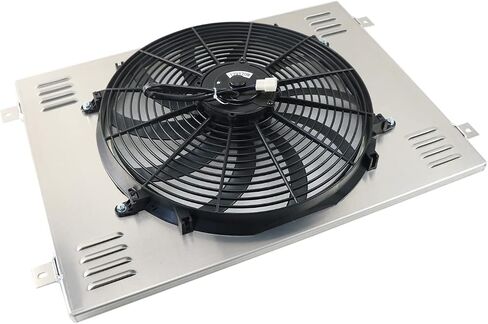

This Shroud Fan Compatible with:
Replacement radiator for Dodge CB300 5.9 V8 1980
Replacement radiator for Dodge D100 3.9 V6 1988-1989
Replacement radiator for Dodge D100 5.2 5.9 V8 1979-1989
Replacement radiator for Dodge D150 3.9 V6 1988-1991
Replacement radiator for Dodge D150 5.2 5.9 V8 1979-1991
Replacement radiator for Dodge D200 5.2 5.9 V8 1979-1980
Replacement radiator for Dodge D250 3.9 V6 1988-1991
Replacement radiator for Dodge D250 5.2 5.9 V8 1981-1991
Replacement radiator for Dodge D300 5.2 5.9 V8 1979-1980
Replacement radiator for Dodge D350 5.2 V8 1981-1983
Replacement radiator for Dodge D350 5.9 V8 1981-1993
Replacement radiator for Dodge D400 5.9 V8 1979-1981
Replacement radiator for Dodge D450 5.9 V8 1979-1981
Replacement radiator for Dodge Ramcharger 5.2 5.9 V8 1979-1991
Replacement radiator for Dodge RD200 5.2 5.9 V8 1979-1980
Replacement radiator for Dodge W100 3.9 V6 1989
Replacement radiator for Dodge W100 5.2 5.9 V8 1986-1989
Replacement radiator for Dodge W150 3.9 V6 1989-1991
Replacement radiator for Dodge W150 5.2 5.9 V8 1979-1991
Replacement radiator for Dodge W200 5.2 5.9 V8 1979-1980
Replacement radiator for Dodge W250 5.2 5.9 V8 1981-1993
Replacement radiator for Dodge W300 5.2 5.9 V8 1979-1980
Replacement radiator for Dodge W350 5.2 V8 1982-1983
Replacement radiator for Dodge W350 5.9 V8 1981-1993

MPN# CU959, MC959, CU959, RAD959, DPI959, 959

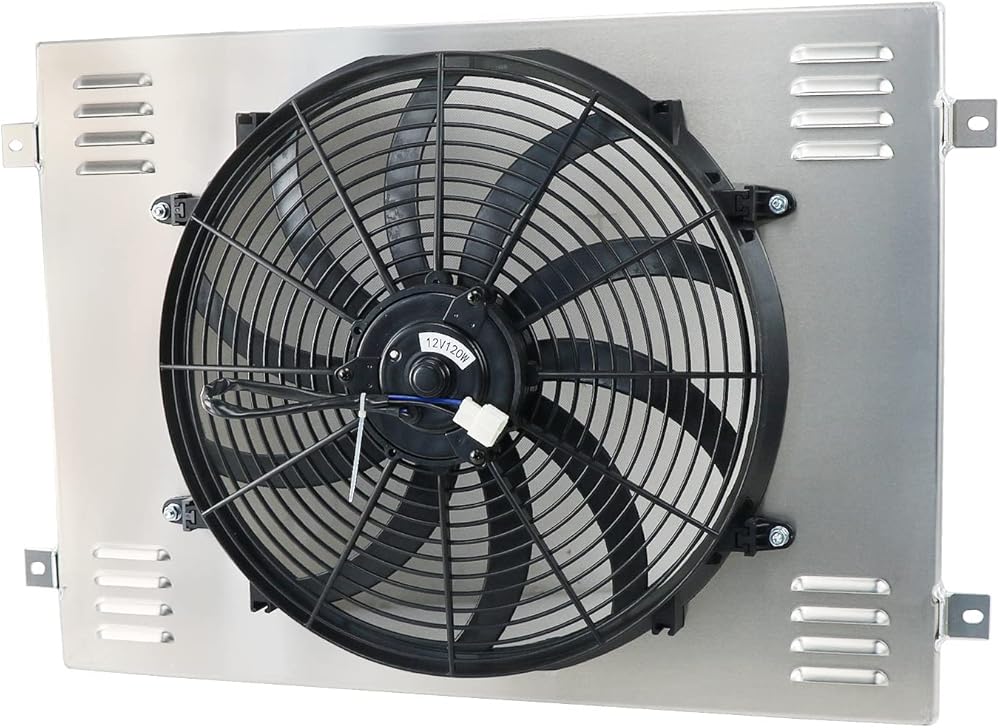

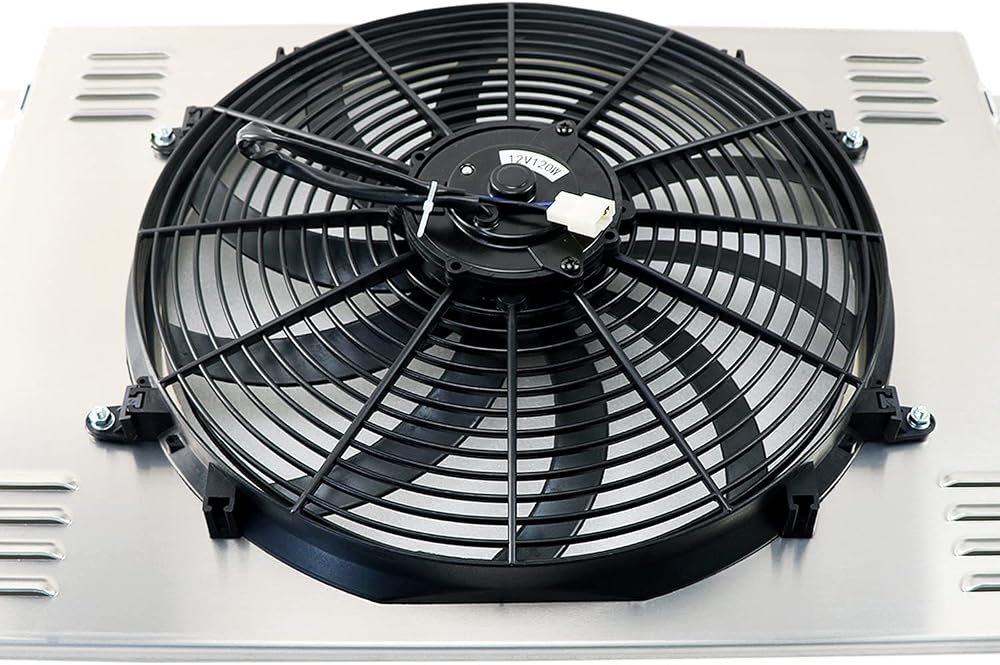

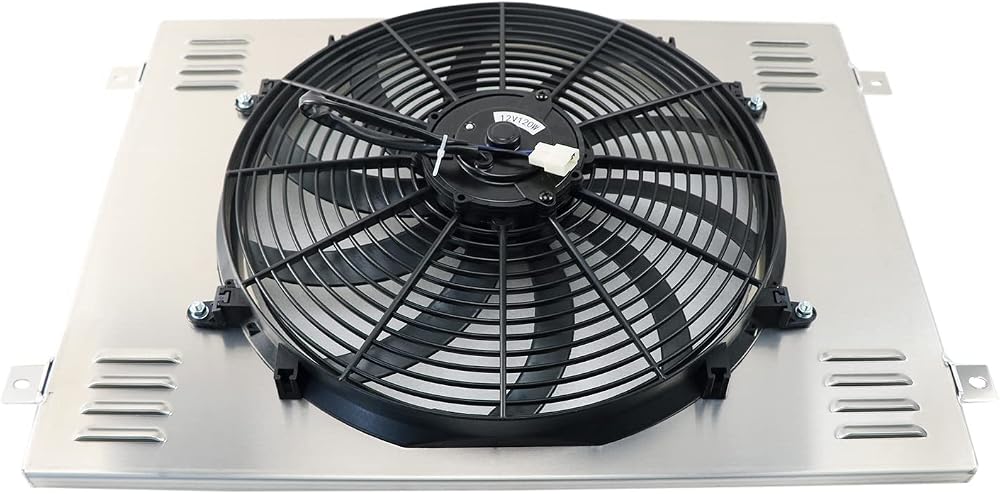

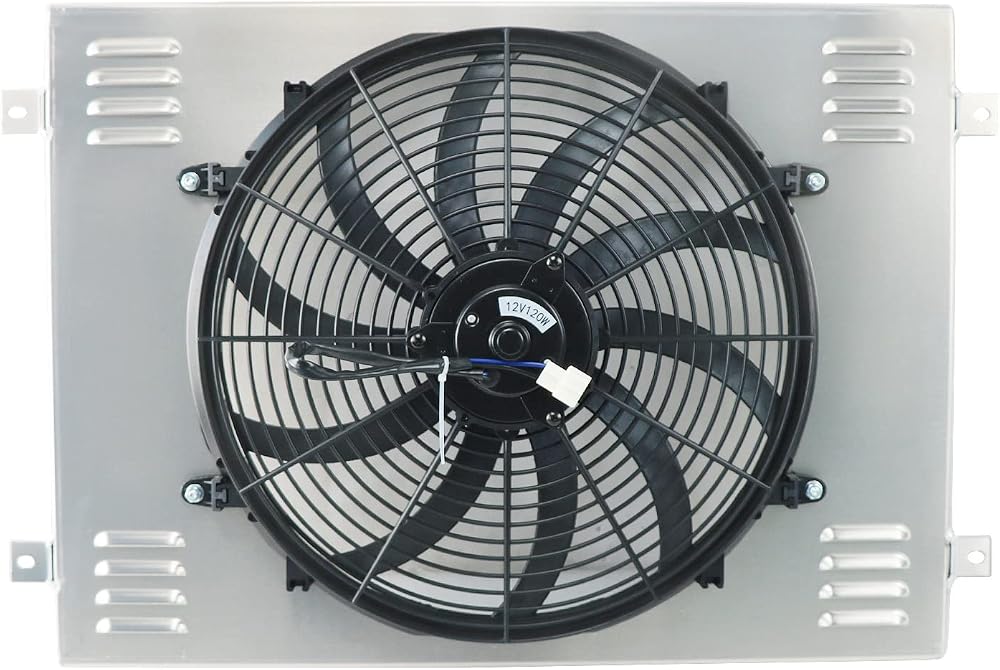

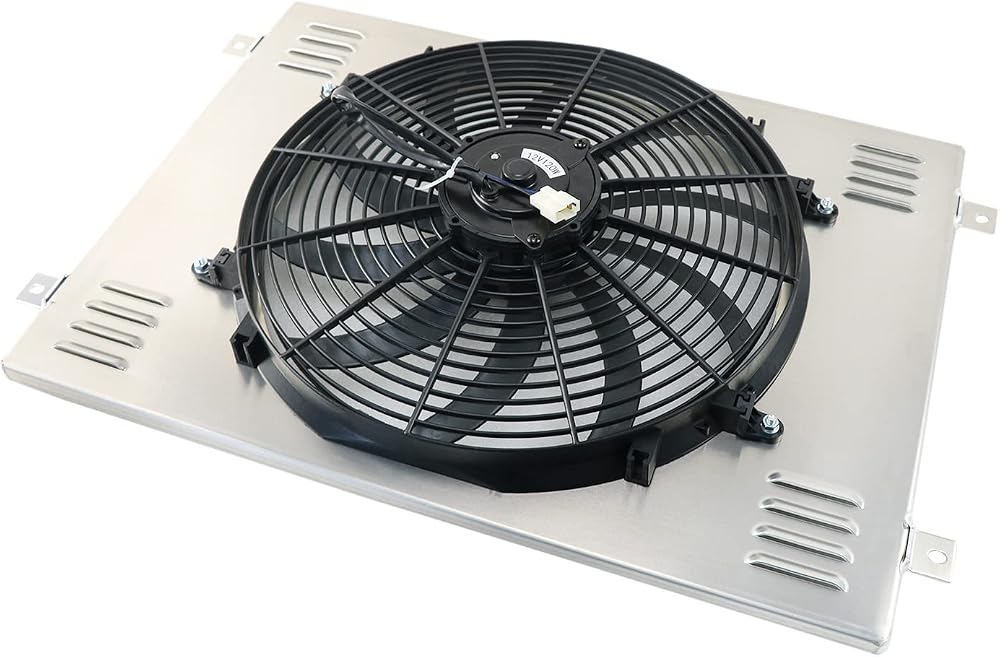

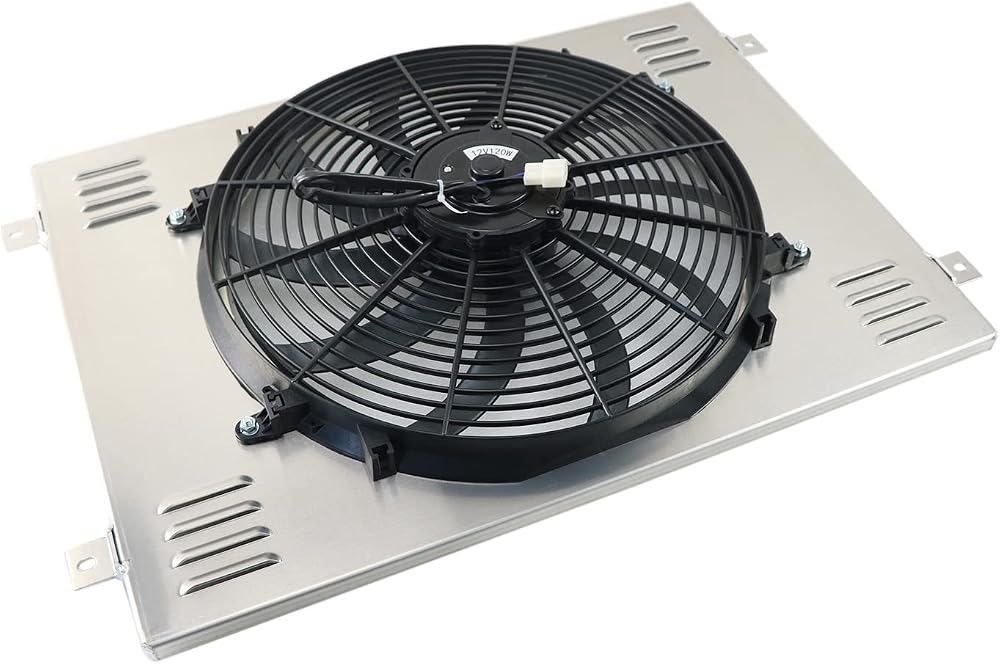

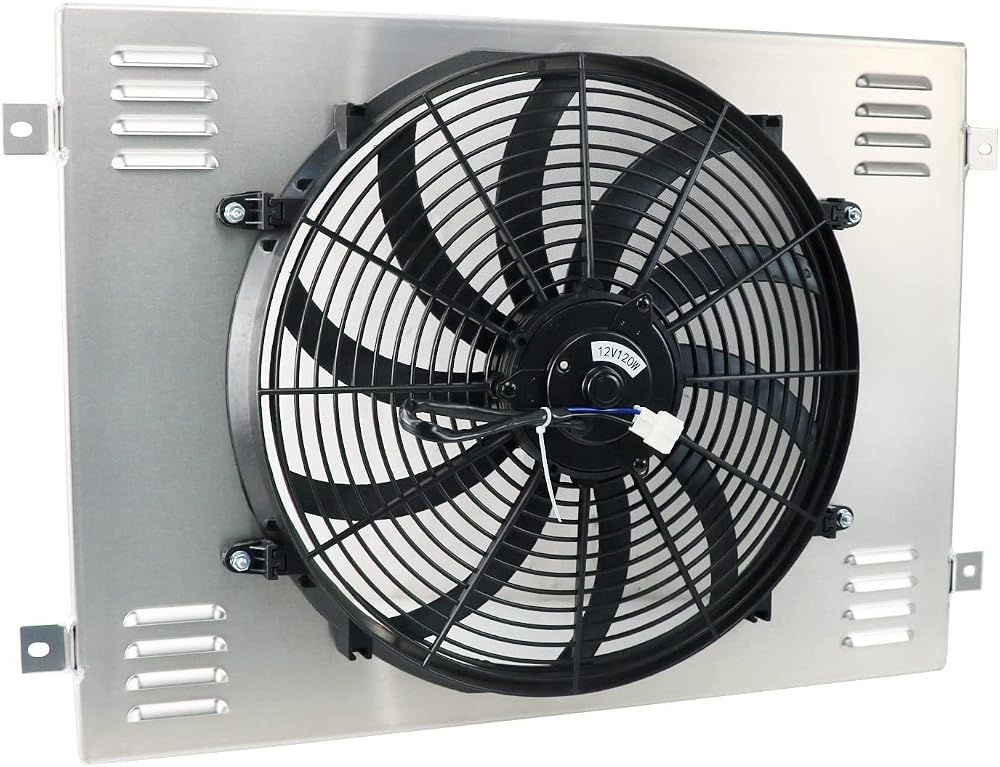

Fan Details:
16inch Fan:
Voltage: DC 12 Volts
Maximum Fan CFM: 2150 cfm
Wattage: 120 Wattage
Thickness (in): 2.500
Number of Blades: 10 S-Type blades
Maximum Fan RPM: 2,250 rpm
Amp Draw: 10 amps

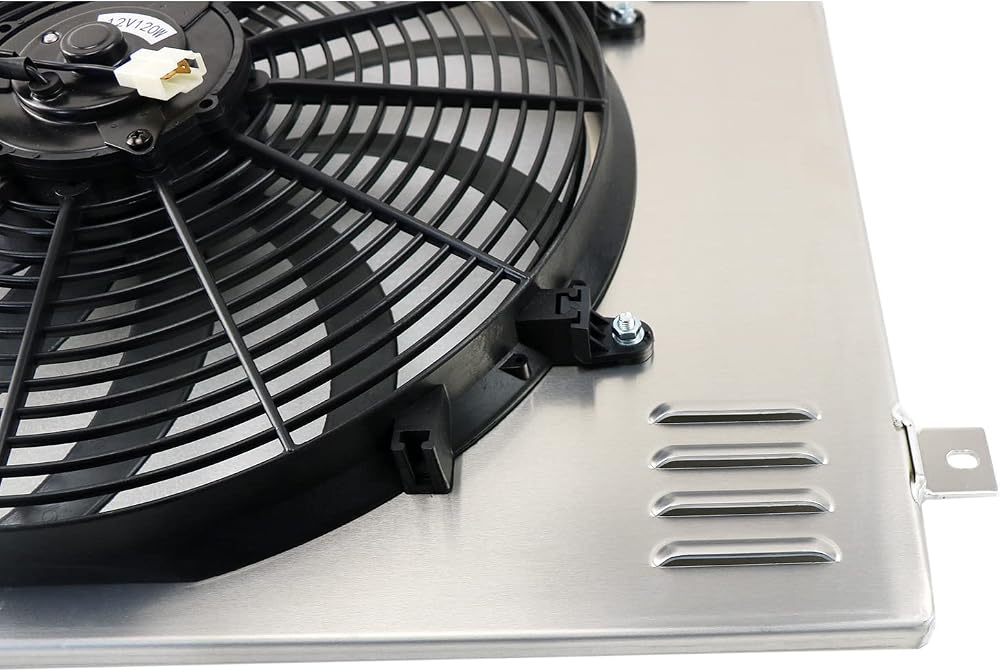

Includes the Mounting Tabs for an Easy Zip Tie Installation

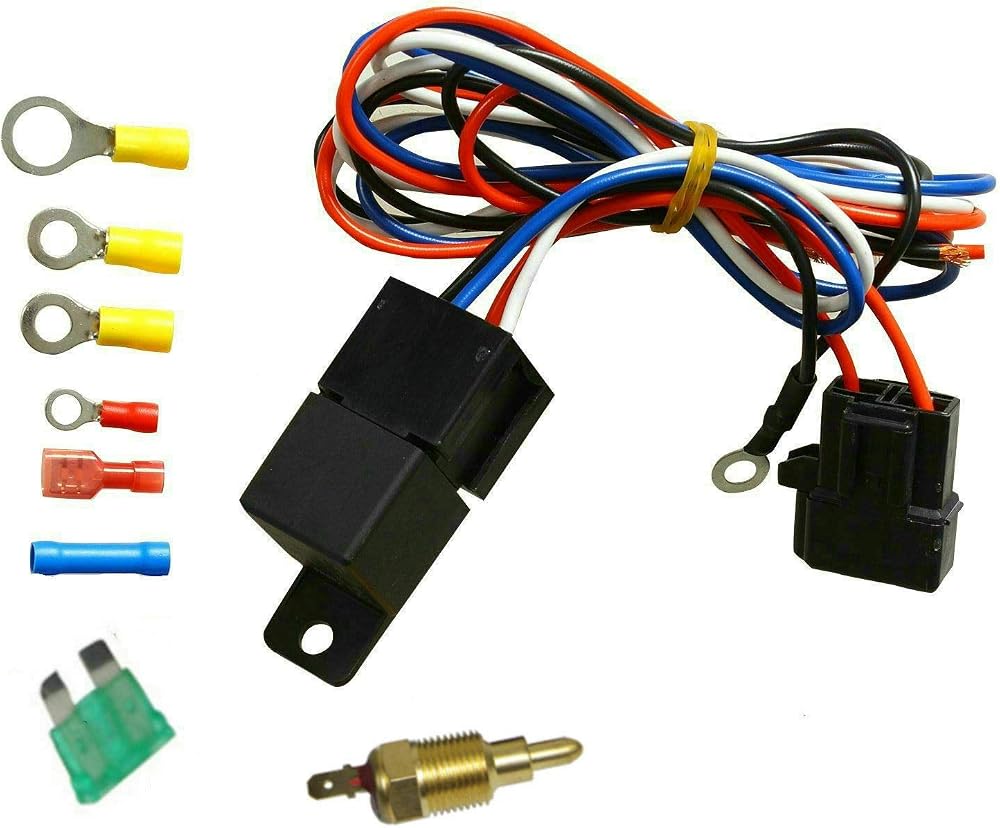

Thermostat Kit:
Universal fit for any automotive vehicle and electric fan
Activates by grounding electric fans at preset temperature
180'F turn-on temperature, 165'F turn-off temperature
3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included
Probe typically threads into radiator, water outlet or manifold

Thermostat Relay Kit Instructions:
RED + connect directly to battery
WHITE wire to ignition switch power source
BLACK goes to thermos switch
BLUE wire goes to the Fans
This set up will run Fans & pull air in through radiator

Pls use AmazonConfirmedFit to check whether this shroud/fan compatible with your vehicle radiator
Contact us if you have any question, we are willing to solve all problem for you!!!
