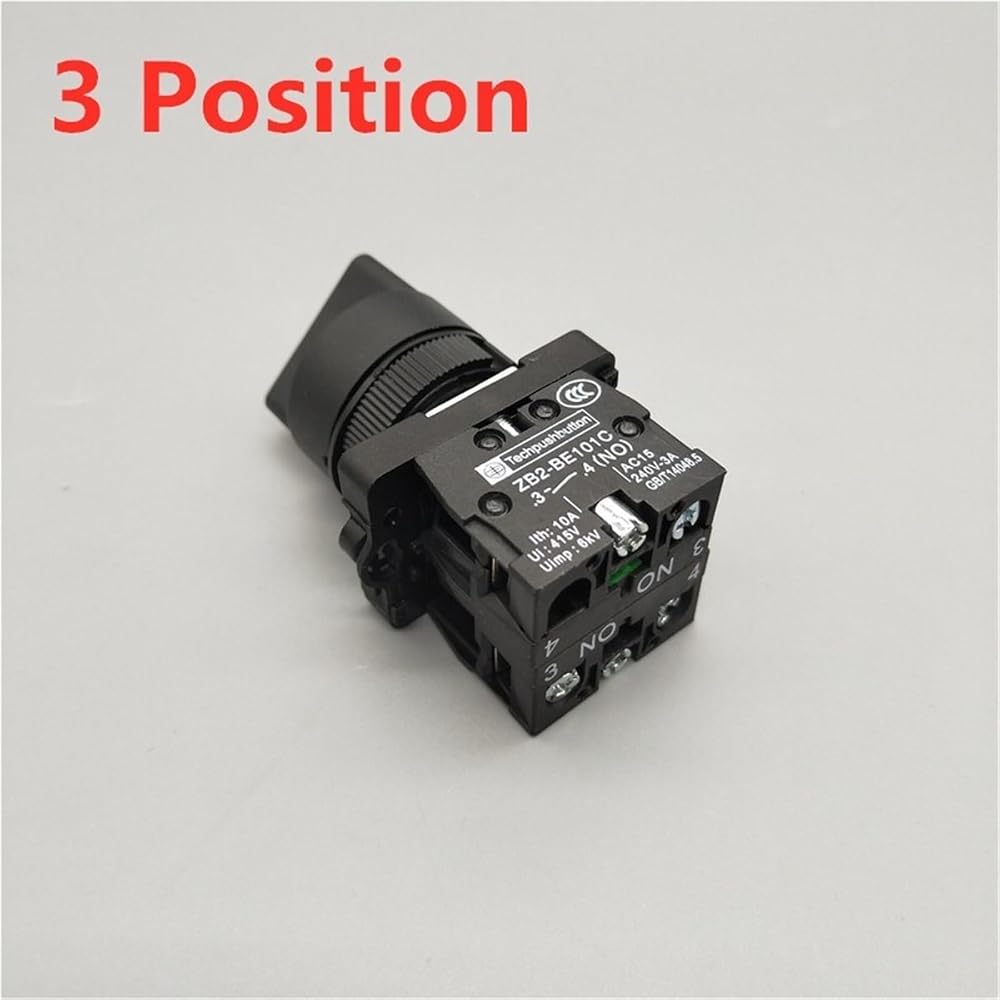

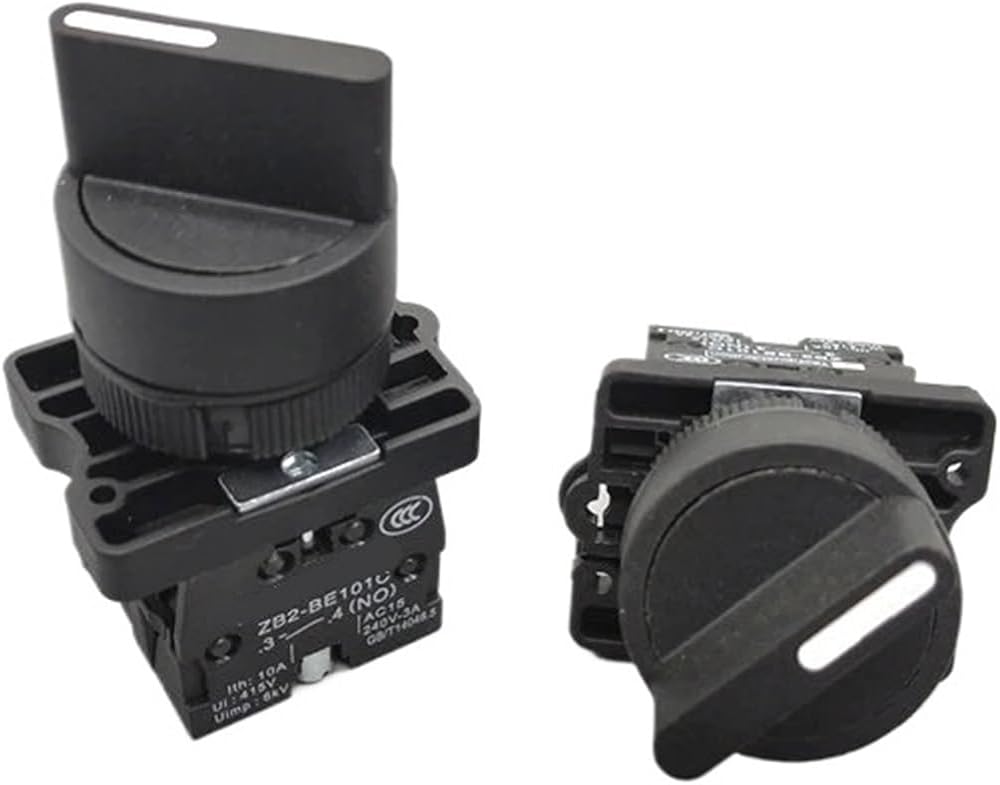

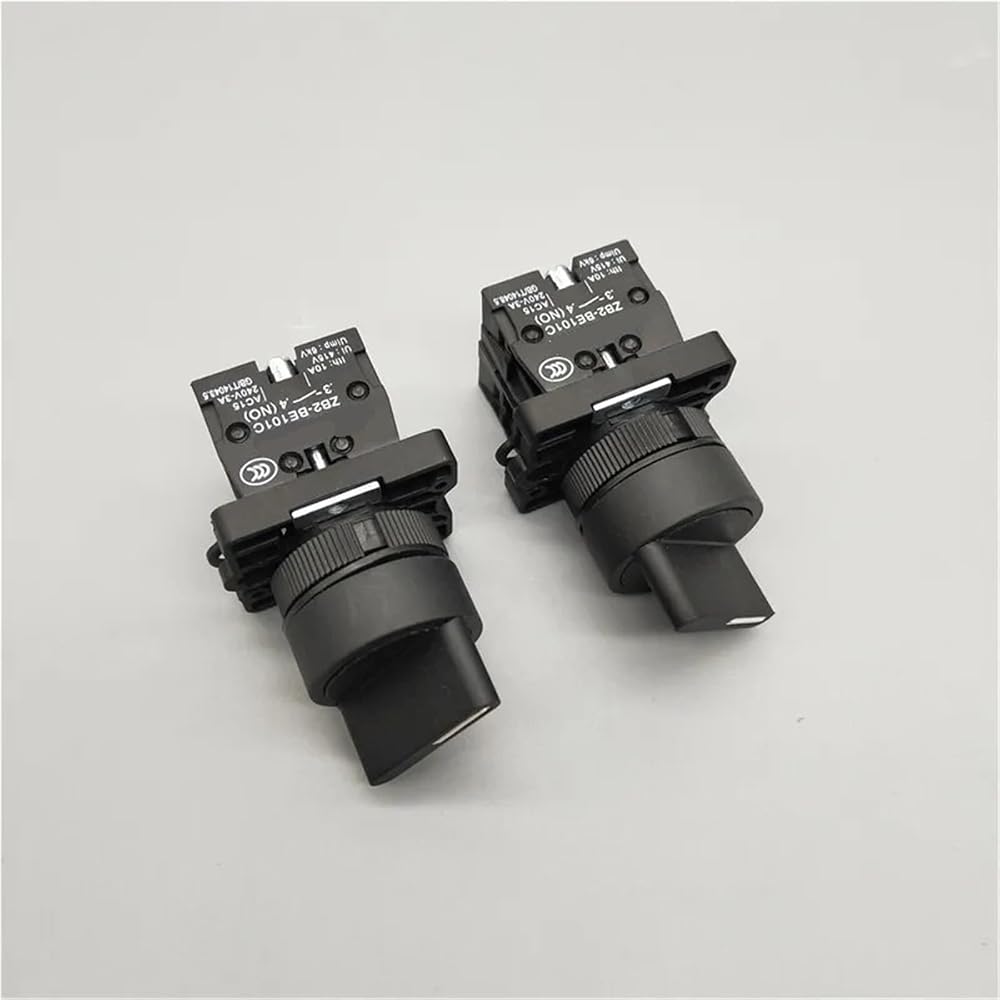

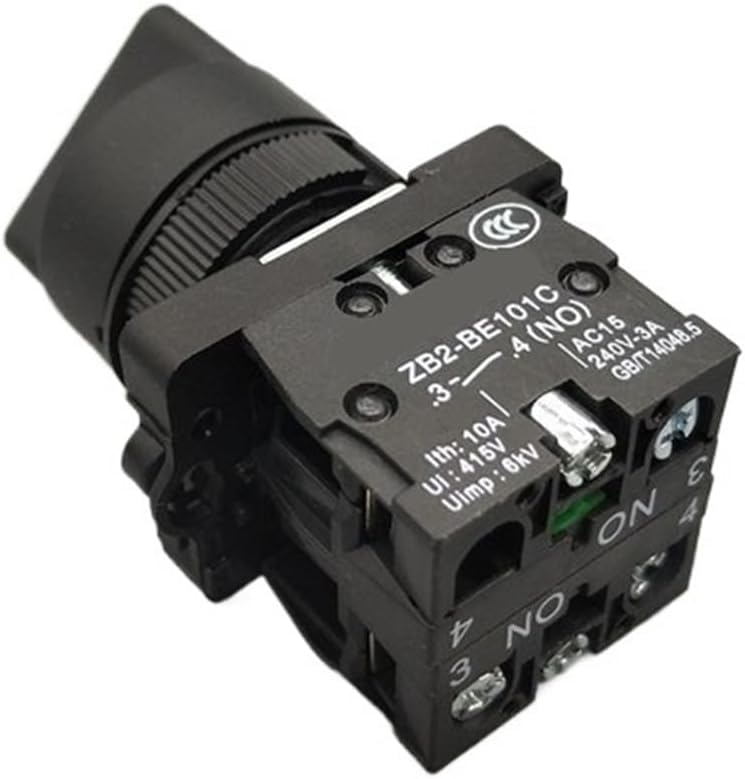

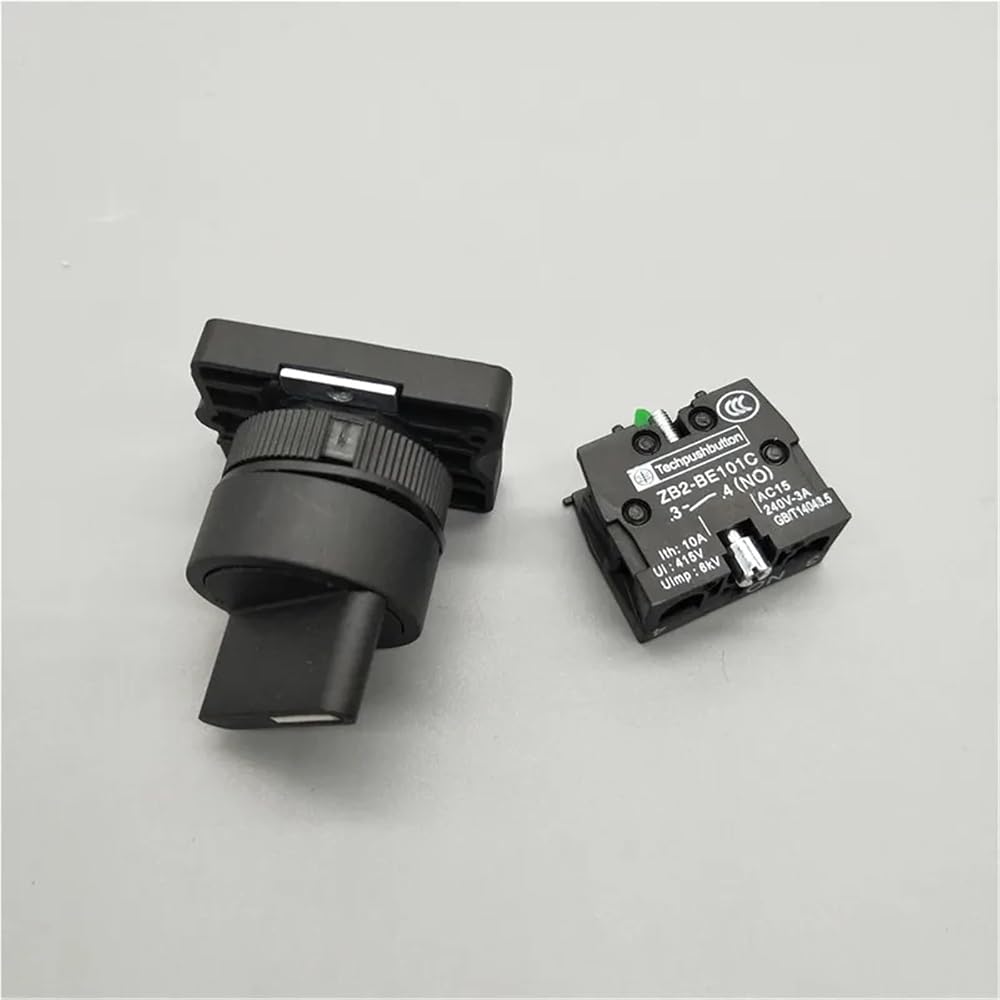

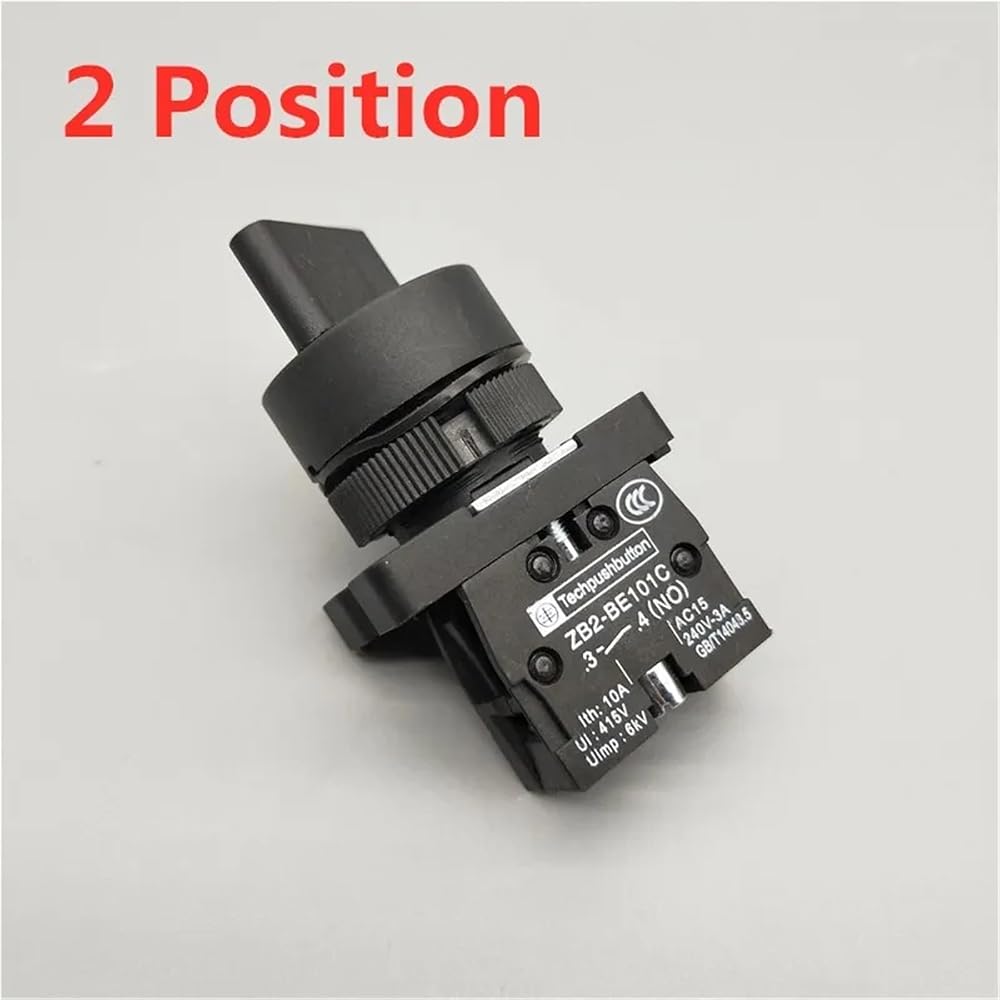

Selector Switch
XB2 pushbutton switch
1 Basic spec code: 22mm
2 Protection grade: IP40, IP65
3.Electrical durability: 50 x 104
4.,CCC certification
Application:
XB2 series pushbutton switches are used in industrial controlling circuits of AC 50Hz or 60Hz, rated operational voltage up to 380V and below, operational voltage up to 220V and below for controlling in magnetic starter, contactor, relay and other electrical circuits. The buttons with indication conform with the standard of GB14048.5-2001.
Main Technical Parameter
Ambient Temperature:
-5+40
Relative Humidity:
45%85%
Contact Resistance:
50m
Electrical Life
5.0x105
Withstanding Voltage
2500V, 1min
Protection Degree
IP40
Rated Insulation Voltage, Ui
660V
Conventional Thermal Current, Ith
10A
Rated Operational Voltage, Ue
380V
220V
110V
48V
24V
Rated Operational Current, Ie
AC-15
2.5A
4.5A
6A
8A
-
DC-13
- 0.3A
0.6A
1.3A
2.5A
Rated Voltage
Voltage Input Directly
Resistance

Lamp-House
6V
12V
24V
48V
110V
220V
380V
220V
220V
380V
LED Lamp
- - - - -
Neon Lamp
- - - - - -
Incandecent Lamp
-
==========
Current : 10A
Material : Plastic
Switch Type : Touch On/Off Switch
Item Type : SWITCHES
Is Smart Device : YES
Origin : Mainland
Certification : ,CCC
Features : On-Off On-Off-Off
Model Number : XB2-ED21 XB2-ED33
