Relays

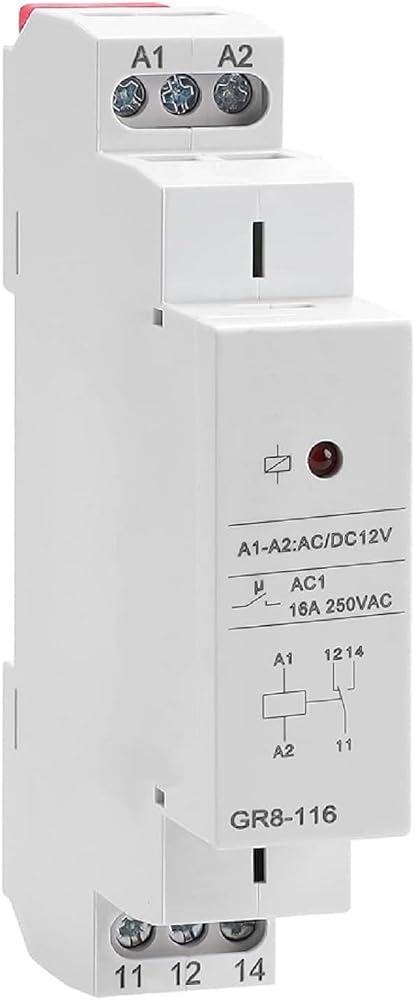

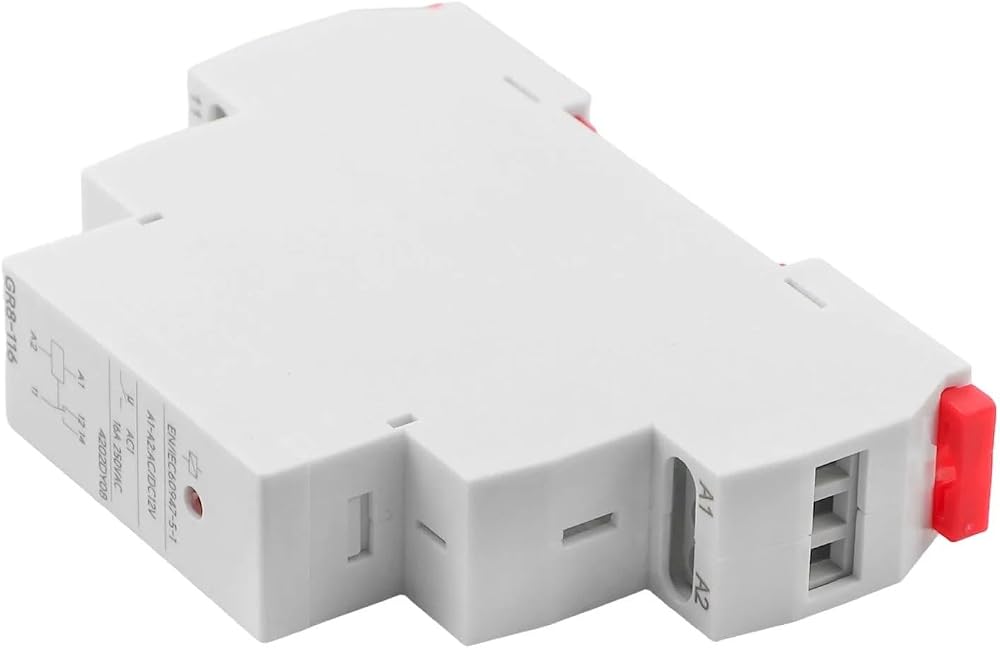

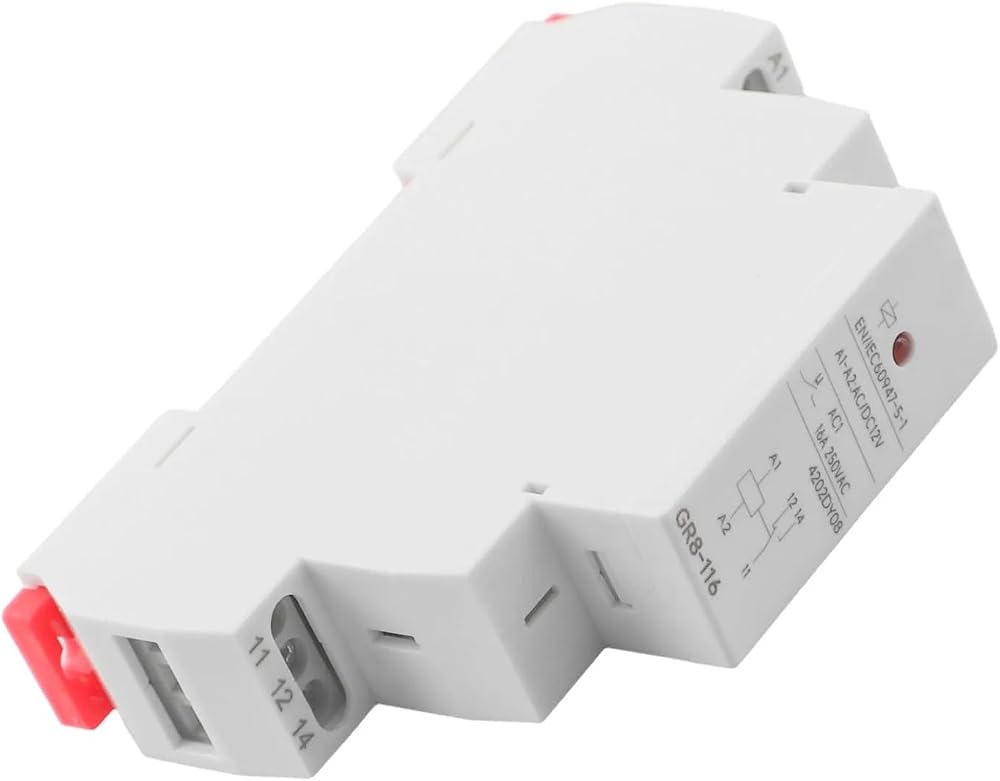

Part Name: Intermediate Relay
Color: White
Material:Plastic

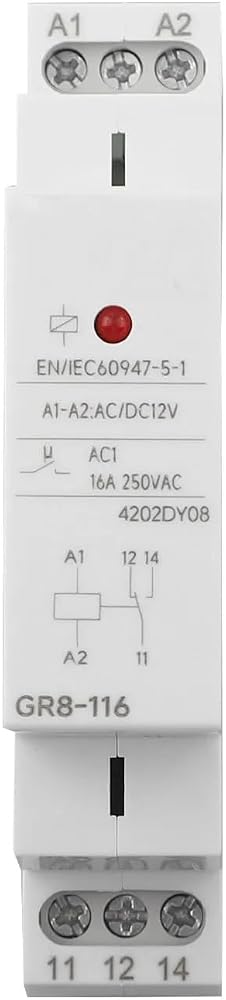

Model: GR8-116
Supply terminals:A1-A2
Voltage range:AC/DC 12V
Burden:AC. max 12VA/DC. max1.9W
Supply voltage tolerance:-15%;+10%
Max.chargeover time:40ms
Number of contact:×SPDT
Current rating:16A/AC1
Switching voltage:250VAC/24VDC
Min. breaking capacity DC:500mW
Output indication:Red LED
Mechanical life:×107
Electrical life(AC1):×105
Reset time:max.200ms
Operating temperature:-20 to+55 (-4°F to 131°F)
Storage temperature:-35°C to+75 (-22°F to 158°F)

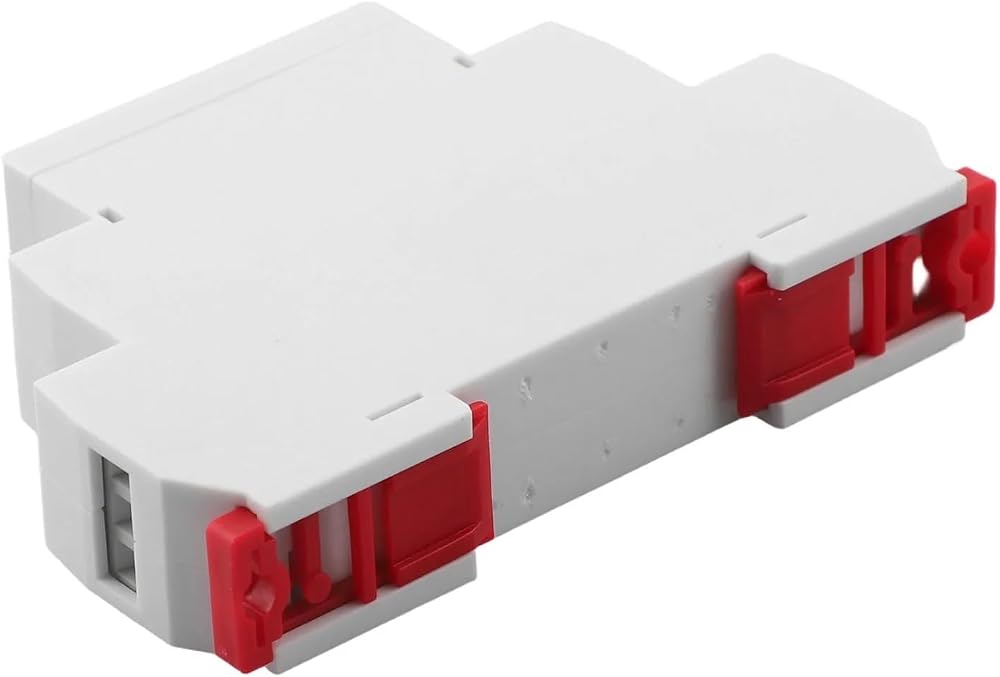

Mounting/DIN rail:Din rail EN/IEC 60715
Protection degree:IP40 for front panel/IP20 terminals
Operating position:any
Overvoltage cathegory:III.
Pollution degree:2
