Adjusters
Detection and power input voltage 190 ~ 264 VAC single-phase two-wire
Copper sheet setting frequency 50/60 Hz jumper
Output voltage 207 VAC input maximum 90 VDC
Current 10A continuous, 16A for 10 seconds intermittently
Resistance 10 Ohm minimum
Voltage regulation accuracy ±1% (engine speed change within 4%)
Temperature difference stability Voltage drift 0.04% per change
External voltage adjustment ±10% with 1K Ohms 1 Watt potentiometer
Voltage slow build-up time 2 seconds
DROOP reactive power regulation Maximum sensitivity 0.07A corresponding to 5% voltage drop (PF=0) Maximum input 0.33A
Voltage build-up requires residual magnetic voltage of 5 VAC or more at the Automatic Voltage Regulator input terminal
Power consumption Maximum 12 Watt
Under-frequency protection preset: 95% Hz
Slope: down to 30 170% at Hz
Voltage correction Maximum input: ±5 VDC
(Analog input) Sensitivity: 5% generator voltage can be adjusted for every 1VDC
Input resistance: 1K Ohm
Current compensation Load: 10 Ohm
Dimensions 150mm L * 135mm W * 48mm H
Weight 0.45KG ± 2%
==========
Hign-concerned Chemical : None

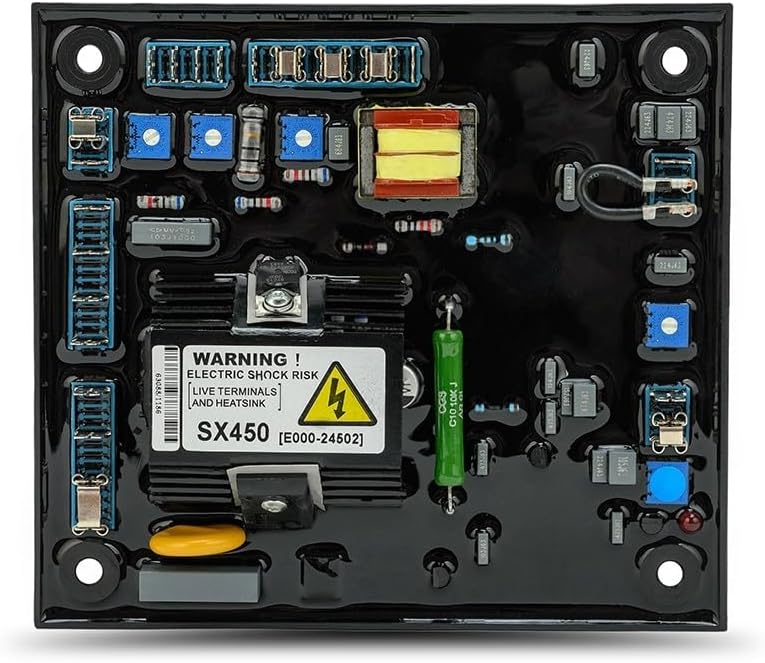

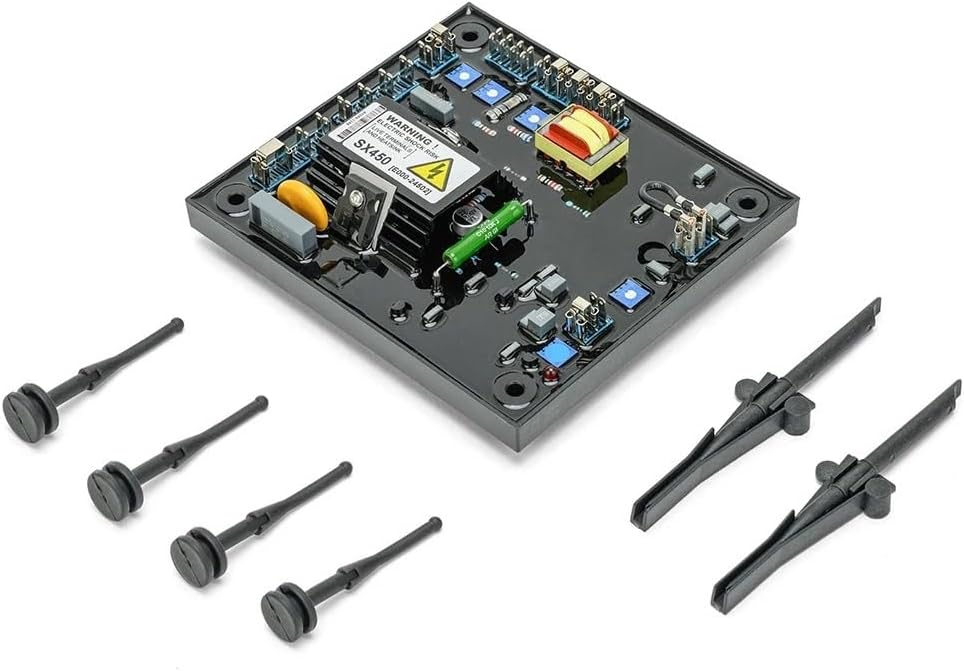

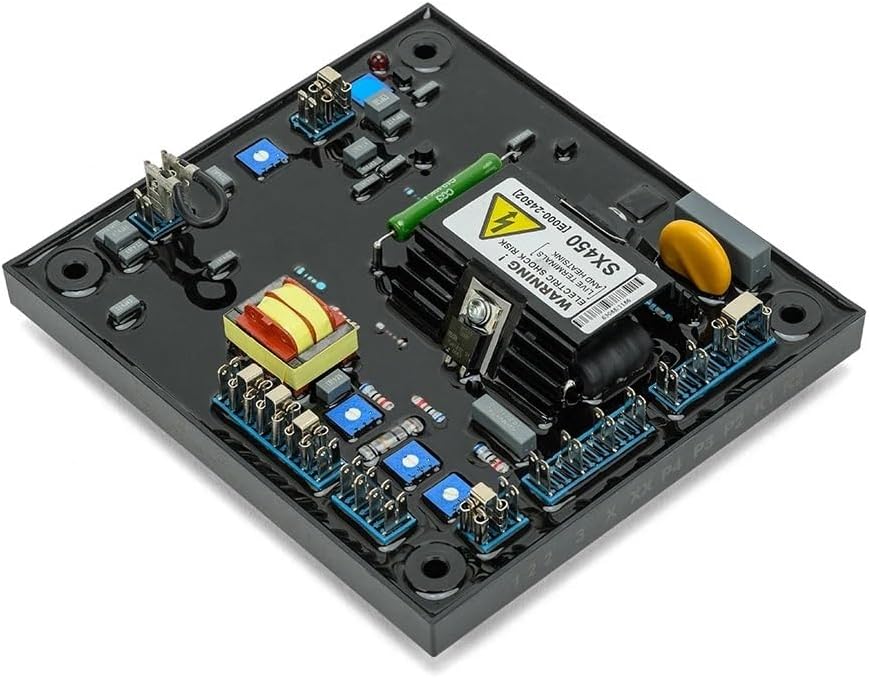

Model Number : SX450
