[High Magnification Options] With a 195 achromatic objective lens offering 4x, 10x, 40x, and 100x magnification options, this microscope achieves up to 1600x magnification for detailed examinations of microscopic specimens.
[Ergonomic Design] The 45-degree fixed and 360-degree rotation capability promote ergonomic use, while led illumination ensures high visibility for bright field and dark field works.
[ Aluminum Alloy Body] The xsp500 series biological microscope is crafted with a full aluminum alloy body for enhanced durability and elegance, ensuring long-lasting performance.
[Precise Focusing Control] The 2-layer mechanical stage, abbe condenser, and adjustable led brightness provide accurate focusing control, enabling clear inspections of specimens.
[Versatile Applications] Suited for biological education, plant cultivation, animal breeding, and various research applications, this microscope is ideal for a wide range of scientific needs.

وصف

Spec:

Item Type: Industrial Microscope
Material: Aluminum Alloy
Power Supply: DC 5V 1A
Total Magnification: 40X-1600X
Eyepiece:
Wide Field Plane Eyepiece: WF10X, WF16X

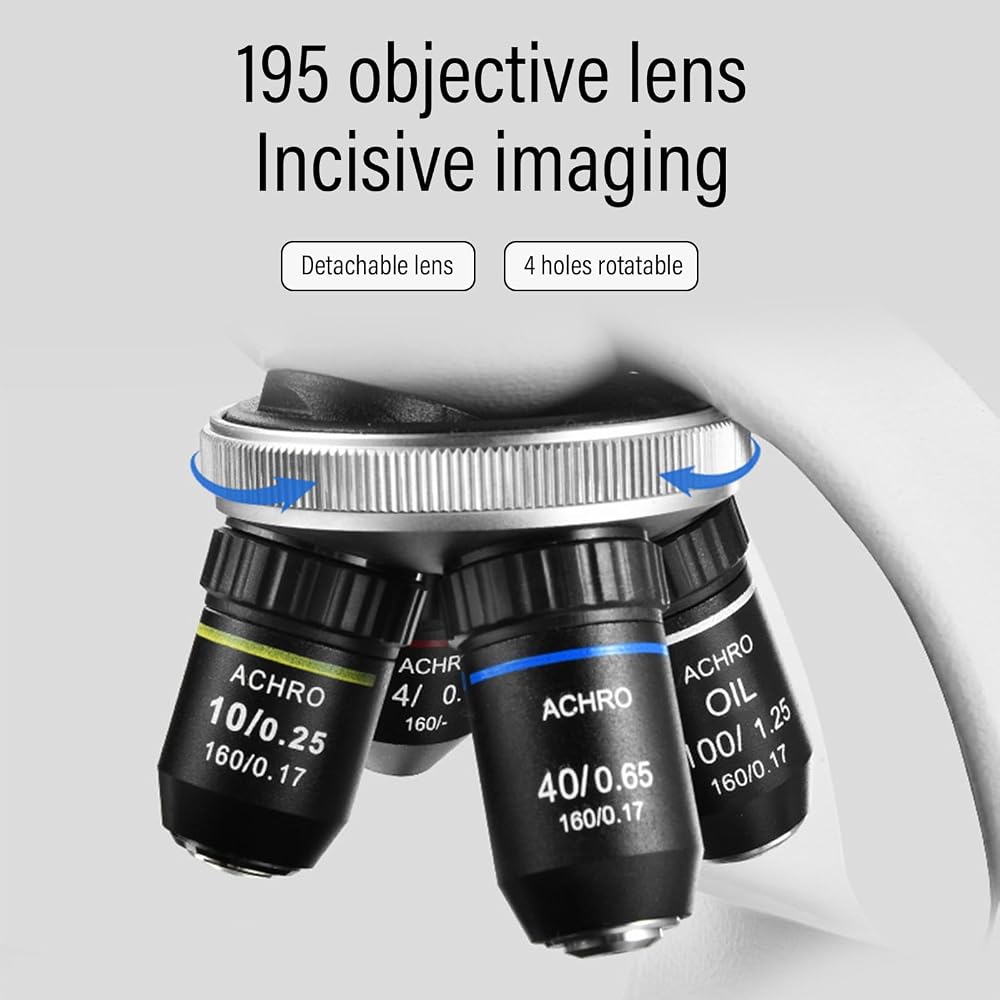

195 Achromatic Objective Lens:
Achromatic 4X/0.1mm, Achromatic 10X/0.25mm, Achromatic 40X/0.65mm (Spring Z), Achromatic 100X/1.25mm (Spring, Oil)
Tube Lens:

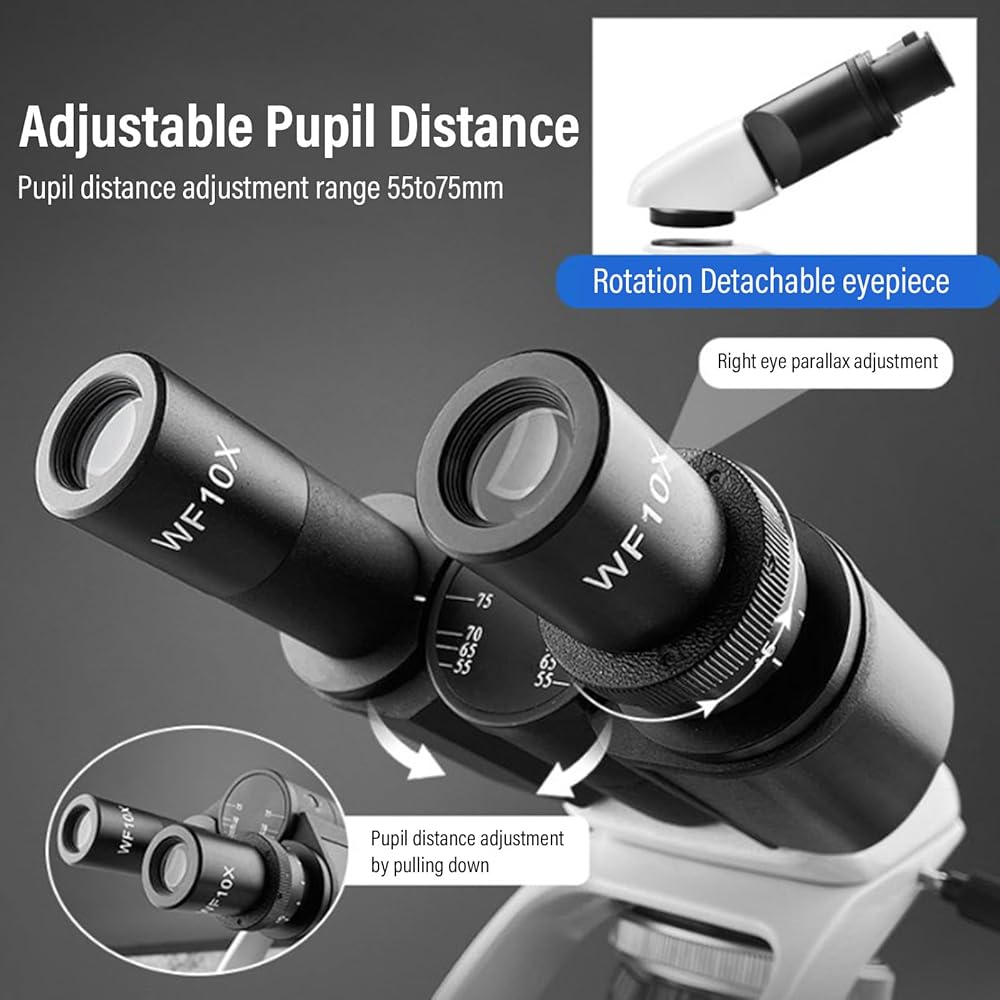

Hinged Freely Trinocular Observation , Pupil Distance 55-75mm; 45° Inclined, 360° Rotatable

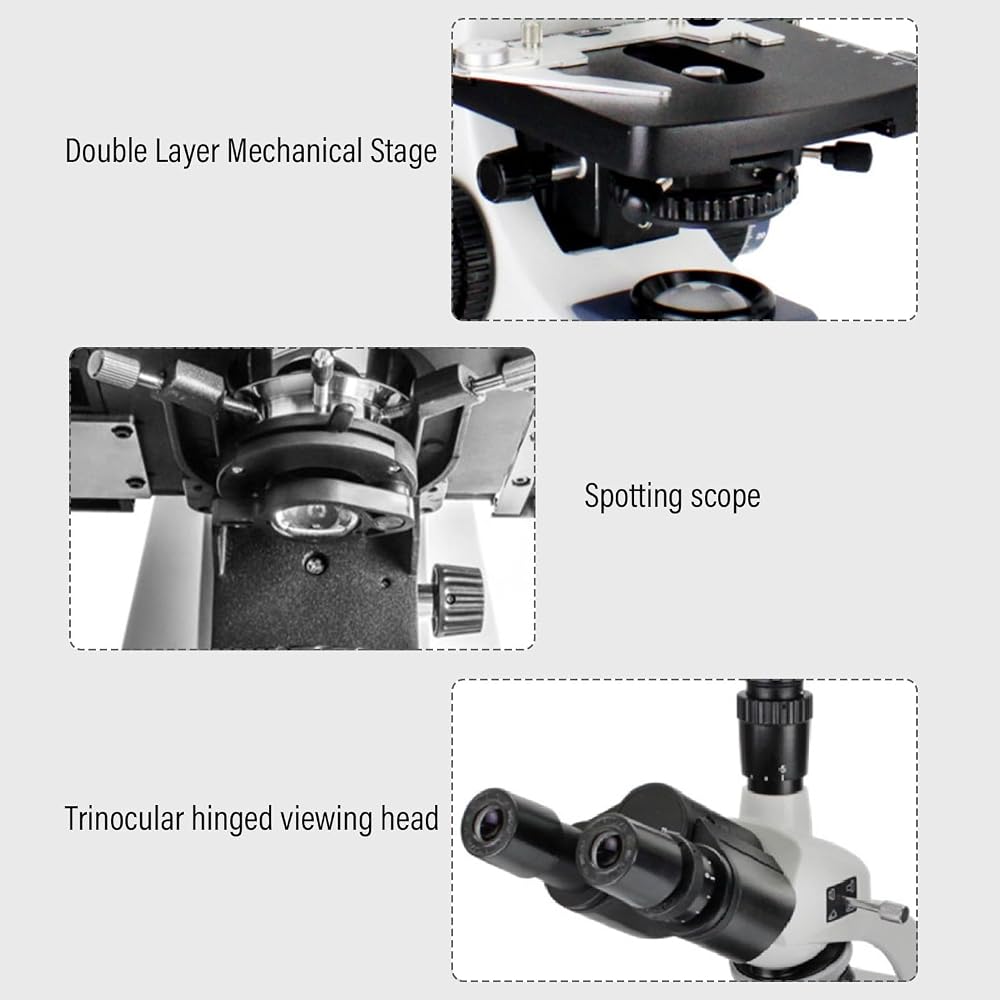

Stage:

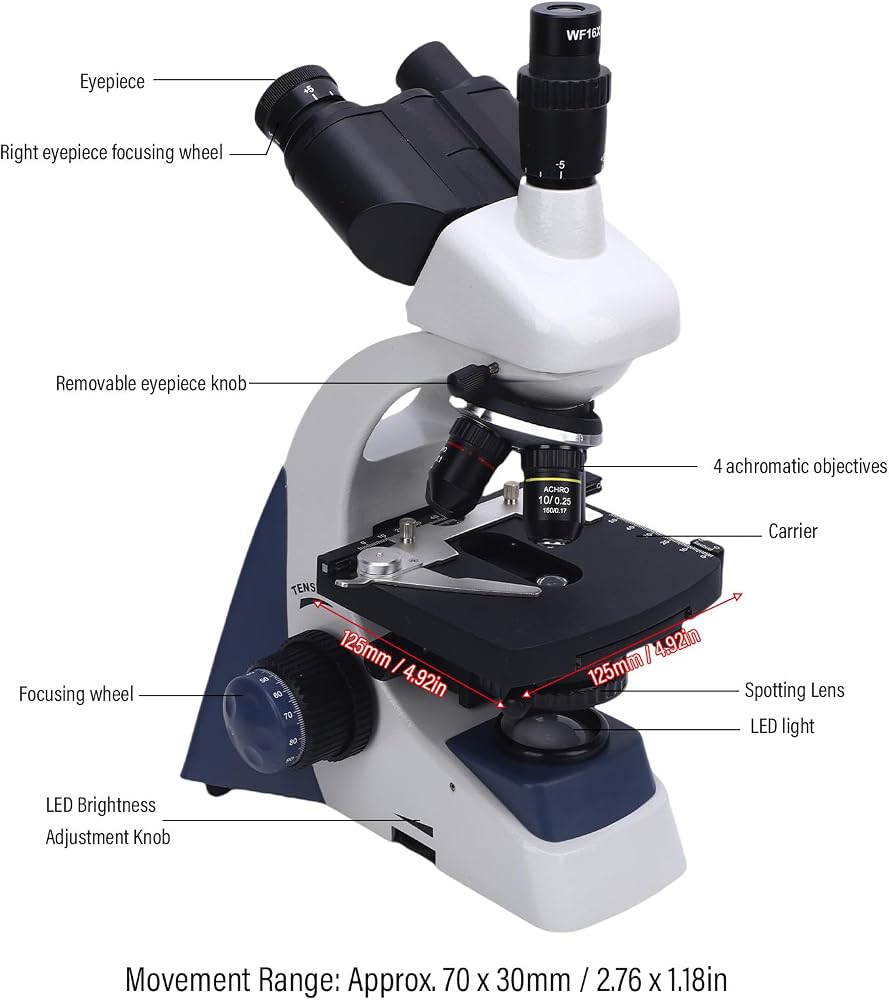

Double Layer Mechanical Stage: Approx. 125 x 125mm / 4.92 x 4.92in
XY Range: Approx. 70 x 30mm / 2.76 x 1.18in
Condenser:
Abbe Condenser: NA1.25; Diameter 2-30mm Variable Aperture and Diameter 32 Filter
Focusing:
Coarse, Fine coaxial focusing mechanism, with limit device, Fine Division Value 4um

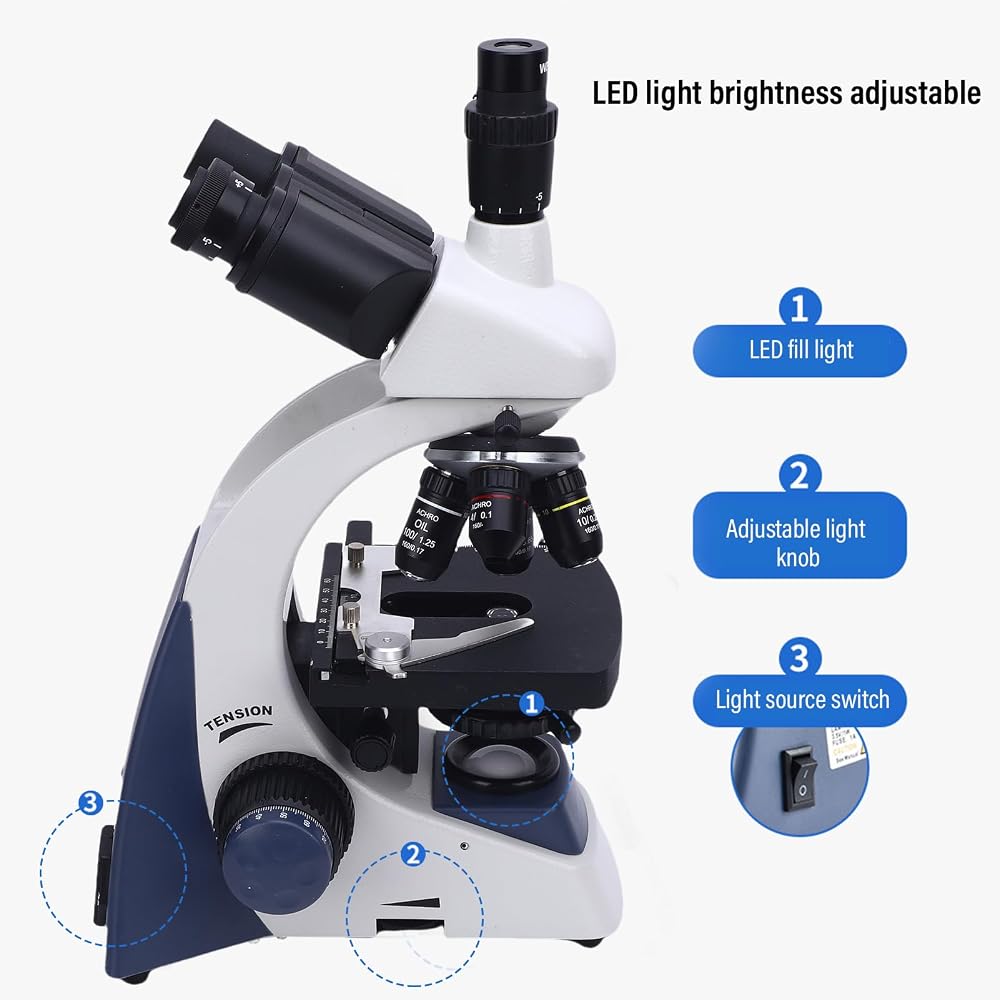

Illumination Converter:
Built in adjustable brightness 3W LED light
Four hole (outward ball outer positioning)

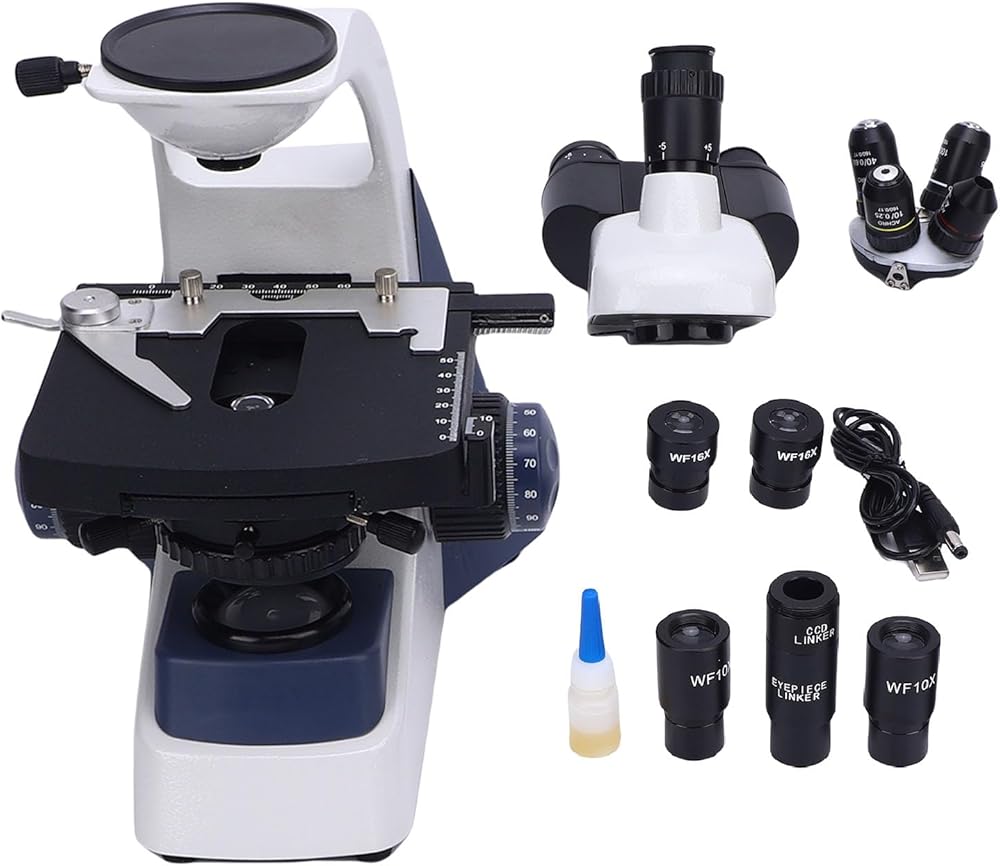

Package List:
1 x Microscope Body
1 x Achromatic Objective Lens
2 x WF16x Eyepiece
2 x WF10x Eyepiece
1 x Eyepiece Tube
2 x Transfer Interface
1 x User Manual
1 x Cedarwood Oil
1 x DC Cable

How To Use:
Direct installation and use
