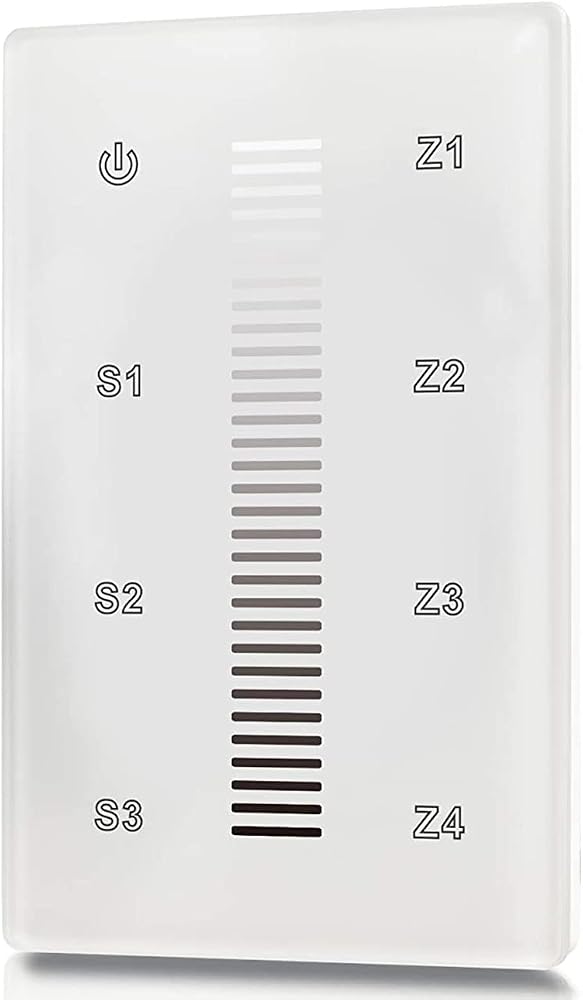

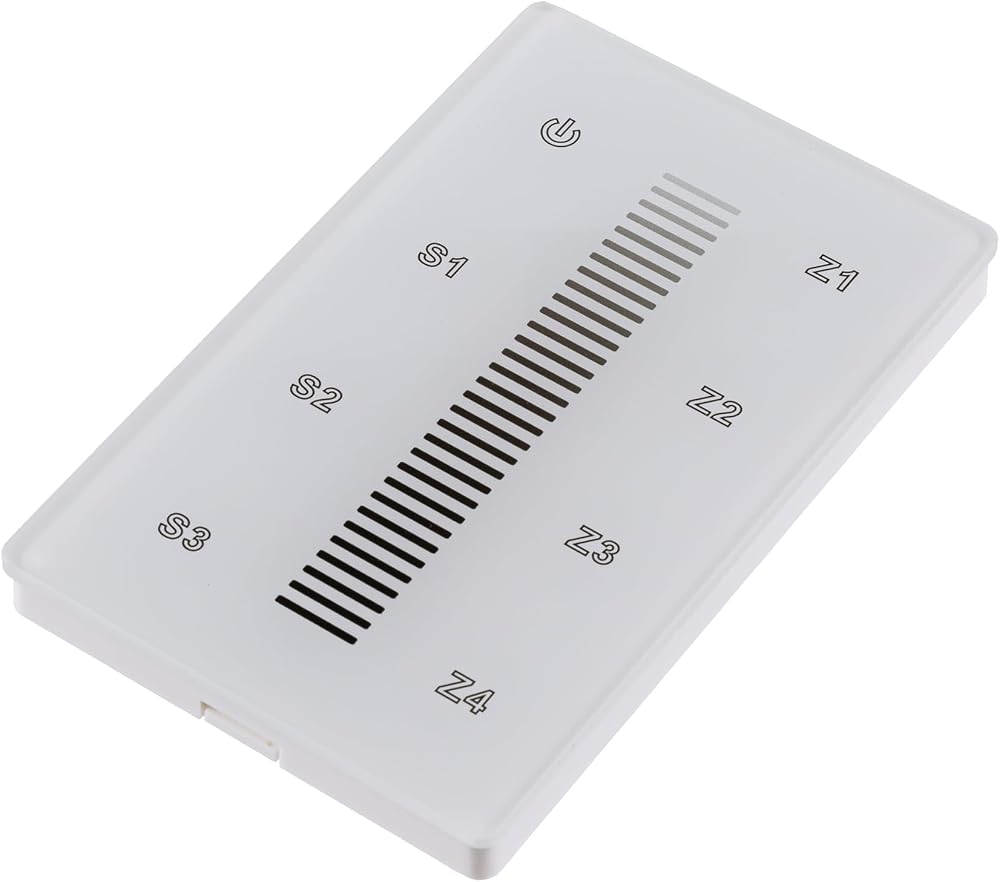

This DMX512 LED Touch Wall mount controller was designed under standard protocol DMX512 (1990) offering both switch on/off and smooth brightness dimming functions for multiple zones. Adopting a high strong ultra-sensitive touch glass panel and designed with a touch color line, the DMX512 master controller features accurate, smooth dimming and switching functions without flickering. Each dimmer can control 4 different zones separately or synchronously with endless decoders in each zone, and 3 brightness or scenes can be saved for each zone.
Product Features:

Touch-sensitive Wall Mount Controller
Glass Interface
Control Single Color LEDs (Color & White)
DMX512 Output Signal
Stand Alone
256 Level Dimming Function
16 DMX Channels (4 Channels per Zone)
Fixed Starting Addresses
Control 4 Zones Synchronously & separately
3 Scenes per Zone
Compatible with all universal series RF receivers, radio frequency: 916.5MHz
Fits a single gang junction box
12-24V DC
SKU:
White: SR-2830A-DMX-US WD
Dimensions (L x W x H): 5.80 x 3.00 x 1.10 inch
Product Weight: 5.6 oz
DMX Address Setting:Zone 1 - Starting Address 001
Zone 2 - Starting Address 005
Zone 3 - Starting Address 009
Zone 4 - Starting Address 013
Box Content:Wall Mount Controller
Mounting Screws
Datasheet
