5Pcs Five Direction Navigation Button Module for MCU AVR Game 5D Rocker Joystick Independent Keyboard Switch Button with Dupont Cable for Arduino

SAR 53
Brand
DAOKAI
Weight
31 g
– 1 +

Special Features

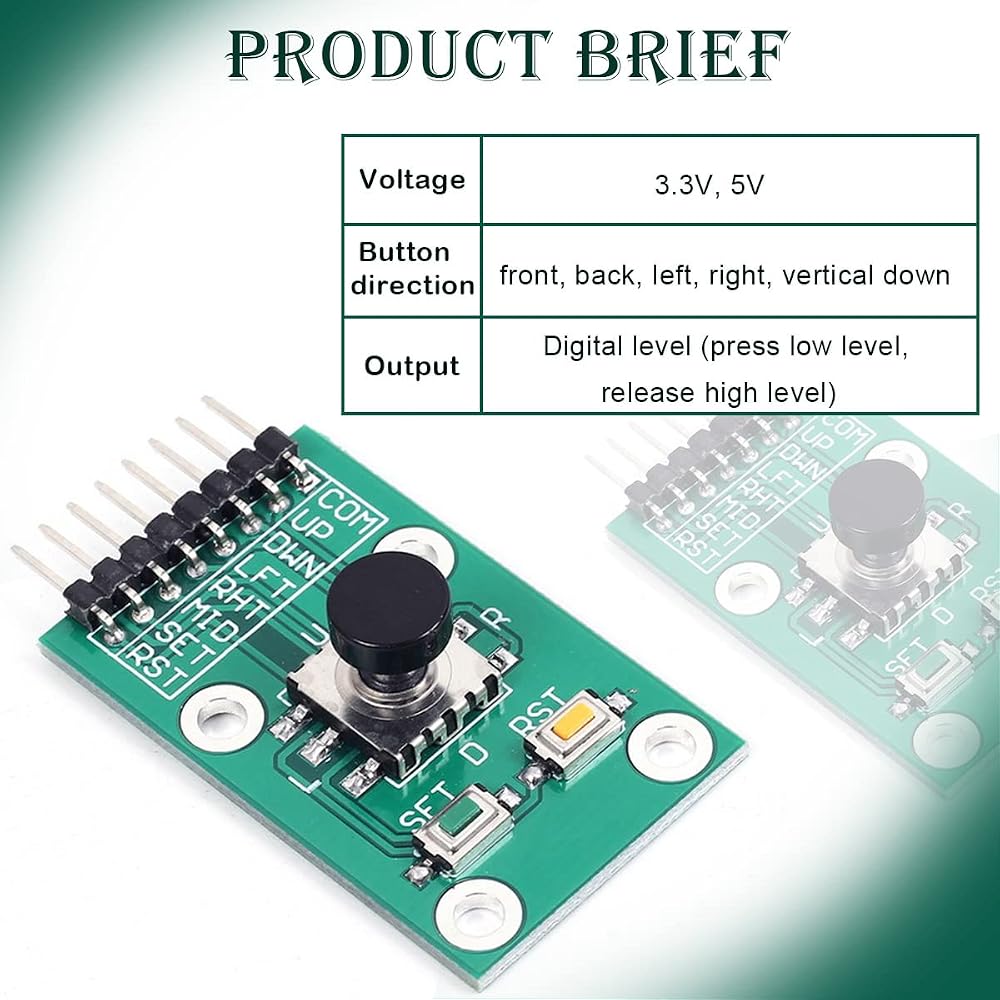

  • 🔘[Product specification]Compatiable with 3.3V and 5V. Operating voltage is 2.0V to 9.0V. Module Size: 41 x 25mm/1.61x0.98in; Operating temperature: -40℃- 85℃.
  • 🔘[Compatibility]5 direction navigation button module has 2V-9V wide working voltage and all pins (7 IO) port pinout compatible for most MCU development board.
  • 🔘[Direction]5D navigation key module support up, down, left, right, and center click 5 directions with extra set and reset button.

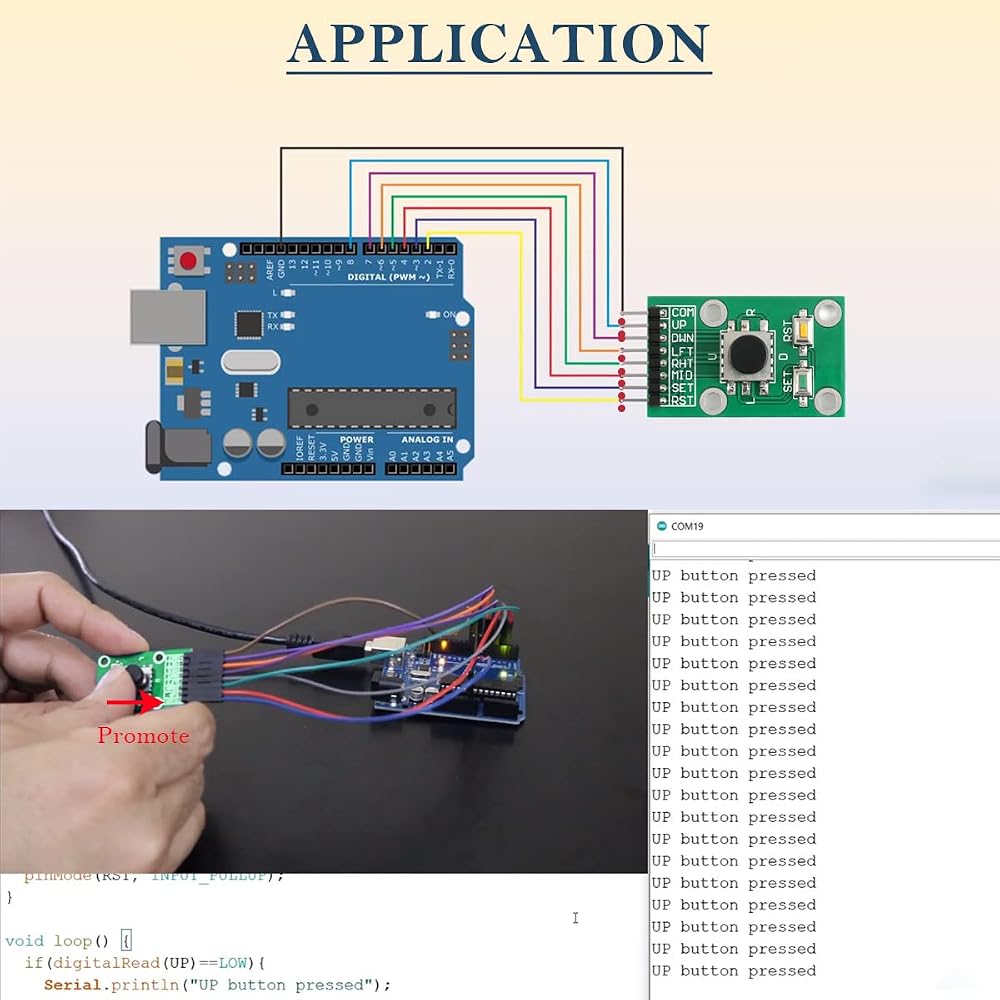

  • 🔘[Application] Five Direction Navigation Button Module for 5D Rocker Joystick Inde MCU AVR Game. Suitable for experiments, electronic design, DIY and other occasions.
  • 🔘[Package includes]You will get 5 x Five Direction Navigation Button Module, 1 x 40Pin Female to Male Dupont Cable.

Description

Description:
Operating Temperature: -40℃To 85℃
Supply Voltage: 2.0V-9.0V
Dissipation Power: none
Condition: New
Type: Logic ICs
Application: Computer
The number of IO: 7

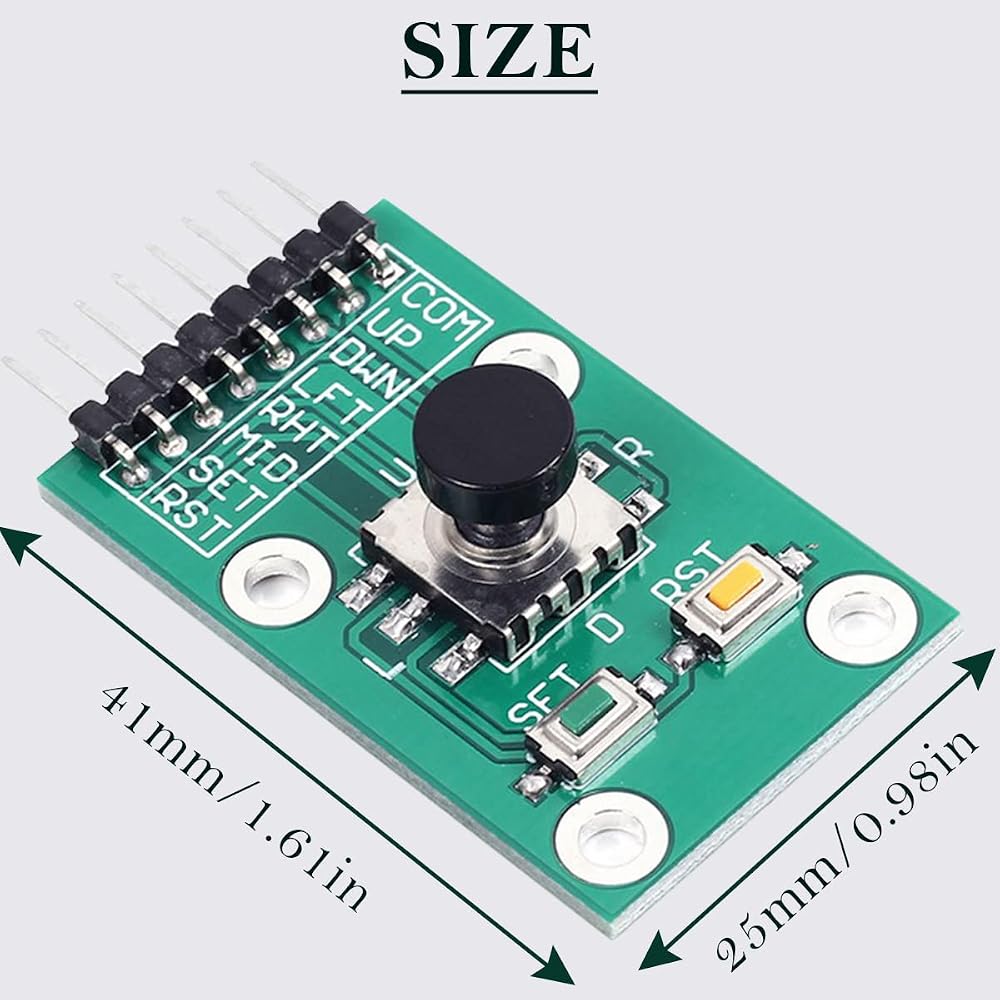

Size: 25mmx41mm/0.98 x 1.61inch

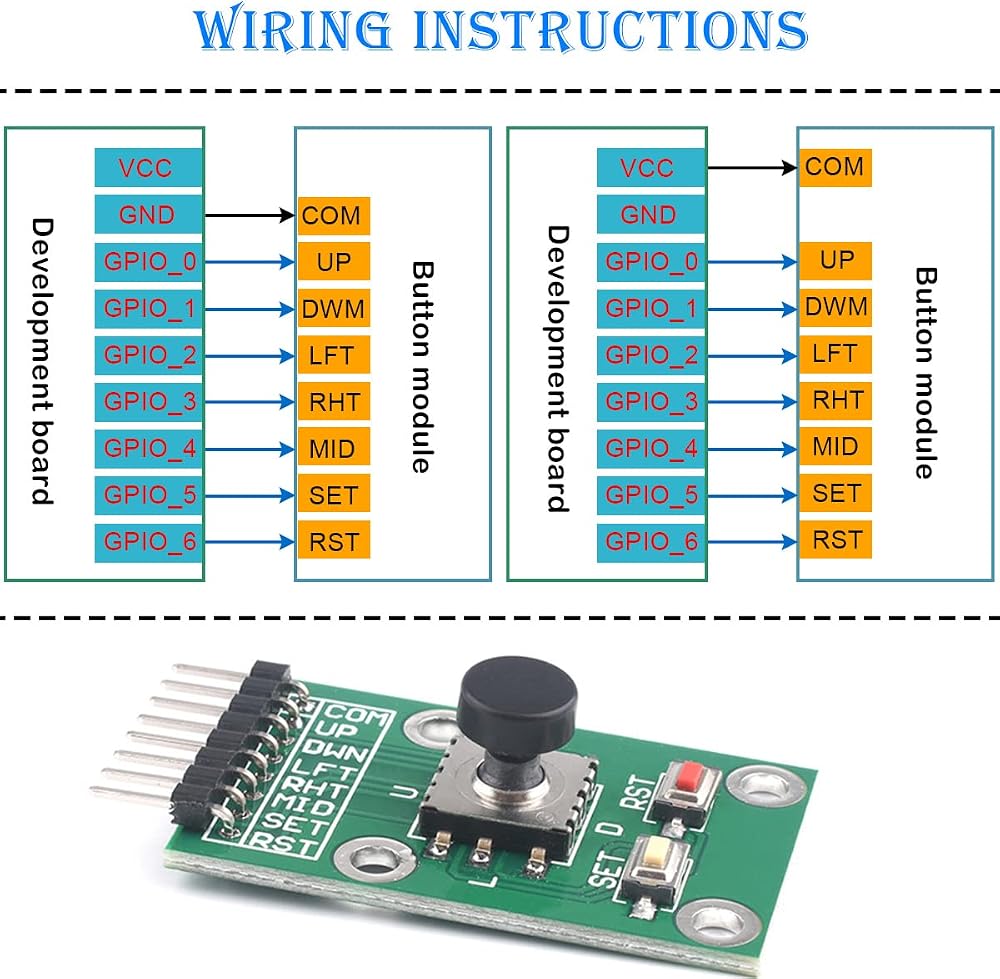

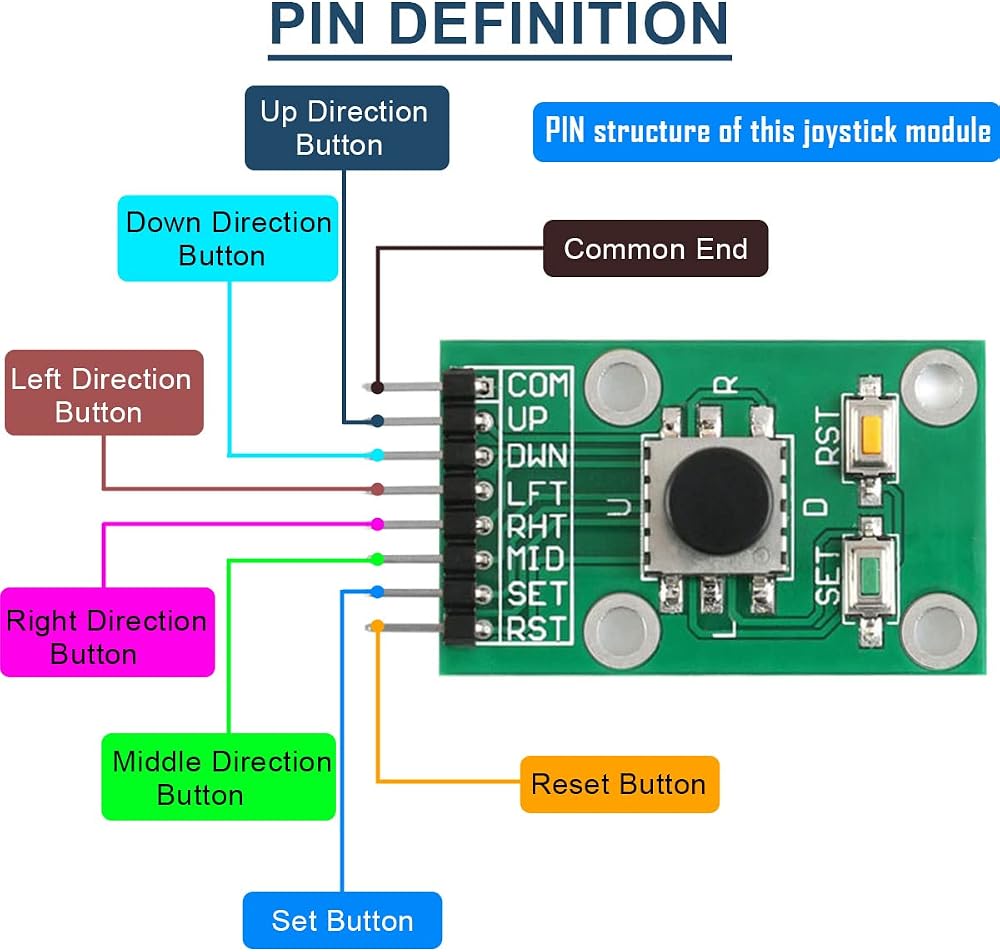

Pin Description:
1. COM (Common end): VCC or GND connected to the MCU development board
2. UP (Up direction button): Connect to IO pin of the MCU
3. DWN (Down direction button): Connect to IO pin of the MCU
4. LFT (Left direction button): Connect to IO pin of the MCU
5. RHT (Right direction button): Connect to IO pin of the MCU
6. MID (Middle direction button): Connect to IO pin of the MCU
7. SET (Set button): Connect to IO pin of the MCU
8. RST (Reset button): Connect to IO pin of the MCU

Feature:

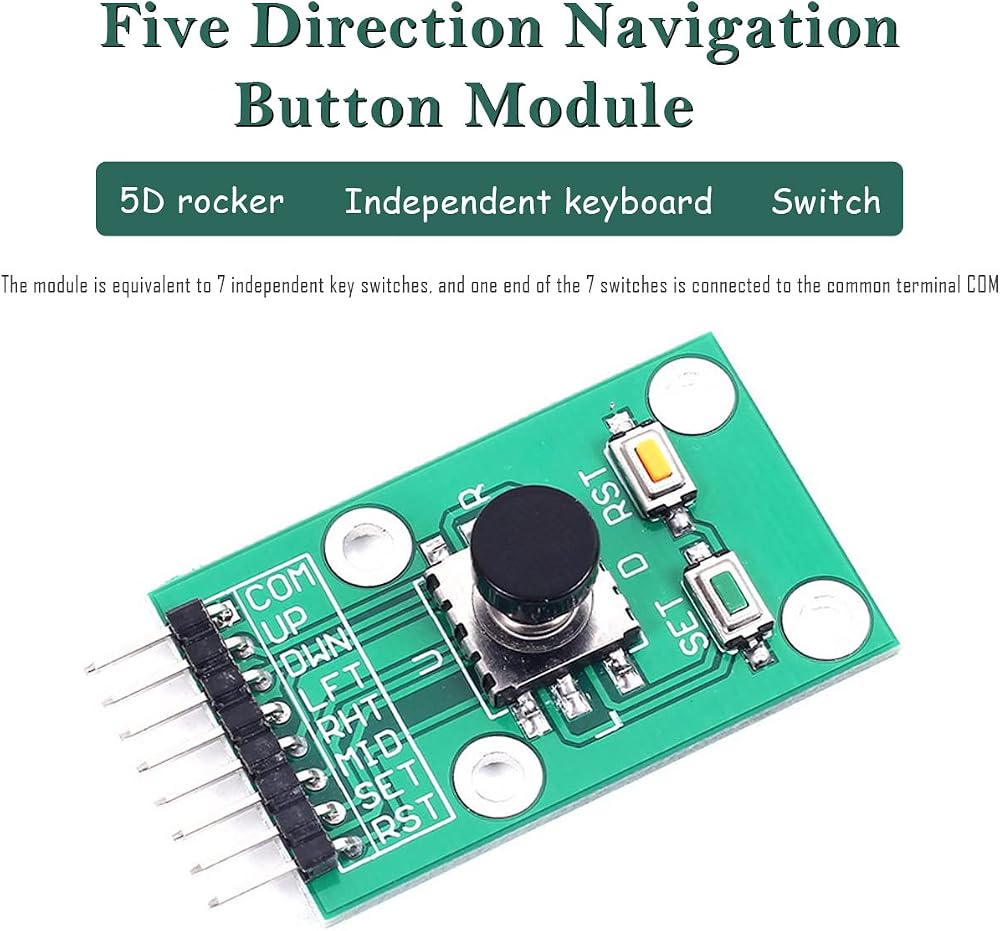

5D navigation key module support up/down/left/right/middle 5 directions with extra set and reset button.
5 direction navigation button module has 2V-9V wide working voltage and all pins (7 IO) port pinout compatible for most MCU development board.

Package includes:
5 x Five Direction Navigation Button Module

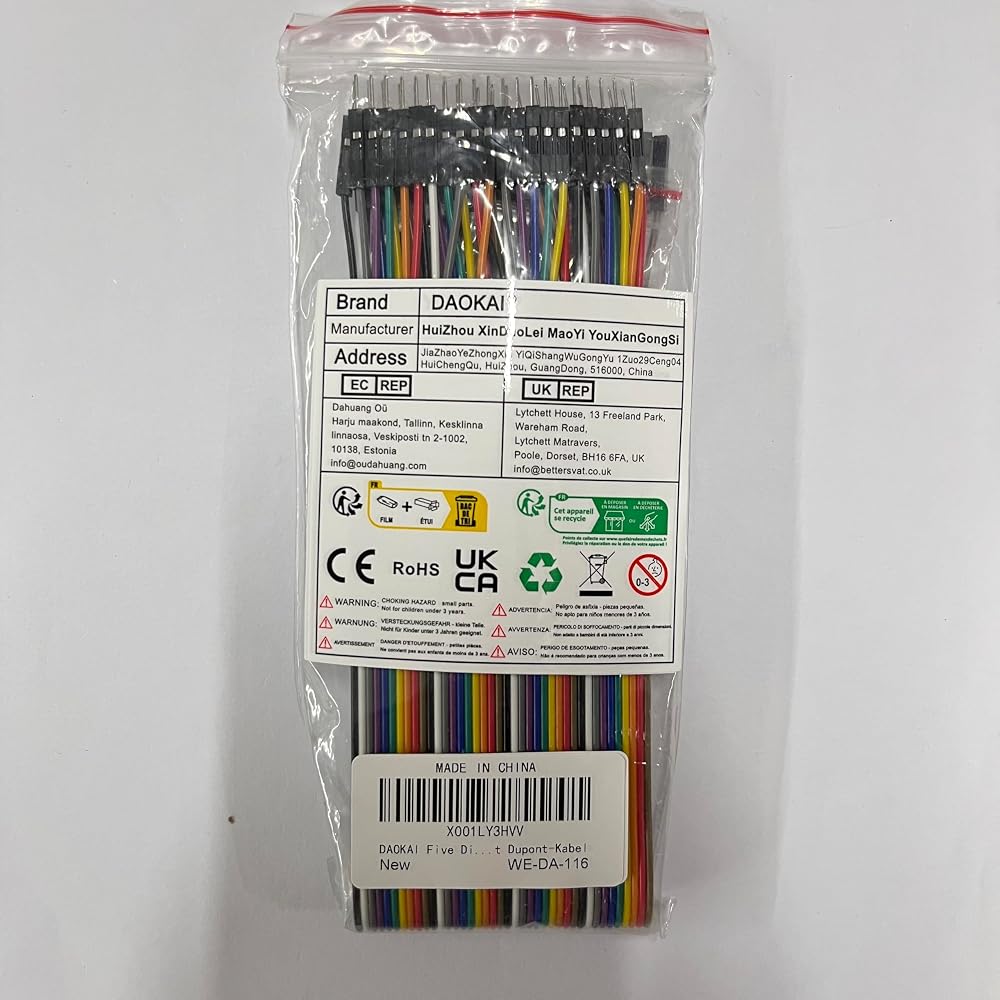

1 x 40Pin Female to Male Dupont Cable
