Feature:

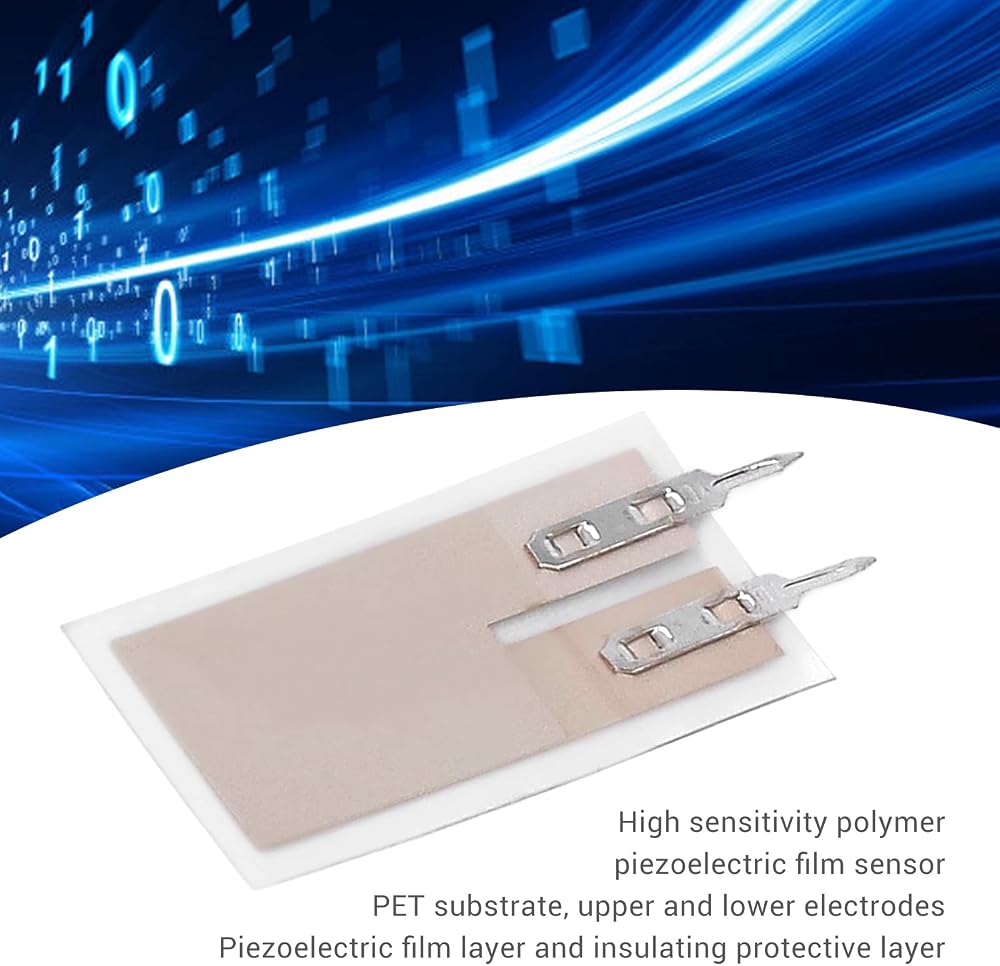

1. MULTI-LAYER: This is a high-sensitivity piezoelectric polymer film sensor, which consists of a PET substrate, upper and lower electrodes, a piezoelectric film layer, and an insulating protective layer 2. MEASURE PHYSIOLOGICAL AND PHYSICAL : Can be used to measure physiological such as heart rate, pulse, respiration, and monitor physical phenomena such as vibration and shock 3. SENSITIVE AND STABLE: This sensor features thin thickness, light weight, high sensitivity, low acoustic impedance and high stability 4. FLEXIBLE WITH HIGH BIOCOMPATIBILITY: The flexible piezoelectric film sensor has a wide frequency response range, large dynamic range, good flexibility and high biocompatibility
5. GOOD CHEMICAL RESISTANCE: The piezoelectric pressure transducer is chemical resistant, environmentally friendly and to use
Application:

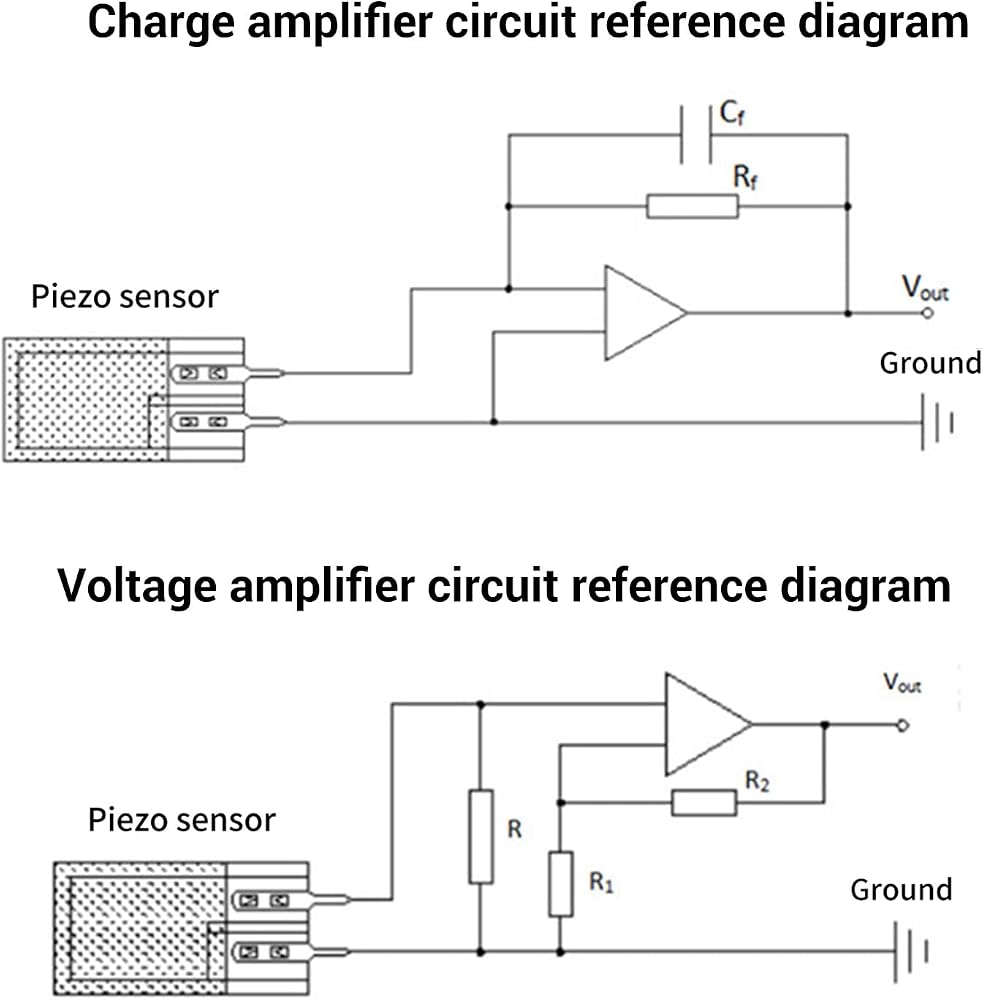

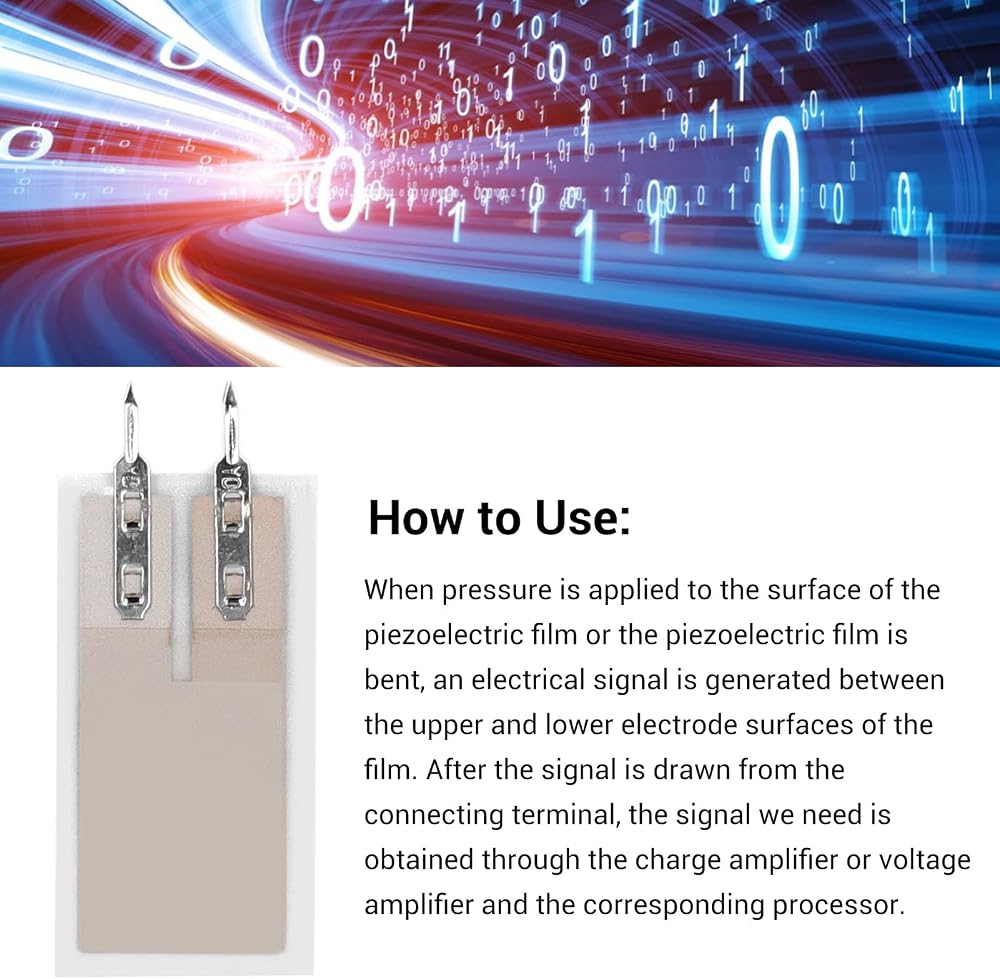

When pressure is applied to the surface of the piezoelectric film or the piezoelectric film is flexed, an electrical is generated between the top and bottom electrode surfaces of the film. After the is pulled from the terminal, the required is obtained through the amplifier or voltage amplifier and the appropriate processor.
Specification:
Item Type: Flexible Piezoelectric Film Sensor
Material: High Sensitivity Polymer Usage: Can be used to measure physiological such as heart rate, pulse, respiration and physical phenomena such as vibration and shock Package List:
1 x flexible piezoelectric film sensor
