uxcell Square Flange Linear Ball Bearings 8mm Bore Dia 15mm OD 24mm L 2pcs, Extra Long Linear Ball Bearings 8mm Bore Dia 15mm OD 45mm L 2pcs in Saudi Arabia uxcell Square Flange Linear Ball Bearings 8mm Bore Dia 15mm OD 24mm L 2pcs, Extra Long Linear Ball Bearings 8mm Bore Dia 15mm OD 45mm L 2pcs in Saudi Arabia uxcell Square Flange Linear Ball Bearings 8mm Bore Dia 15mm OD 24mm L 2pcs, Extra Long Linear Ball Bearings 8mm Bore Dia 15mm OD 45mm L 2pcs in Saudi Arabia uxcell Square Flange Linear Ball Bearings 8mm Bore Dia 15mm OD 24mm L 2pcs, Extra Long Linear Ball Bearings 8mm Bore Dia 15mm OD 45mm L 2pcs in Saudi Arabia uxcell Square Flange Linear Ball Bearings 8mm Bore Dia 15mm OD 24mm L 2pcs, Extra Long Linear Ball Bearings 8mm Bore Dia 15mm OD 45mm L 2pcs in Saudi Arabia

uxcell Square Flange Linear Ball Bearings 8mm Bore Dia 15mm OD 24mm L 2pcs, Extra Long Linear Ball Bearings 8mm Bore Dia 15mm OD 45mm L 2pcs

SAR 81
Brand
uxcell
Weight
109 g
– 1 +

Special Features

  • Features: Model: LM8UU (Nominal Shaft Diameter (dr): 8mm, Outer Diameter (D): 15mm, Total Length (L): 45mm); Model: LMK8UU (Nominal Shaft Diameter (dr): 8mm, Outer Diameter (D): 15mm, Total Length (L): 24mm)
  • Linear Motion Bearing (also called Ball Bushing or Shaft Guiding) is a rolling friction supporting element that usually used for linear motion mechanical parts with small friction.
  • Coordinate with Linear Motion Shaft, recirculating balls provide unlimited stroke at low friction movement, permit temperature within 80 degree Celsius.
  • Smooth moving, low friction, high rigidity and long working life
  • Suitable for kinds of electronic equipment/guide bar.

Description

Specifications:

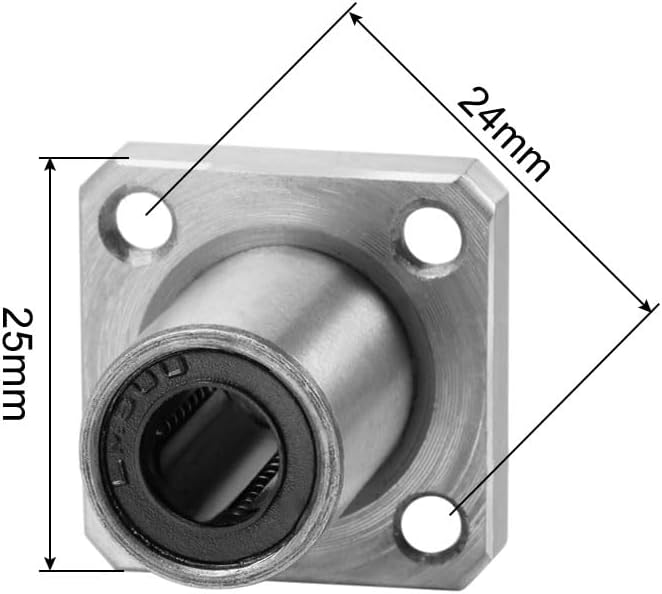

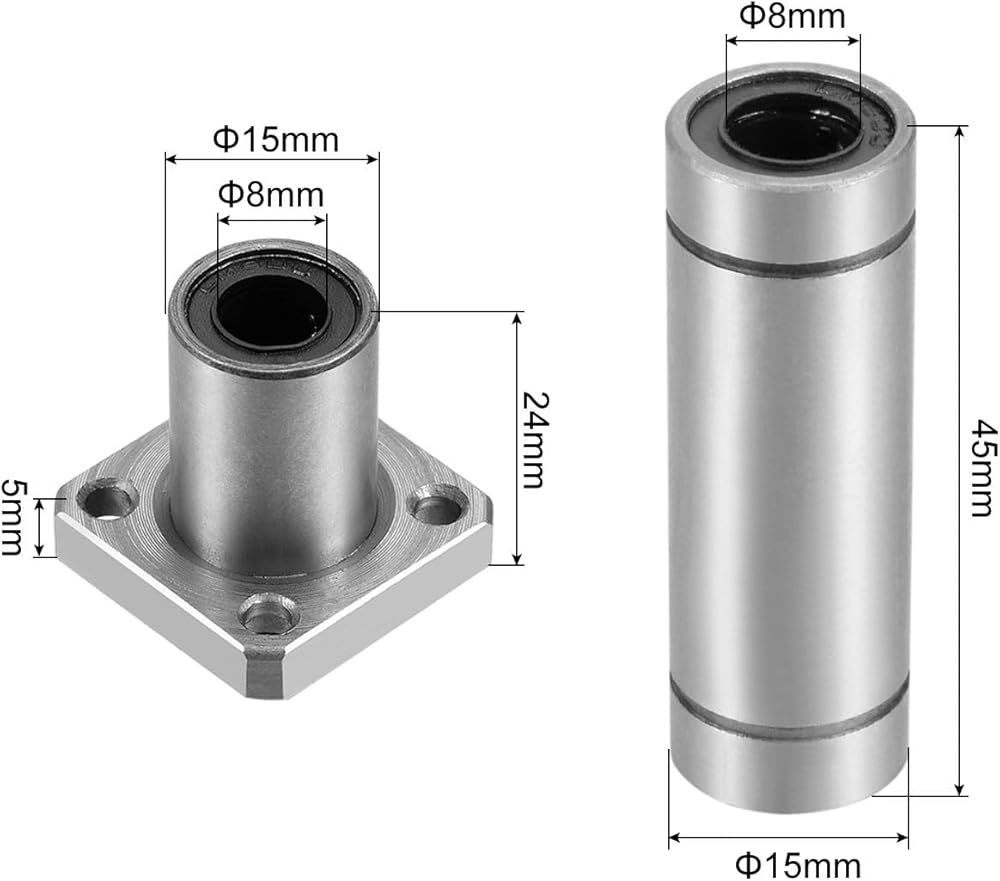

LMK8UU Square Flange Linear Ball Bearings:
Nominal Shaft Diameter (dr): 8mm
Outer Diameter: 15mm
Total Length (L): 24mm
Mounting Hole Dia.: 3.3 x 6mm / 0.13 x 0.24inch (d1*d2);
Pitch Circle Dia. (PCD): 24mm / 0.94inch;
Flange Size: 25 x 25 x 5mm / 0.98 x 0.98 x 0.2inch (L*W*H)

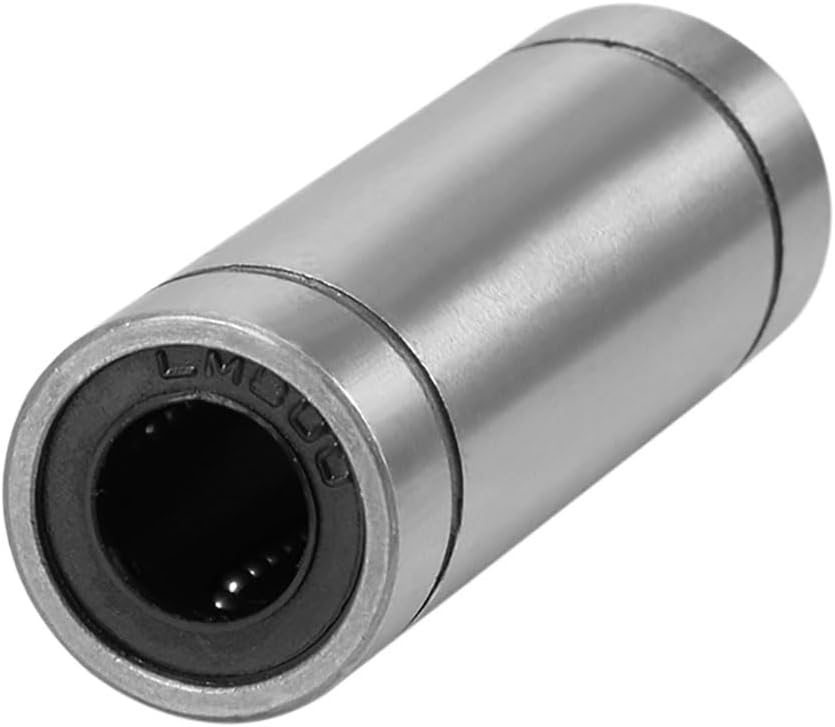

LM8UU Extra Long Linear Ball Bearings
Nominal Shaft Diameter (dr): 8mm
Outer Diameter: 15mm
Total Length (L): 45mm

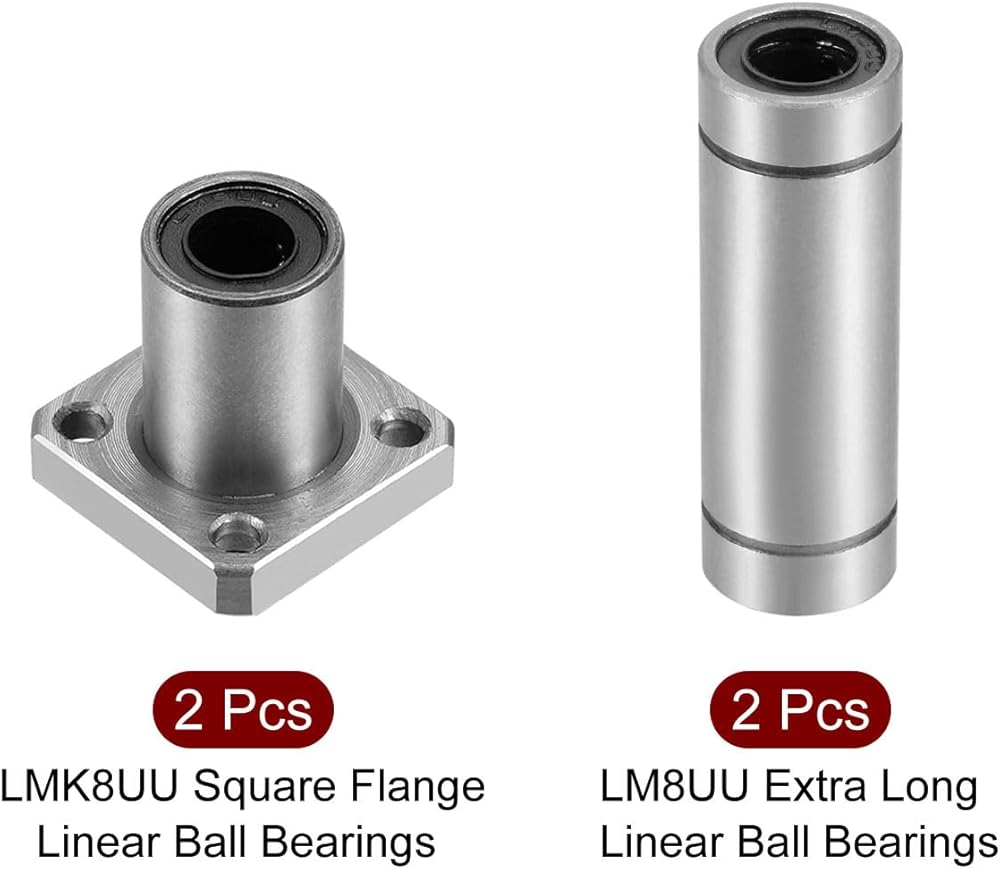

Package Content:
2 x LMK8UU Square Flange Linear Ball Bearings
2 x LM8UU Extra Long Linear Ball Bearings

Description:
Linear Motion Bearing (also called Ball Bushing or Shaft Guiding) is a rolling friction supporting element that usually used for linear motion mechanical parts with small friction.
Coordinate with Linear Motion Shaft, recirculating balls provide unlimited stroke at low friction movement, permit temperature within 80 degree Celsius.
It is great for 3D printer, CNC, and other applications.
