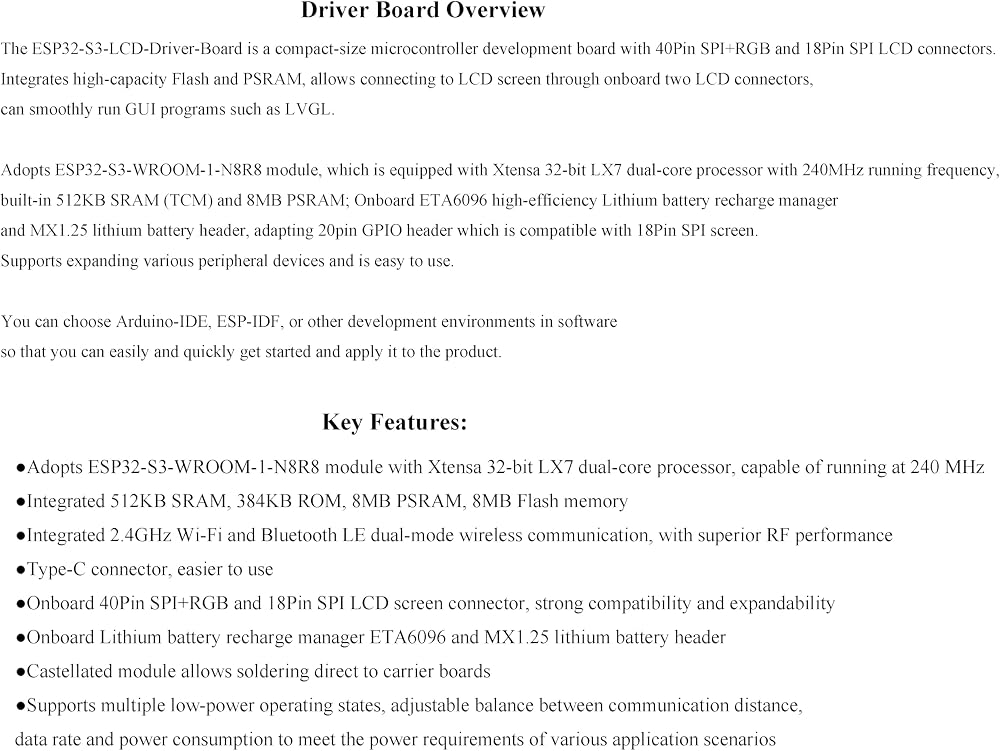

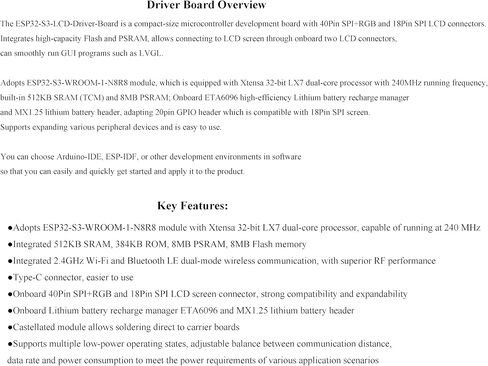

Overview
The ESP32-S3-LCD-Driver-Board is a compact-size microcontroller development board with 40Pin SPI+RGB and 18Pin SPI LCD connectors. Integrates high-capacity Flash and PSRAM, allows connecting to LCD screen through onboard two LCD connectors, can smoothly run GUI programs such as LVGL.

You can choose Arduino-IDE, ESP-IDF, or other development environments in software so that you can easily and quickly get started and apply it to the product.

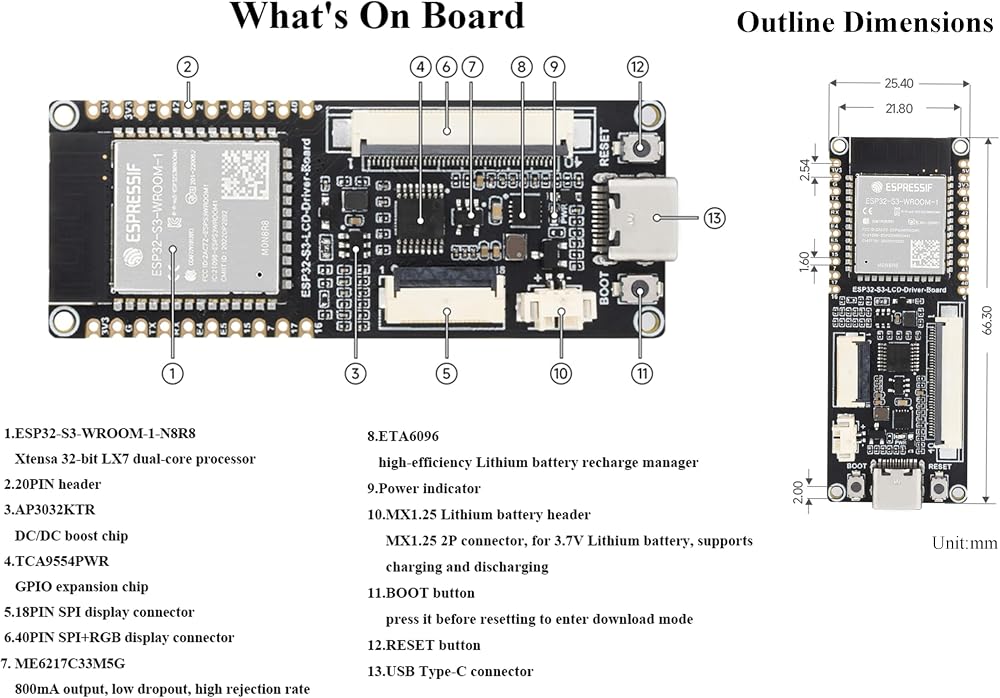

Driver board Features

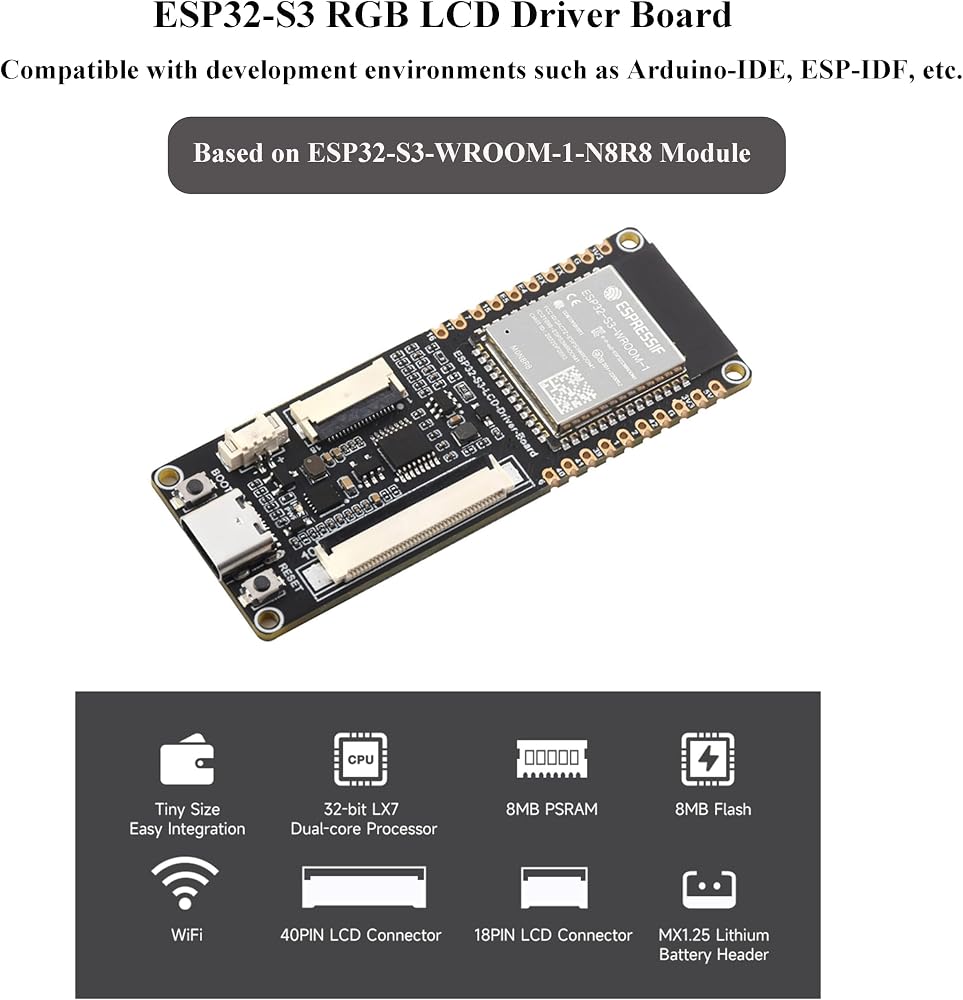

Adopts ESP32-S3-WROOM-1-N8R8 module with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz
Integrated 512KB SRAM, 384KB ROM, 8MB PSRAM, 8MB Flash memory
Integrated 2.4GHz W-i-F-i and Blue-too-th LE dual-mode wire-less communication, with superior RF performance
Type-C connector, easier to use

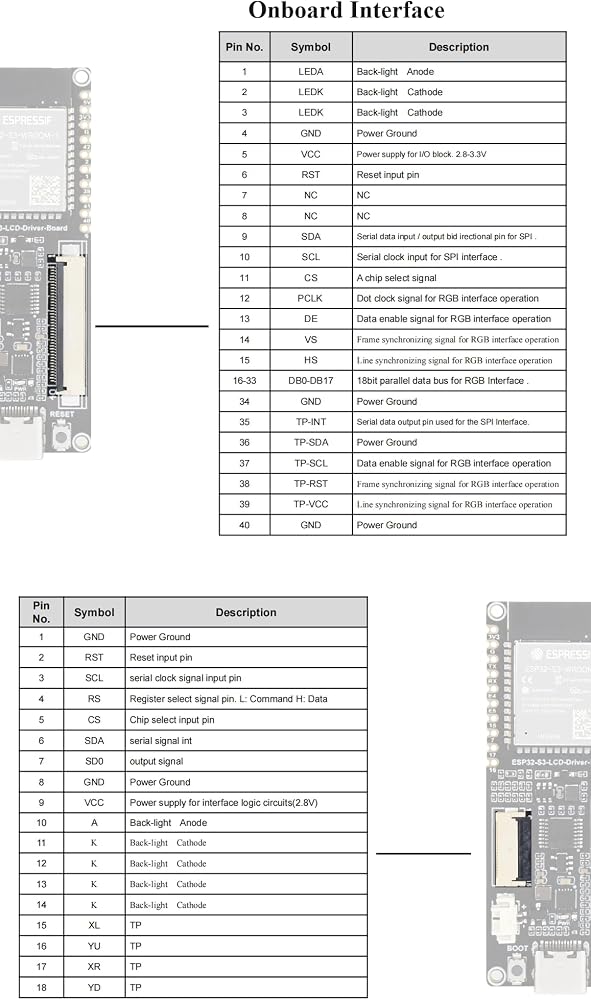

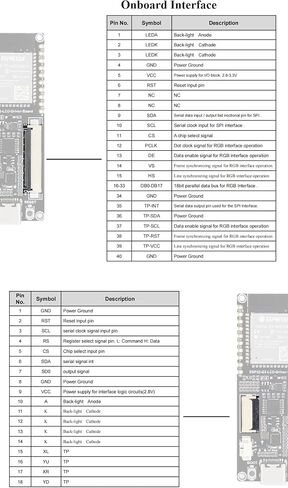

Onboard 40Pin SPI+RGB and 18Pin SPI LCD screen connector, strong compatibility and expandability
Onboard Lith-ium batte-ry recharge manager ETA6096 and MX1.25 lithi-um batte-ry header
Castellated module allows soldering direct to carrier boards
Supports multiple low-power operating states, adjustable balance between communication distance, data rate and power consumption to meet the power requirements of various application scenarios

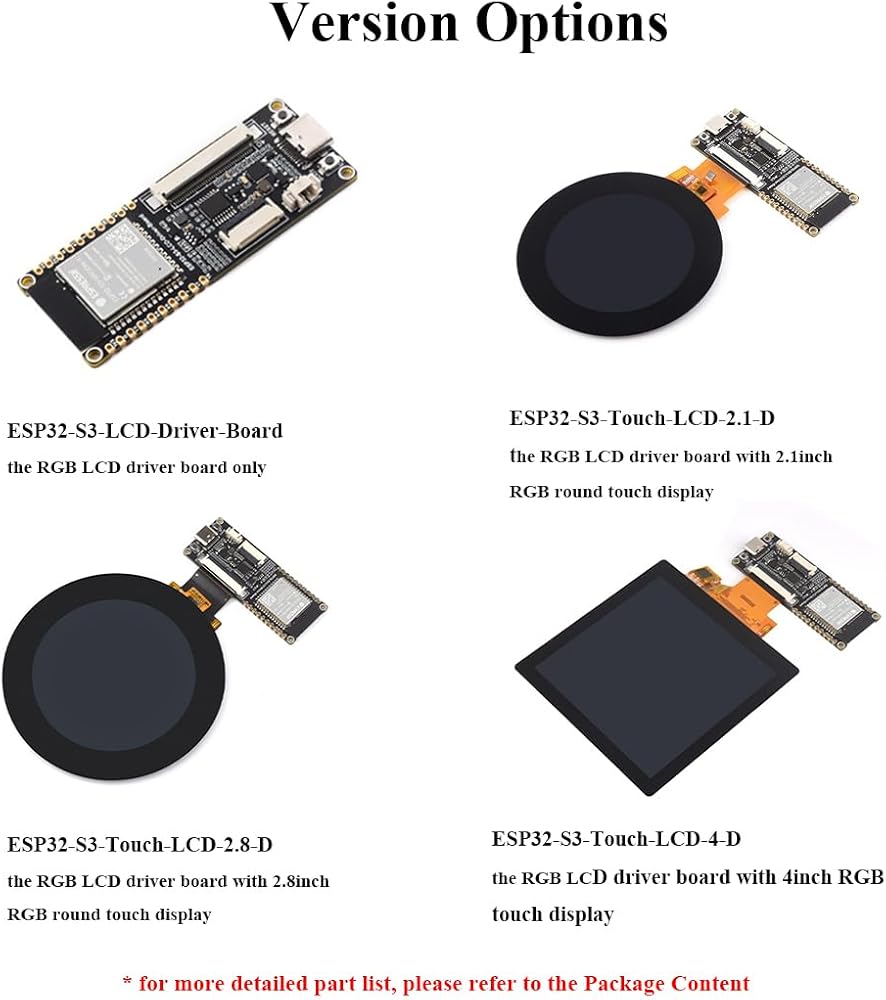

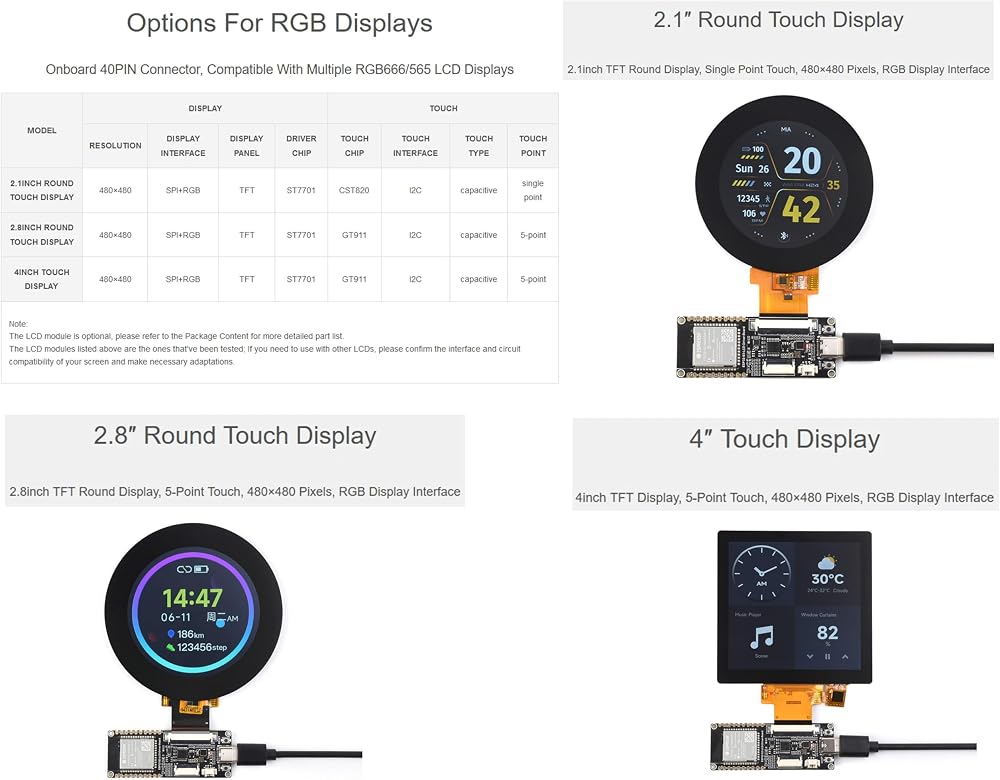

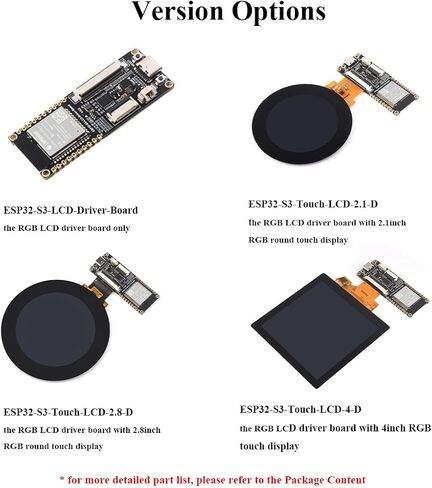

Onboard 40PIN connector, Compatible with multiple RGB666/565 LCD Displays.
For Example:
1) 2.1inch TFT round display, single point touch, 480×480 pixels, RGB display interface
2) 2.8inch TFT round display, 5-point touch, 480×480 pixels, RGB display interface
3) 4inch TFT display, 5-point touch, 480×480 pixels, RGB display interface

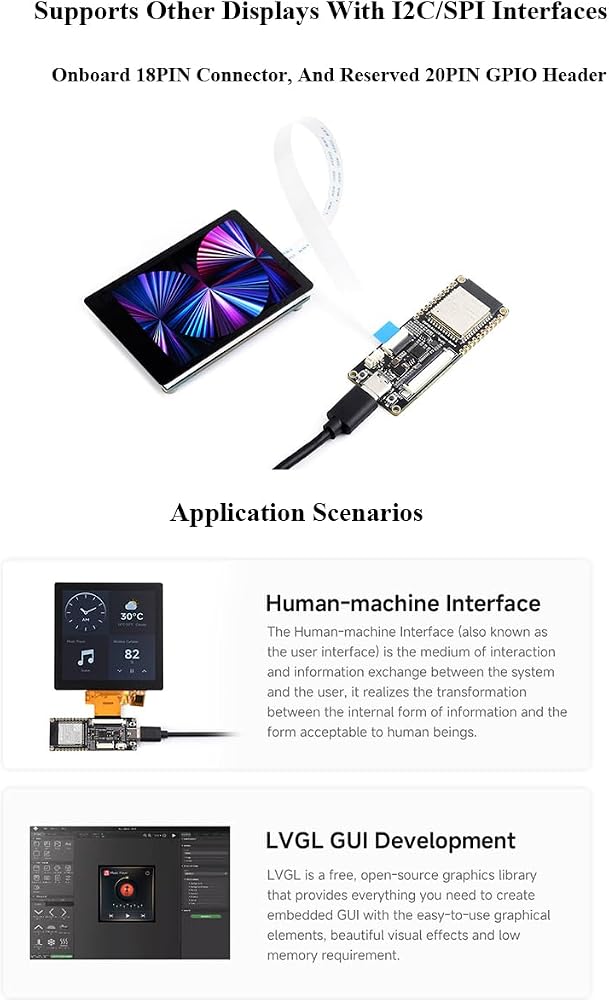

Supports other displays with I2C/SPI interfaces

Onboard 18PIN connector, and reserved 20PIN GPIO header, Such as 2.8inch LCD Touch Display ( B0D78WR3Z5 )

Provide Online Development Resources /User Manual: bit.ly/4bshMUe

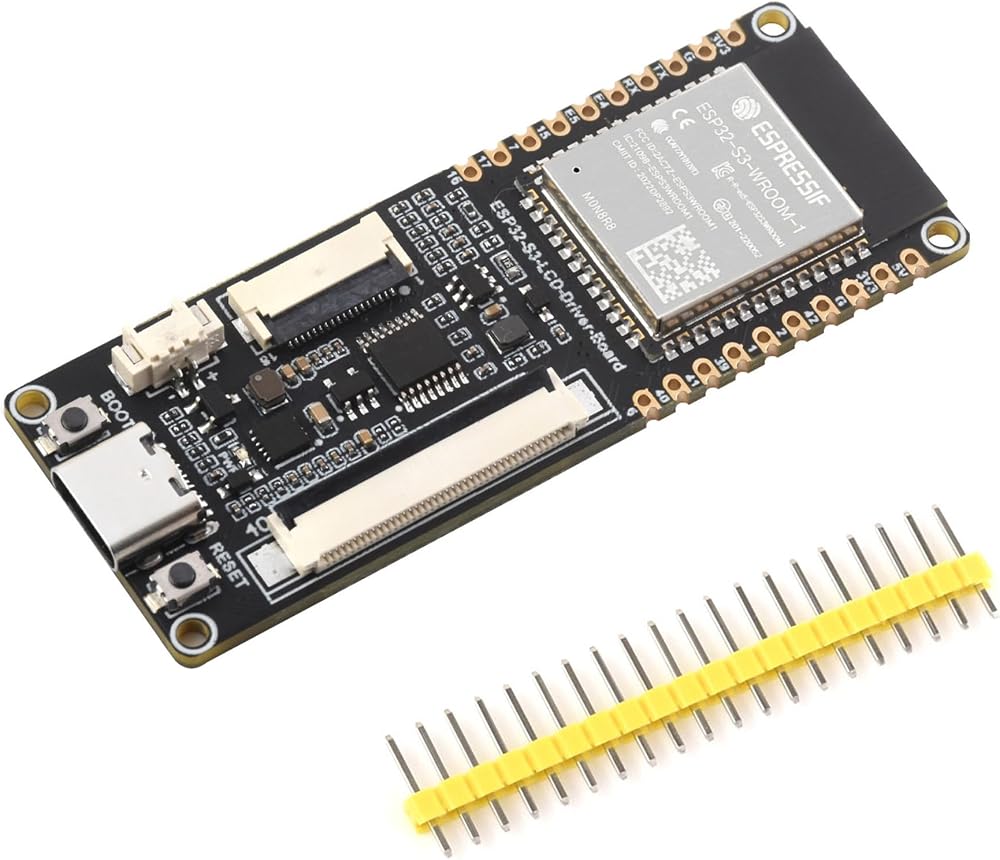

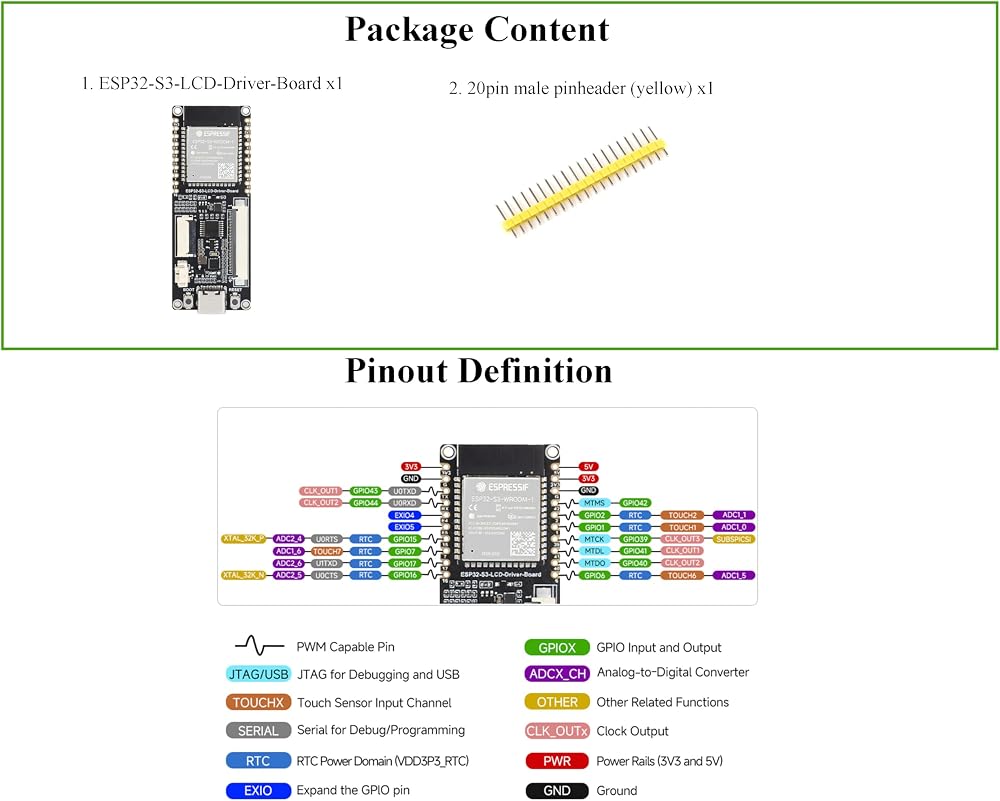

Package Content
ESP32-S3-LCD-Driver-Board x1
20pin male pinheader (yellow) x1
