GY-291 ADXL345 Digital 3 Axis Acceleration of Gravity Tilt Module IIC/SPI Transmission Mini Low Power Consumption with Dupont Cable pinheader for Arduino

Sorry, this product is not available
Brand
DAOKAI
Category
Sensors

Special Features

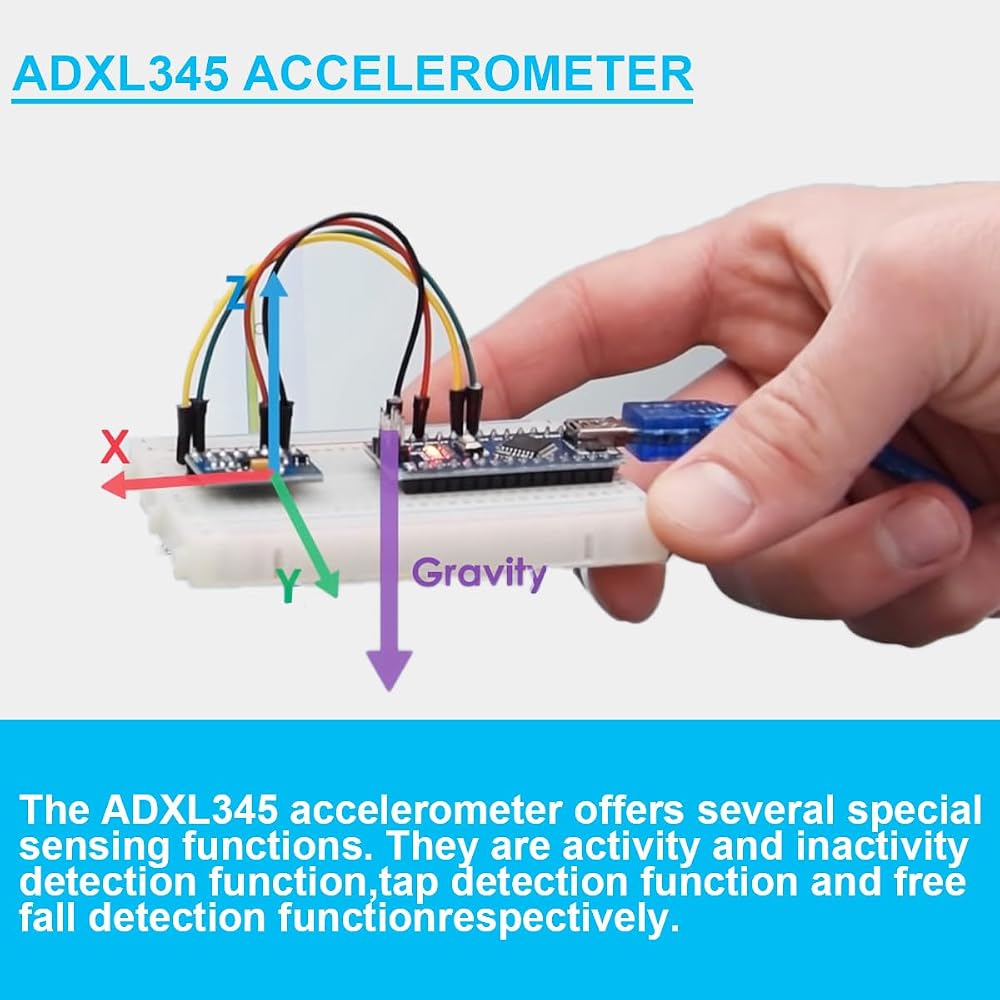

  • WHAT IT DOES: The ADXL345 accelerometer offers several special sensing functions.They are activity and inactivity detection function, tap detection function and free fall detection function respectively.
  • FEATURE: Its high resolution (4 mg / LSB), capable of measuring about 0.25 ° of inclination Angle change.Use ADXL345 digital output acceleration timing, etc., without the need for Analog to digital conversion, reducing system cost and board space.

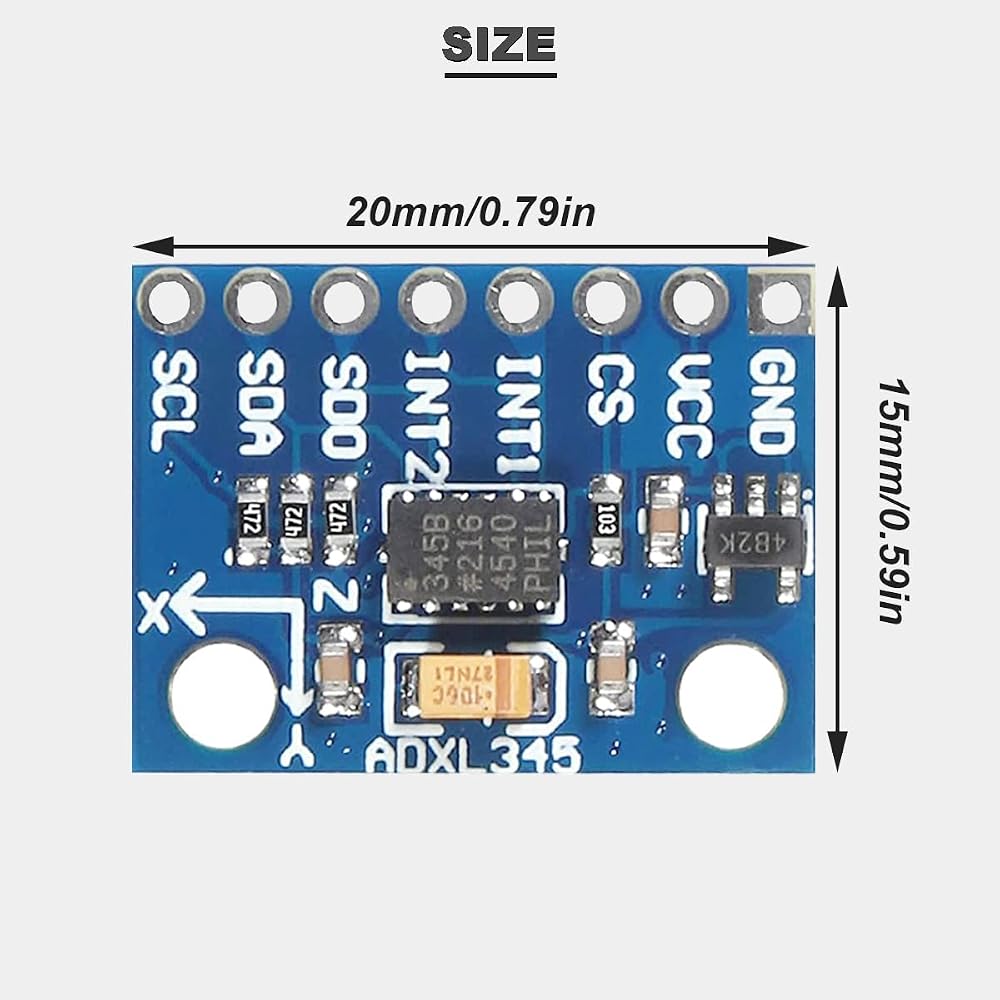

  • SPECIFICATION: Size:20 x 15mm / 0.79 x 0.59inch (LxW);Measuring Range: ±2g /±16g;Power Supply: 3-5V;Ultralow Power: as low as 23 μA in Measurement Mode and 0.1 μA in Standby Mode at VS = 2.5 V (typical).
  • APPLICATION: ADXL345 is Perfect for Mobile Device Applications,Which can Measures Static Gravitational Acceleration in Tilt Detection Applications as well as Dynamic Acceleration Due to Motion or Impact.
  • PRODUCTS INCLUDE: 2 x GY-291 ADXL345 Module;2 x 8-pin header;16 x Male and female DuPont cable.

Description

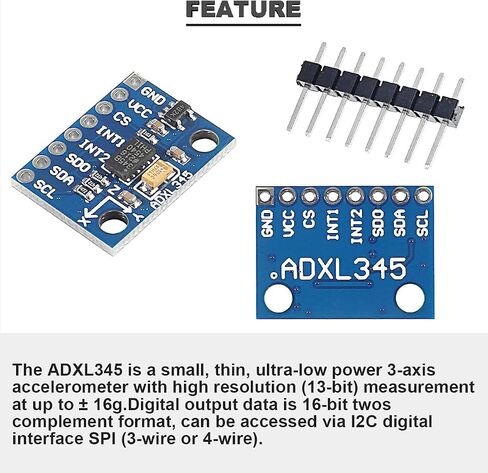

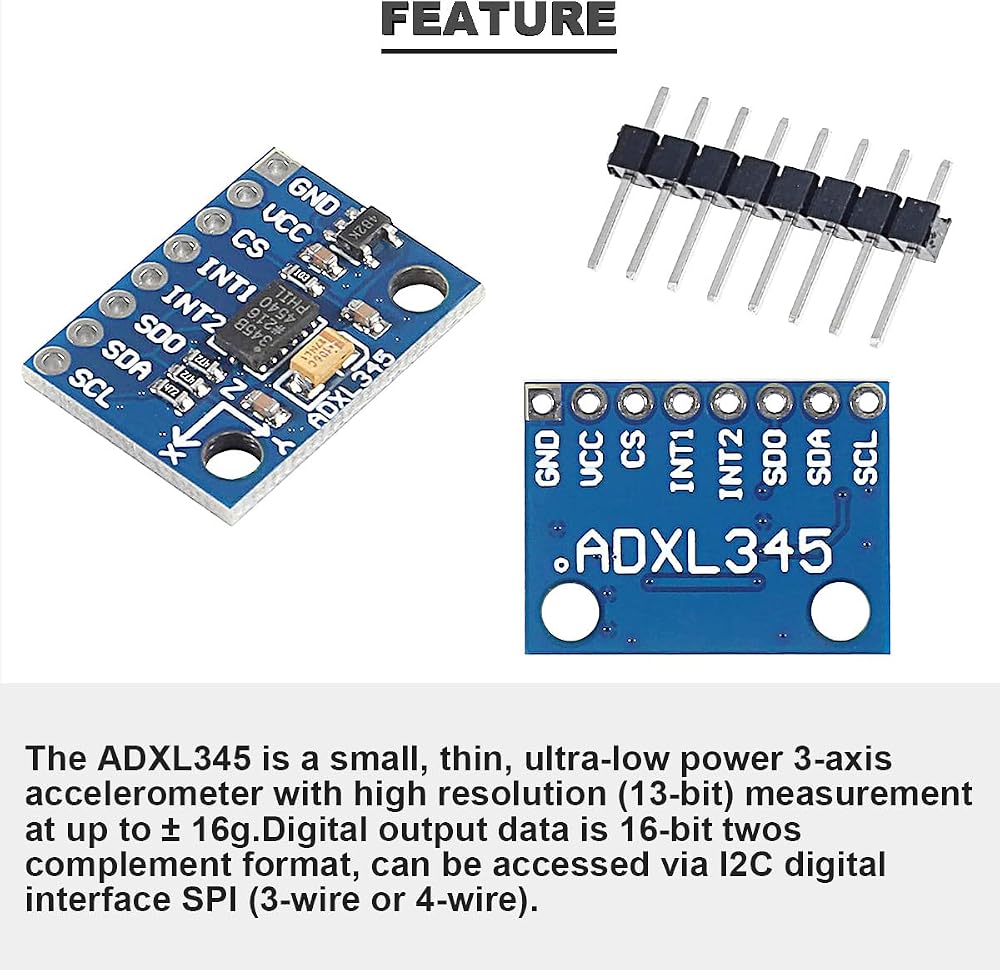

The ADXL345 is a small, thin, ultra-low power 3-axis accelerometer with high resolution (13-bit) measurement at up to ± 16g.Digital output data is 16-bit twos complement format, can be accessed via I2C digital interface SPI (3-wire or 4-wire).

Specification:
Main Chip: ADXL345
Model: GY-291
Power Supply: 3-5V

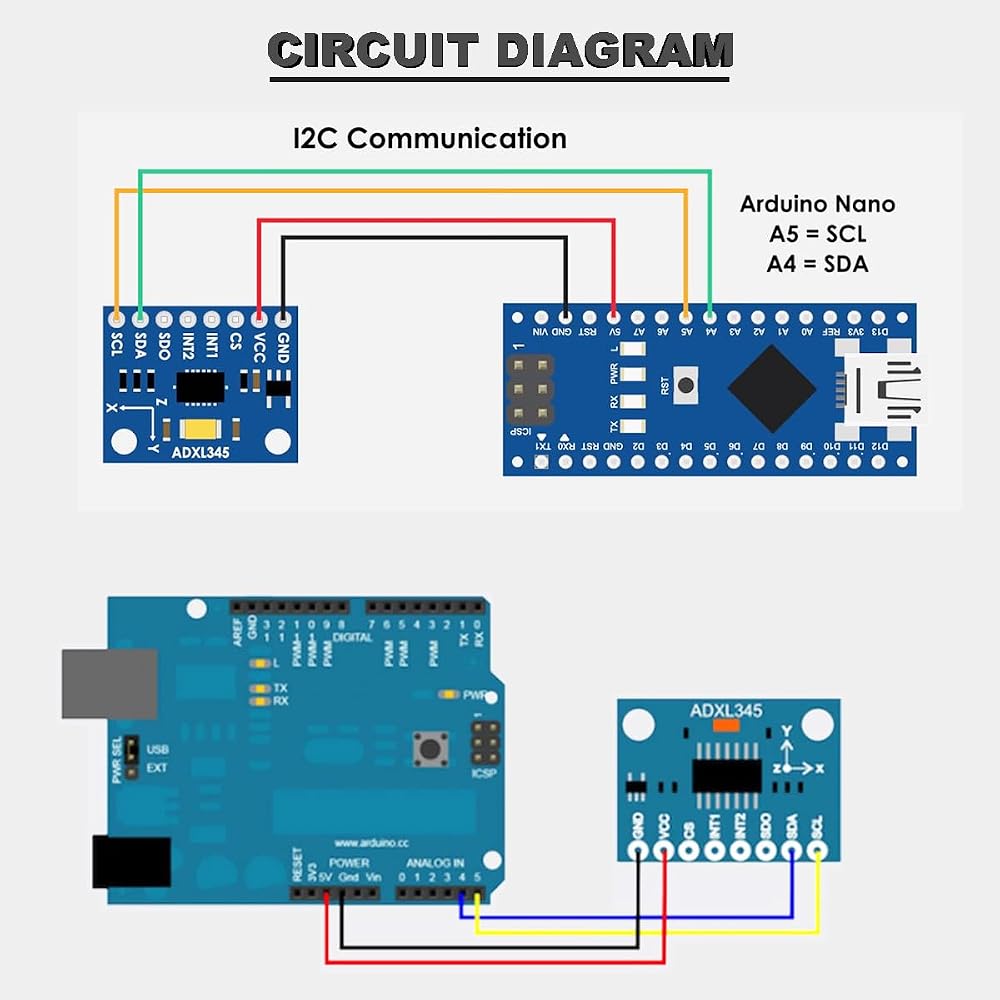

Means of Communication: IIC / SPI Communication Protocol
Measuring Range: ±2g /±16g
Digital-Output Triple-Axis Accelerometer with a Programmable Full Scale Range of ±2g, ±4g, ±8g and ±16g and Integrated 16-bit ADCs
Accelerometer Normal Operating Current: 450µA
Ultralow Power: as low as 23 μA in Measurement Mode and 0.1 μA in Standby Mode at VS = 2.5 V (typical)
Sleep Mode Current: 8µA
Communication: SPI (3- and 4-wire) and I2C Digital Interfaces
User-Programmable Interrupts
Wake-On-Motion Interrupt for Low Power Operation of Applications Processor

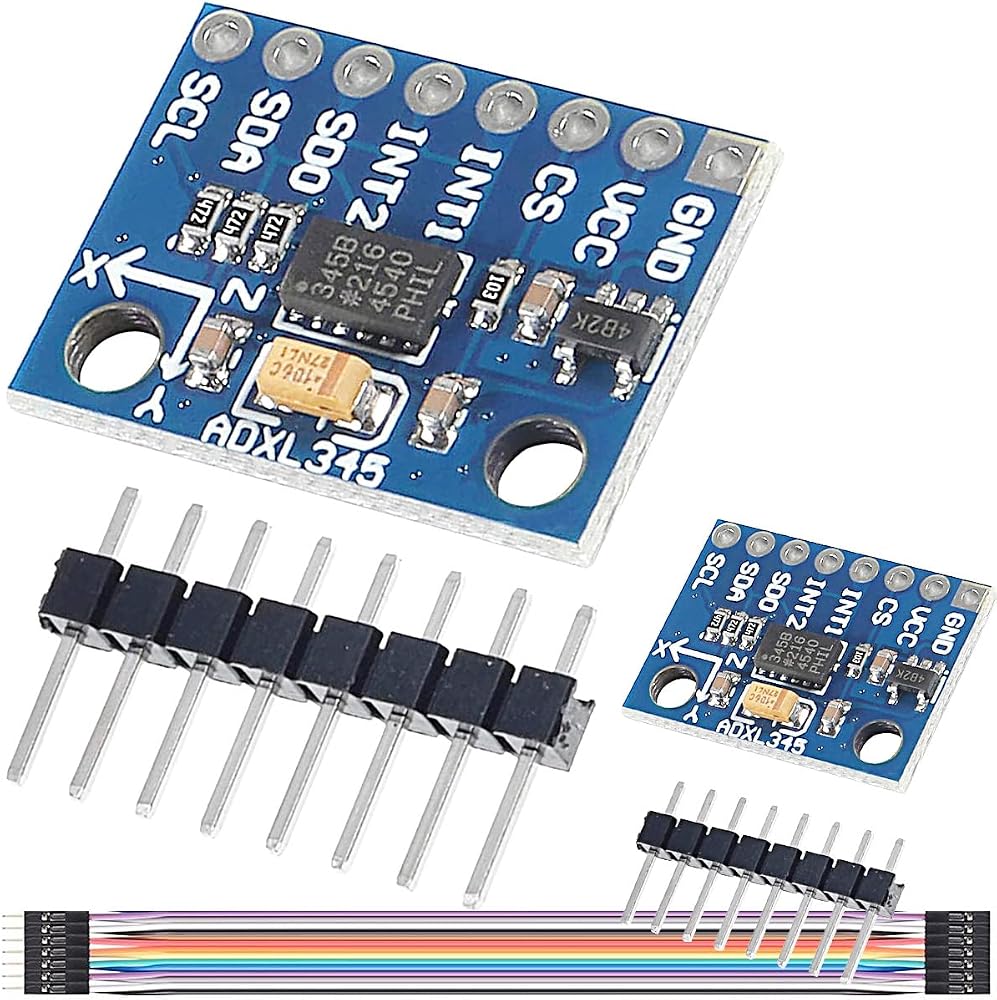

Package includes:
2 x GY-291 ADXL345 Module
2 x 8-pin header
16 x Male and female DuPont cable
