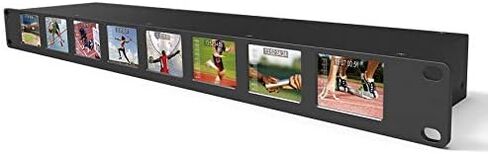

Model : RM-0208S DISPLAY
Display Screen 8×2" 8bit TFT LCD
Physical Resolution 640×240,supports up to 1920×1080
Aspect Ratio 4:3
Brightness 250cd/m2
Contrast 300:1
Viewing Angle 80°/70°(H / V)
INPUT
3G-SDI 8
RS422 1
OUTPUT
3G-SDI 8
SDI FORMAT
SMPTE-125M 480i(59.94)
1080i(60/59.94/50)
1080p(30/29.97/25/24/24sF/23.98/23.98sF)
SMPTE-292M
1080p(30/29.97/25/24/24sF/23.98/23.98sF) SMPTE-296M
720p(60/59.94/50/30/29/25/24/23.98)
SMPTE-372M 720p(60/59.94/50)
1080i(29.97/25/24/23.98)
1080p(60/59.94/50/30/29.97/25/24/23.98)
SMPTE-425M-AB 1080p(60/59.94/50)
-Level A & Level B

720p(60/59.94/50/30/29.97/25/24/23.98) Level B 2x 1080i(60/59.94/50)
ITU-R BT.656 576i(50) HDMI FORMAT
Full HD ~ HD 1080p, 1080i, 720p, 576p, 576i, 480p, 486i
POWER
Current 1500mA/15V
Input Voltage DC 12-24V
Power Consumption ≤23W
ENVIRONMENT
Operating Temperature -20℃～60℃
Storage Temperature -30℃～70℃
DIMENSION
Dimension(LWD) 482.5×105×44mm
Weight 1555g
What's in the package :
CD drive 15V DC adapter Manual
