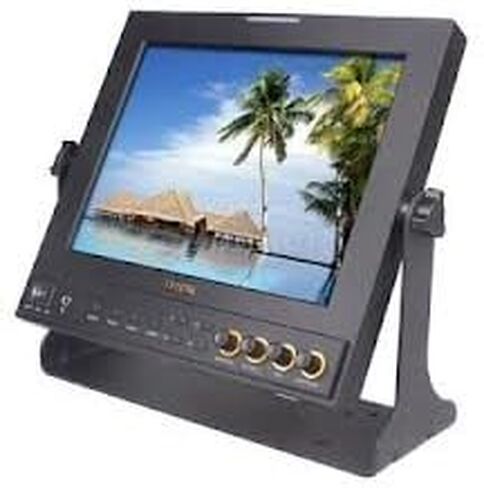

Model :969A/O/P
This product employs integrate circuits, lower power consumption, and lower radiation emission. It has fashion designed appearance and good portability;
LED backlight display makes the device much thinner, more power saving;
Video\YPbPr\Dual audio\HDMI input, to connect with HD camera;
High brightness & contrast with flexible folding sun shade cover, makes picture detail much clearer, more vivid outline, stronger sense of hierarchy;
178\ 178(H\V) wide viewing angles, to provide better viewing effect;
1024x768 high resolution
Dual HDMI input;
ONE HDMI OUTPUT
USB 5V output for charging;
Wide voltage: DC 7-24V;
TALLY interface with indicating light;
Gimbal bracket for installation;
Comply with IP52 standard.
Advanced Functions:
Peaking Filter, False Colors, Histogram, Exposure, Camera, Center Marker, Pixel-to-Pixel, Color Bar, Screen Marker, Aspect Ratio, Check Field, Underscan / Overscan, Freeze Input, H/V Delay, 8x Zoom, Picture-in-Picture.
Specifications:
Panel Size: 9.7"
Physical Resolution: 1024*768
Aspect Ratio: 4:3
Brightness: 420cd/m
Contrast: 900:1
Viewing Angle: 178/ 178(H/V)
Input Signal: HDMI*2, YPbPr, AV, TALLY
Output Signal: HDMI, YPbPr, AV, USB(5V)
Audio: Speaker*1(built-in), Ear Phone Slot*1(built-in) Current: 560mA
Input Voltage: DC 7-24V(XLR Connector)
Battery Plate:, F-970, LP-E6
Power Consumption: ≤18W
Operating Temperature: -20C ~ 60C
Storage Temperature: -30C ~ 70C
Dimension(LWD): 246*224*31mm/167.5mm(with cover open)
Weight: 1068g / 1388g (with cover)
