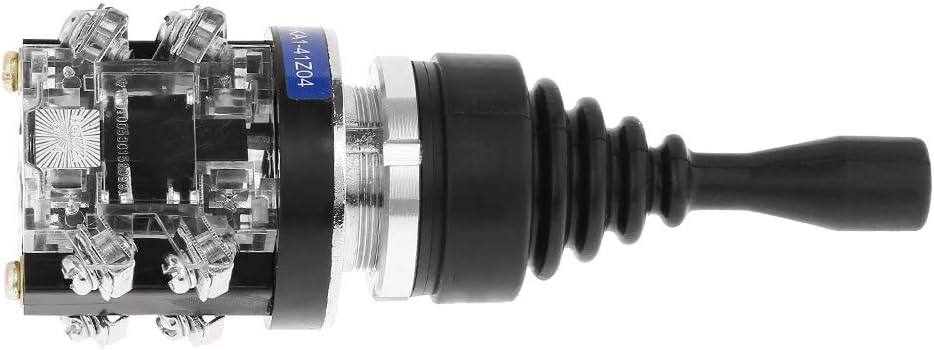

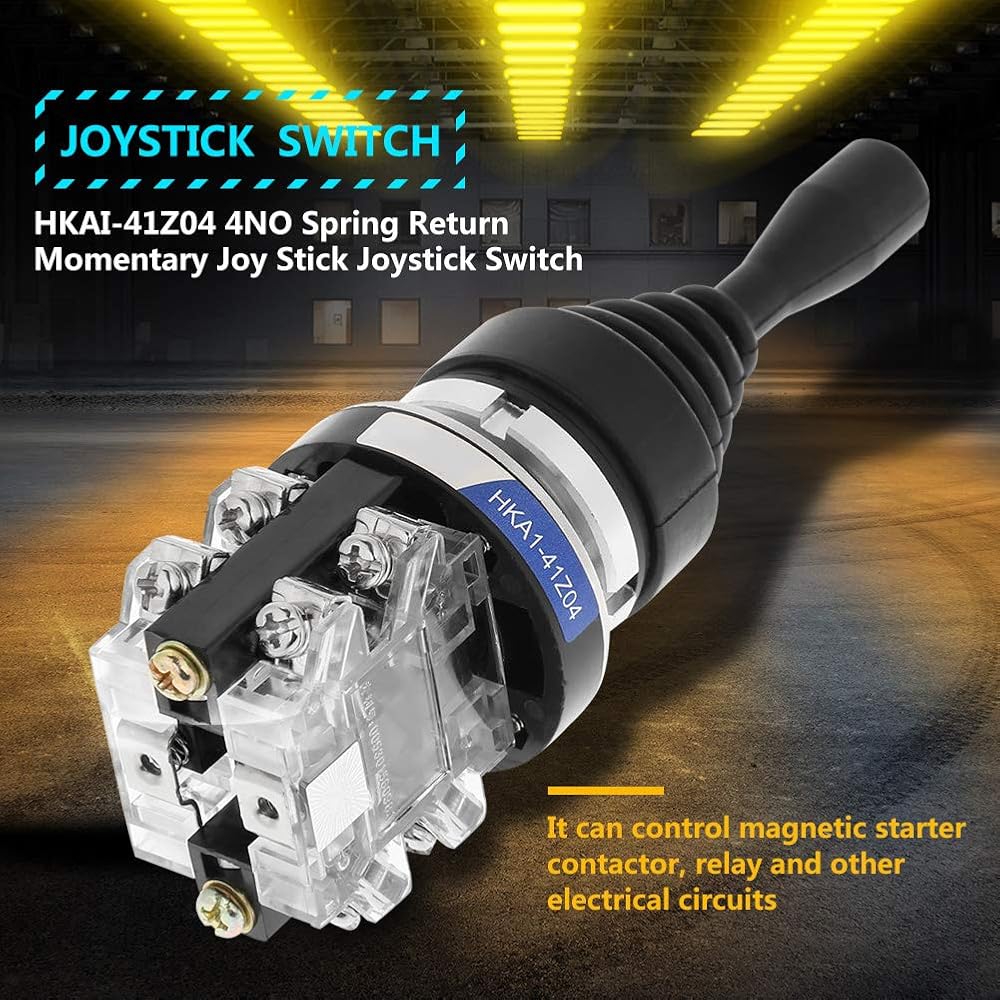

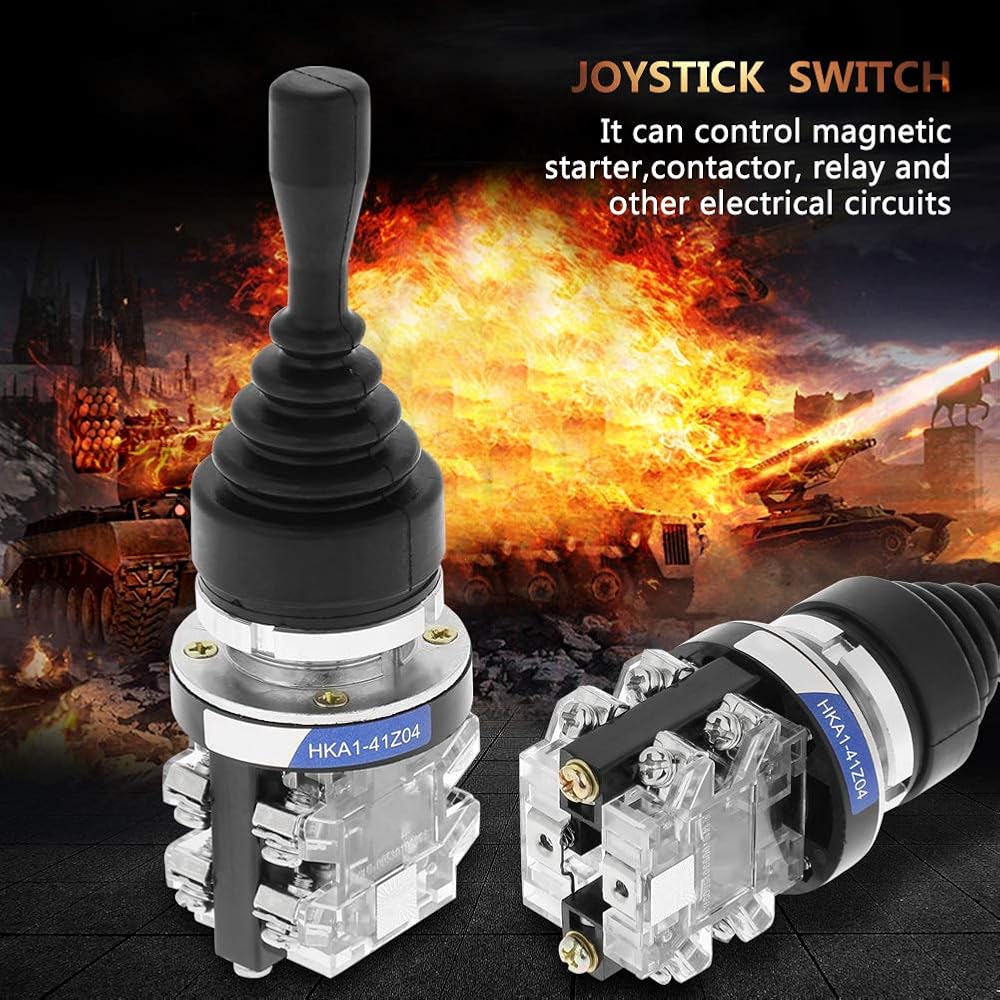

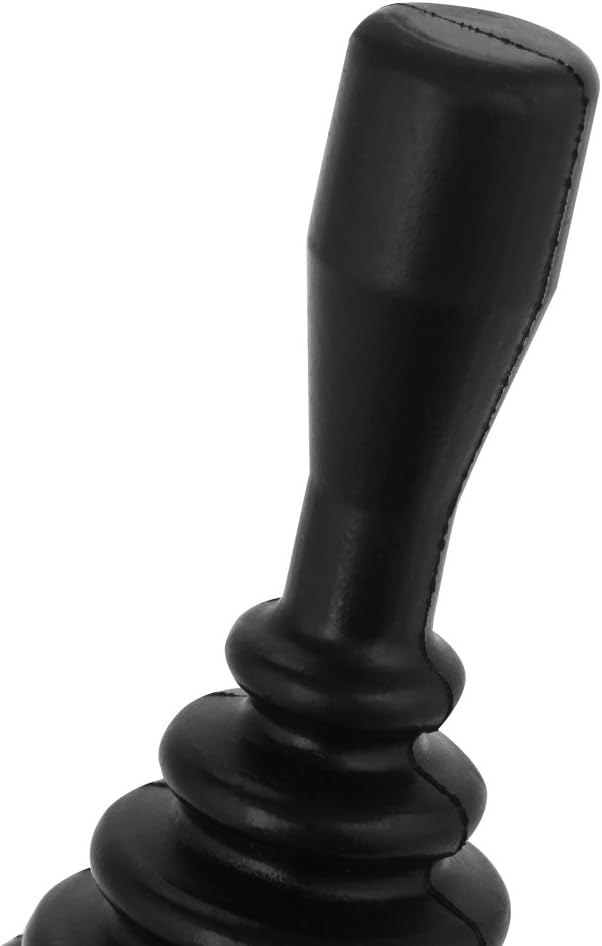

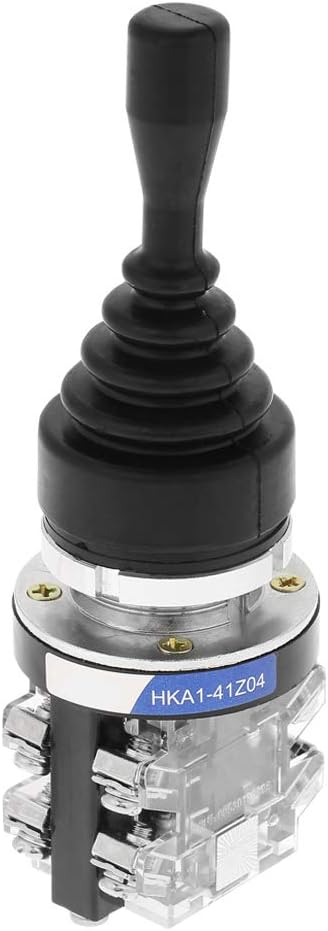

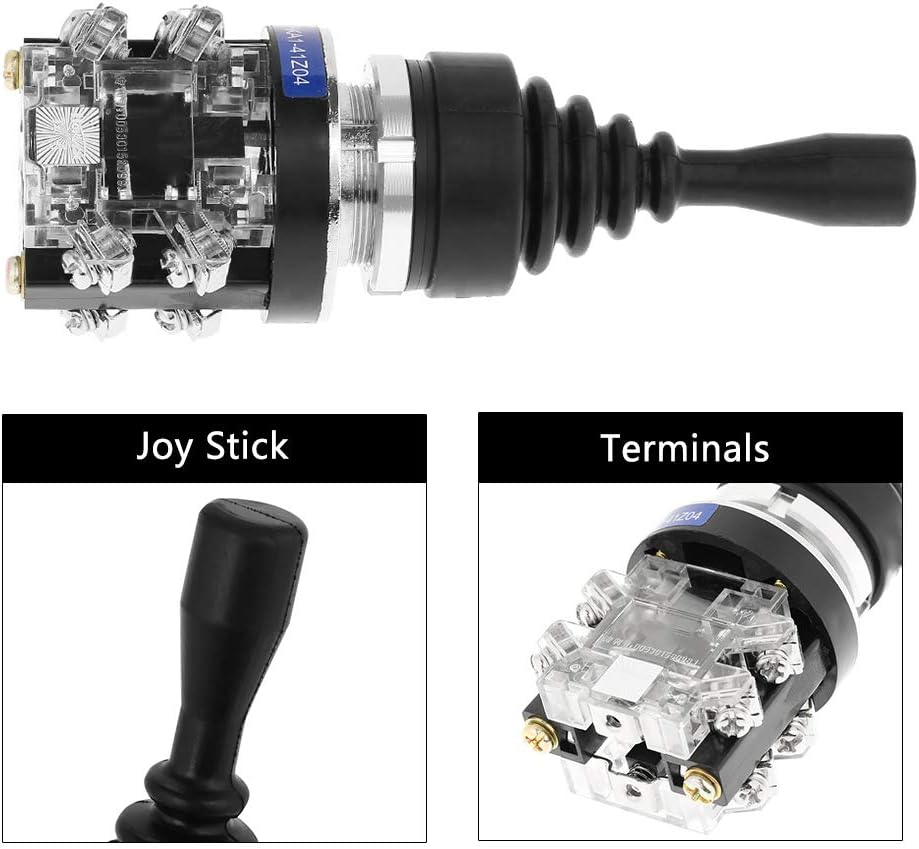

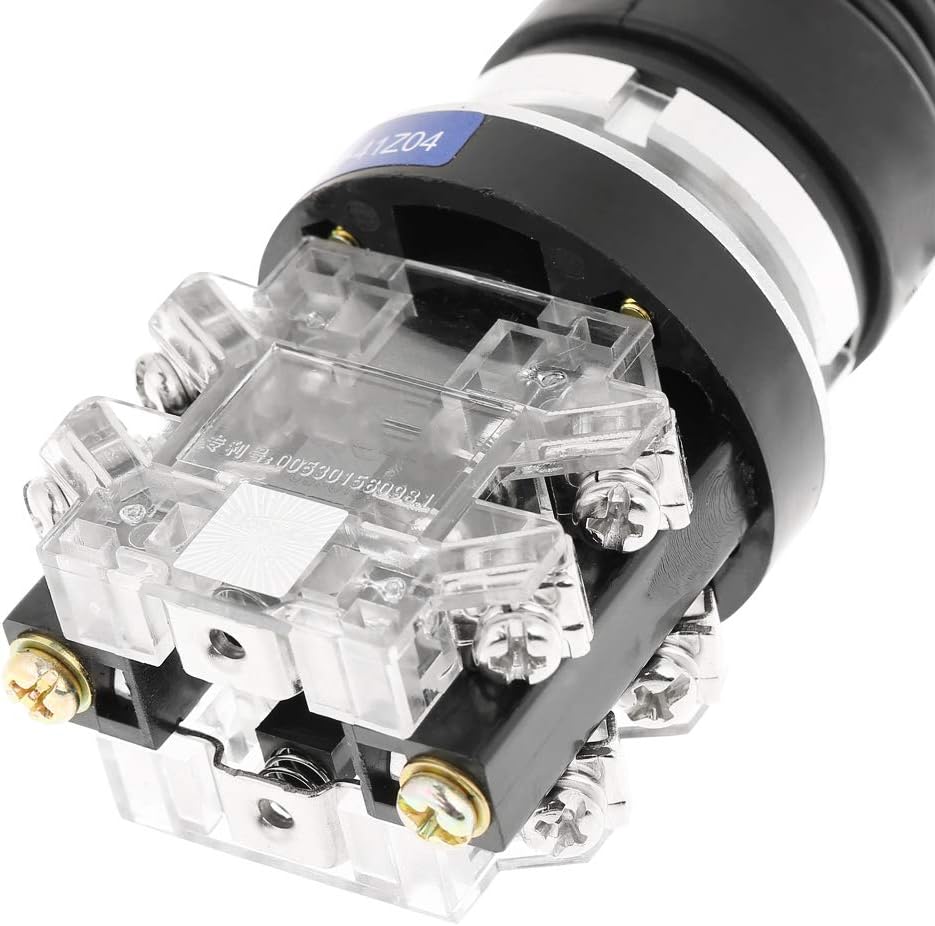

Yosoo Health Gear Joystick Switch Controller 4 Position 4NO Momentary, 4 Position Joystick with for Industrial Control AC 50Hz and DC Circuits

SAR 110
– 1 +

Special Features

  • [Control Switch]: This 4 position joystick switch is used for the control of magnetic starters, contactors, relays and other electrical circuits
  • [Easy to Install]: This joystick momentary switch is easy to install and operate, which has a long service life
  • [4NO Momentary Switch]: This spring return switch has 4 normally open contacts, and the electrical life is more than 500,000 times
  • [Rubber Cover]: This electric joystick uses a rubber cover. Has good water and dust resistance
  • [Application]: This 4 way electrical joystick is widely used in industrial control AC 50Hz and DC circuits, which can control magnetic starters, contactors, relays and other circuits

Description

Descriptions:
This momentary joystick switch is widely used for industrial control AC 50Hz and DC circuits.It can control magnetic starter, contactor, relay and other electrical circuits.

Features:
- This momentary joystick switch is widely used for industrial control AC 50Hz and DC circuits.
- It can control magnetic starter, contactor, relay and other electrical circuits.
- The rubber sleeve has the characteristic of water resistance, oil resistance and dust resistance.
- The joystick switch is a momentary switch, 4NO type, so it has 4 normally open contacts.
- This spring return switch is easy for mounting and operation, with long serving life.

Specifications:
Model: HKAI-41Z04
Contact: 4 NO
Rated voltage: 220V / 380V
Rated current: 5A / 10A
Assembly aperture: Dia. 30mm
Electrical life: >500,000 times
Mechanical life: > 500,000 times
Standard operating environment:
Ambient temperature: -25 ~ +55 degrees Celsius (no ice)
Operating humidity: 45 ~ 85%RH (no condensation)
Contact resistance: ≤50mΩ
Insulation resistance: ≥100Ω
Maximum withstand voltage: 3000V, AC 50Hz
Vibration: 50 Hz, amplitude: Approx. 1mm
Impact resistance: > 10m/(about 10G)
grade: IP55

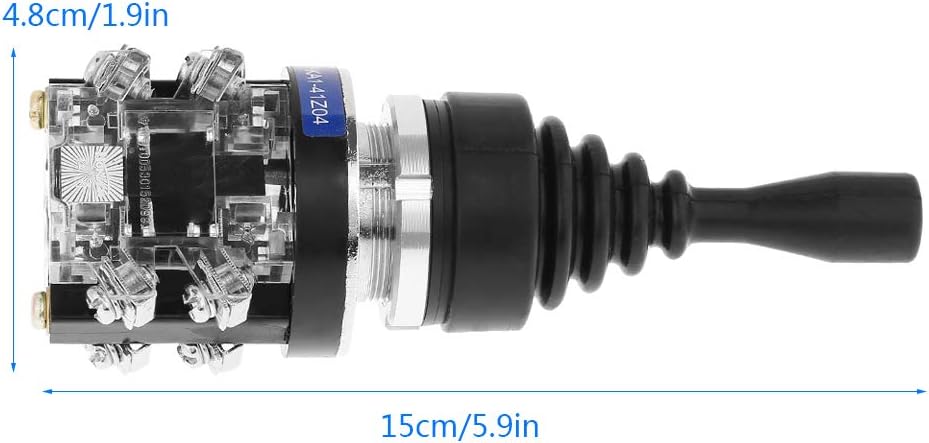

Overall size: 15 x 4.8cm /5.91 x 1.89inch
Weight: 217g

Package Includes:
1 x Momentary Joystick Switch
