Technical Parameter:

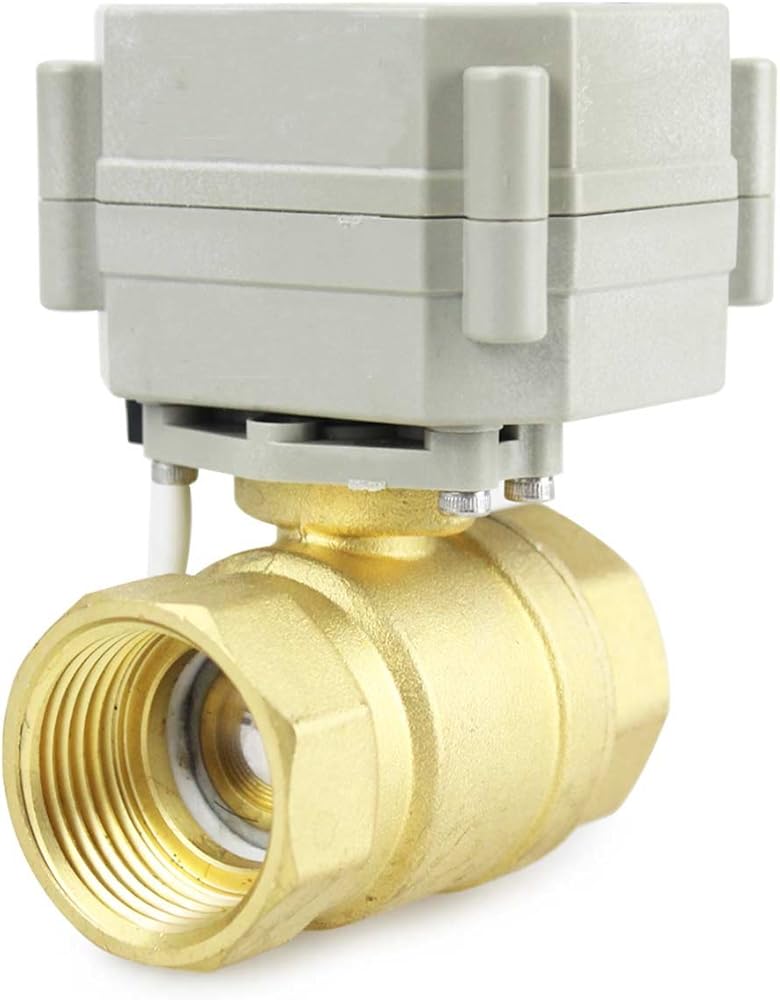

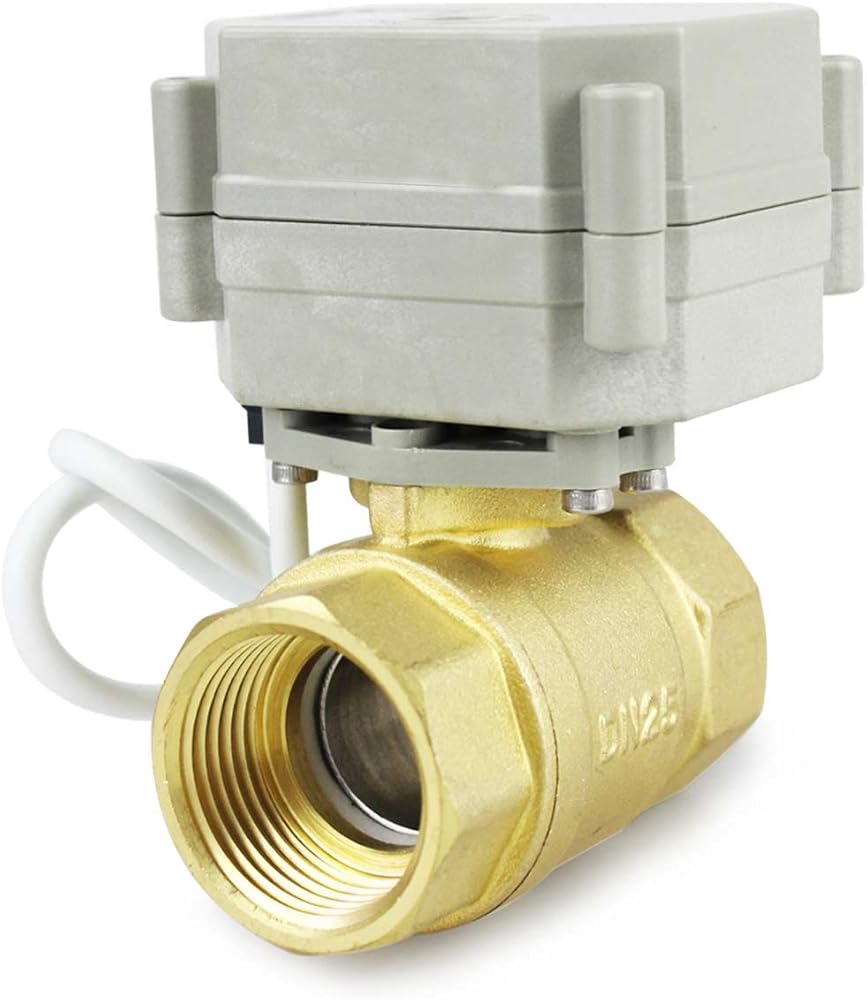

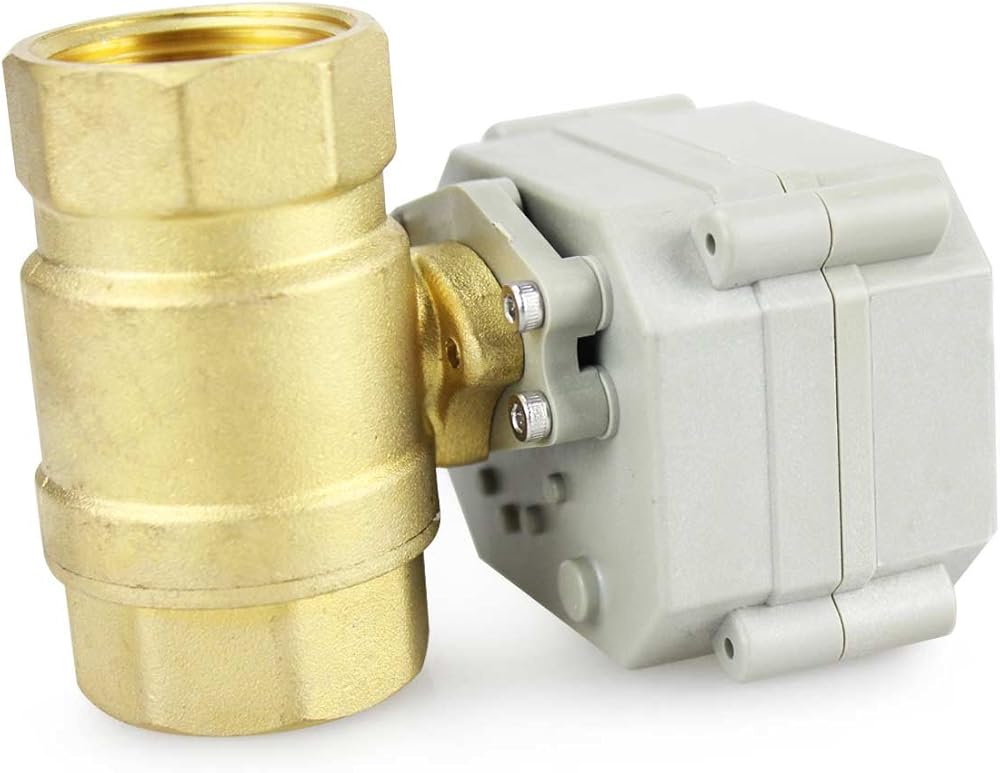

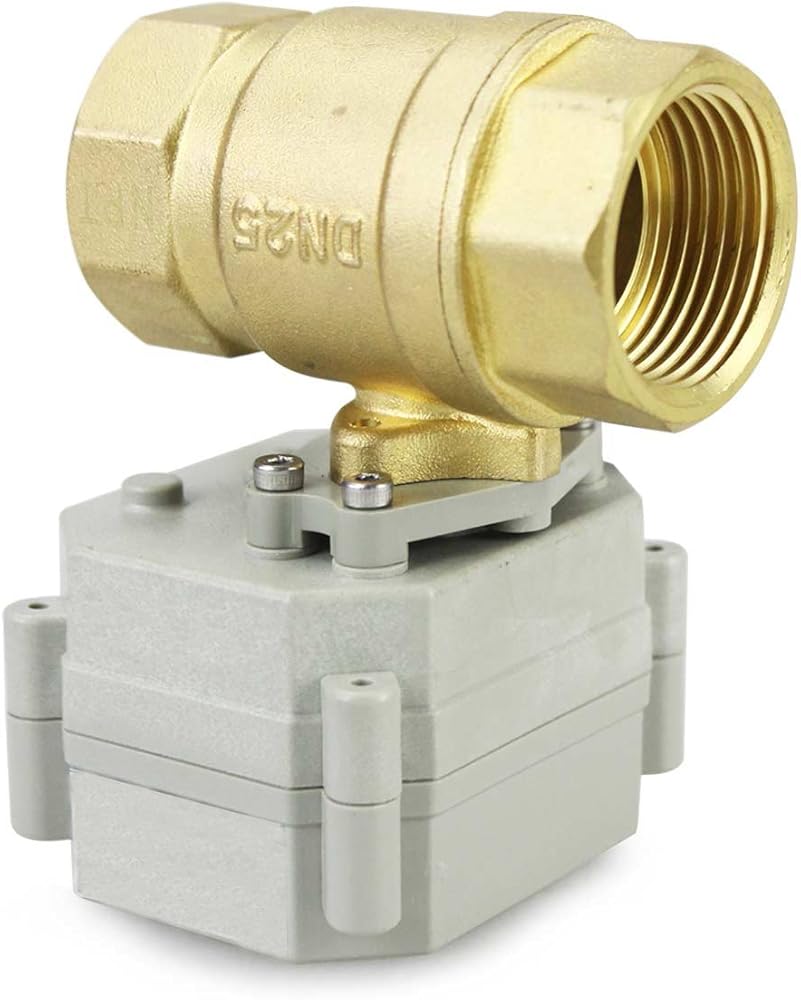

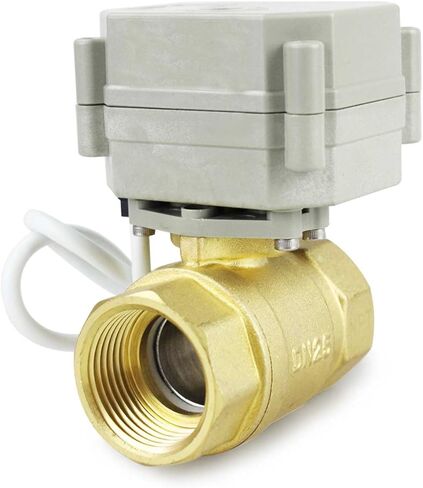

◎Model: A20-M25-B2-C;
◎Working Voltage: 9-24VDC;

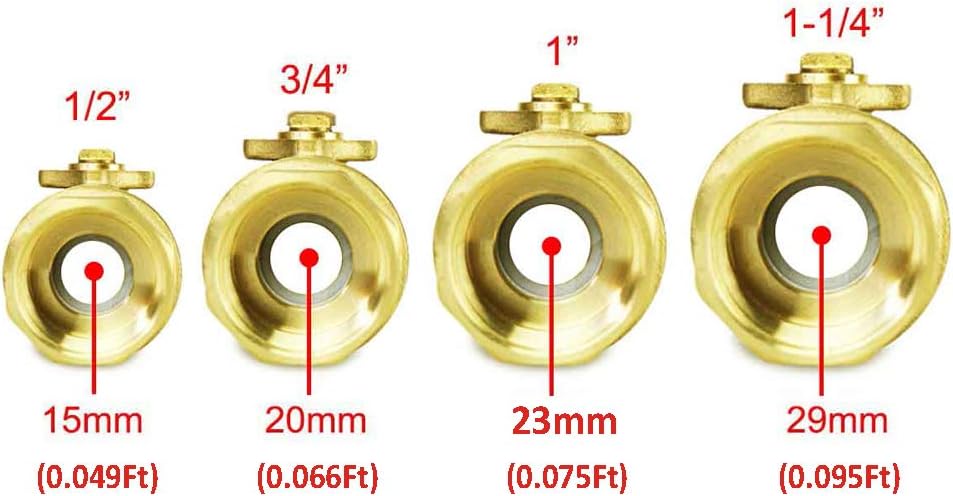

◎Valve Dimension:1" NPT Female Thread Connection, 23mm(0.91in) Full Bore;

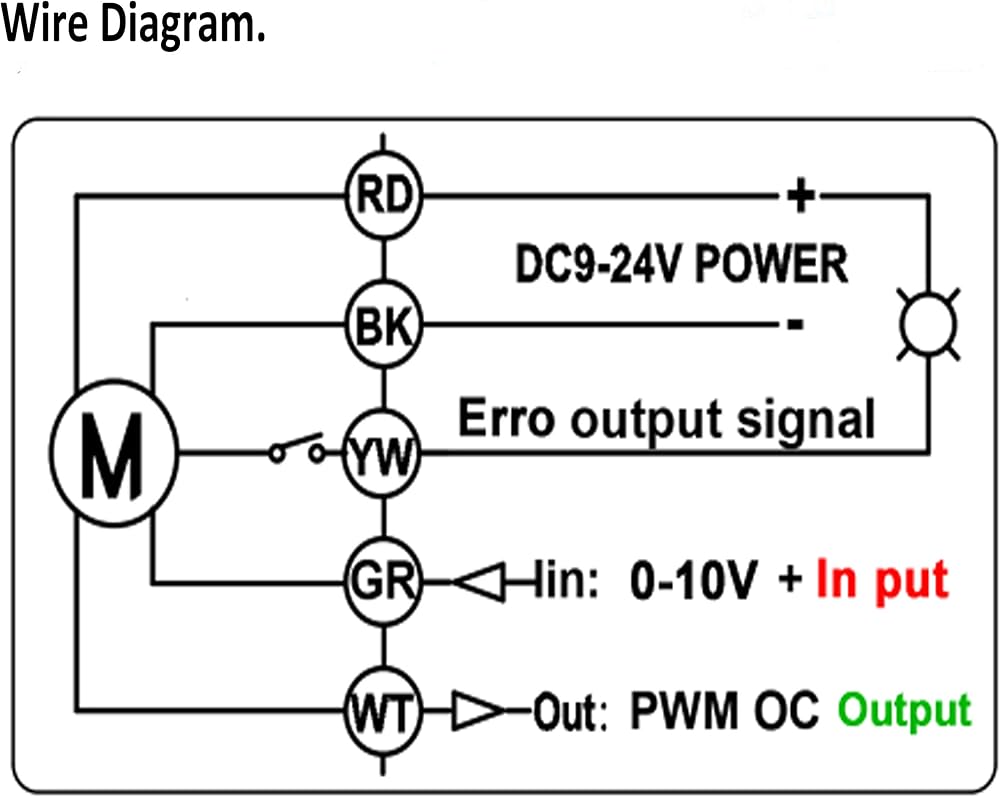

◎Control Method:0-10V Electrical Signal Control;
◎Valve Body Material: Brass;
◎Actuator Material: Engineering Plastics;
◎Open/Closed Time: About 3-5Sec.;
◎Suitable Media: Air, Water, Oil;
◎Power: Max 2 Watts;

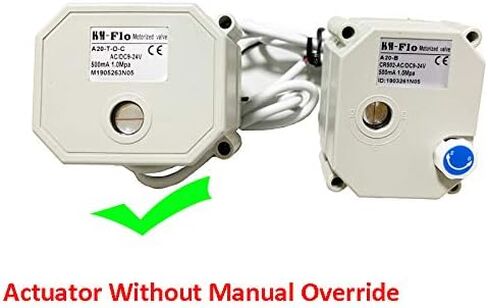

◎Manual Override: No;
◎Indicator: Yes;
◎Max. Torque Force For Aucator: 4 N.M;
◎Cables Length: 0.5 Meters;
◎Max Working Pressure:145PSI(1.0MPA);
◎Liquid Temperature: 32°~212°F (0°~100°C);
◎Environment Temperature:5~122F(-15°~50°C);

Application:
◎HVAC;
◎Water Treatment;
◎Chemical Process;
◎Small Industrial Equipment For Automatic Control;
◎Replacing Solenoid Valve, Particularly When Solenoid Cannot Work Reliably;
◎Automatic Control Systems;
◎Efficient Water-Saving, Water Equipment;
◎Solar Hot Water Project;
◎Regular Watering The Flowers, Timing Humidifying, Timing of Drainage of Air Compressor.

Features:
◎Smart Shape, Perform Reliably, Large Output Torque, As Long As 50000-100000 Times , Convenience For All Kinds Of Requirements;

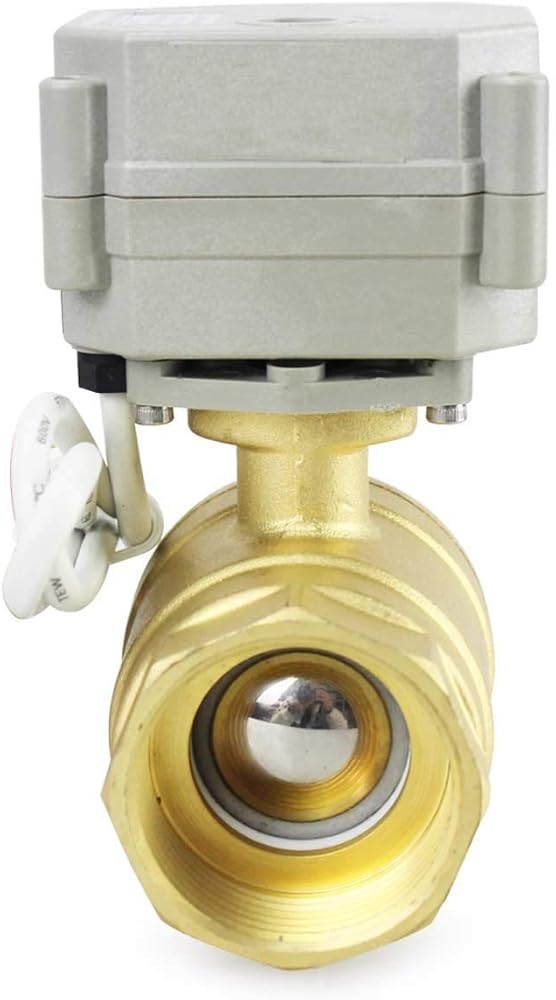

◎Float Ball design, No Leak, Large Flow, The Valve is Bi-directional Ball Valve , Regardless of Inlet And Outlet , Most Suitable for Heavy Dirt and Long Time No Action;
◎The Conditions That Solenoid Valve Can Not Be Worked;
◎High Protection Class, Can Be Worked In Most Conditions;
◎POM Cooperate With Metal Gear, The POM Gear is Used in High-Speed Level to Reduce Noise, At The Same Time Metal Gear is Applied At The Low-Grade To Ensure The Reliability of The Gear;
◎Electrical and Mechanical Limit Integrated Design, Accurate Localization ,High consistency , Put an End to Swing of Valve.
