Standards Compliant: This hydraulic coupler features a 1/2" body size, with 1/2" NPT thread size for both the male and female couplers, adhering to ISO 16028 standards, making it ideal for connecting hydraulic lines.

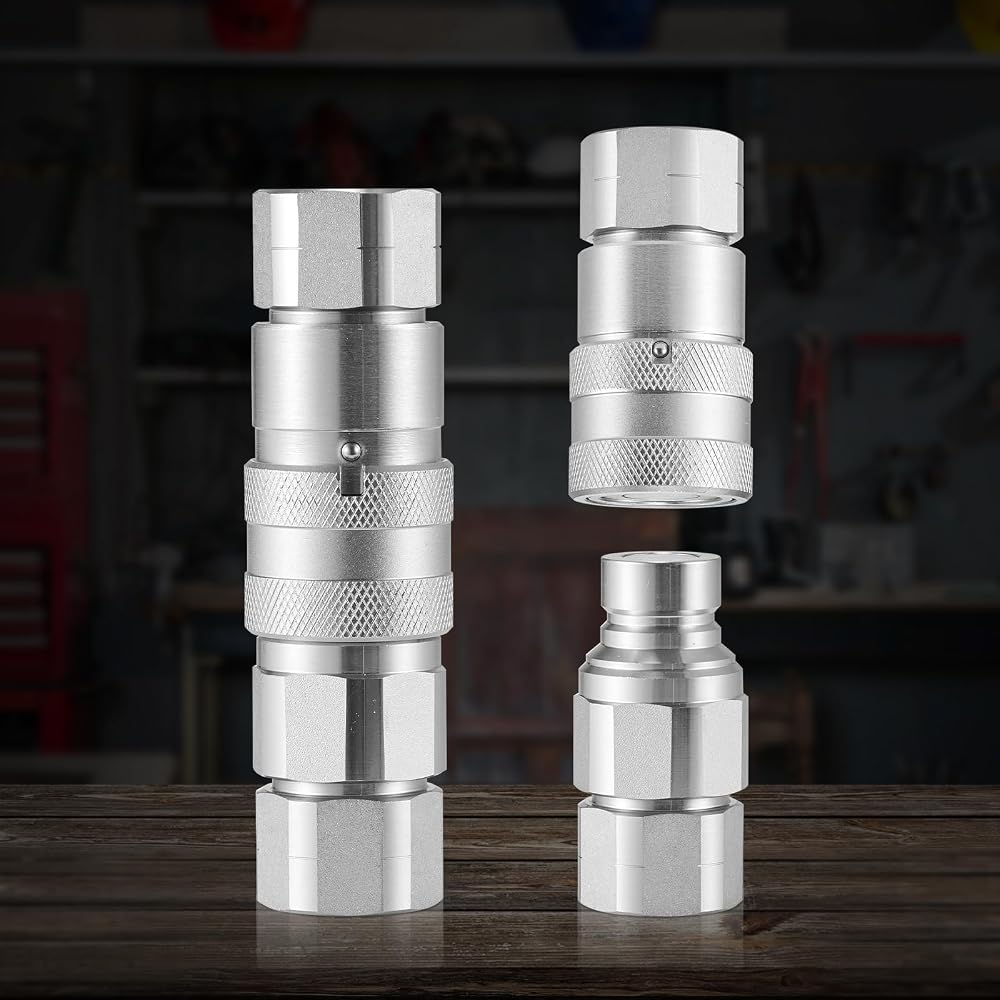

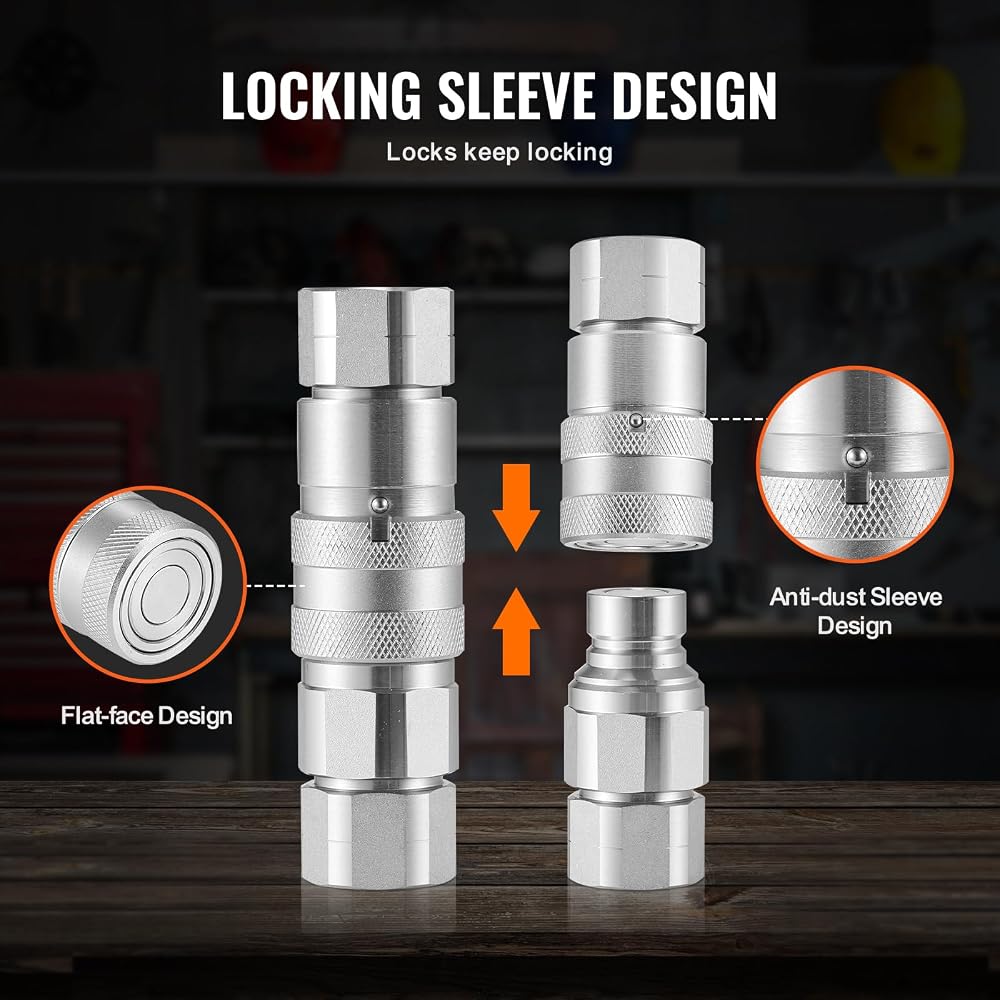

Sleeve Locking Design: The flat face hydraulic couplers employs a sleeve locking design, allowing for easy connection with just a simple push. The flat-faced design of the coupler facilitates easy cleaning and prevents dust from entering the hydraulic system during connection and disconnection.

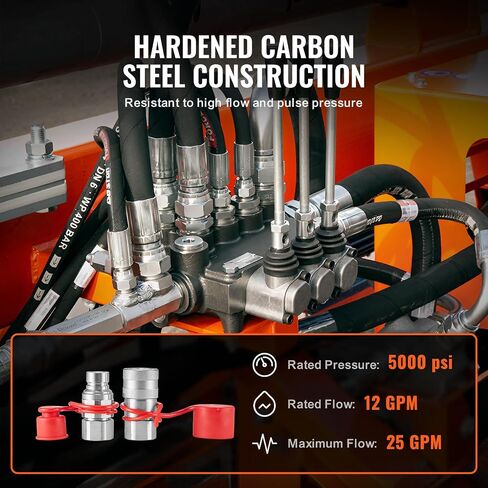

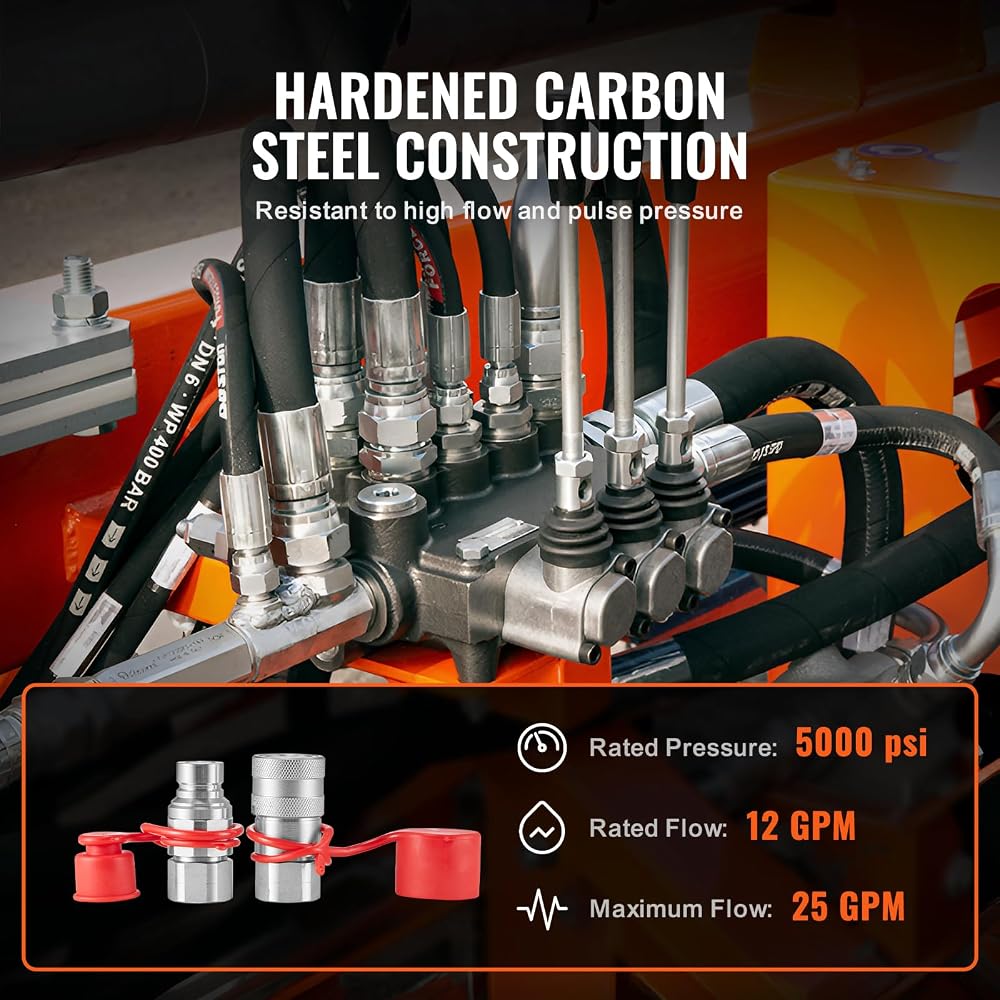

Hardened Steel Construction: The hydraulic quick connect couplers is constructed from hardened carbon steel, rated for pressures up to 5076 PSI and a high flow rate of 25 GPM, capable of withstanding high flow rates and pulse pressures, ensuring durability for years of continuous use.

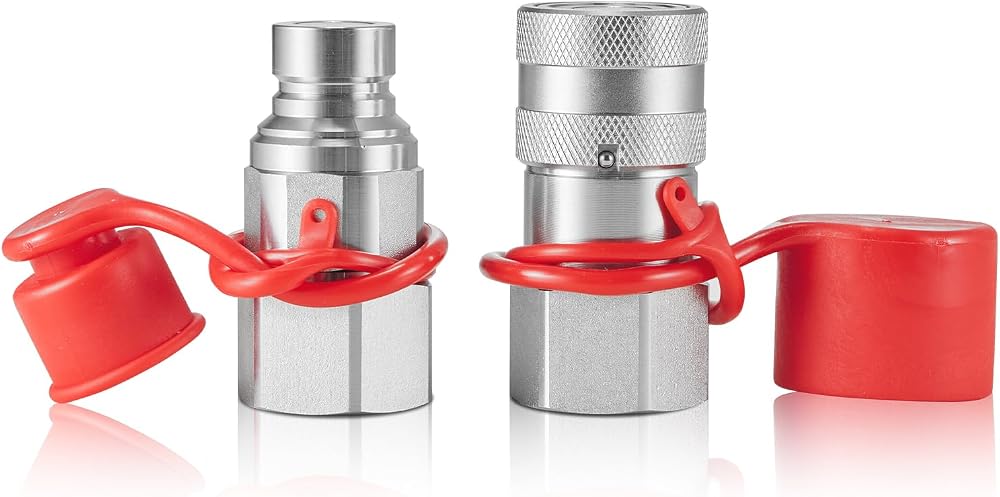

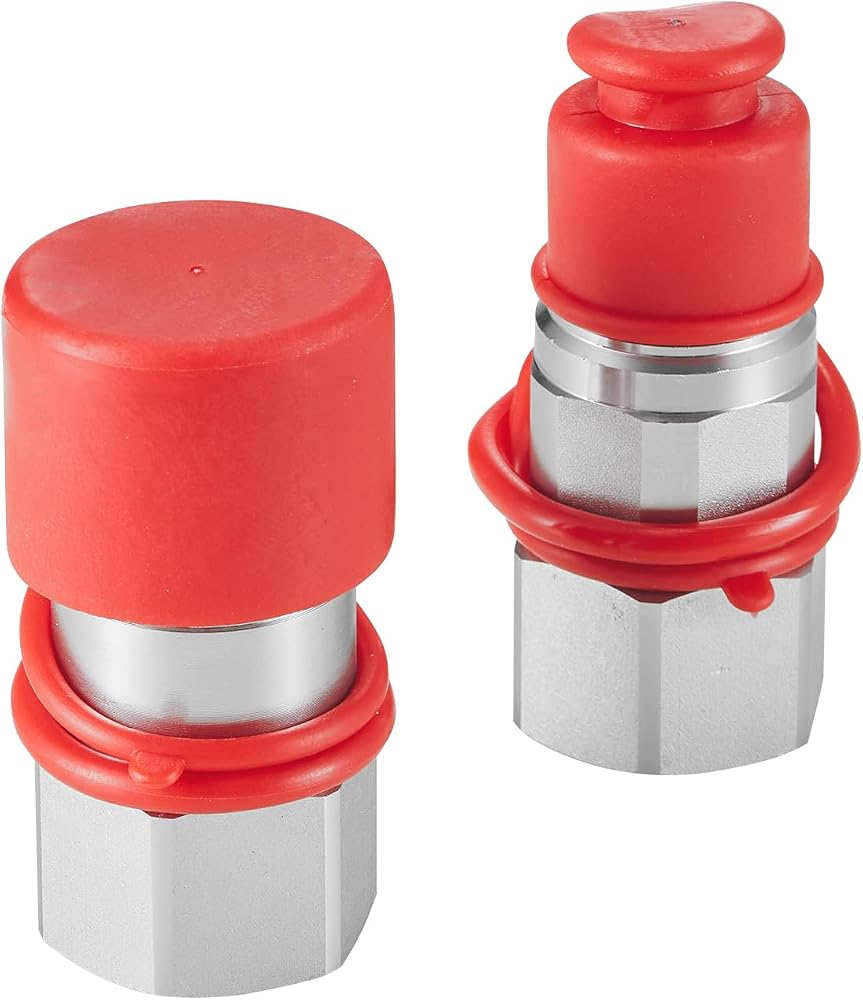

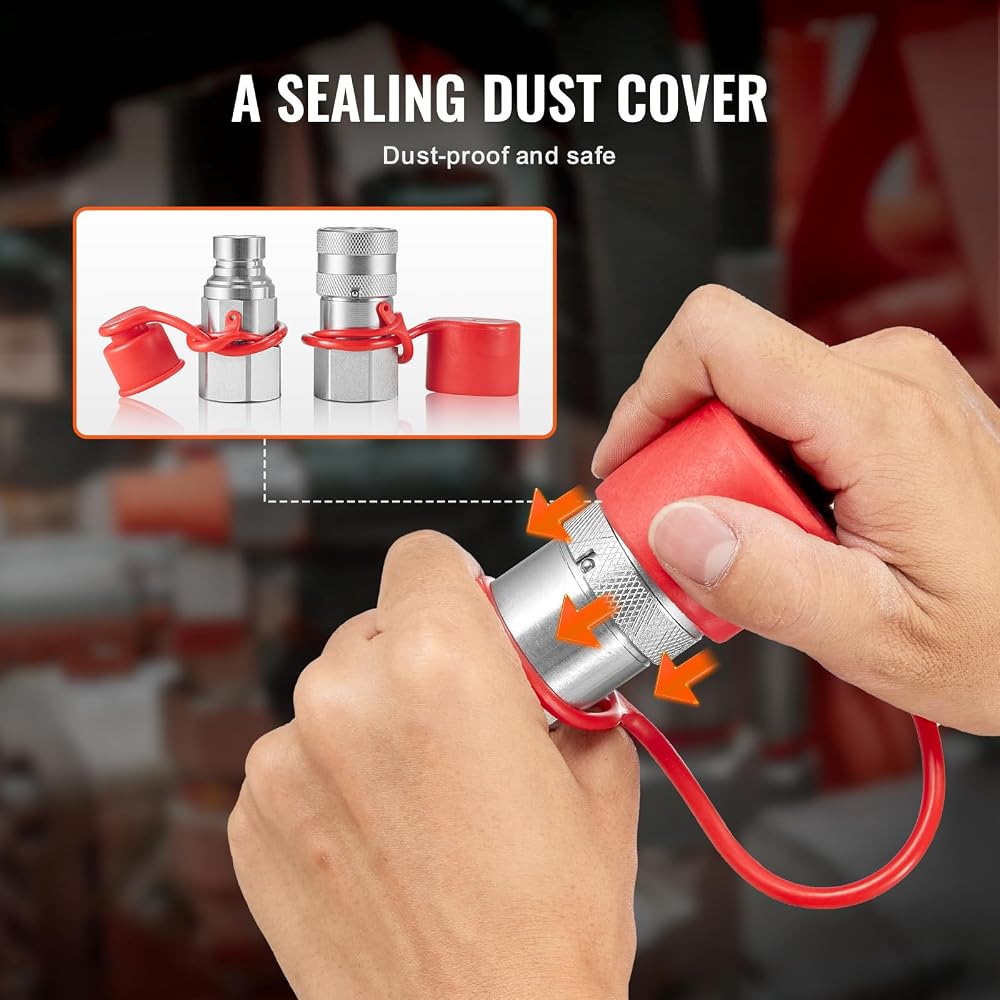

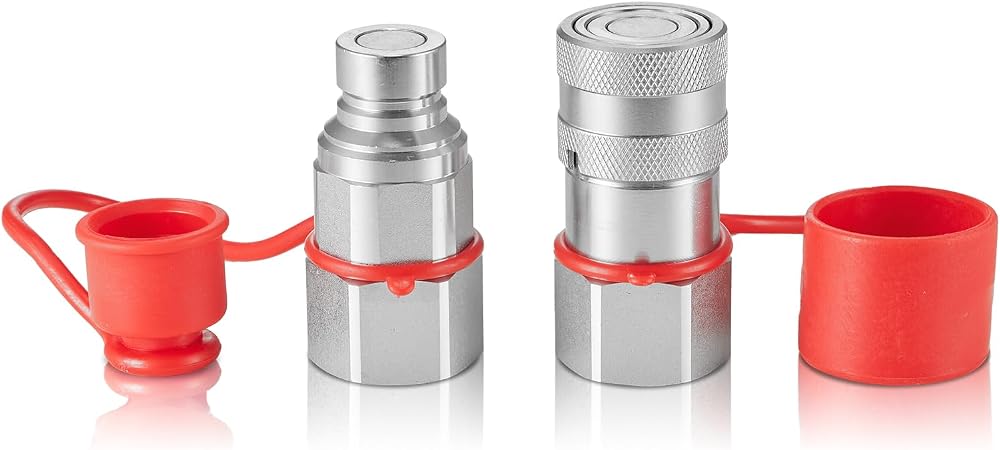

Seal Dust Caps: It comes with dust caps to prevent dirt from damaging the connection system, reducing the risk of failures, and keeping the skid steer hydraulic couplers clean when not in use. Internal dust seals also ensure that the sleeve locking system operates smoothly without interference.

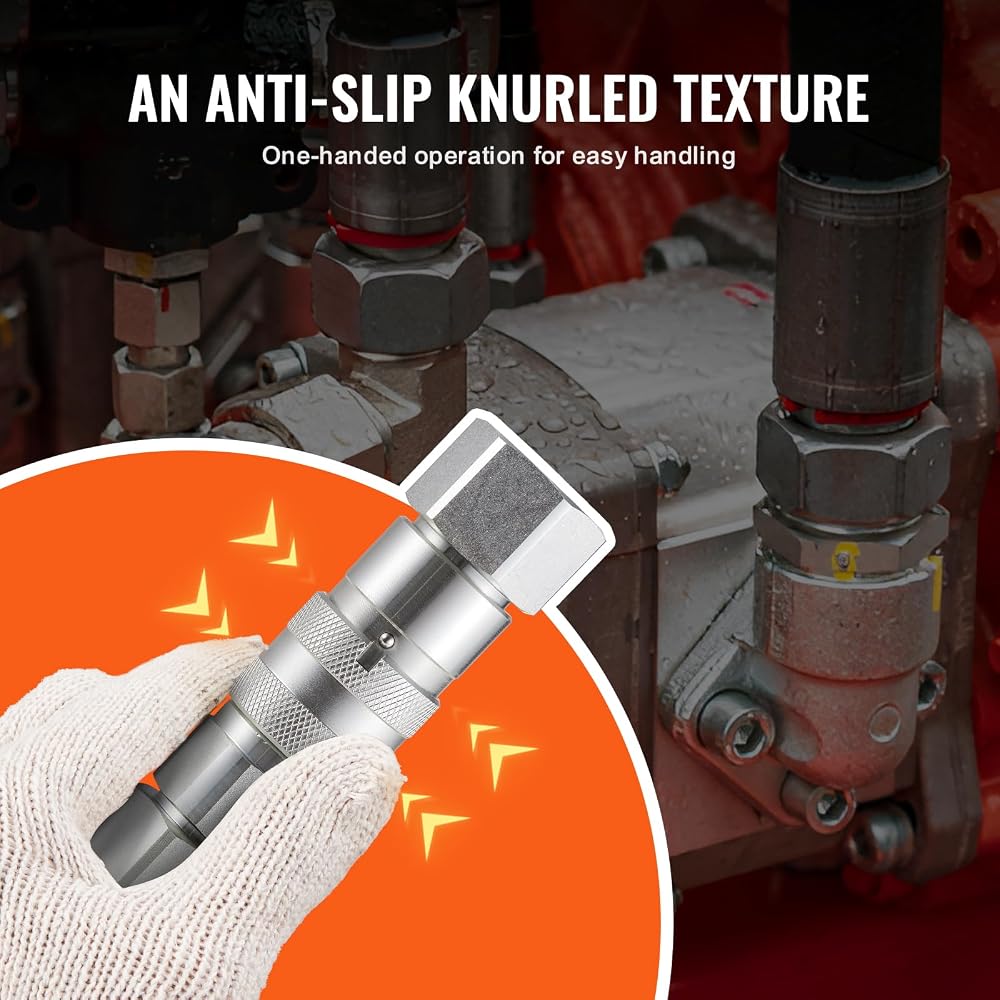

Non-slip Knurling: Heavy-duty knurled sleeves on the surface of the hydraulic fitting provide a non-slip grip. This valve design allows for minimal pressure drop and single-handed operation, and it can be interchanged with most types of skid steer loaders, such as Bobcat, John Deere, CAT, Case/New Holland, Kubota, etc.
وصف

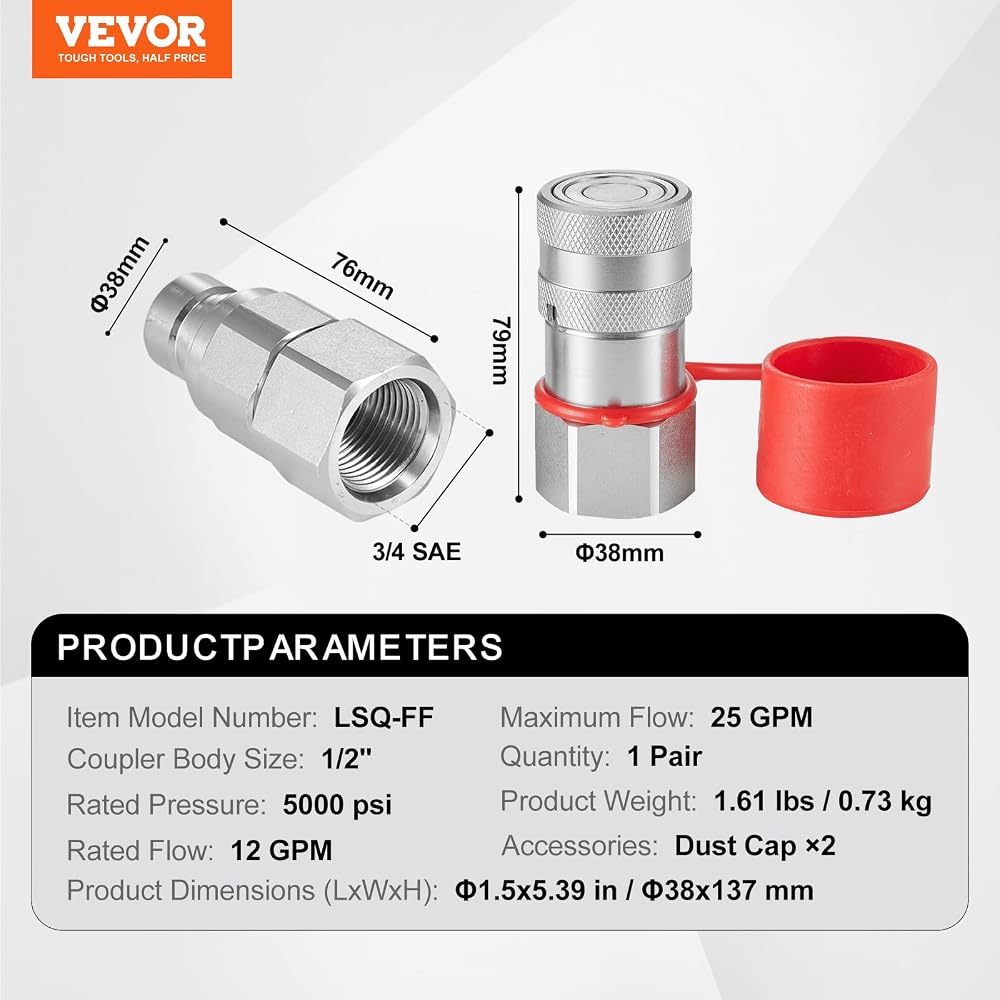

Specifications
Item Model Number: LSQ-FF
Coupler Type: Flat Face Hydraulic Coupler
Standard: ISO16028
Coupler Body Size: 1/2"
Rated Pressure: 5076 psi
Rated Flow: 12 GPM
Maximum Flow: 25 GPM
Quantity: 2 Pairs
Male Coupler Thread Size: 1/2" NPT (Internal Thread)
Female Coupler Thread Size: 1/2" NPT (Internal Thread)
Configuration: Dust Caps
Color: White
Main Material: 45# Carbon Steel

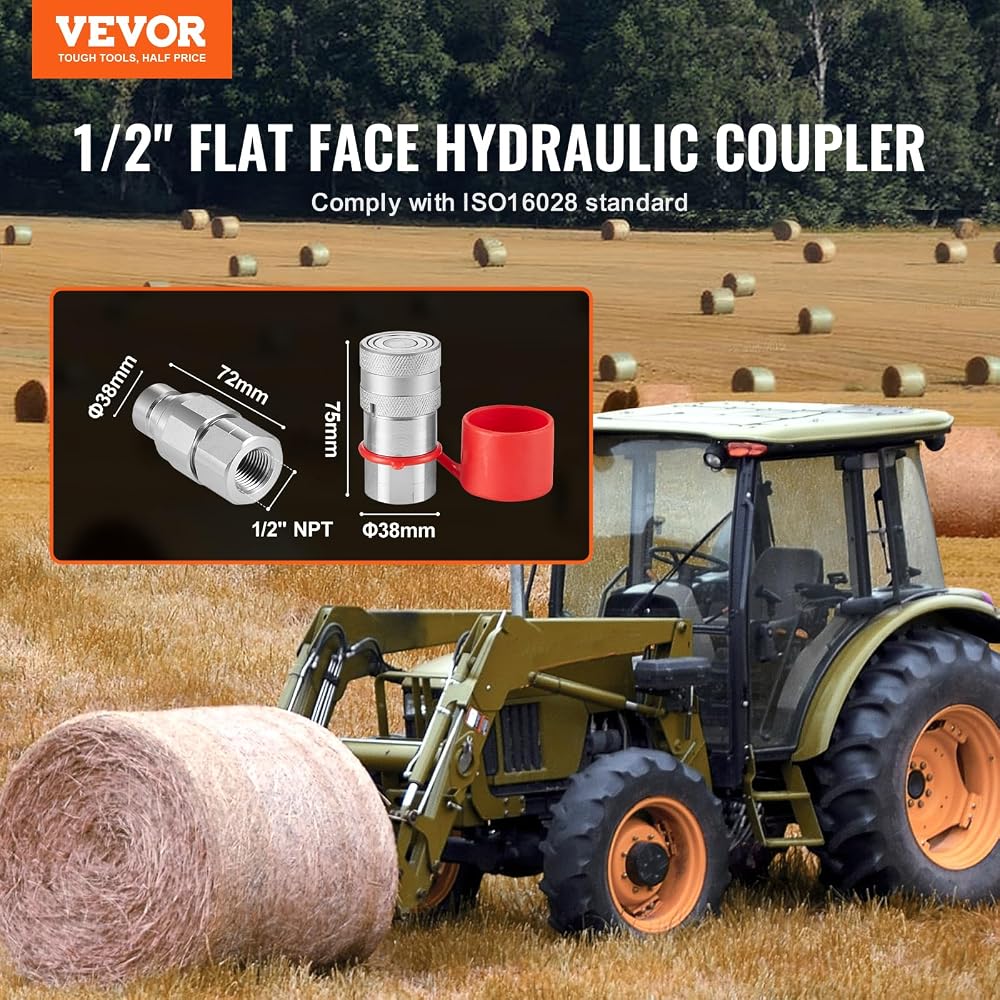

Male Coupler: Φ38×72 mm (O.D. x L), 45# Carbon Steel, Chrome Plating
Female Coupler: Φ38×75 mm (O.D. x L), 45# Carbon Steel,, Chrome Plating
Dust Cap: Φ40×260 mm (O.D. x L), Rubber, Red
Product Weight: 3.04 lbs / 1.38 kg
Product Dimensions (LxWxH): Φ1.5x5.07 in / Φ38x129 mm
