High-Performance Hall Closed Loop Current Sensor: The HSTS016L model is a reliable and high-performance closed-loop current sensor based on Hall effect technology. It provides accurate measurements for various current applications.
Wide Input Range: The sensor has a rated input range of ±50A, allowing it to measure currents within a wider range of ±75A. This versatility makes it suitable for different current monitoring scenarios.
Precise Output: The sensor offers a rated output of 2.5±0.625V, ensuring consistent and precise voltage output proportional to the measured current. This facilitates easy integration with other systems or devices.
Excellent Safety and Temperature Performance: The sensor is designed with UL94-V0 flame resistance, ensuring high safety standards. It operates reliably within a wide temperature range of -10 ~ +70?, with a storage temperature range of -40 ~ +85?. This makes it suitable for various environmental conditions.
Advanced Features: The sensor has a DC bandwidth, allowing it to accurately detect DC, AC, and pulse currents. It provides excellent accuracy with a tolerance of 1% and linearity of less than 0.1%. The supply voltage is ±5% +5V, and it consumes ±15mA+Im of current. The sensor has a response time of less than 3?s, and its weight is 70g. It features an open-loop, split-core design suitable for hanging installation.
وصف
100% Brand New and High Quality
Type: DC Transformer
Model: HSTS016L-F
Rated input: ±50A
Rated output: 2.5±0.625V
Accuracy: 1%
Dielectric strength:2,5KV 50Hz 1min
Package include:
1 x HSTS016L-F DC Transformer
Notice:
1. The real color of the item may be slightly different from the pictures shown on the website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data. Thank for your understanding.

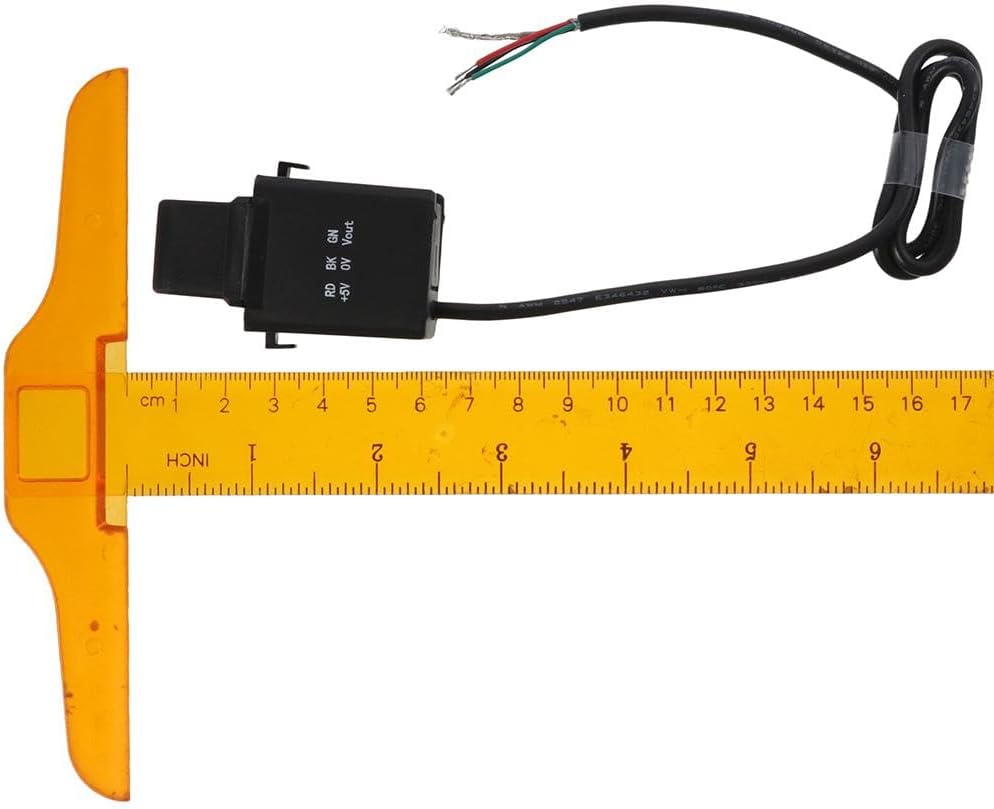

3. 1cm=0.39''.
