20 pcs SN74HC595N 8-Bit Counter Shift Registers 74HC595 DIP-16 3-State Output Registers Integrated Circuits high Speed Transmission + 20 pcs DIP-16 IC Socket

SAR 34
Brand
DKARDU
Weight
50 g
– 1 +

Special Features

  • 【What it does】: SN74HC595N is an 8-bit serial input, parallel output shift register, and the parallel output is a three-state output. It can bring stable data transmission and storage to consumers.
  • 【Three-State Outputs】: The SN74HC595N register has high-current three-state outputs with up to 15 LSTTL loads.
  • 【Durable material】: The chip is made of metal oxide semiconductor material, which has good thermal stability and long service life.
  • 【Parameter specification】：Operating voltage range: 2.0~6.0V;Low power consumption maximum Icc: 80μA;Typical Tpd: 13 ns;Drive current at 5V: ±6 mA;Low input current maximum:1μA;Package Type: PDIP-16.

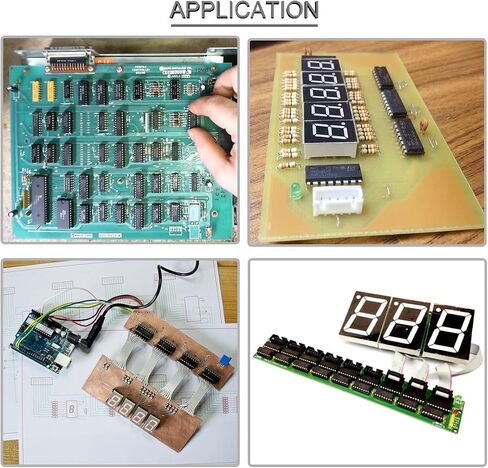

  • 【Applications】:Widely used in PC, IC circuit components, electronic module kit experiments.

Description

Product Description

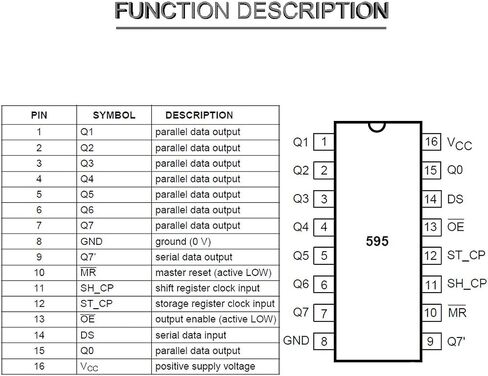

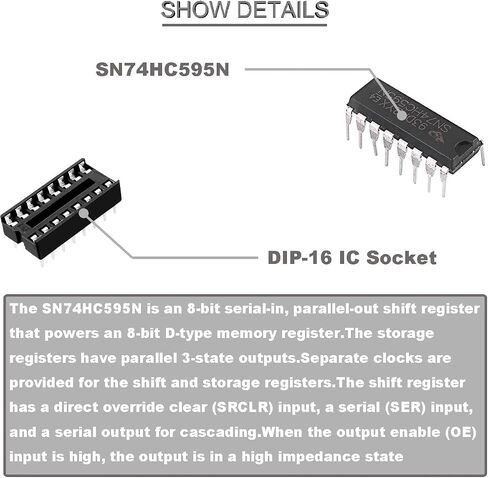

The SN74HC595N is an 8-bit serial-in, parallel-out shift register that powers an 8-bit D-type memory register.The storage registers have parallel 3-state outputs.Separate clocks are provided for the shift and storage registers.The shift register has a direct override clear (SRCLR) input, a serial (SER) input, and a serial output for cascading.When the output enable (OE) input is high, the output is in a high impedance state.Both the shift register clock (SRCLK) and storage register clock (RCLK) are rising edge triggered.If the two clocks are tied together, the shift register will always be one clock pulse ahead of the storage register.

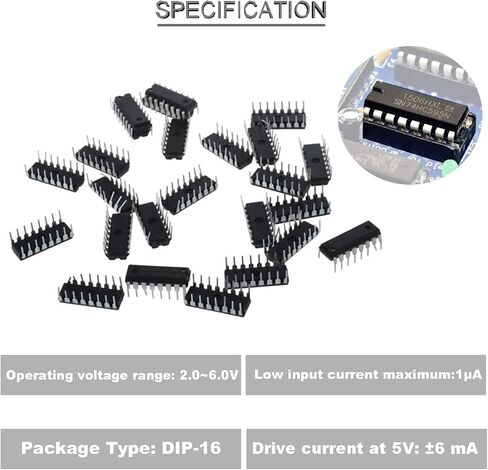

Specifications:
8-bit serial input, parallel output shift
Operating voltage range: 2.0~6.0V
High-intensity current tri-state output for up to 15 LSTTL loads
Low power consumption maximum Icc: 80μA
Typical Tpd: 13 ns
Drive current at 5V: ±6 mA
Low input current maximum:1μA

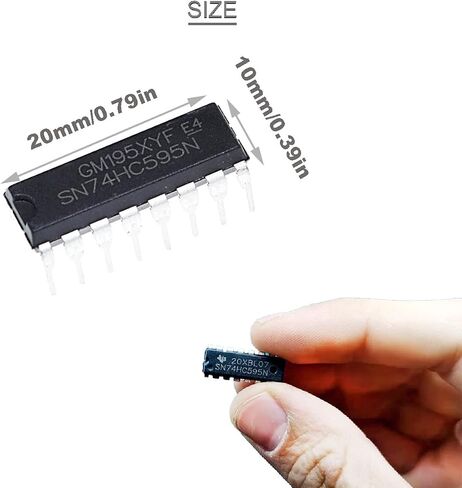

Package Type: DIP-16

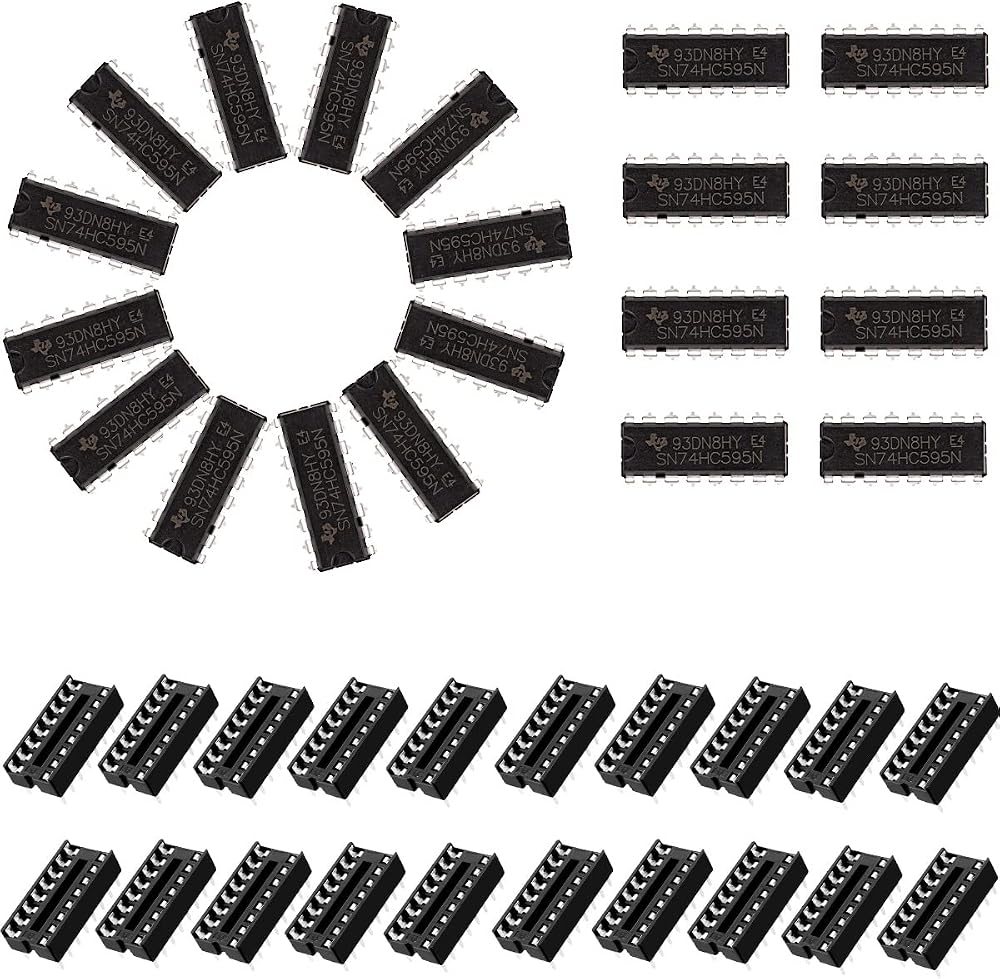

Package includes:
20 x SN74HC595N Registers
20 x DIP-16 IC Socket
