8 pcs 10 Segment LED Bar Graph Display red Yellow Blue Green + LM3914N-1 Dot/Bar Display Driver LED Display Driver Combo Kit with DIP-20 DIP-18 IC Socket for DIY

SAR 44
Brand
DKARDU
Weight
50 g
– 1 +

Special Features

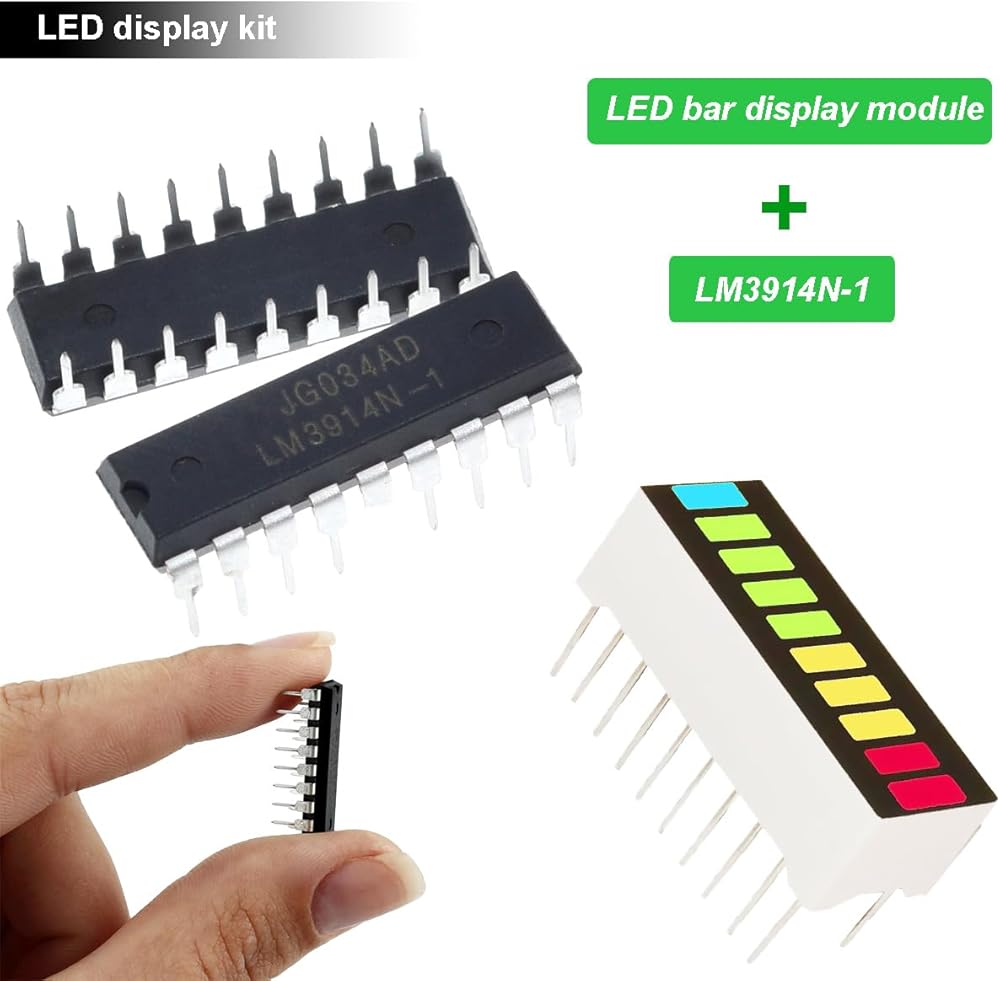

  • 😊【What it does】: This is a DIY display kit consisting of an LED strip display and an LED IC driver. The LEDs have four colors: red, yellow, blue, and green.With the support of the LED driver, the LEDs will be displayed more perfectly.

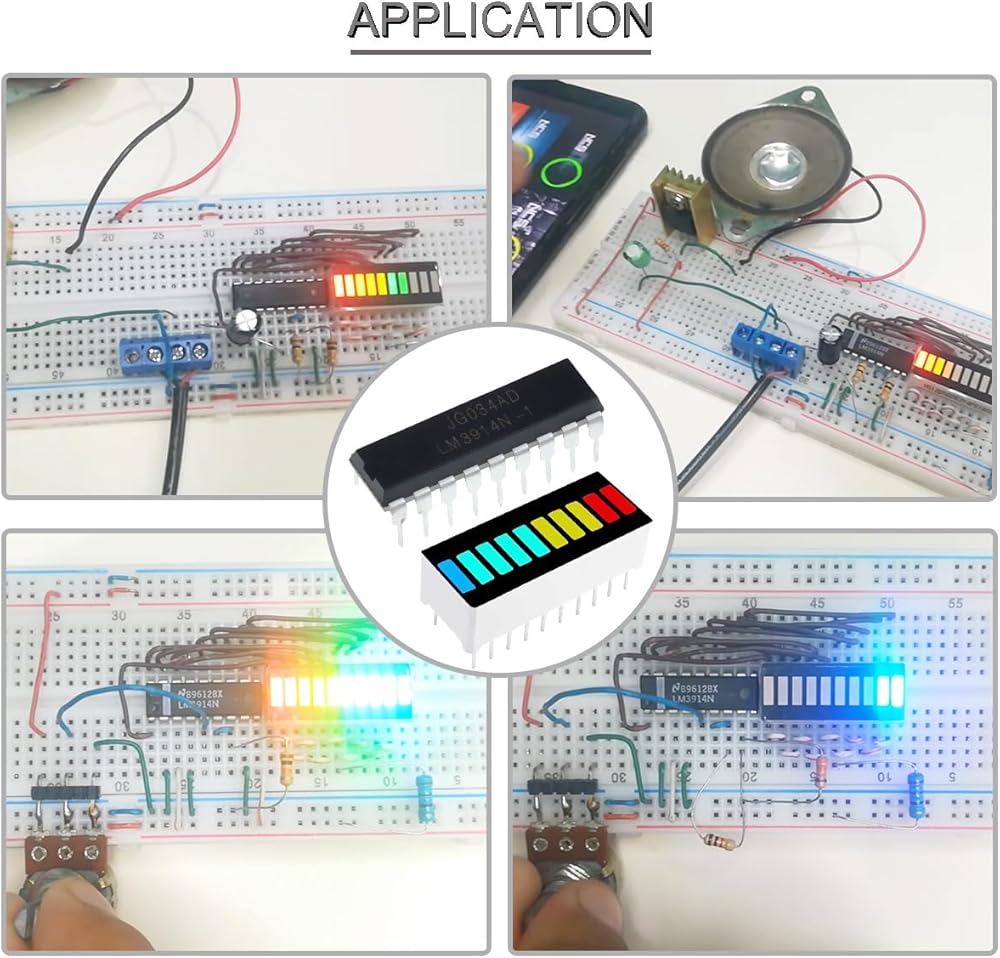

  • 😊【LED Bar Graph module】: The product has a long service life, IC compatibility, and low power consumption.Ideal for electronic project indicators.
  • 😊【LED Display Color】: 10-segment bar display(2xRed+3xYellow+4xGreen+1xBlue).
  • 😊【LED IC Driver】: The LM3914-1 is a monolithic integrated circuit that senses analog voltage levels and drives 10 LEDs to provide a linear analog display.
  • 😊【LED IC Driver features】: The current drive of the LED is adjustable and programmable without resistors.
  • 😊【Display mode】:Selectable for Bar or dot display mode;Expandable to displays of 100 steps.
  • 😊【Package Includes】: 4 x LED bar graph display module;4 x LM3914N-1 LED IC driver;4 x DIP-20 IC socket;4 x DIP-18 IC socket.

Description

This is a DIY display kit consisting of an LED strip display and an LED IC driver. The LEDs have four colors: red, yellow, blue, and green.With the support of the LED driver, the LEDs will be displayed more perfectly.

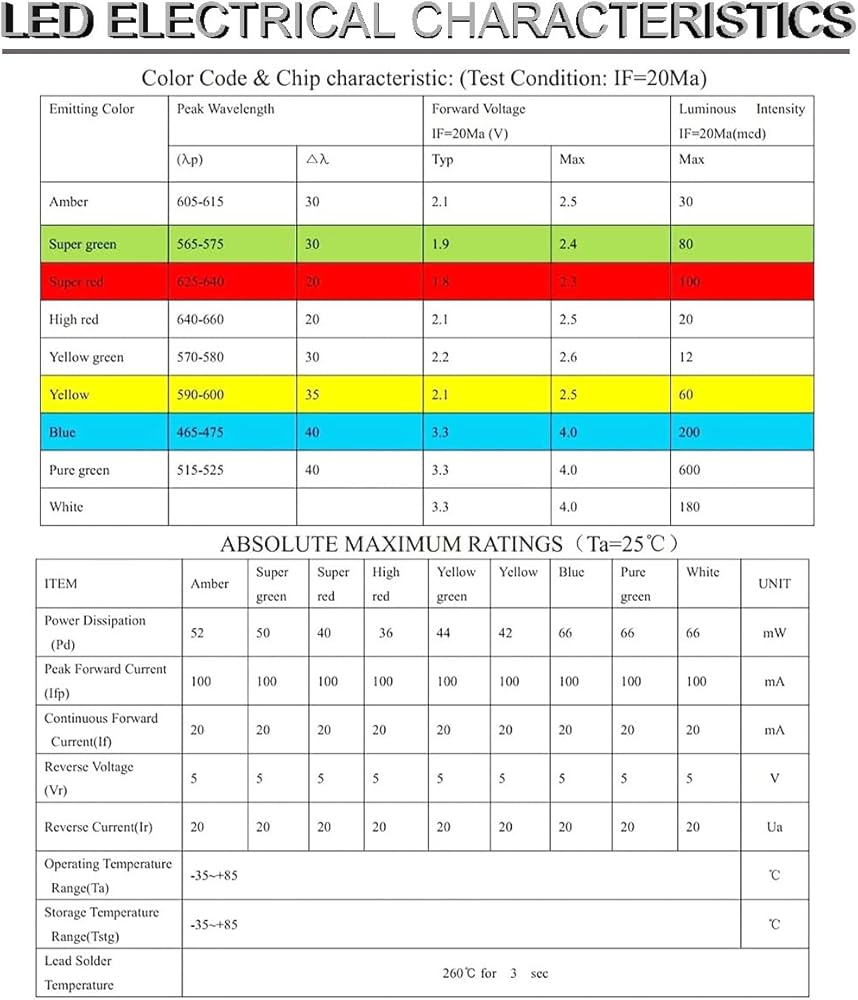

LED Bar Graph module Specification:
Color: Red,Yellow,Blue,Green(2xRed+3xYellow+4xGreen+1xBlue)

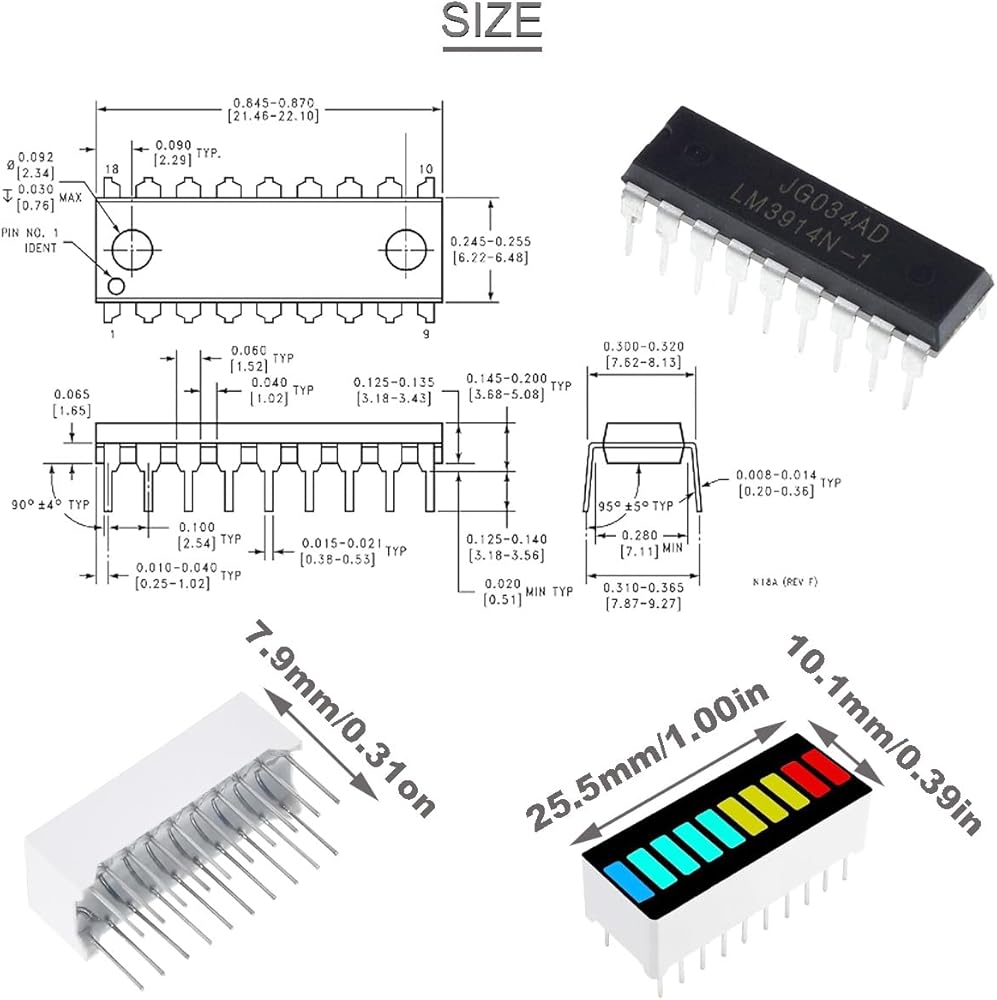

Product size: 25.5 * 10.1 * 7.9 mm
Screen size: 25.5 * 10.1 mm
Pixel: 25 mm
Number height: 5 mm

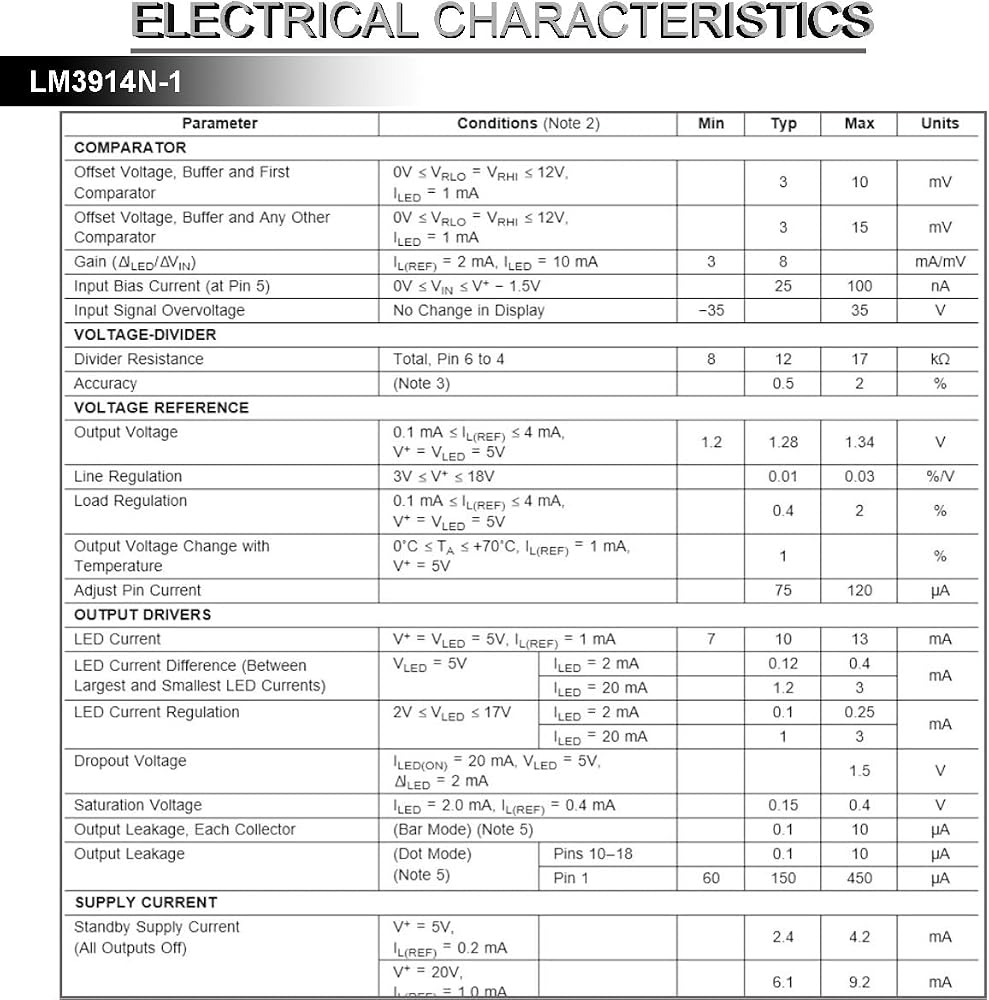

LED IC Driver Specification:
Model: LM3914N-1
Number of pins: DIP-18
Function: Drives LEDs, LCDs or vacuum fluorescents Bar or dot display mode.
Features: The current drive of the LED is adjustable and programmable without resistors.

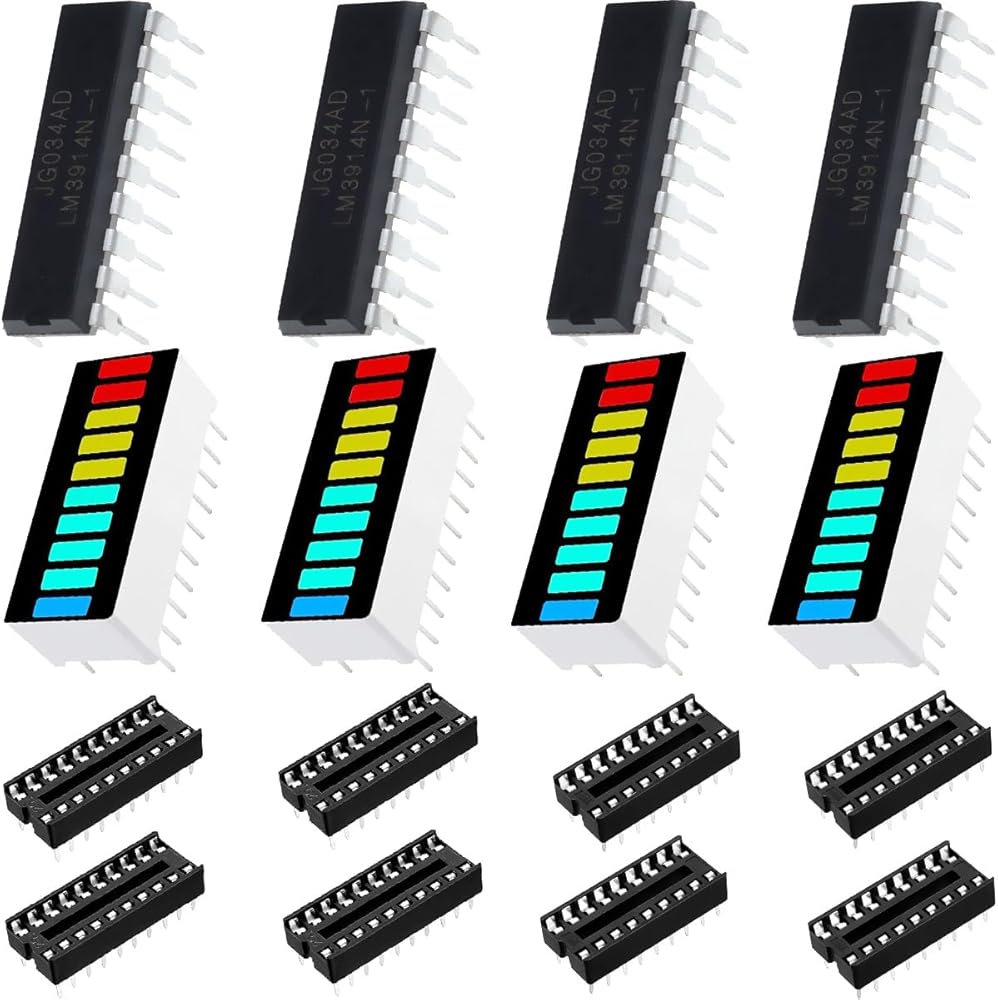

Package includes:
4 x LED bar graph display module
4 x LM3914N-1 LED IC Driver
4 x DIP-20 IC socket
4 x DIP-18 IC socket
