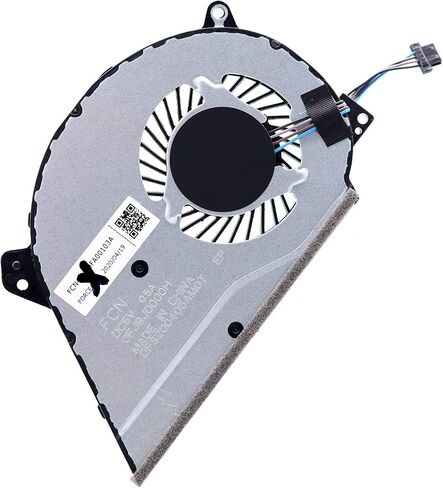

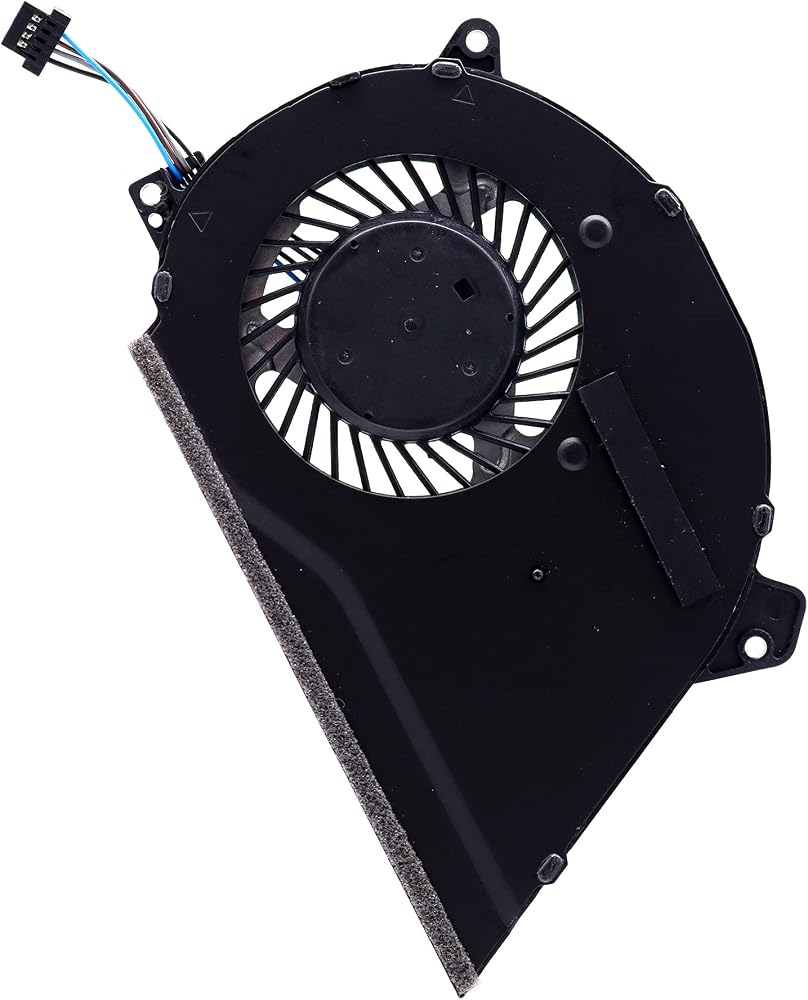

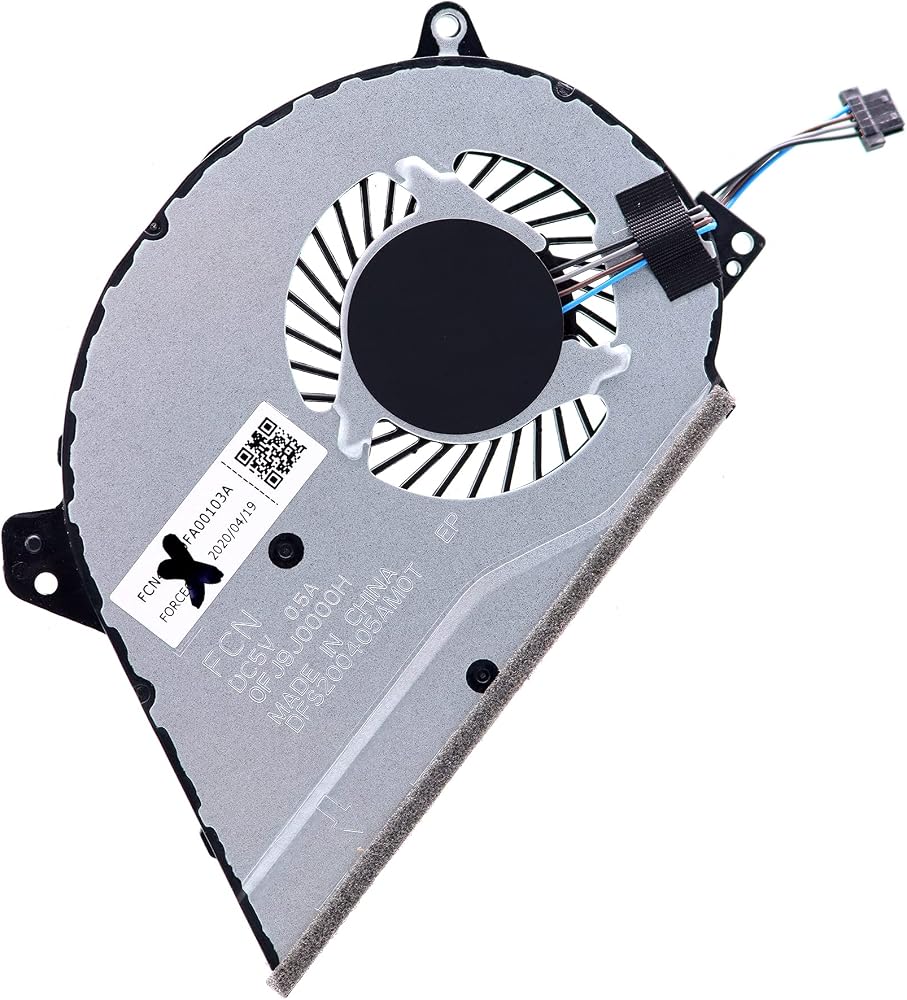

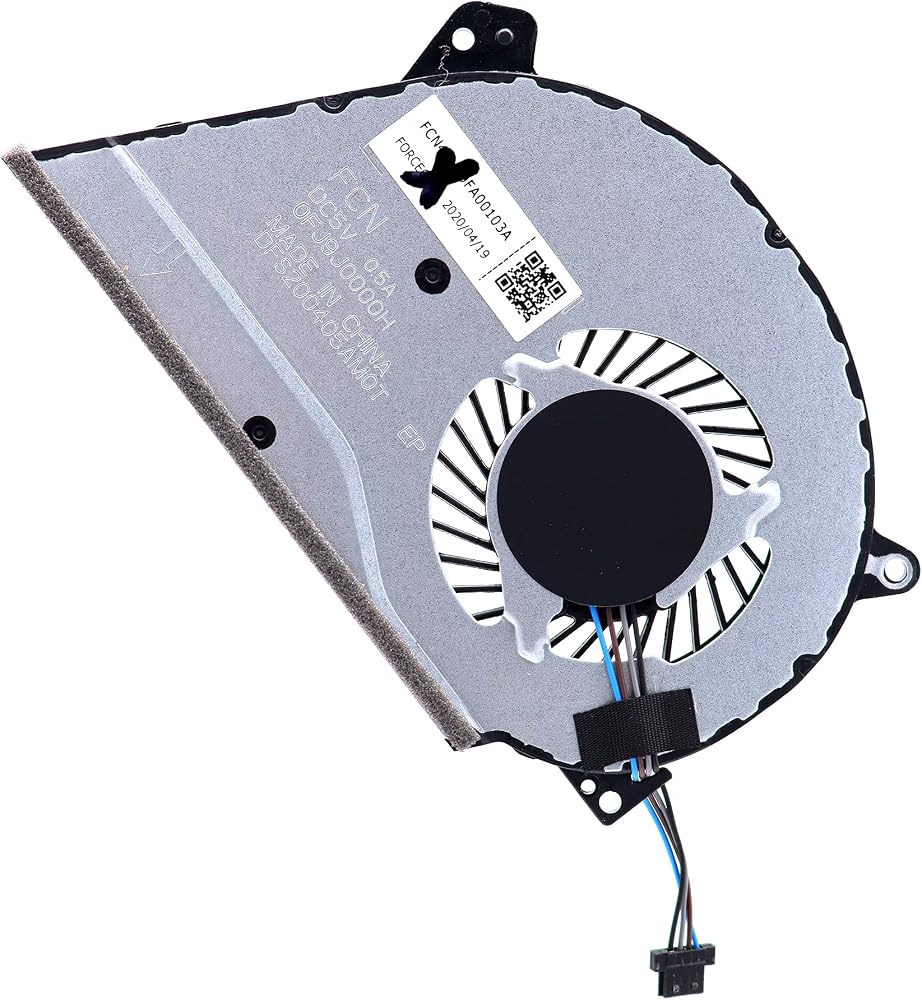

OEM CPU Cooling Fan for Pavilion 14-AL 14-AV series laptop, this is the cooling fan for CPU processor.
The fan uses an integrated flex cable to connect to the mainboard. The cable connects via 4-pin connector making it a plug and play replacement module, NO soldering is required.
Compatible Part Number(s):
DFS200405AM0T, NFB91A05H-FSFA15M, NS85B00-16D11, 47G31TP203
SPS #: 856206-001
Specifications:
Direct Current: DC 5V / 0.5A
Connection: 4-pin 4-wire, plug-in
Reference list of compatible with HP Laptop Models:
- Pavilion 14-AL 14-AL100 14-AL200 series: 14-AL125TX, 14-AL126TX, 14-AL128TX, 14-AL061NR, 14-AL062NR, 14-AL015NA, 14-AL117NA, 14-AL118NA, 14-AL119NA
- Pavilion 14-AV series: 14-AV002LA, 14-AV006LA
What's in the Box
1x CPU Cooling Fan
