3660 4200KV Brushless Motor with 30kg Servo and 80A ESC, RC Brushless Motor Set Compatible 1/8 and 1/10 Scale RC Car Sportinggoods Model Car Accessories

SAR 317
Brand
SPYMINNPOO
Weight
420 g
– 1 +

Special Features

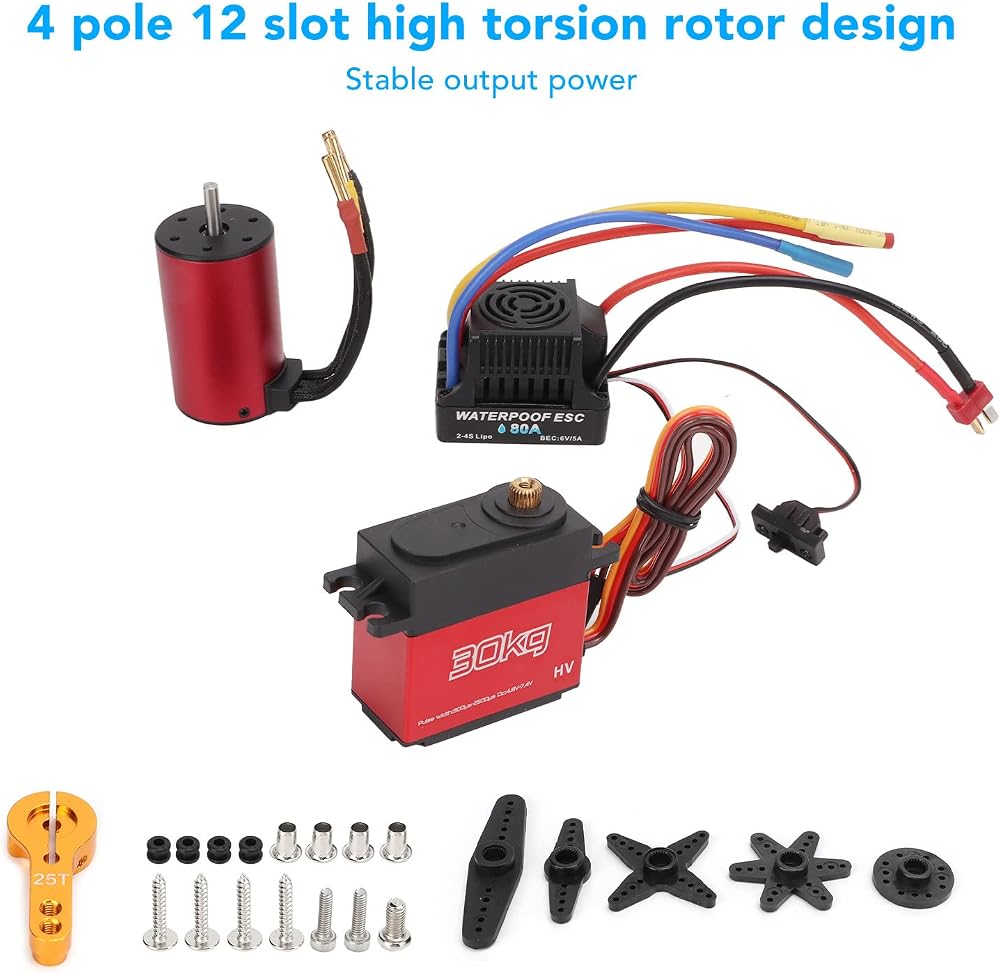

  • Strong Power Motor: RC brushless motor has 4 pole 12 slot rotor, which has strong torsion and stable output power. Provides your RC car higher speed and exciting driving!
  • Full ESC: The electric speed controller has low voltage cut off , overheat , throttle signal loss , ensure long service life.

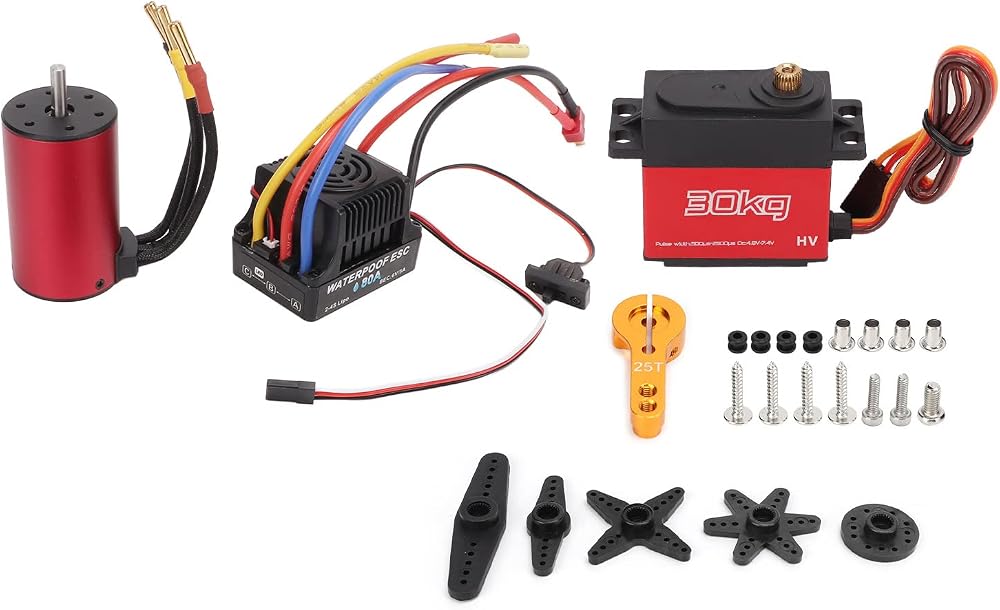

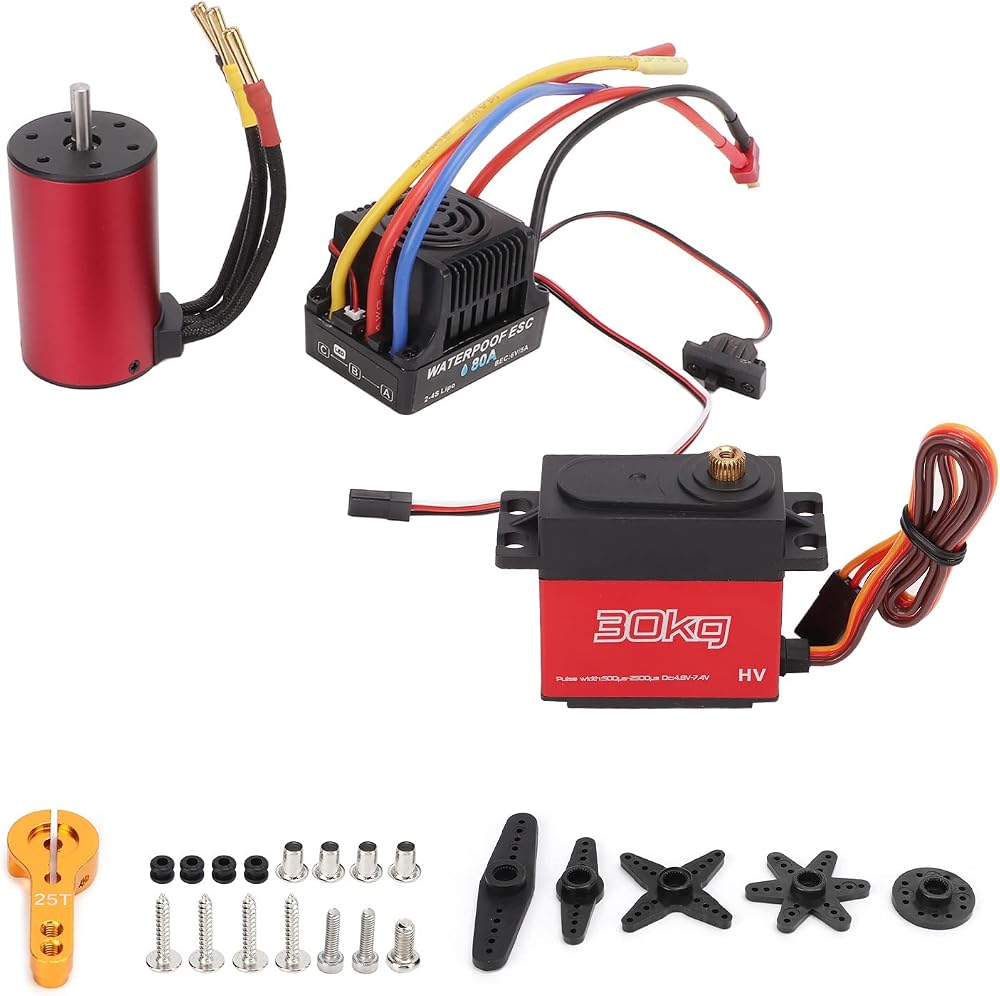

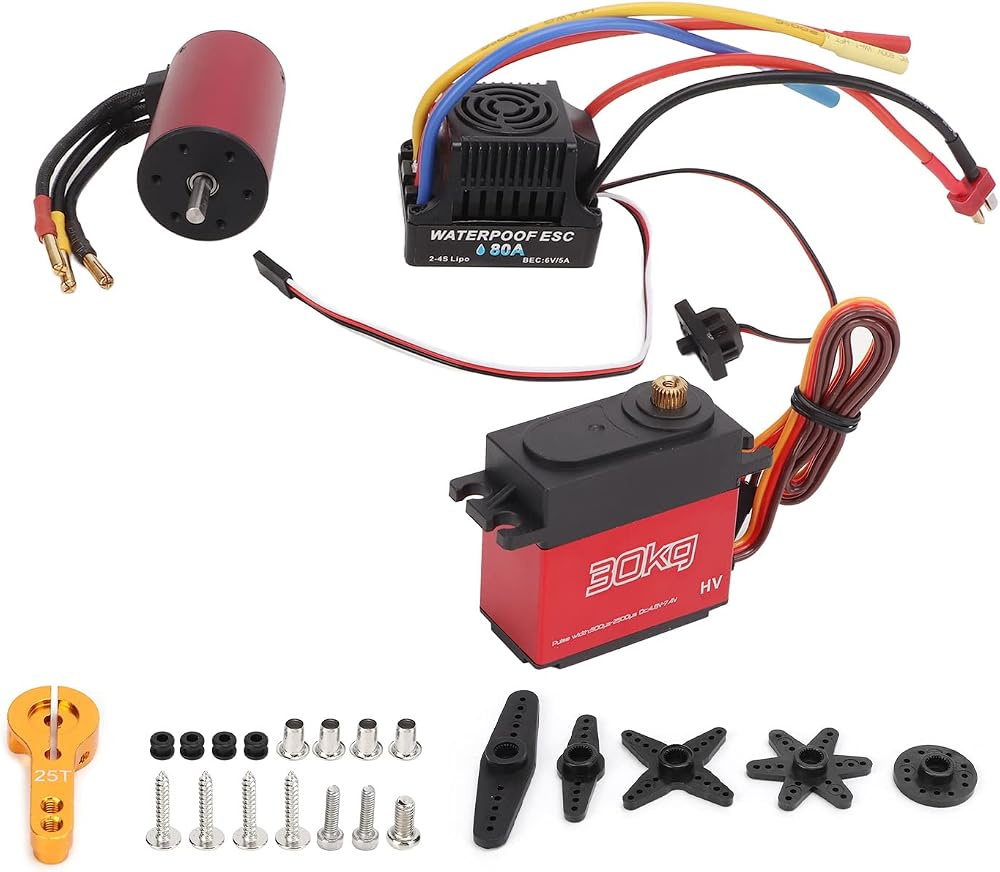

  • Complete Set: Package inlcuding 1 x motor, 1 x esc, 1x user manual, 1 x servo, 1 x metal servo arm, 5 x plastic servo arm, 7 x screw, 4 x screw barrel, 4 x rubber mat, cost effective upgrade kit for you!

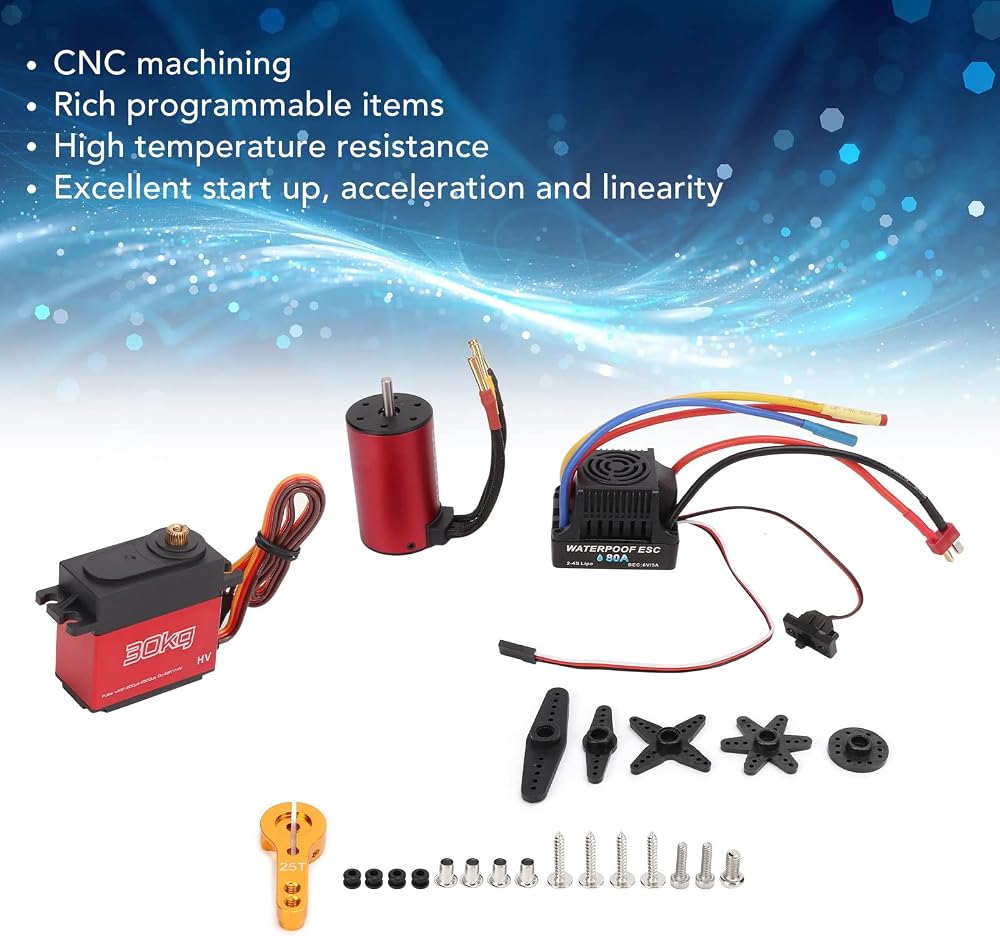

  • Excellent Performance: Excellent start up, acceleration and linearity with super durability to ensure efficient . Great brushless motor modification kit for 1:8, 1:10 scale RC car.
  • How to Use:1. There is no strict sequence requirement for the connection between the motor and the ESC. The #A/#B/#C of the motor can be connected with the three wires of the ESC at will. If the direction is reversed, the two motor wires can be exchanged at will; 2. Before turning on the power of the RC car, be sure to double check the correctness of the power system connection and the reliability of the installation.

Description

Specification:
Item Type: RC Brushless Motor Set

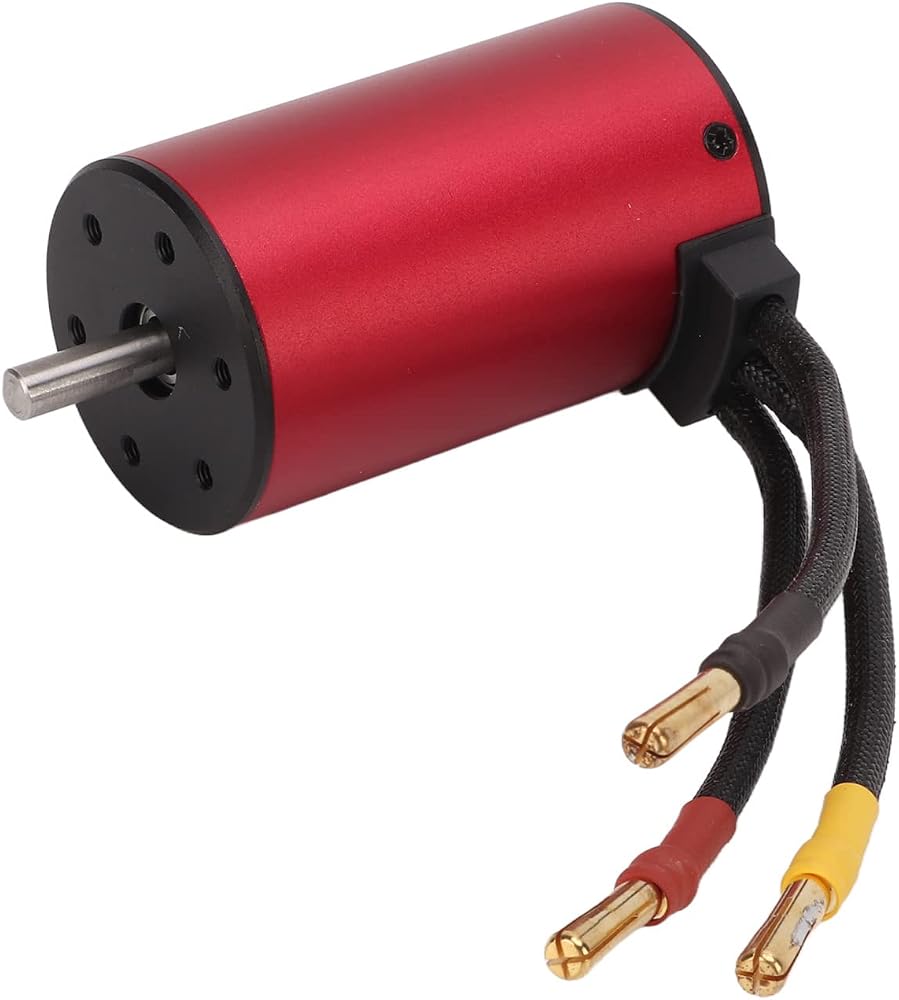

Motor Parameters:
Shell Material: Aluminum Alloy
Color: Red
Product Size: Approx. 36 x 60mm / 1.4 x 2.4in (excluding Cables and Shafts)
KV Value: 4200KV
Watts: 1200
Maximum Speed: 50000
Maximum Voltage: Maximum Amperage: 100A
Shaft Diameter: Approx. 3.175mm / 0.13in
Shaft Length: Approx. 17mm / 0.7in
Connector: 4mm Banana Plug

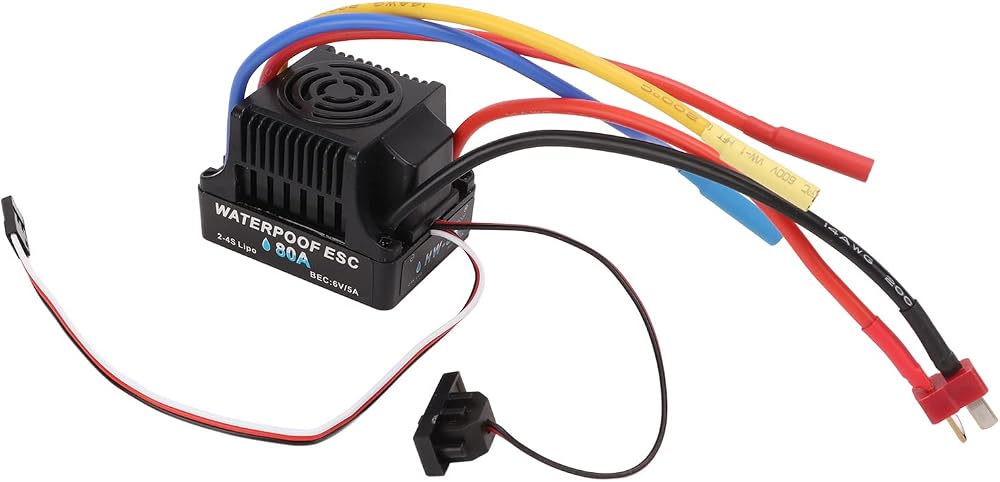

Esc Parameters:
Color: Black
Shell Material: Plastic
Product Size: Approx. 53 x 37 x 38mm / 2.1 x 1.5 x 1.5in (without Cable)
Power Plug: T Male
Continuous Current: 80A
Peaking Current: 480A
BCE Output: 6V 5A
Applicable Battery (batteries Not Included): 2-4cells Lipo / 4-12 Cell NiMh

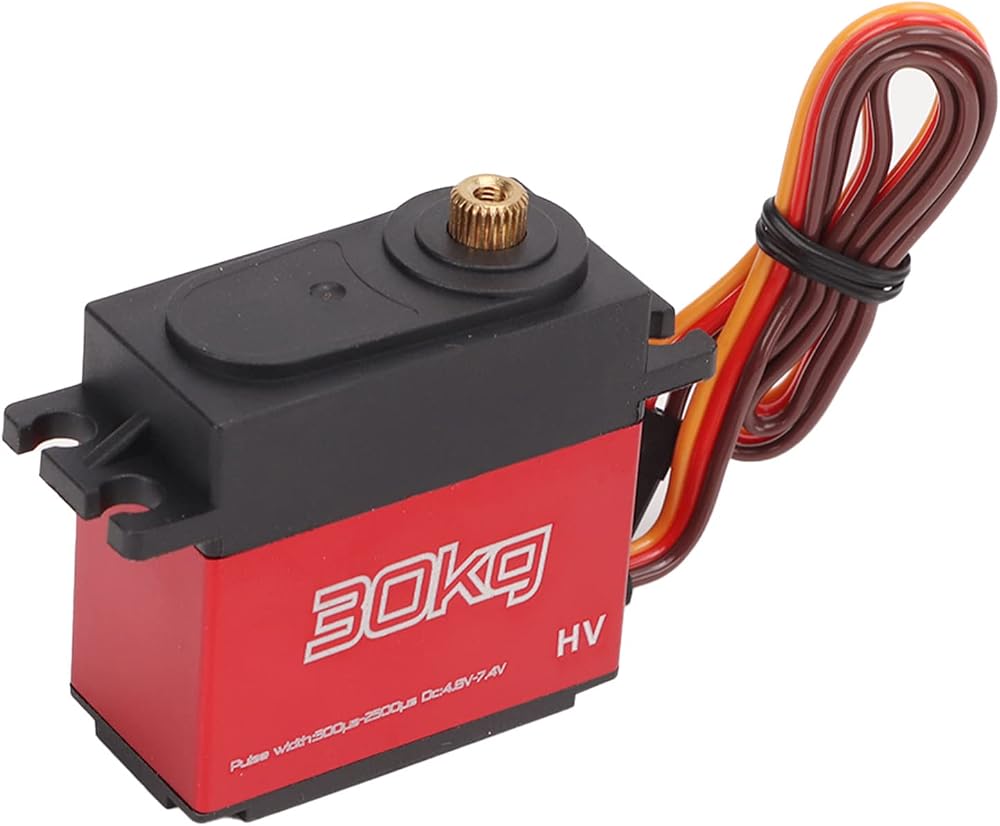

Servo Parameters:
Shell Material: Aluminum Alloy
Color: Red
Product Size: Approx. 55 x 43 x 20mm / 2.2 x 1.7 x 0.8in
Operating Voltage: 4.8 to 7.4v
Pulse Width Range: 500 to 2500usec
Neutral Position: 1500usec
Number of Teeth: 25T
No Load Speed: 0.24sec/60° to 0.17sec/60°
Peaking Stall Torsion: 29.5kg.cm to 32kg.cm
Dead Zone Width: 5usec
Operating Angle: 180°±3° (500 to 2500usec)
Applicable: 1/8 1/10 RC Car Universal

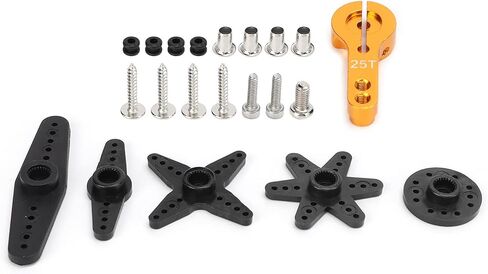

Package List:
1 x Motor1 x ESC
1 x User Manual
1 x Servo

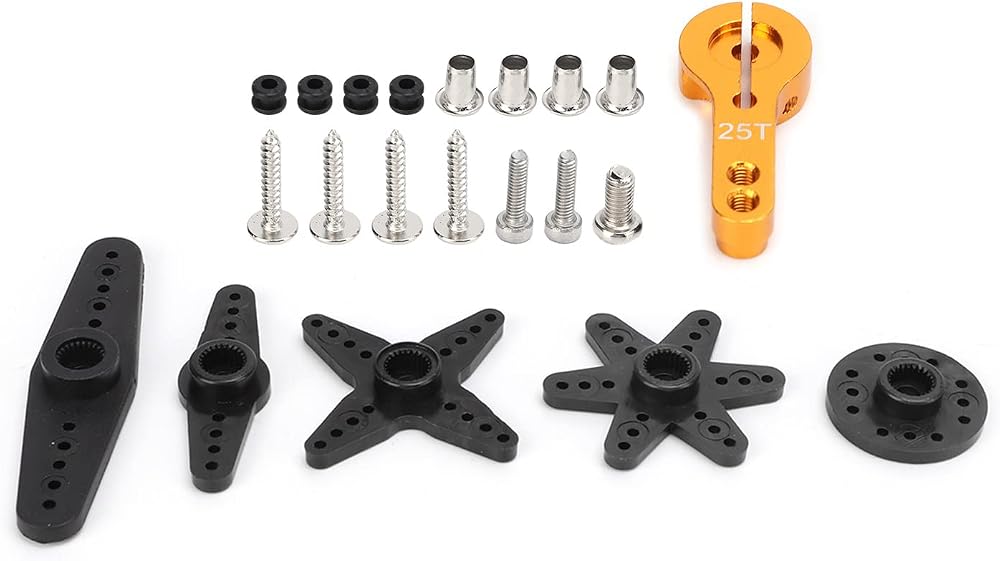

1 x Metal Servo Arm
5 x Plastic Servo Arm
7 x Screw
4 x Screw Barrel
4 x Rubber Mat
