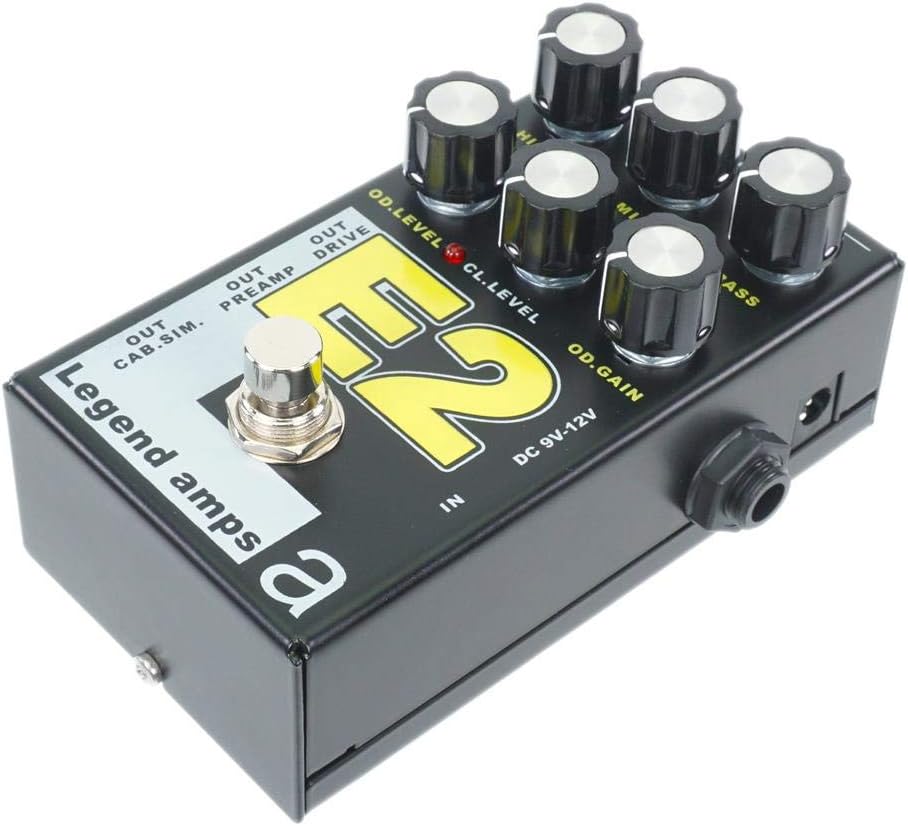

AMT Electronics E2- LA2 guitar preamp/distortion pedal
Features overview

E-2 preamp reproduces the main features of Engl overdrives. Engl amplifiers form a special contemporary sound branch. Convex and at the same time German-like rigorous character is reproduced by the four heated up to the full preamp stages.*

– direct connection to guitar system power amp;
– connection to “clean” channel of a guitar combo or amp;
– direct connection to a mixer.

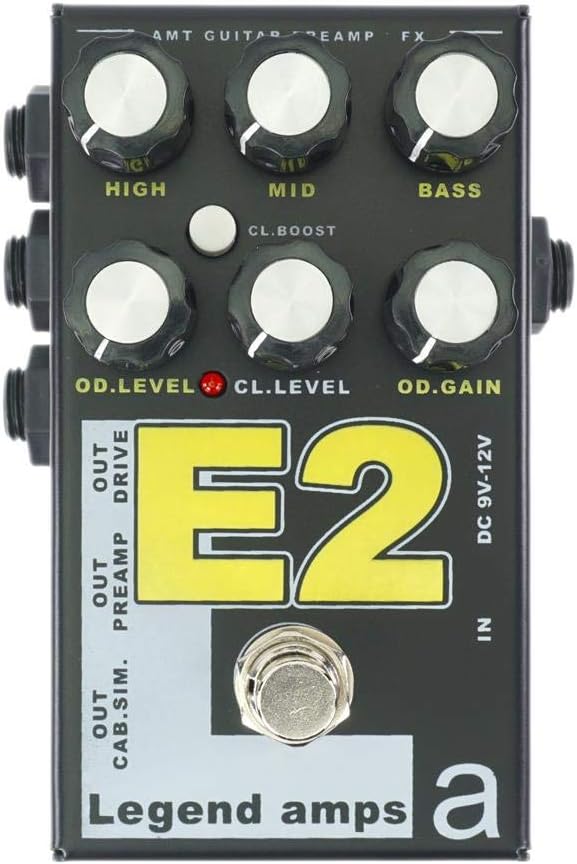

CONTROLS:
– OD LEVEL adjusts the overall loudness of the pedal output
– OD GAIN adjusts the amount of distortion and drive
– HIGH controls the amount of high frequency in the signal
– MIDDLE controls the amount of mid frequency in the signal
– BASS controls the amount of bass frequency in the signal
– CL LEVEL adjusts the buffer output of the bypassed signal, 1 o'clock positioning represents standard -10dB level
– CL BOOST SWITCH engages a boost of clean signal up to +8dB when the pedal is bypassed, making the pedal a 2-channel preamp

FEATURES:

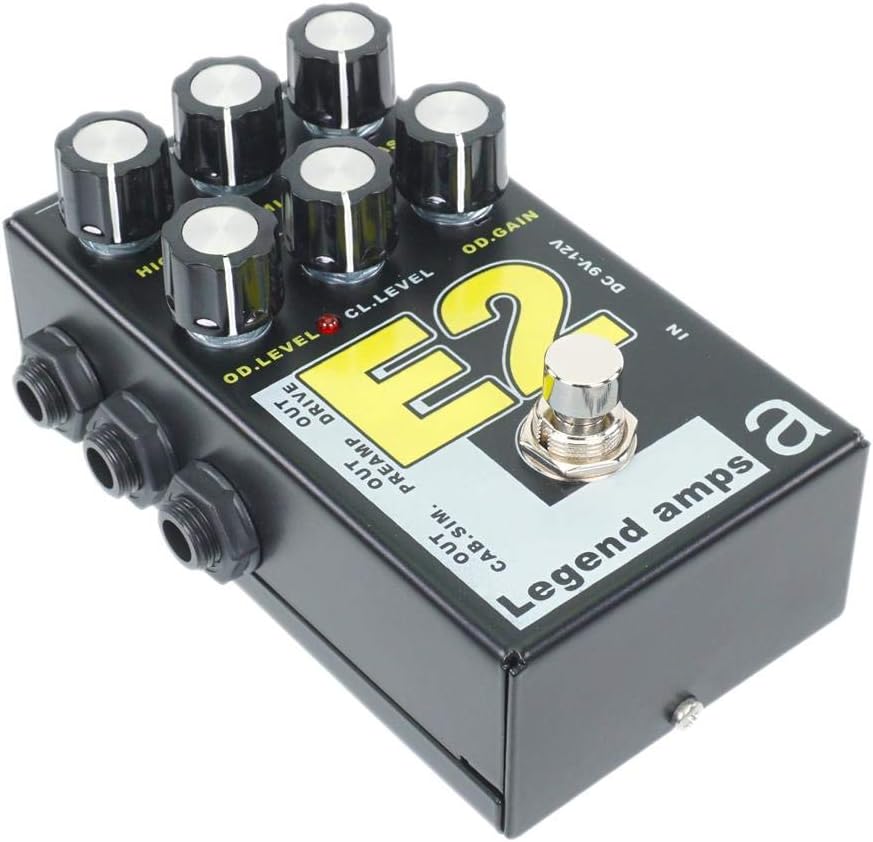

– Three outputs (CAB SIM OUT, PREAMP OUT, DRIVE OUT)
– Simultaneous use of all three outputs at once
– Optional clean level and clean boost controls when bypassed (only with CAB SIM OUT and PREAMP OUT)
– LED indicator when effect is engaged
SPECIFICATIONS:
– 9-12v DC power negative center (-), adapter or battery
– Low power consumption
– Small size: 110 x 62 x 58 mm
