Special Features

【Dual Operating Modes】Designed for maximum application flexibility, the SWL1T screw jack seamlessly supports both manual hand-wheel operation and vertical motor-driven configurations. This dual-mode adaptability allows you to integrate the unit into diverse linear motion systems, from simple manual adjustments to fully automated industrial setups, without the need for additional modification.
【Premium Copper Worm Gear Core】At the heart of this linear actuator lies a high-purity 94 copper worm gear, precision-matched with a hardened 45# steel drive shaft. This premium metallurgical combination delivers exceptional wear resistance and maintains structural integrity under continuous heavy loads, significantly extending the service life of the unit even in demanding 24/7 operational environments.
【Type II Flange Mounting Head】Equipped with a professional Type II flange connector head, this screw lift features four pre-drilled φ10mm (0.39in) mounting holes on the top interface. This standardized flange design ensures a secure, vibration-resistant connection for attaching custom fixtures, tooling plates, or load-bearing platforms, providing superior lateral stability during vertical lifting operations.

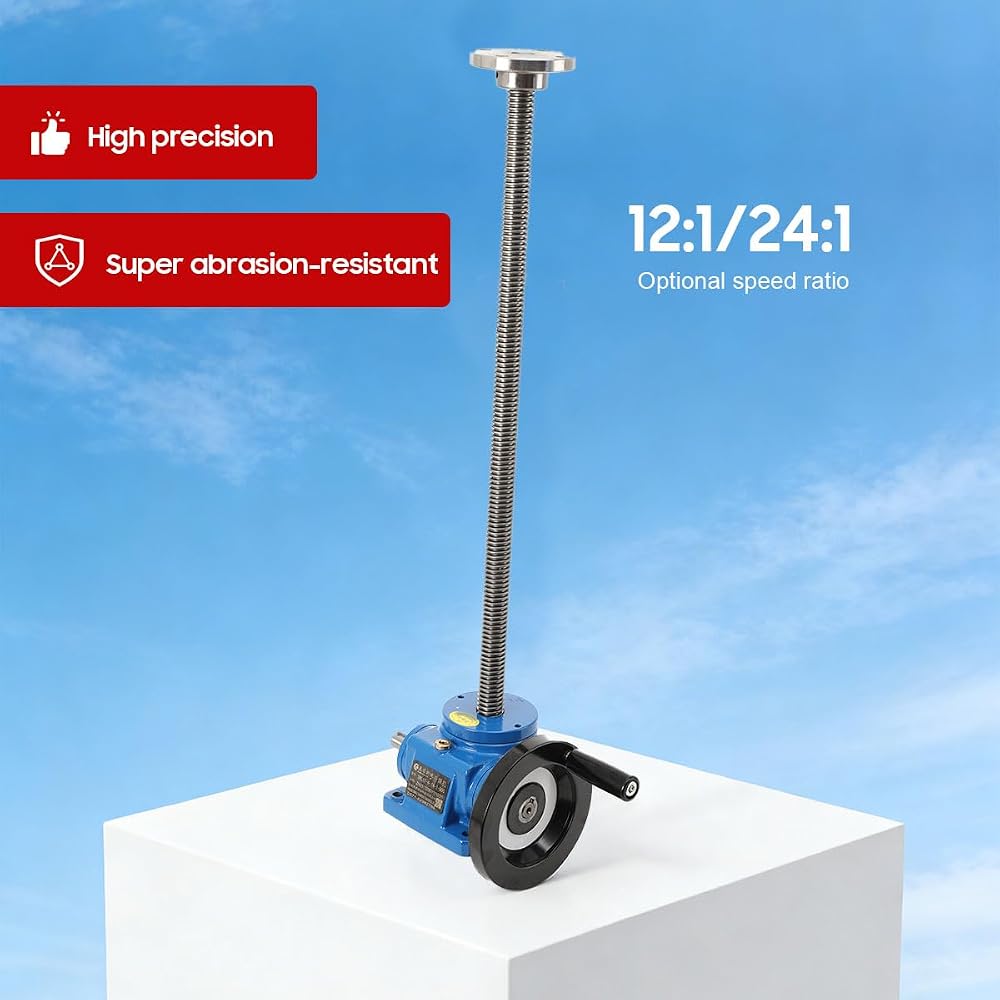

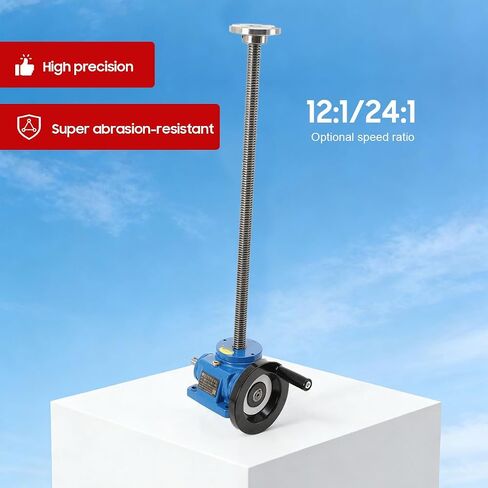

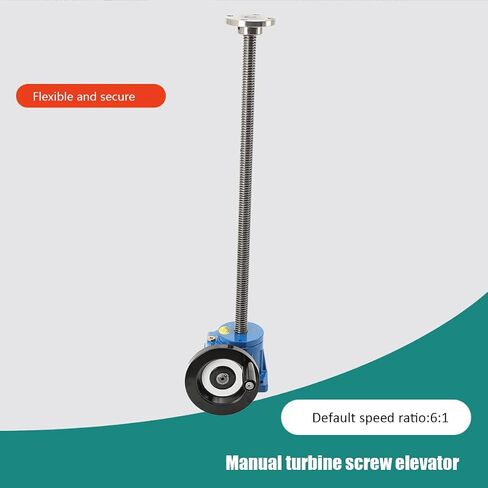

【Flexible Speed Ratio Options】Factory-configured with a 6:1 gear ratio for an optimal balance of lifting speed and torque output, this worm gear jack also offers selectable 12:1 and 24:1 ratio alternatives. These optional configurations allow you to fine-tune the elevation pace and mechanical advantage according to your specific application requirements—whether you need faster positioning or higher load-holding torque.

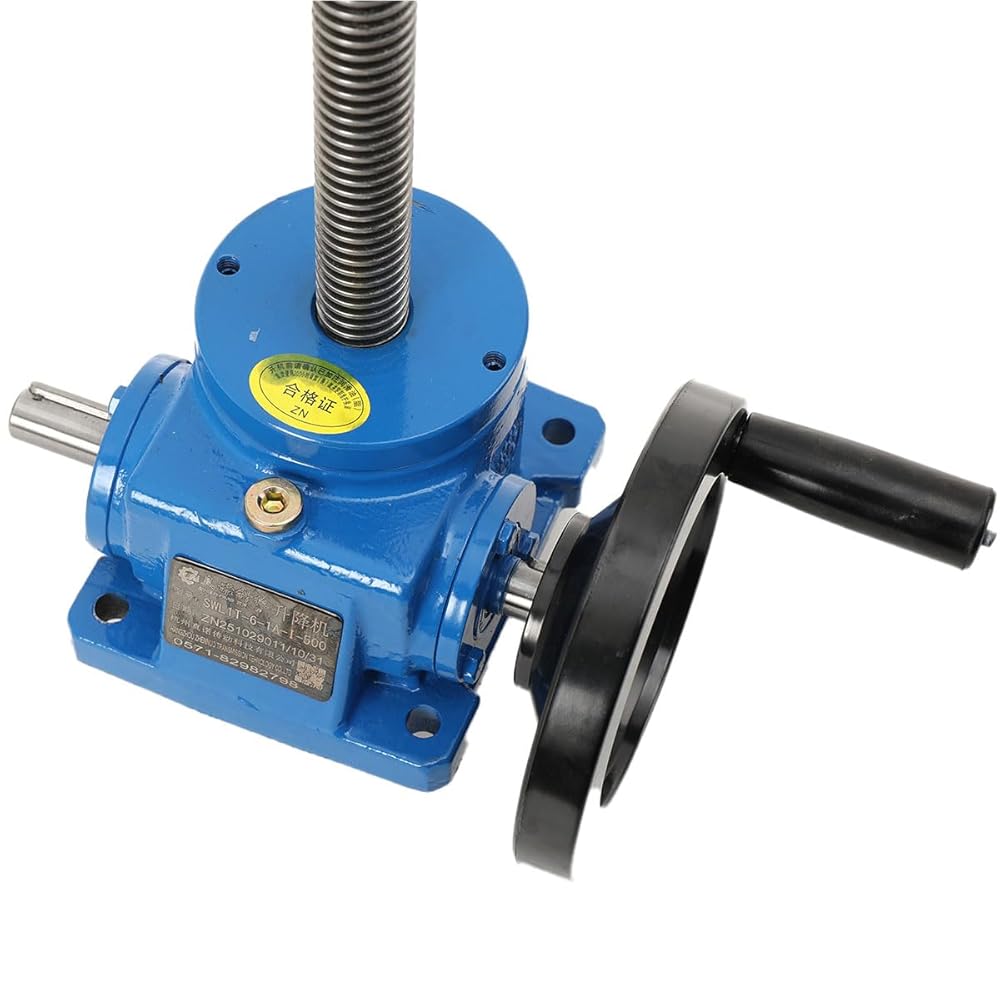

【Heavy-Duty Cast Iron Housing】Encased in a rugged nodular cast iron housing, the SWL1T is built to withstand the rigors of industrial workshops, construction sites, and factory automation lines. The robust shell effectively absorbs shock and vibration while maintaining precise mounting alignment with its compact base dimensions of 105×120mm (4.13×4.72in) and standard 85×95mm bolt hole spacing, ensuring straightforward retrofit or new installation.

Description

Product Description:

Superior Lifting Performance & Precision Engineering

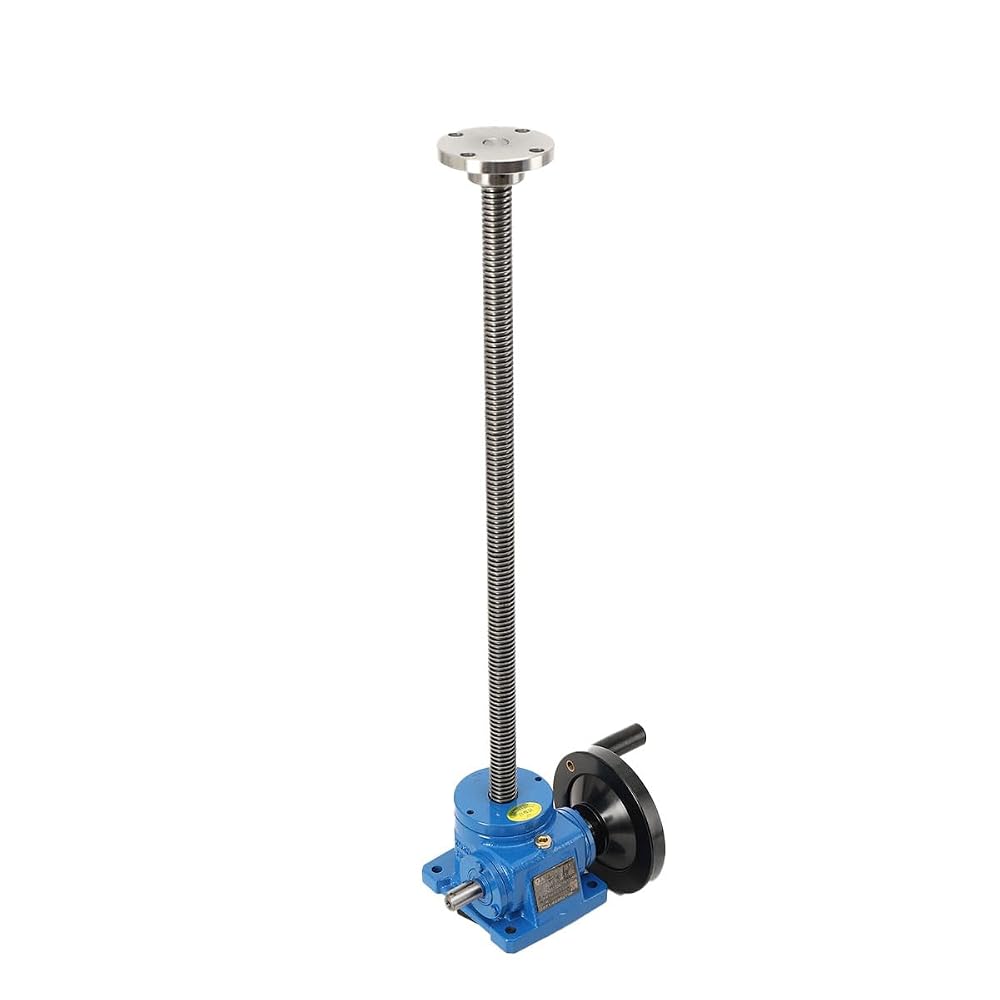

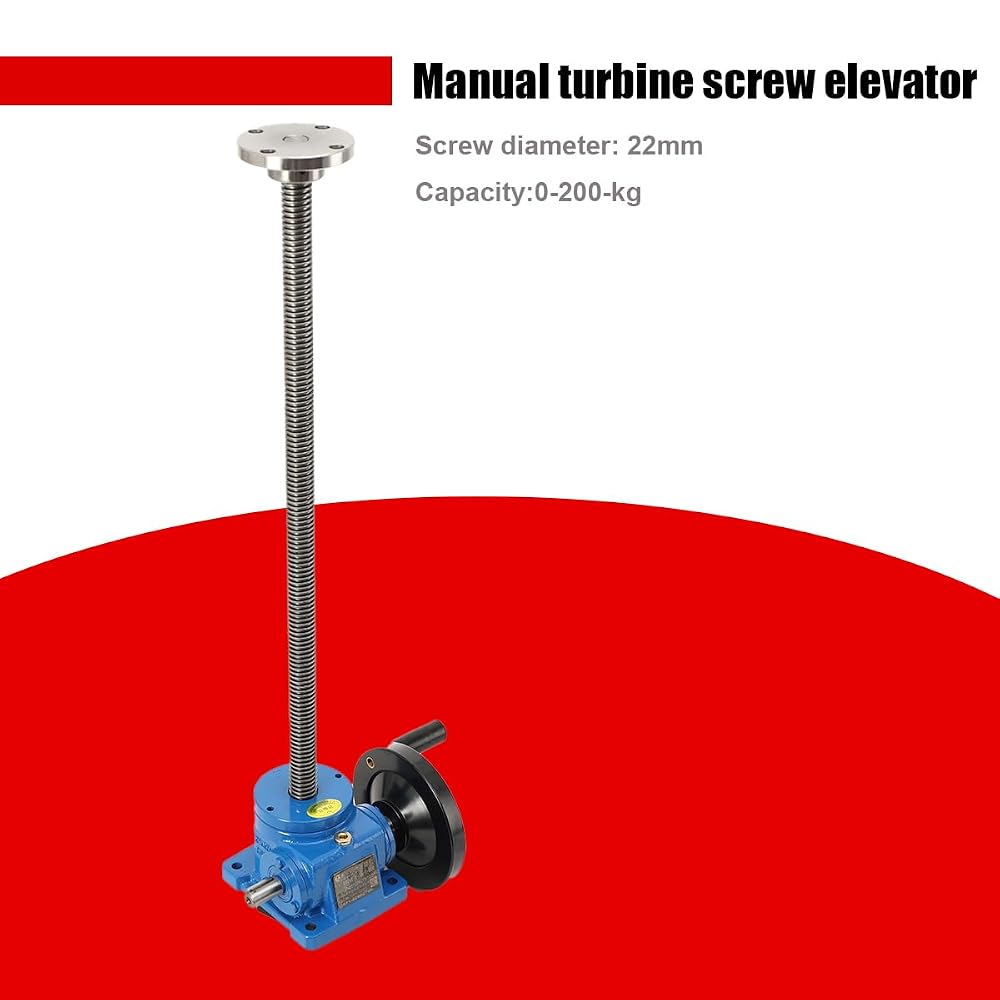

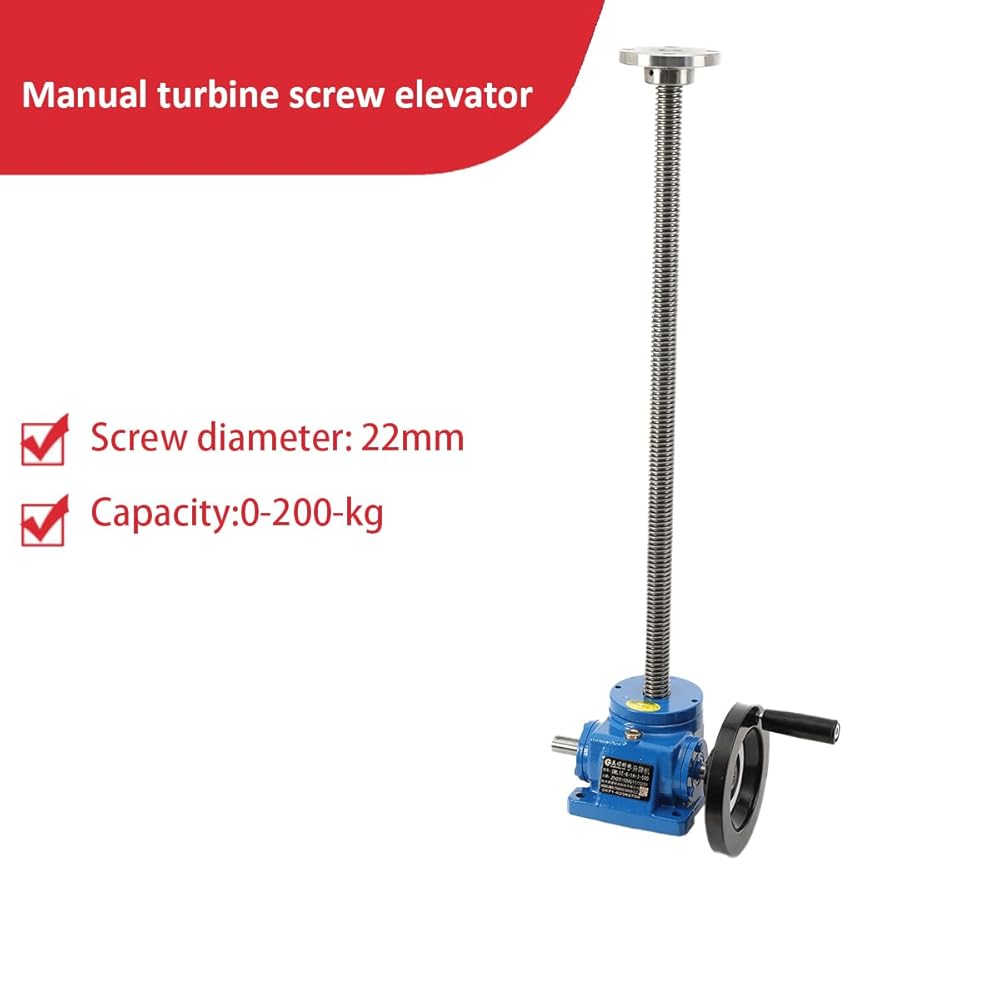

The SWL1T Screw Jack Linear Actuator is a robust and reliable solution for industrial linear motion applications. Engineered with a high-strength worm gear mechanism, this unit delivers a substantial 200 kg (440 lbs) lifting capacity while maintaining
precise positioning. Whether you are building custom machinery, adjusting production lines, or setting up stage equipment, this screw lift provides the power and accuracy you need.

Key Technical Specifications:

Model: SWL1T

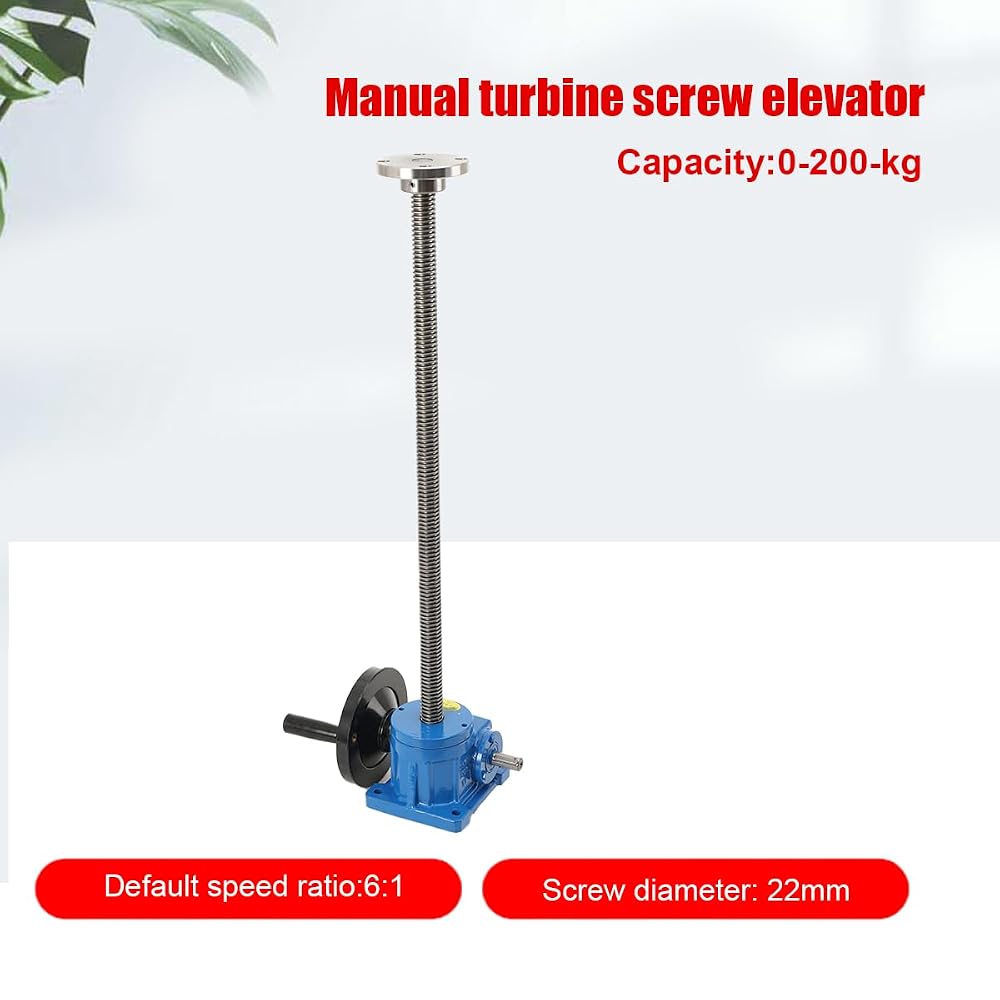

Maximum Load Capacity: 0 – 200 kg(440lb)

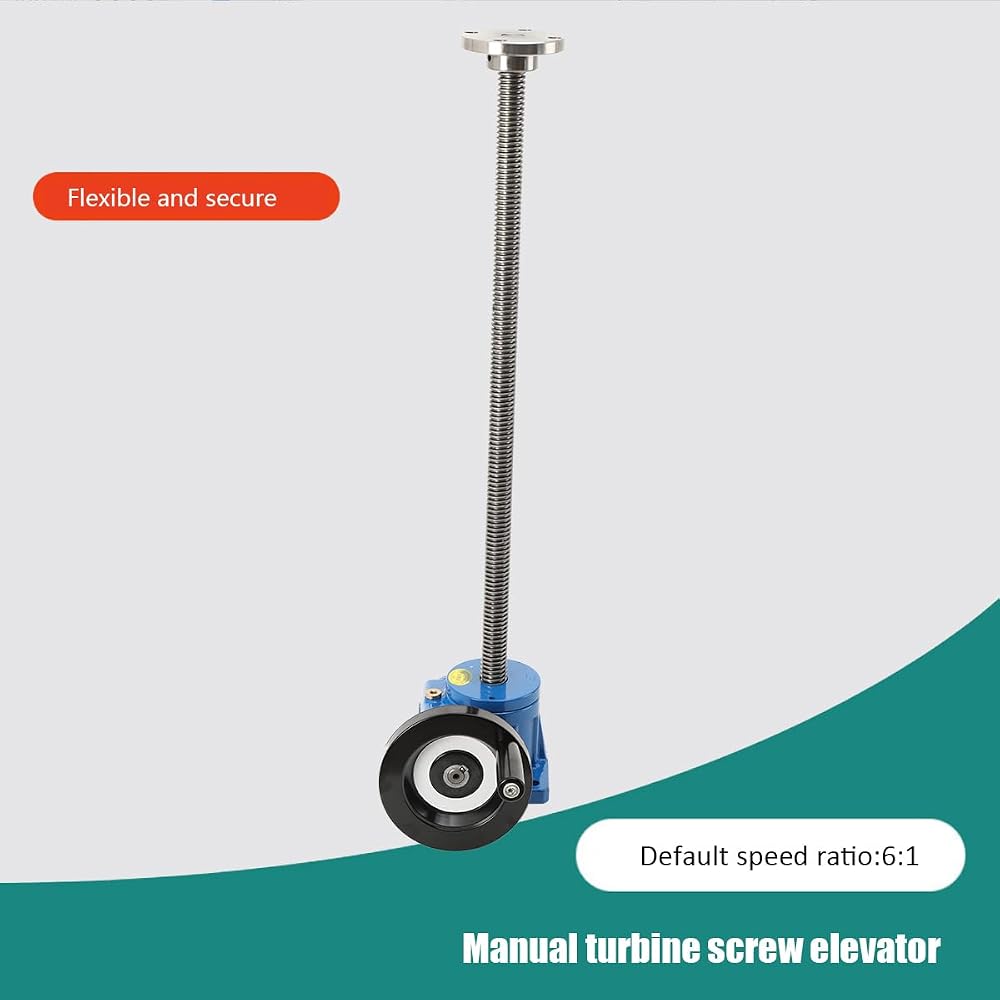

Default Gear Ratio: 6:1 (Balances speed and torque for optimal performance)

Screw Diameter: 22 mm/0.87 inch

Screw Lead: 4 mm (Ensures smooth and precise linear movement)

Standard Stroke Length: 500 mm (Customizable upon request)

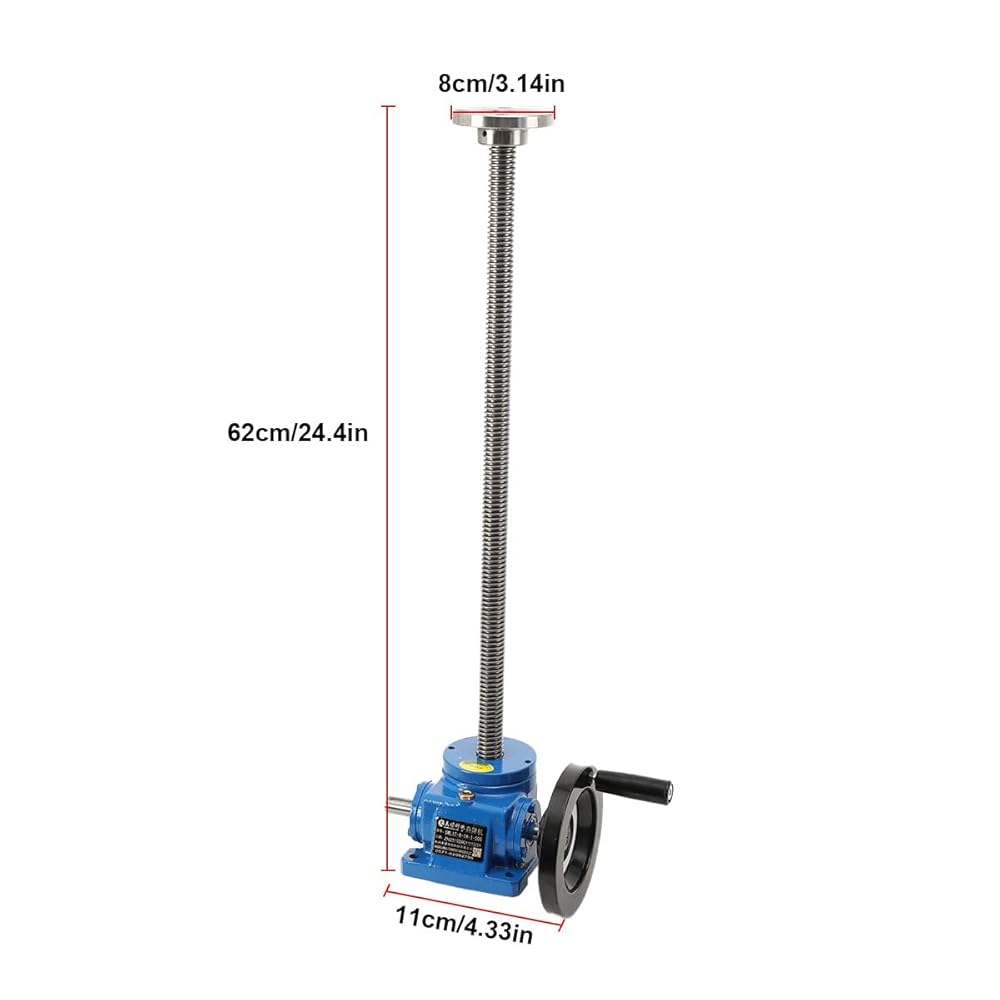

Compact Base Dimensions: 105 x 120 x 84 mm/4.13 x 4.72 x 3.31 inch

Mounting Hole Distance: 85 x 95 mm/3.35 x 3.74 inch (Ensures easy integration into existing setups)

Package Including

1*Leading Screw Lift
