Pressure Gauges
Please inform us measure range On message board.
the default thread is M20*1.5,
measure range-normal:
0.1Mpa,0.16Mpa,0.25Mpa,0.4Mpa,0.6Mpa,1Mpa,1.6Mpa,2.5Mpa,4Mpa,6Mpa,
measure range-high pressure:10Mpa,16Mpa,25Mpa,40Mpa
Technical parameters
Name
Model
Nominal diameter(mm)
Accuracy grade
Measuring range(Mpa)
Connection thread
Contactor power
(VA)
Max. operating voltage
(V)
Control mode
electric connecting pressure gauge
YX-60
60
2.5
0~0.1~60
M14×1.5
10
DC220VorAC380V
top and bottom limitation
YX-100
100
1.6
0~0.1~100
-0.1~0~2.4
M20×1.5
10
DC220V or AC380V
top and bottom limitation
YX-150
150
1.6
0~0.1~100
-0.1~0~2.4
M20×1.5
10
DC220Vor AC380V
top and bottom limitation
Magnetic help
electric connecting pressure gauge
YXC-100
100
1.6
0~0.1~100
-0.1~0~2.4
M20×1.5
30
DC220VorAC380V
top and bottom limitation
YXC-150
150
1.6
0~0.1~100
-0.1~0~2.4
M20×1.5
30
DC220VorAC380V
top and bottom limitation
oxygen electric connecting pressure gauge
YXCO-100
100
1.6
0~0.1~60
M20×1.5
10
DC220VorAC380V
top and bottom limitation
YXCO-150
150
1.6
0~0.1~60
M20×1.5
10
DC220VorAC380V
top and bottom limitation
Ammonia use electric connecting pressure gauge
YXCA-100
100
1.6
0~0.1~60
M20×1.5
10
DC220VorAC380V
top and bottom limitation
YCXA-150
150
1.6
0~0.1~60
M20×1.5
10
DC220VorAC380V
top and bottom limitation
rating of temperature electric connecting pressure gauge
YXCW-100
100
1.6
0~0.1~60
M20×1.5
10
DC220VorAC380V
top and bottom limitation
YXCW-150
150
1.6
0~0.1~60
M20×1.5
10
DC220VorAC380V
top and bottom limitation
shock-proof
electric connecting pressure gauge
YXC-100N
100
1.6
0~0.1~60
M20×1.5
30
DC220VorAC380V
top and bottom limitation
==========

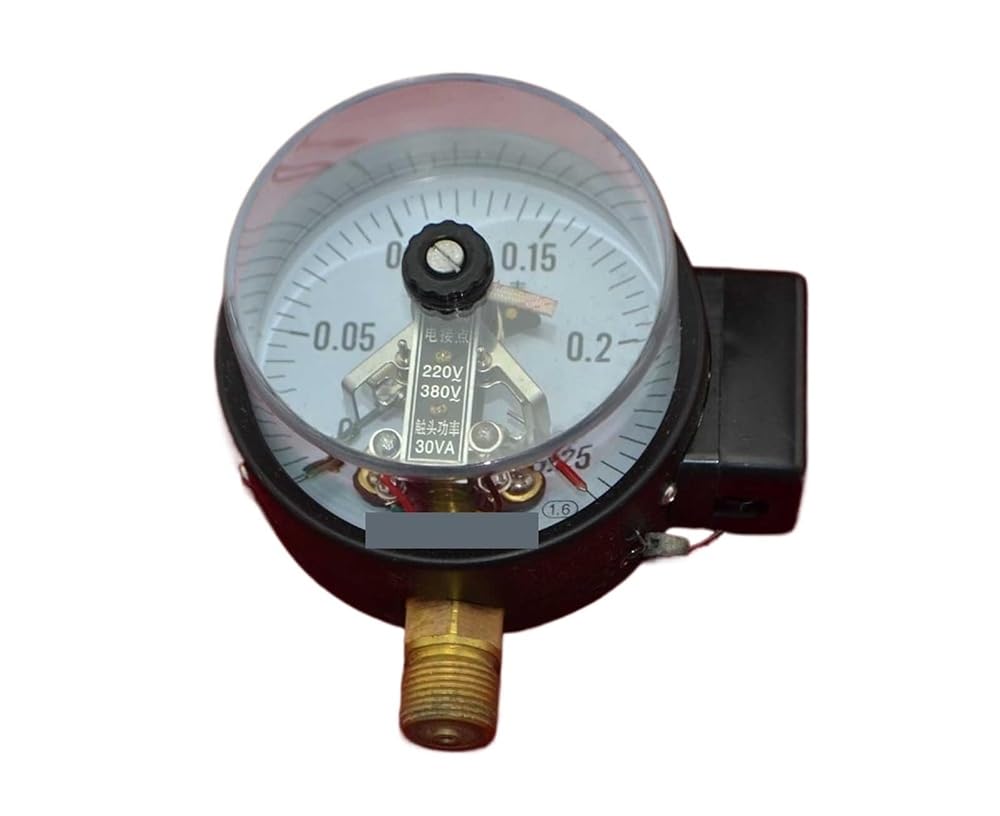

Model Number : YXC-100
Max Measuring Range : 200 PSI & Above
Display Type : analog
Dial Diameter : 4 - 6.9 Inches
DIal size: : 100MM
connection: : brass and bottom
Thread : M20*1.5 or 1/2"
movements: : Brass
is_customized : Yes
