Description

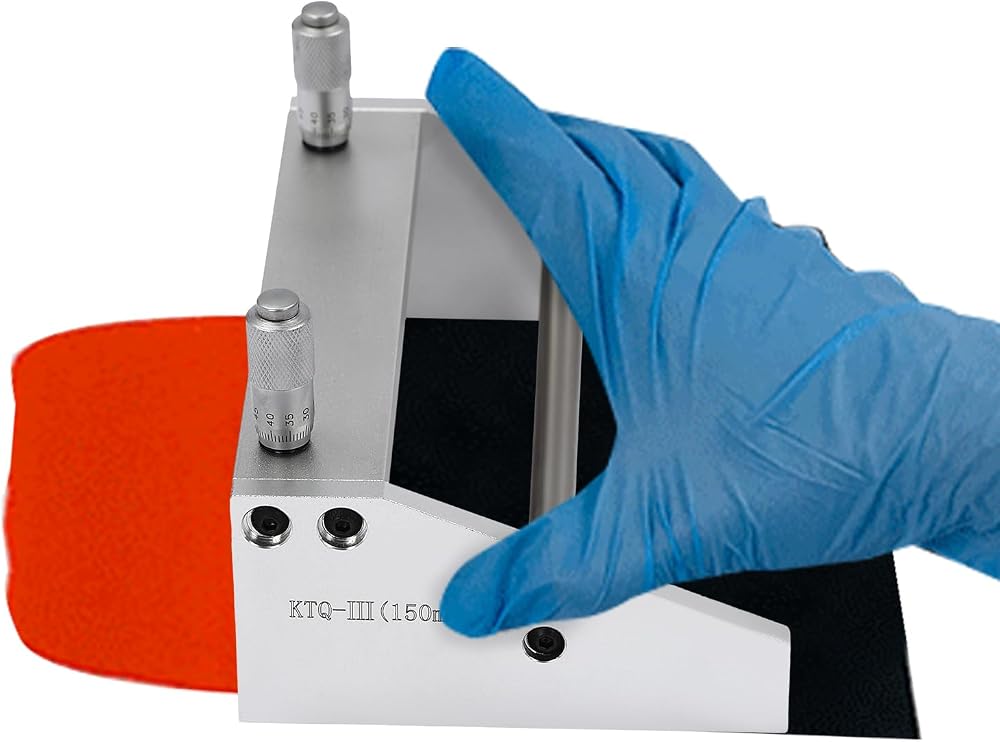

High-efficiency film-coating technology is seeing widespread use in the chemical field, as it reduces the need for highly skilled workers while improving efficiency and accuracy. With an adjustable coating thickness of 0–3500μm and 1μm precision, this film coating applicator proves to be a reliable tool for achieving uniform, accurate coatings.

Application
This adjustable film coating applicator is mainly used to apply a wet film of specified thickness to determine the covering power of a specimen, the color or to prepare a sample plate. It is suitable for various coating, printing, paint, adhesives, and other scientific research industries.

Specification
Color: Silver
Process: Cutting
Assembly Required: No
Materials: Aluminum Alloy, Aluminum, Sponge
Scraper Type: Magnetic Scraper
Coating Thickness: 0-3500μm
Effective Coating Width: 150mm/5.91in
Adjusting Clearance: 5μm
Precision: 1μm
Product Size: 170 * 130 * 120mm/6.7 * 5.1 * 4.7in

Package Included
1* Adjustable Film Applicator
1* Chinese Manual
1* Storage Case
1* Allen Key

Notes
Occasionally, the differential head needs to be repositioned to correct errors caused by wear or misalignment (achieved by loosening, not removing, the two hidden fixing screws on each differential).
The exact proportion of wet film thickness relative to any scraper clearance depends on the material used, the viscosity and texture of the liquid, the force applied to the scraper, the coating speed, and the geometric shape of the coating edge.
The ends of the scraper move through the groove, which must remain free of the test sample material at all times.
