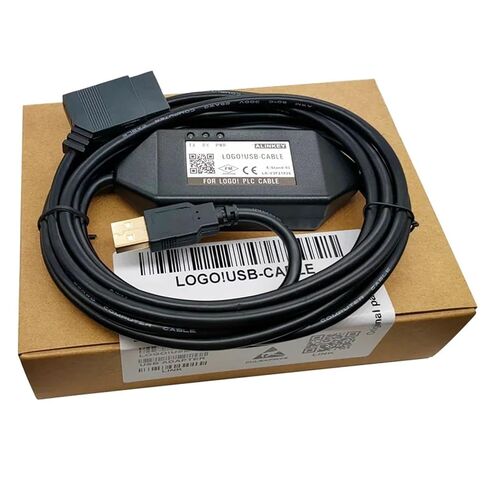

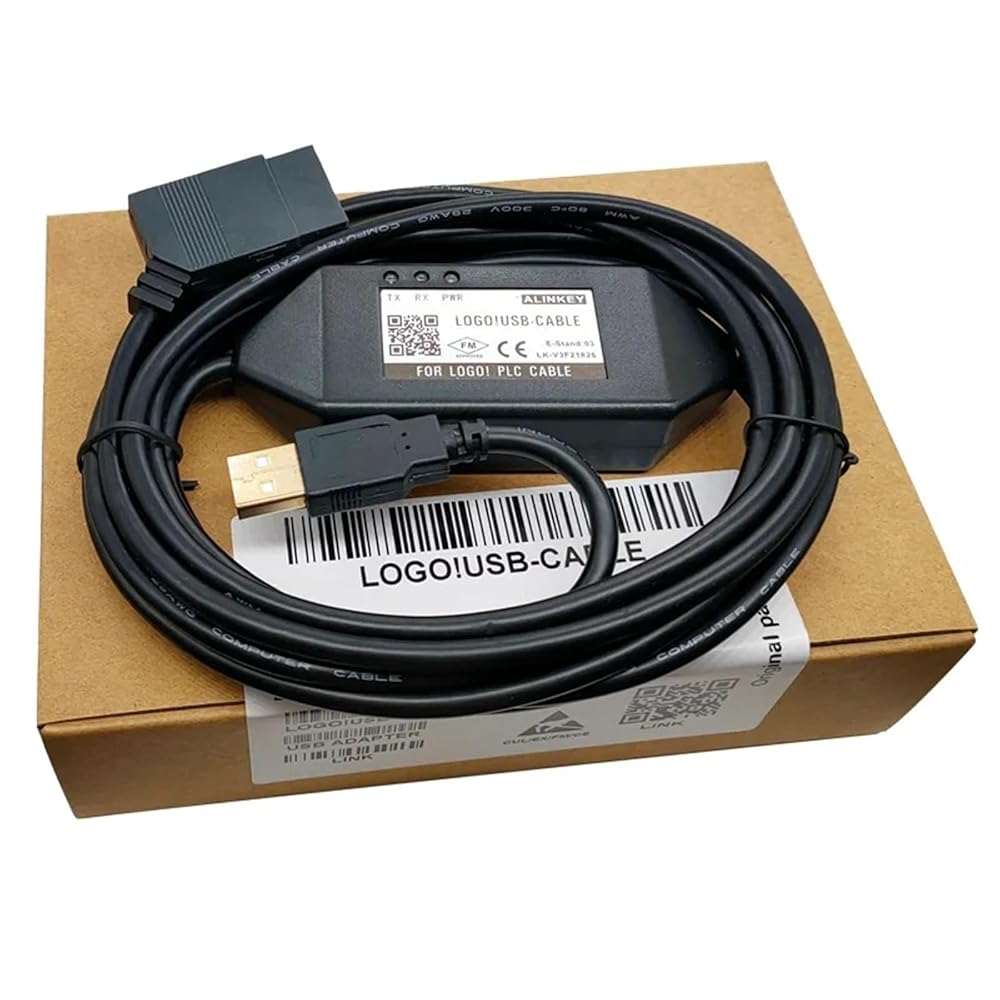

USB-LOGO Isolated Cable 6ED1 057-1AA00-0BA0 CABLE
Descriptions:
USB-CABLE is a programming cable which use the USB interface to achieve the serial connection and the conversion of peripheral port signal.Cable programming is provided theough the USB interface connecter and serial peripherals signal converter programming,under the control of computer operation,simulating the computer's USB interface to traditional serial(commonly known as COM port),thus using the current programming software,communicating software and monitoring software.The work power of the cable comes from USB port and programming port of controller.
USB-LOGO CABLE is isolated,can be applied to Controller,especially the industrial fields with greater interference and easily damaged communication port. All kinds of protection measures in the circuit give promission to the safe operation of the system.
Features:
Diamond shape.
Compatible with OS: Win7 win10
Cable Length: 3 Meters
Support USB-CABLE programming software version Soft V4.0 and above
Fully compatible with USB V1.1 and USB CDC V1.1
Baud rate: 300bps ~ 1Mbps automatically adapted
Power supplied by USB bus and the programming port of Controller.
Support UART data format Data 8,stop bit 1,2,check odd/even/no parity
Each PC only supports one USB cable
Working temperature -20~+75°C
Applications:
USB-CABLE programming cable can only be used under the device of USB. After completing the driver installation,In the Windows Device Manager will come up the COM port of USB-CABLE programming cable,just in the programming of software or other software applications,selecting the COM port.And the follow applyment is exactly the same as the traditional programming cable.
Package includes:
USB cable
==========
Output Type : USB
Model Number : USB-LOGO
DIY Supplies : ELECTRICAL
