1) Your SATA host port must be port Multiplier / Selector mode. Otherwise can't work; The belowing chipset SATA port can be supported: JMS582 JMB585 ASM1061 ASM1064 ASM1166.
2) With hot swap and hot plug capabilities, and power management functions;Support error reporting, recovery and correction;Supports partial and sleep power management states;Support Gen1i, Gen1x, Gen2i, Gen2m, Gen2x and Gen3i;
3) Supports native command queue (NEQ). Under high load, NCQ technology can guarantee the performance and stability of the hard disk.
4) The adapter supports from Mini PCI-E PCI Express or NGFF A+E Key host to 4SATA target disk; Applicable slot1: MINI PCI-E (mSATA is not supported); Applicable slot2: NGFF A+E key (B/M-Key is not supported)
5) JMB575 is a single chip solution. It integrated 5 independent SATA channels and a micro-processor;With proper setting, the chip can be configured as 1 to 5 ports SATA 6Gbps Port; JMB575 supports cascaded mode which enables maximum 5 drives connected to one host.

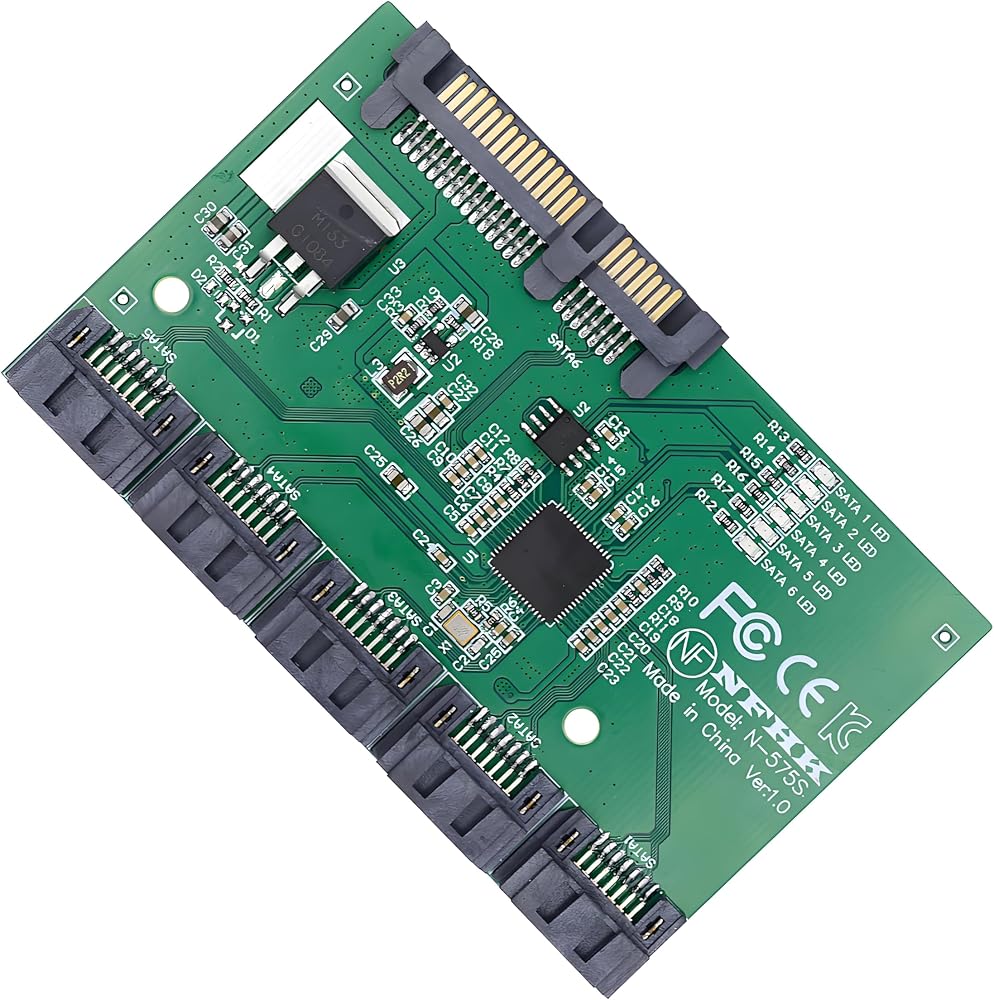

SATA 3.0 6Gbps 1 to 5 Splitter Ports HUB Adapter Converter PM Multiplier Port Selector JMB575

Your SATA host port must be port Multiplier / Selector mode. Otherwise can't work.

The belowing chipset SATA port can be supported: JMS582 JMB585 ASM1061 ASM1064 ASM1166.

JMB575 is a single chip solution. It integrated 5 independent SATA channels and a micro-processor.

With proper setting, the chip can be configured as 1 to 5 ports SATA 6Gbps Port.

JMB575 supports cascaded mode which enables maximum 5 drives connected to one host.

Key Features

Comply with Serial ATA Port Multi Spec. Revision 1.2

Comply with Serial ATA Port Select Spec. Revision 1.0

Support 5 port SATA 6Gbps interface

Supports BIST and loopback mode

Support command-based and FIS-based switching

Support PM aware and non-PM aware host

Main control chip: JMB575

Interface: 5 * SATA3.0 interface

Applicable slot: SATA port with PM function.
