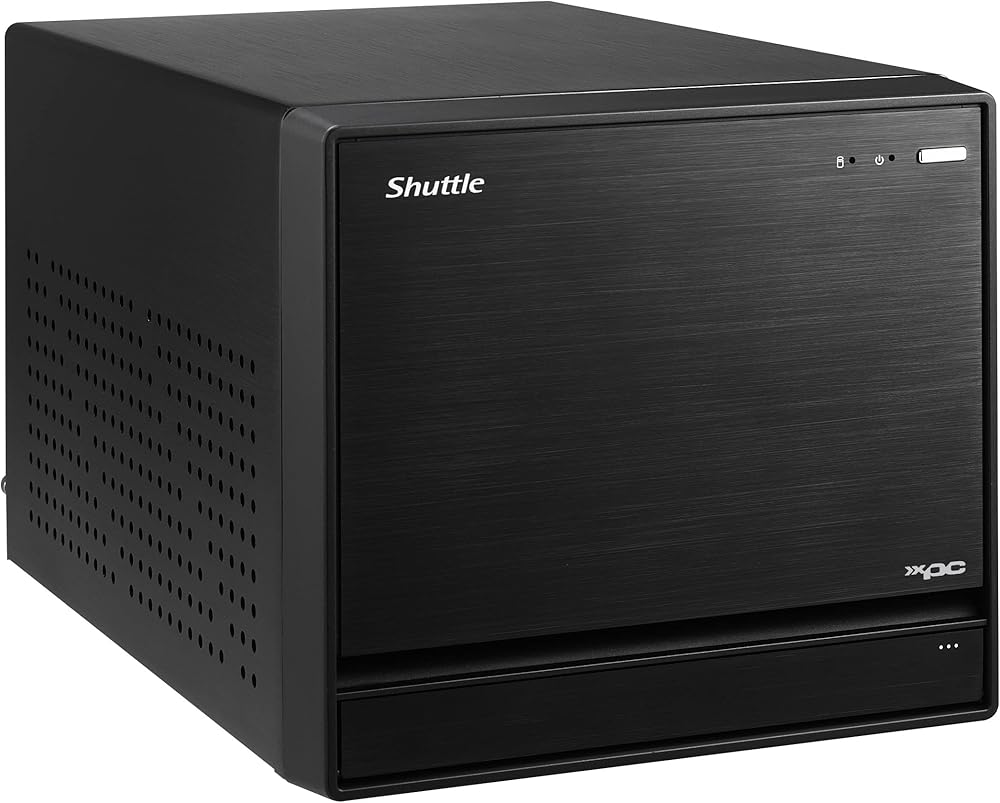

Shuttle XPC Cube SB860R8 Mini Barebone PC Intel B860 Chipset Supports Intel Core Ultra 200 Series LGA 1851 CPU 500 watt (80 Plus Gold) Flex PSU (CPU, RAM, SSD, HDD, and OS are NOT Included)

SAR 3,257
Brand
Shuttle
Category
Computer cases
– 1 +

Special Features

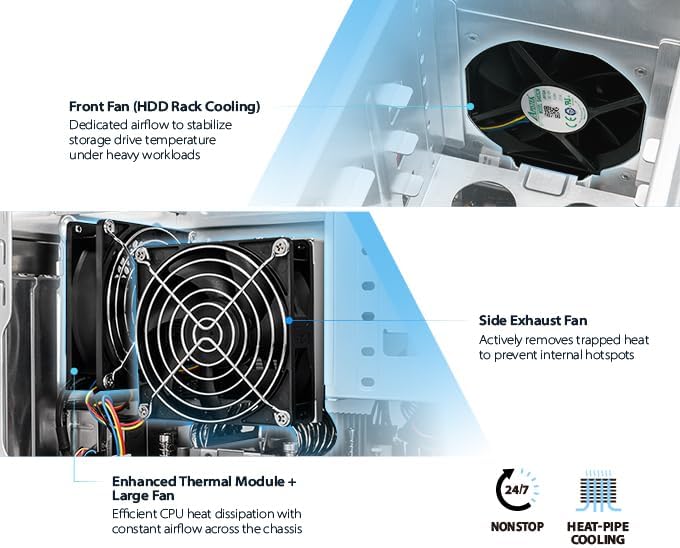

  • Intel B860 Chipset. Socket LGA1851 supports Intel Core Ultra i9/i7/i5 "Arrow Lake-S.TDP max. 125W. Includes heatpipe cooling system. Compatible with Windows 11 (64-bit) and Linux (64-bit).
  • *** Attention*** The Shuttle XPC cube Barebone SB860R8 does not support the Unlock-function of Intel K-Series processors. Intel processors without integrated graphics can be identified by their model name ending on "F". When using this CPU, a graphics card is required.
  • Integrated Intel Iris Xe Graphics with triple 4K display support (features depend on processor, "F"-series CPUs lack the integrated graphics).

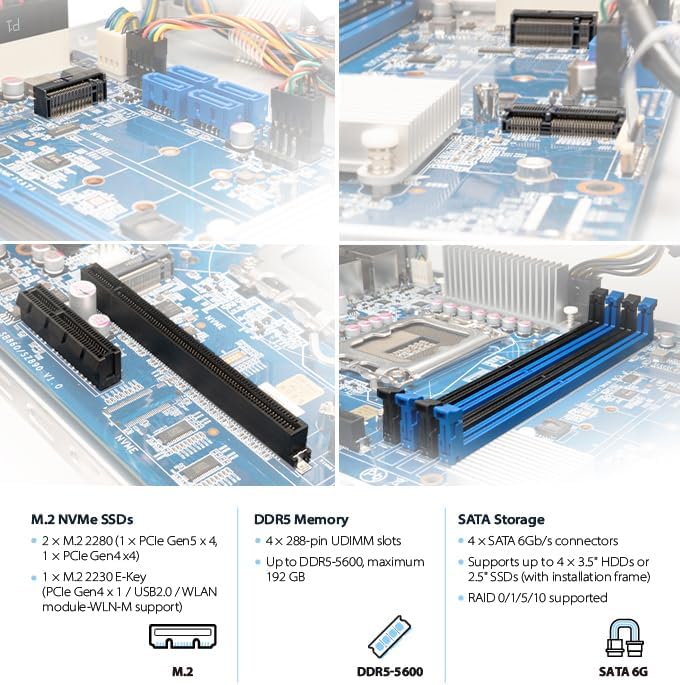

  • 4x 288-pin DIMM slots, supports max. 4x 48 GB DDR5-5600 memory up to 192 GB capacity in total. 1x PCIe X16 Gen5 slot supports dual-slot graphics cards up to 28 x 12 x 4 cm (LWH), with 6-pin and 8-pin power connector. 1x PCIe X4 v4 slot (not usable with dual-slot graphics card).
  • 4x 3.5” HDD bays available. Support RAID. 2x M.2-2280M slot supports PCIe x4 (1x Gen5 and 1x Gen4). 1x M.2-2230E for optional WLAN.

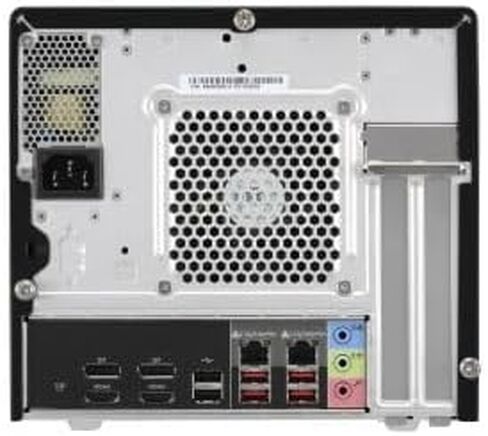

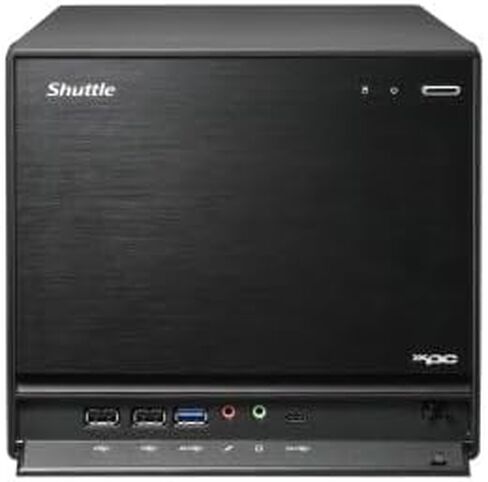

  • 1x HDMI 2.1 (supports 8K), 1x HDMI 2.0b, 2x DisplayPort 1.4a. 4x USB 3.2 Gen2 (10 Gbps). 2x USB 3.2 Gen1 (1x Type-C), 4x USB 2.0, 1x internal USB 2.0, 2x Intel 2.5G LAN (Intel i226LM), 5x Audio I/O (2x front, 3x rear), Connector for external power button (4-pin).
  • Internal 500W power supply, 80Plus Gold, Flex ATX form factor.
  • OPTIONAL ACCESSORIES ◼ WLAN Kit (WLN-M) ◼ RS232 COM Port (H-RS232) ◼ Adapter for two 2.5” drives (PHD3) ◼ Cable for external power button (CXP01)
  • Manufacturer 3-Year and free lifetime technical support.

Description

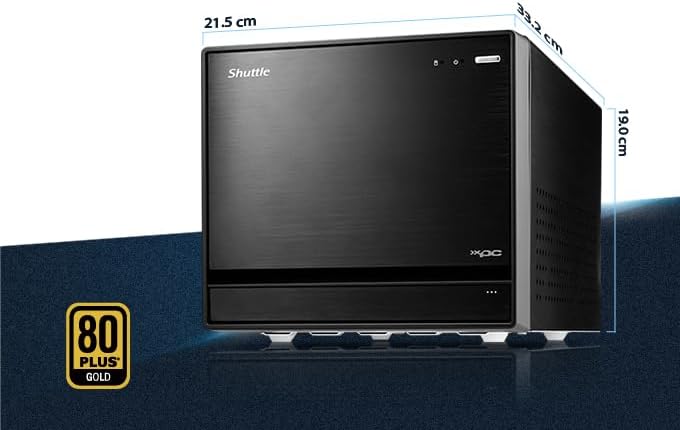

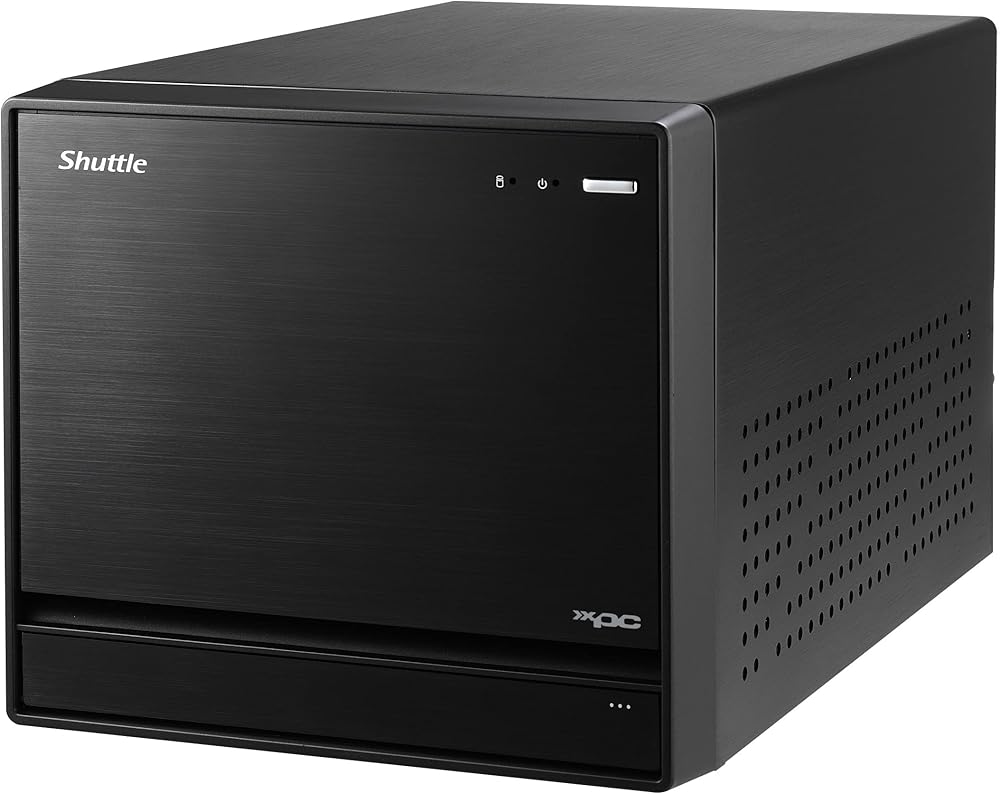

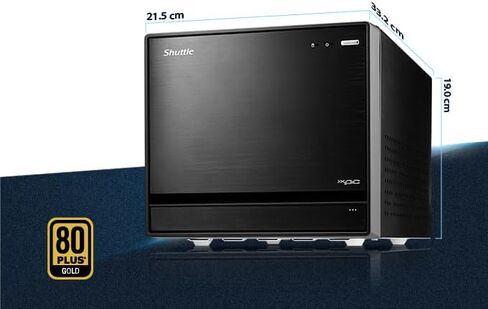

This well-cooled 14-litre barebone PC in cube format houses the performance of Intel's Core Ultra 200 series processors (Socket LGA1851 "Arrow Lake-S") with Integrated Neural Processing Unit (NPU) for demanding AI workloads. It accommodates four large 3.5" hard disks, four RAM moduls, two M.2 SSD cards and a dual-slot graphics card. There are also a wide range of connection options: four UHD-compatible graphics outputs, ten USB ports, two network connections, and five audio ports. Such impressive performance and range of features in an aluminum chassis with a volume of only 14 liters makes SB860R8 the ideal platform for demanding mini-server and workstation PCs with top reliability even under heavy load.
