1. EASY MULTI CAMERA CONNECTIVITY: With 4 video inputs, this splitter allows for seamless connection of multiple cameras. You can easily attach front, rear, side, and interior cameras, enabling multi angle monitoring to help drivers maintain a complete awareness of their surroundings.
2. HIGH DEFINITION 1080P VIDEO TRANSMISSION: Supports 1080P high definition video signal input and output, ensuring clear and stable images without significant delay or interference. This clarity enhances the details in the display, improving the experience of reversing and driving assistance.
3. HIGH PERFORMANCE: Supports AHD camera systems with color display, providing real time monitoring. The device is compatible with both AHD and CVBS inputs, featuring an N+P dual system for comprehensive coverage with four blind spot monitoring options.
4. INTELLIGENT SWITCHING: Features automatic or manual switching between multiple video sources based on user preference, allowing for customizable display of different camera views. Additionally, the split screen mode enables drivers to view multiple perspectives simultaneously for more intuitive operations.
5. LOW POWER CONSUMPTION: Designed to be energy efficient, this video splitter consumes minimal power while providing reliable performance, making it an excellent choice for continuous use in various monitoring applications.

Specification:
Item Type: 4 Channel Video Splitter
Video Format: PAL NTSC (Auto Recognition, Note: Connect Camera Before Powering On)
Video Parameters: Resolution (Downward Adaptive)
Refresh Rate: 25 Frames/Second, Peak: 1Vp-p
Impedance: 75Ω (Note: Keep Same Resolution and Format for 4 Input Cameras)

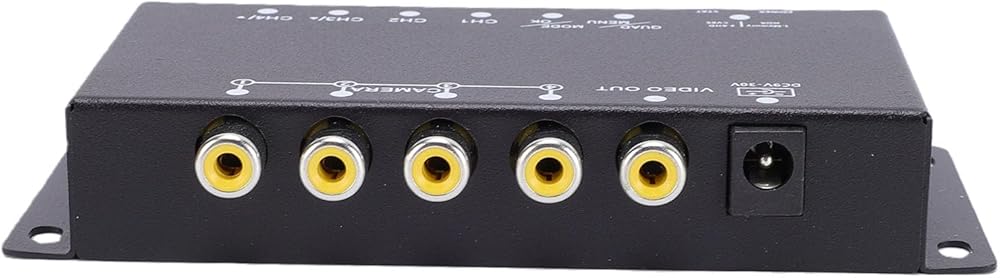

Video Interface: 4 Inputs (Radio Corporation of America Interface), 1 Output (Radio Corporation of America Interface)
Auto Display Mode: Key Control and Remote Control
Normal Mirror Menu Selection: OFF ON
Power Consumption: About 2.5W
Operating Temperature: -20*-+65C
Features: Supports AHD Camera Color 4 Way System, Real Time Monitoring, Supports AHD and CVBS Input, Supports N+P Dual System, 4 Blind Spot Monitoring, Key Control, Low Power Consumption
Application: Universal for RV Truck Bus Trailer
Remote Control Battery: CR2025 150mAh Batteryx1 (Battery Not Included)

How to Use:
plug and play

packing list:

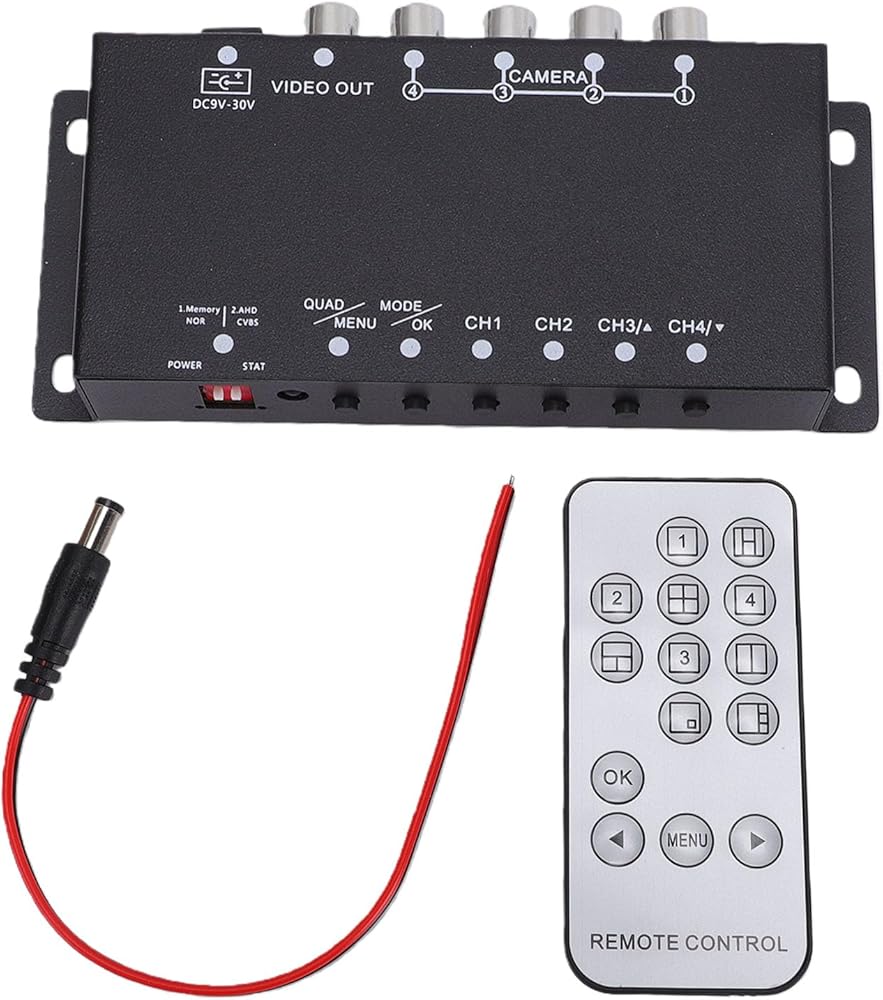

1 x 4 Channel Video Splitter
1 x Remote Control
1 x Cord 1 x Instruction Manual

Notice:
