Filter, Regulator & Lubricator Combos
Note: Diameter 225mm, height 600mm.

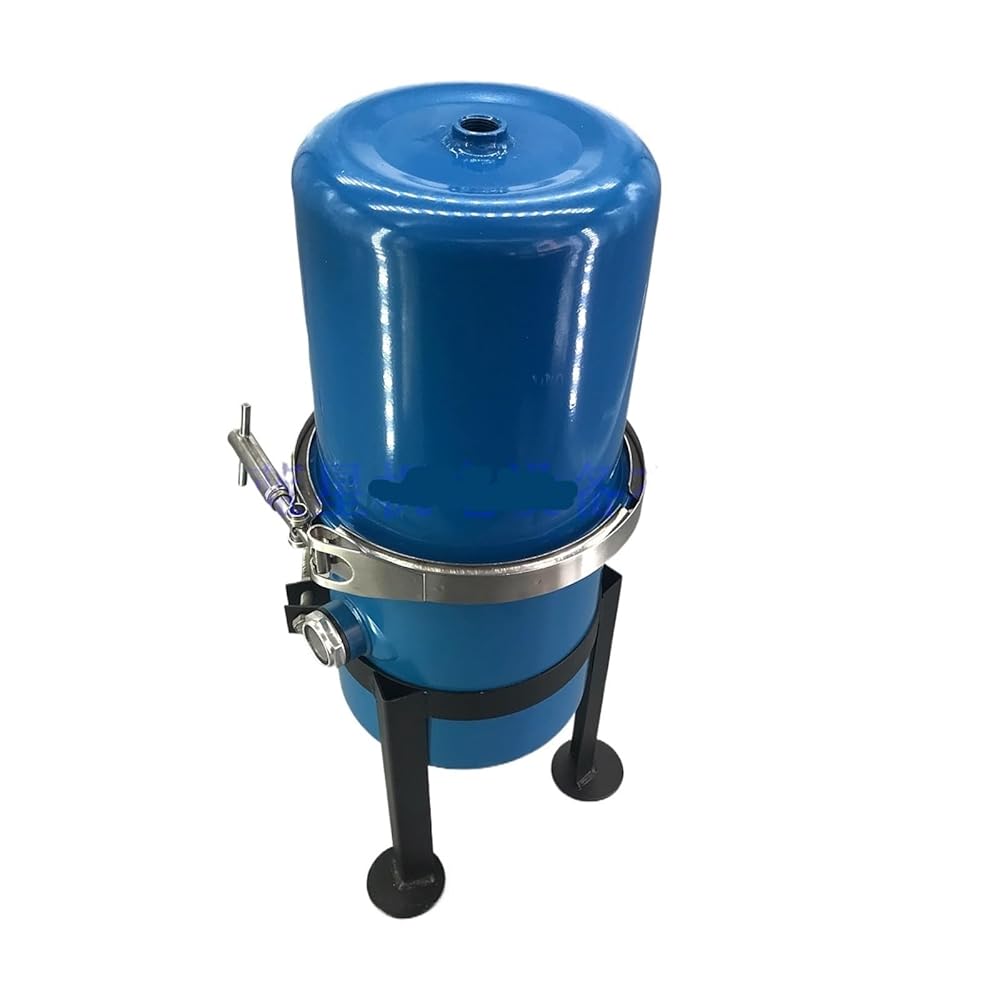

Product name: Vacuum pump gas-water separator (diameter 225, height 600mm)
Product features: It can quickly separate gas and liquid, improve the utilization efficiency of the vacuum pump, and extend the service life of the vacuum pump;
Air inlet aperture: Rc1/2"---Rc2
Capacity: 13L
Shell material: Porcelain steel with baking varnish
Application: The vacuum pump gas-water separator (also called gas-liquid separator) is used to pump gas (or other liquids) containing a large amount of liquid water. It separates and discharges the liquid to prevent the liquid from entering the vacuum pump and damaging it.
Its structural principle is: the gas first enters from the feed section at the bottom of the separator, and the centrifugal force generated during the high-speed airflow diversion and rotation separates the solid particles or liquid droplets; then it is filtered through a fine multi-layer stainless steel separation barrel or foam metal to separate the droplets and impurities in the gas, and the treated gas is output from the bottom; the separated droplets are discharged by a manual discharge valve; the multi-layer stainless steel separation barrel or foam metal can be cleaned and used repeatedly.

Type: Filter
Model: VFW
Origin: Mainland China
