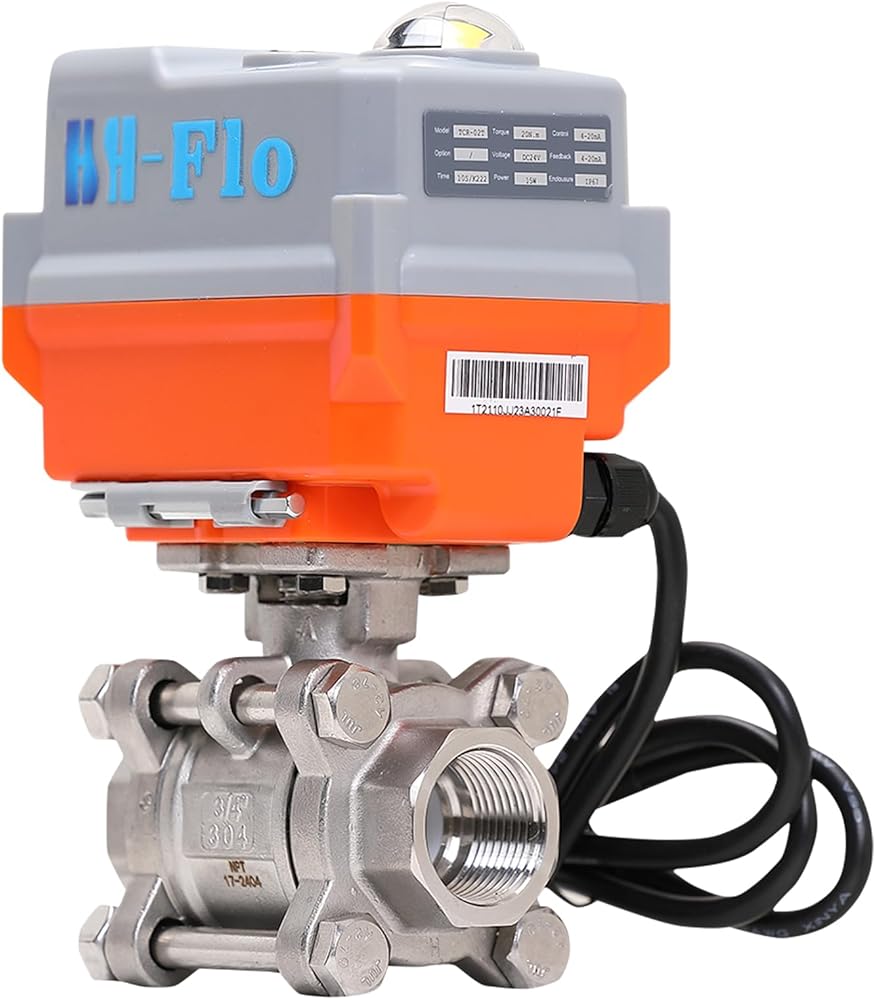

Product Detail:
◎ Valve Dimension: 3/4" NPT Thread;
◎Rate Power:85 Watt
◎ Maxmum Working Pressure: 2.5Mpa (360 Psi);
◎ Actuator Rated Torque: 20 N.m;
◎ Recomand Install Below 15N.m Valvd Body;
◎ Rated Voltage: 24VAC/DC;
◎ Control Signal: 4-20mA;
◎ Position Feedback: 4-20mA;
◎ Position Accuracy: ±1%(Set By Software);
◎ Adopted High-Performance Brushless Motor, Overload Protection of Internal Motor;
◎ Lifetime: 70,000-100,000 Times. *1;
◎ Connection Standard: ISO5211 F03/F04/F05;

Electrical Data:
◎ Rated Voltage: AC/DC24V (AC18-28V; DC18-32V);
◎ Power Consumption: 85W@Running, 0.5w@Holding;
◎ Working Current: Maximum 3.5 Amps@Running, 0.05A @ Keeping;
◎ Connecting Cable: 7*0.2mm² Cable, Voltage Withstand AC300V;
◎ Fuse: 5A;

Functional Data:
◎ Rated Torque: 20 N.m;
◎ Angle Of Rotation: 90°±2°;
◎ Max Angle Of Rotation: 330°±5°;
◎ Manual Operation: ※ Matching Hexagon Wrench, Wsing At No Power;
◎ Running Time: About 10S(Per 90°);
◎ Continuous Running: Continuous Running;
◎ Sound Power Level: Max 50dB(A);
◎ Position Indicator: Mechanical and Screen;

Working Conditions:
◎ Electricity Safety Level: III Type (Safety Low Voltage);
◎ Inflaming Retarding Level: V0 UL94 Test Method;
◎ Enclosure: IP67 As Per En60529/GB4208-2008(All Directions); F Type Can Add Dehumidifying Heater ;
◎ Insulation Resistance: 100MΩ/500VDC ;
◎ Withstand Voltage: 500VAC, 1Min;
◎ Medium Temperature: ≤80° Can Install To Actuator Directly; ＞80° Need To Install Bracket or Heat Radiation Stand;
◎ Indoor or Outdoor; If Exposed To The Rain or Sunshine, Need To Install Protective Device For The Actuator;
◎ Not Explosion Proof Products, Do Not Use Them in Flammable and Explosive Environment;
◎ Ambient Temperature: -30℃ ~ 60℃;
◎ Non-operation Temperature: ≤-40℃ or ≥80℃;
