Filter, Regulator & Lubricator Combos
Specification:
Max Flow Rate: 227 LPH (60 GPH).
Application:
Port Size (SAE J1927) 3/4"-16 UNF.
Dimensions (H x W x D): 292 mm (11.5 in) x 147 mm (5.8 in) x 122 mm (4.8 in).
Clean pressure drop: 0.25PSI (1.7 kPa).
Maximum pressure: 15PSI (1bar).
Water Capacity: 3.7 oz (109 ml).
Operating temperature: -40°C to +124°C / (-40°F to +255°F).
Package includes:
Fuel filter + 2010PM filter element (30 micron) + straight connector

Country/Region of Manufacture: CN

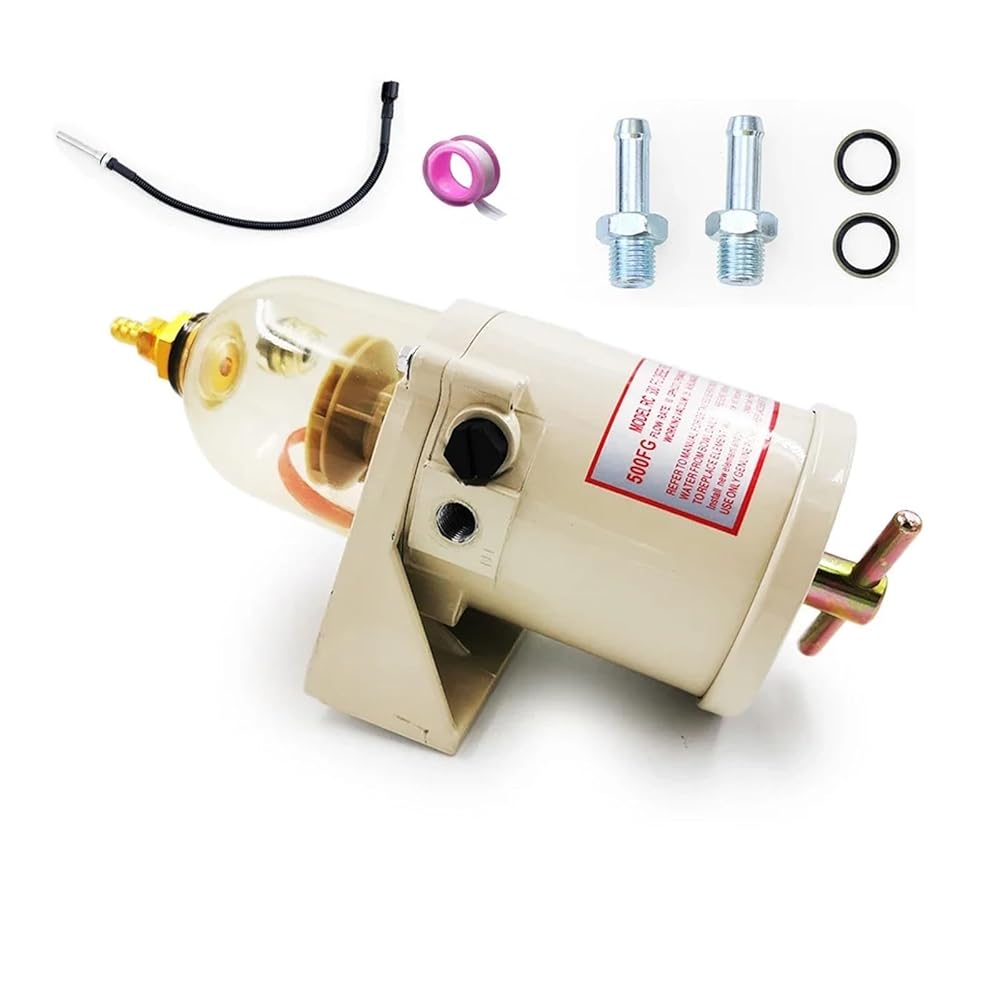

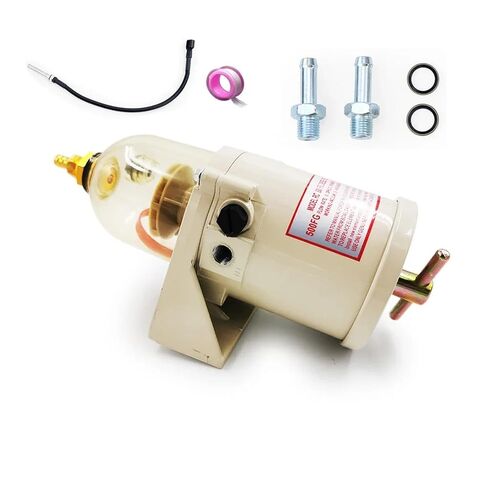

Special features: fuel filter water separator
Product weight: 1.85Kg
Manufacturer Part Number: RSC767
Origin: Mainland China
OEM No.:500FG/500FH
