Supports DC 6V, 9V, 12V voltage and can adapt to commonly used power sources such as humidifiers, alarms, and watch winding devices.
The speed design of 5600 RPM is suitable for the application scenario.
The circular spindle design with a diameter of 32mm enables it to better adapt to the target equipment.
Using carbon brushes, it has good conductivity and wear resistance.
Specially designed for humidifiers, alarm clocks, watch winding devices, etc., with voltage, speed, size, and carbon brush characteristics,
Description

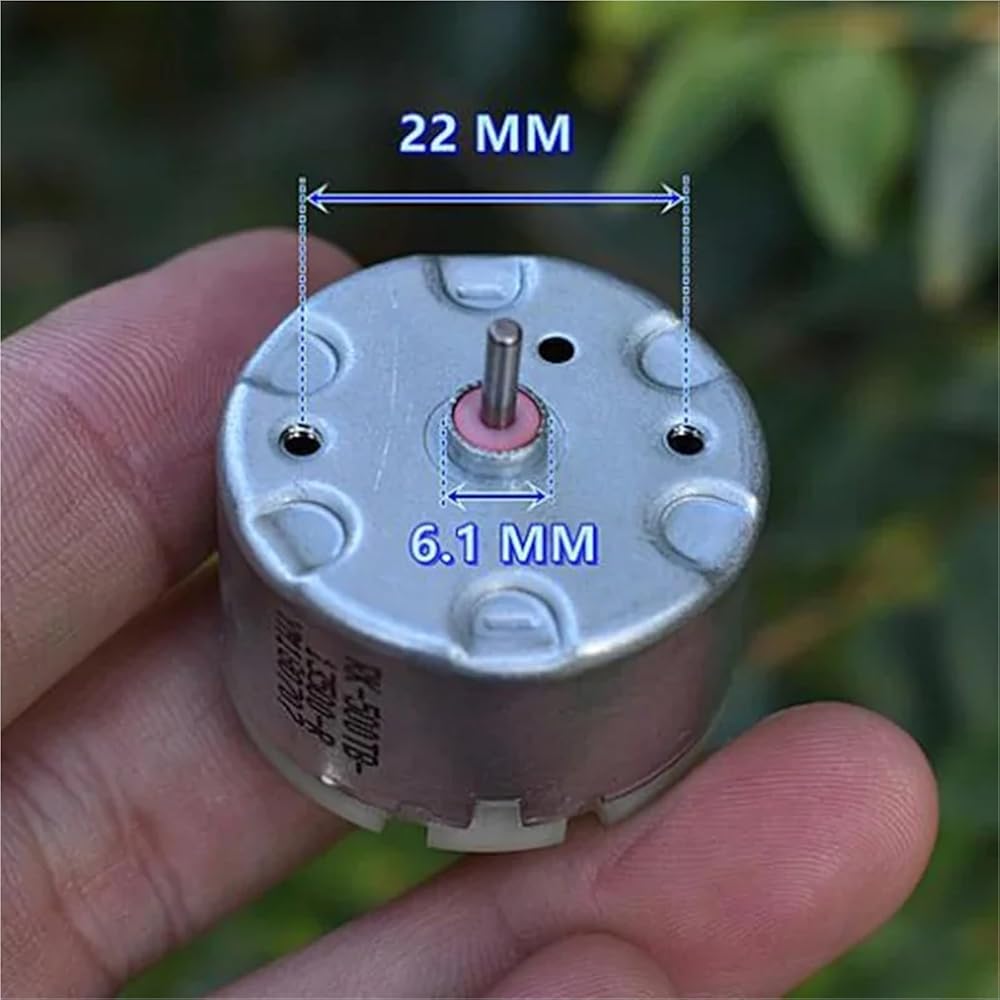

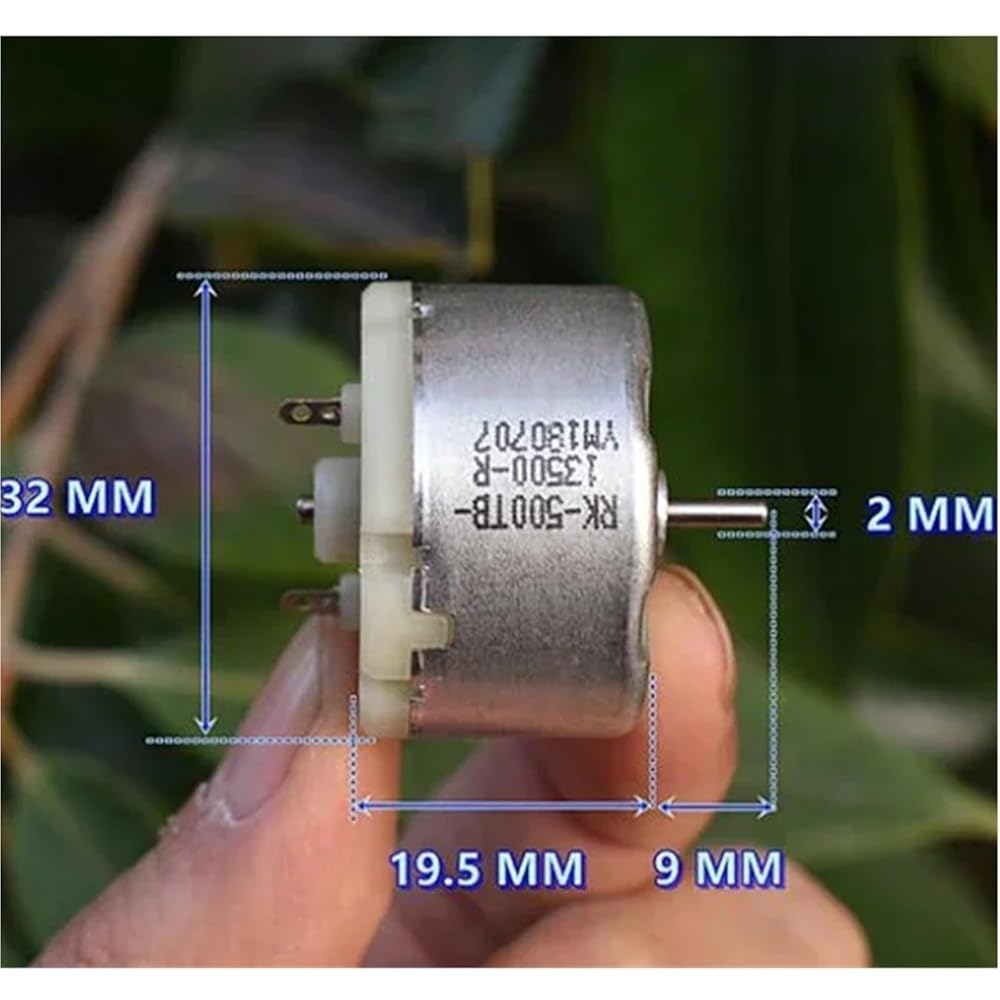

Motor diameter: 32mm
Motor height: 19.5mm
Output shaft diameter: 2.0mm
Output shaft length: 9mm(include step height)
Weight: 43g
Voltage range: DC 6.0V-12.0V
Test data:
Voltage:6.0V No-load current:22mA No-load speed:2780RPM
Voltage:12V No-load current:30mA No-load speed:5600RPM
Package List:
Motor x 1pcs
Hign-concerned Chemical : None
Construction : Permanent Magnet
Protect Feature : Explosion-proof
Type : Micro Motor
Commutation : Brush
Use : Home Appliance
Condition : New
Special Motor Construction : Spindle Motor
Current Type : DC
Shaft Type : Straight
Shaft Diameter : 2mm
Voltage Range : DC 6V-12V
Speed Range : 2780RPM-5600RPM
