Filter, Regulator & Lubricator Combos
Product Parameters
Maximum Flow Rate: 227 LPH (60GPH). Application: . Port Size (SAE J1927) 3/4"-16 UNF. Dimensions (H x W x D): 292mm (11.5") x 147mm (5.8") x 122mm (4.8"). Clean Pressure Drop: 0.25PSI (1.7 kPa). Maximum Pressure: 15PSI (1bar). Water Capacity: 3.7 oz (109ml). Operating Temperature: -40°C to +124°C / (-40°F to +255°F).
Package List

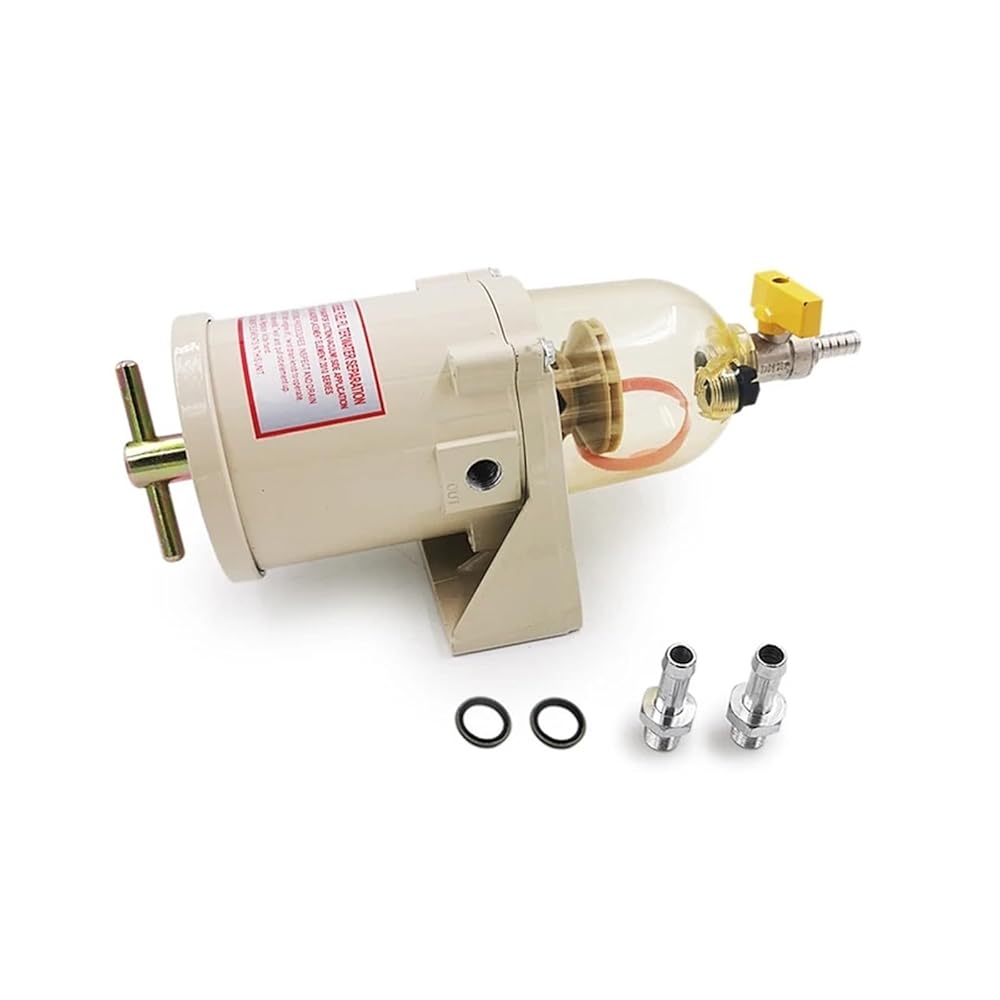

Type 1 includes: 500FG fuel filter + filter element (30 micron) + drain tap + connector
TYPE 2/3 includes: 500FG fuel filter + filter element (30 micron) + drain tap + connector + heating hose
notes:
The heating element can be used with 12V or 24V.

Other part numbers: 500FG/500FH with
Placement on the vehicle: Oil-water separator assembly
Country/Region of Manufacture: China
Interchange part number: 500FG/500FH
Special features: Suitable for 2010PM tm sm
Material Type: Metal
Product weight: 2KG
Product height: 120mm
Item width: 144mm
Product length: 298mm
Manufacturer Part Number: 500FG/500FH
Origin: Mainland China
OEM No.:500FG/500FH
