Filter, Regulator & Lubricator Combos
Specification:

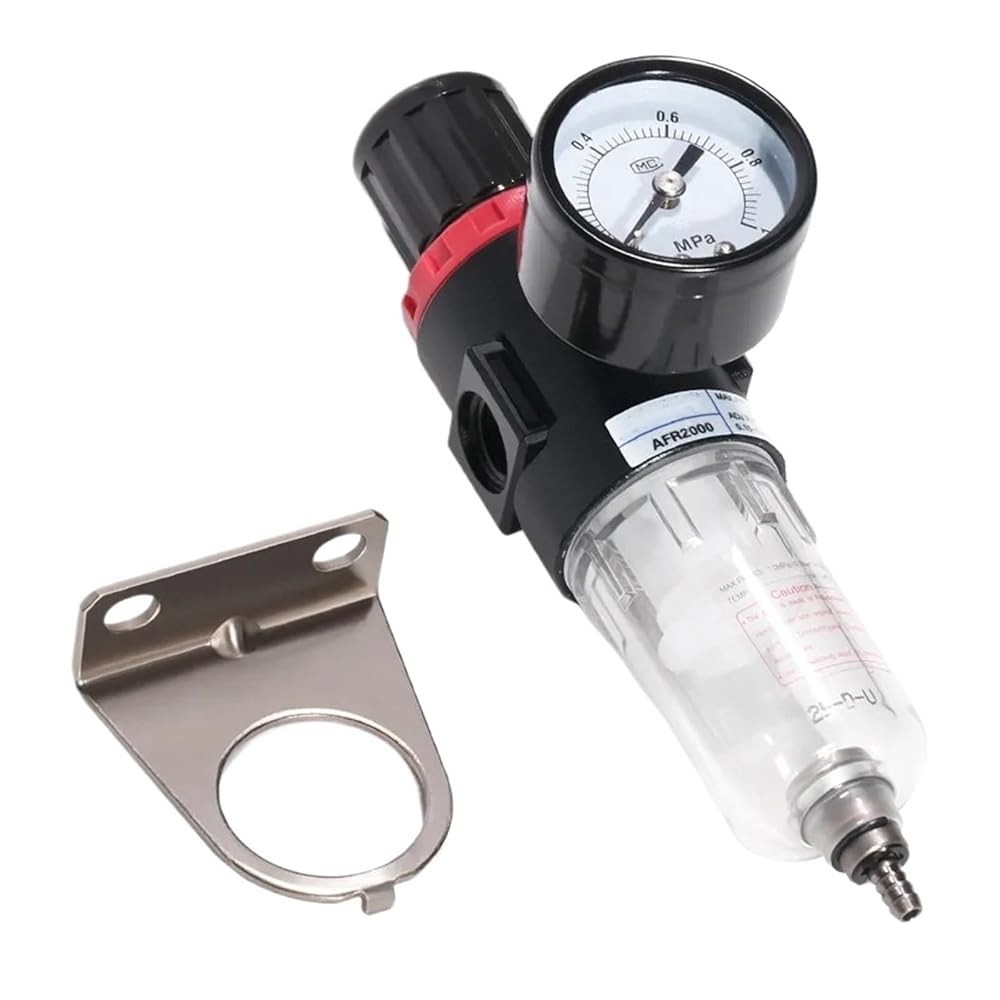

Model: AFR2000 (AFR is the model, 2000 is the port size)
Material: Body (aluminum alloy die-casting), container (polycarbonate)
Fluid: Air
Interface size: G1/4
Filter accuracy: 5m
Operating pressure range: 0-1.0MPa (manual drainage: 0-9.5kgf/cm2, differential pressure drainage: 1.5-9.5kgf/cm2)
Temperature: 5～60°
Instrument caliber: G1/8
Treatment cup capacity: 15CM3
Length: Approx. 15 cm
Installation and Usage:
Install in the direction indicated by the arrow on the valve body, which is the direction of gas flow.
Package Included:
1pcs filter regulator

Type: Source Processing Unit
Model: Afr-2000
Origin: Mainland China
