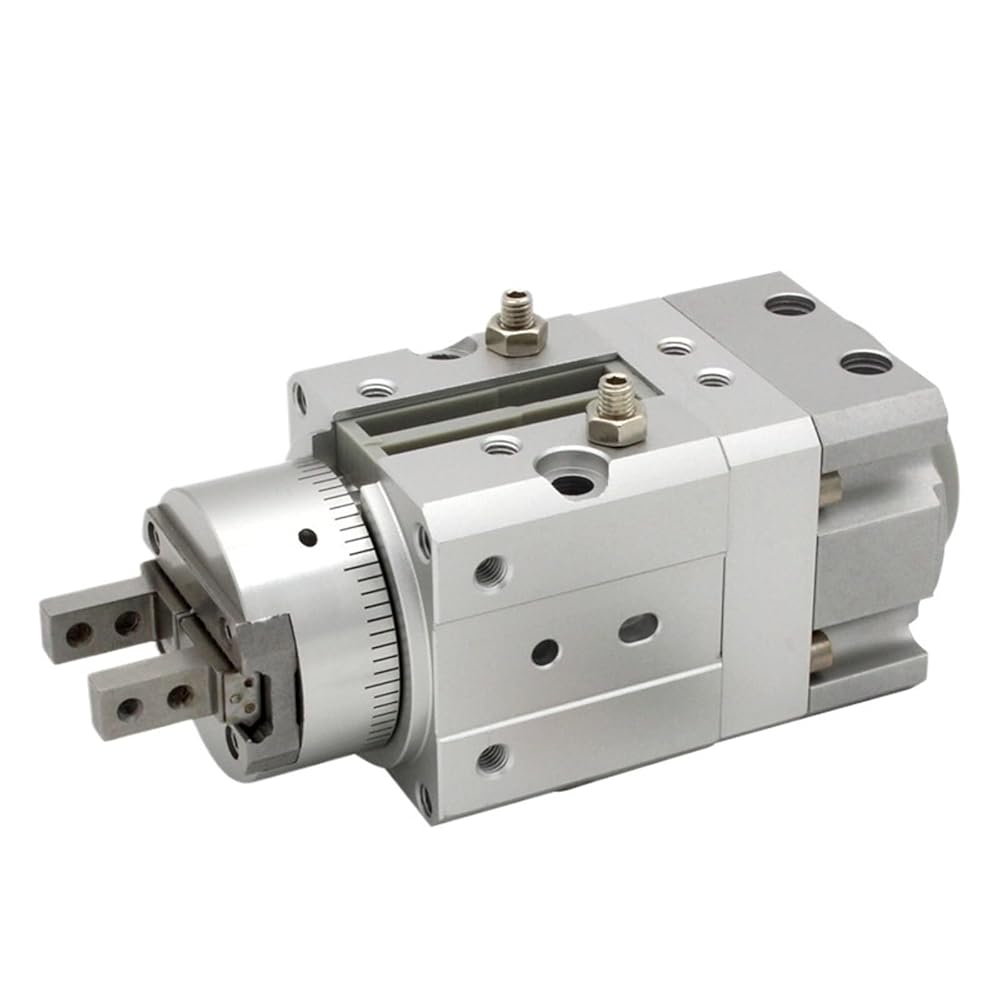

MRHQ الروتاري القابض 2 أصابع الروتاري لقط اسطوانة MRHQ10D MRHQ16D-180S-N MRHQ20D-90S-N MRHQ25D -90S -180S-N(2 قطعة (D-M9B D-M9BV)) in Saudi Arabia

Mrhq25d-180s-n

SAR 740
اللونMRHQ25D-180S-N
– 1 +

مميزات خاصة

  • Pneumatic
  • MRHQ rotary gripper 2 fingers Rotary clamping Cylinde MRHQ10D MRHQ16D-180S-N MRHQ20D-90S-N MRHQ25D -90S -180S-N

وصف

Pneumatic
MRHQ rotary gripper 2 fingers Rotary clamping Cylinde MRHQ10D MRHQ16D-180S-N MRHQ20D-90S-N MRHQ25D -90S -180S-N
Gripper action: : Double acting
Gripper unit operating pressure: : 0.1~ 0.7MPa
Rotary unit operating pressure: : 0.25~ 1.0MPa
Ambient and fluid temperature: : 5 to 60 Celsius
Adjustable rotation time range: : 0.07 to 0.3 s/90° (at 0.5 MPa)
Finger opening/closing repeatability: : ±0.01 mm
Gripper maximum operating frequency: : 180 c.p.m
