industrial plug
Connectors

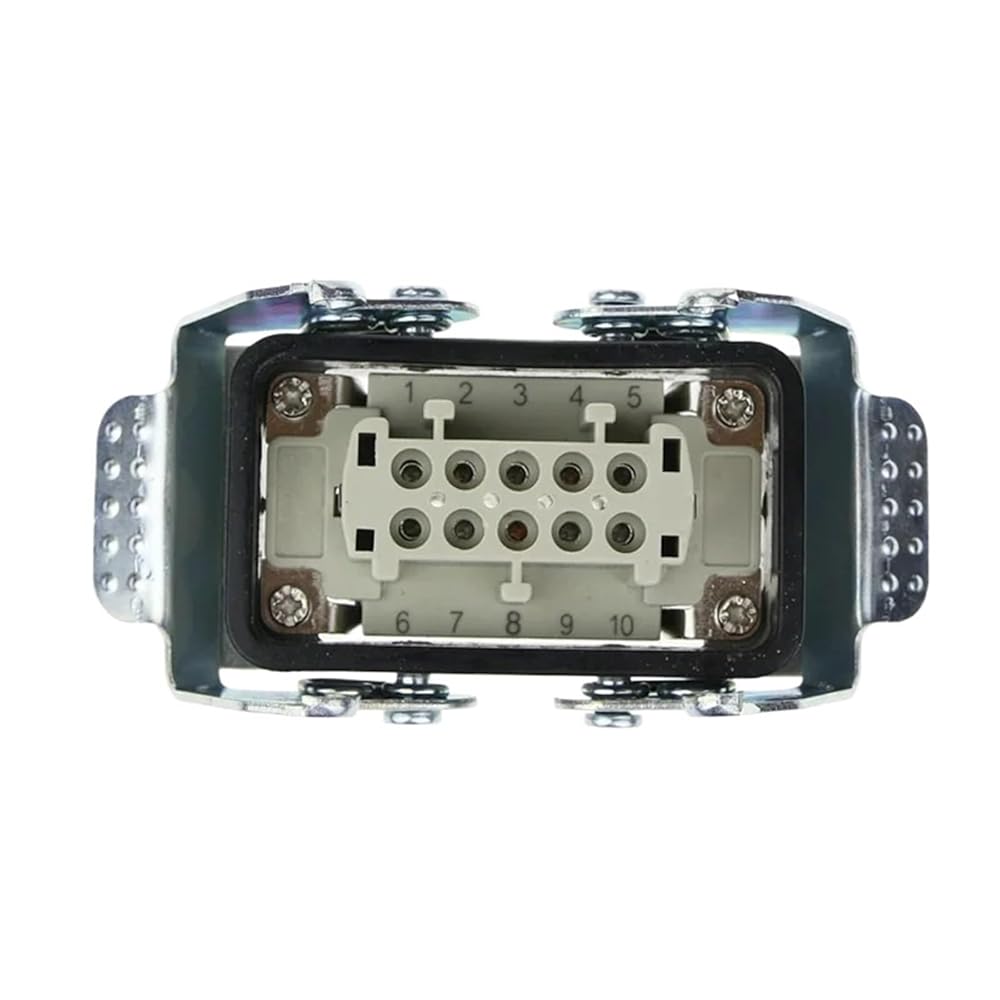

Product name: Heavy duty connector
Model: HDC-HE-10-1
Product type:Top connection cable and Side connection cable
Rated voltage: 500V
Rated current: 16 A
Rated pulse voltage:6KV
Connector pin material: copper plated silver
Plug-in material: polycarbonate
Connector shell material: aluminum alloy
Connector housing surface treatment: high temperature powder coating
Gasket material: nitrile rubber
Connector locking device material: iron galvanized
Protection level: IP65
Connection form: screw crimping
Wiring specification :0.5 to 4 square mm
Screw :0.25nm
Length of cable crimped by screws: 7 to 9 mm
