Filter, Regulator & Lubricator Combos
Product Information:

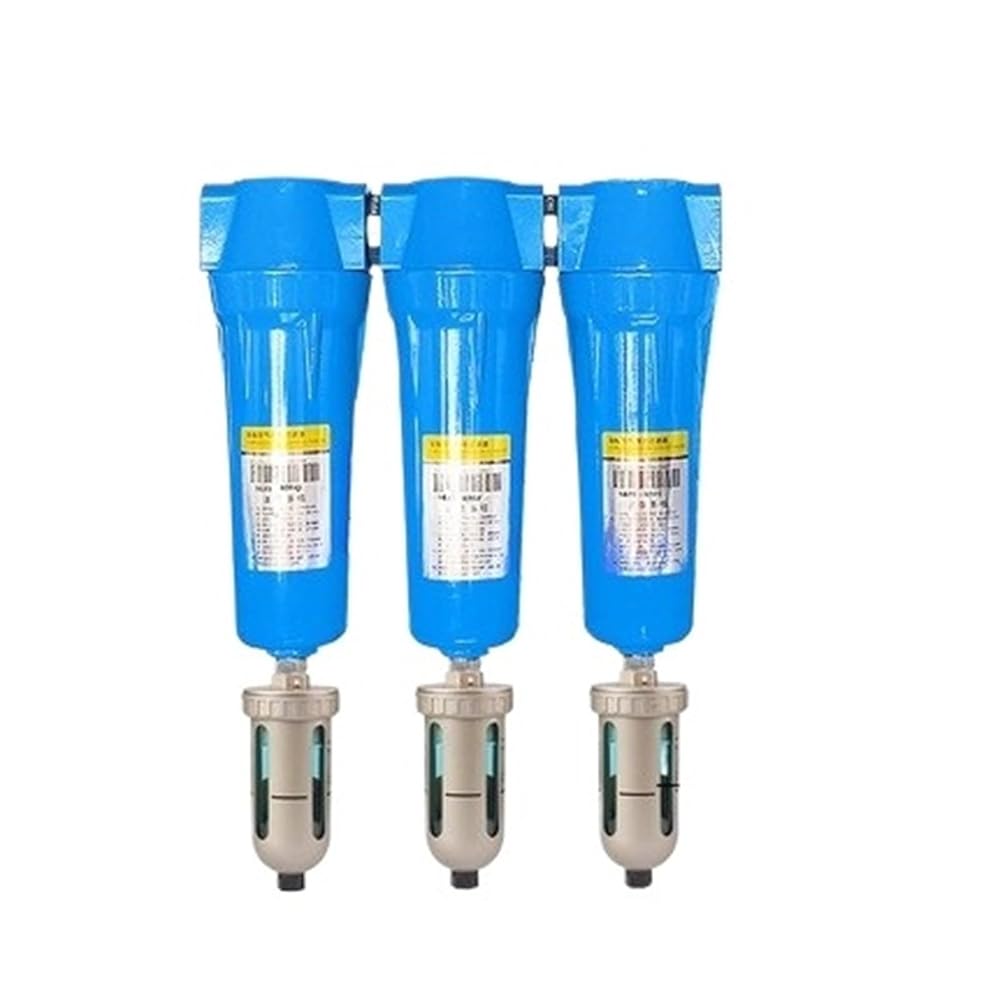

Product Name: Air Precision Filter
Product model: 015 024 035 060 Q/P/S/C
Flow rate: 1.5/2.4/3.5/6 cubic meters/mile
Pressure resistance: 1.0Mpa
Temperature resistance: 80
Applicable: 7.5kw/15W/22W/37W models
Accuracy: 0.1 /1/3 meters
Cycle: within 3000h
Weight: 1/1.5/2 kg
Packaging: 1 piece/bag
015 Q-Main pipeline filter is used to protect the entire system before the filter of air compressor, aftercooler or freeze dryer, etc. It can filter out a large amount of liquid and solid particles larger than 3 microns, and achieve the lowest residual oil content of only 5PPMW/W.
015 P-Air duct filter is a kind of ultra-high efficiency oil removal filter that removes moisture and particles from equipment, machinery, motors, cylinders and before or after adsorption dryers. It can filter out liquid and solid particles as small as 1 micron, and achieve the lowest residual oil content of only 0.5PPMW/W
015 S-Ultra-high efficiency oil removal filter is usually used upstream of adsorption dryer or refrigeration dryer to ensure that the air used in the system is completely oil-free. It can filter out liquid and solid particles as small as 0.01 micron, and achieve the lowest residual oil content of only 0.01PPMW/W. Air duct filter is equipped upstream to protect P.
Note: This filter element is a low-pressure filter element and can be used at 10 kg air pressure. If the air pressure exceeds 10 kg, a high-pressure filter element must be used, otherwise it will be dangerous!
==========
Type: Filter
Model: 015Q/P/S/C
Origin: Mainland China
Certification: No
Product Name: Air Precision Filter
Product model: 015 024 035 060 Q/P/S/C
Flow rate: 1.5/2.4/3.5/6 cubic meters/mile
Pressure resistance: 1.0Mpa
Temperature resistance: 80
Applicable: 7.5KW 15KW 22KW 37KW models
Accuracy: 0.1 /1/3 meters
Cycle: within 3000h
