Miniature Cylindrical Connectors
Working current: 16A
Working voltage: 500V
Rated pulse voltage: 6KV
Pollution level: 3
Isolation resistance: 10
Material: Polycarbonate
Operating temperature range: -40~+125
Flame retardant grade (according to UL94): V0
Conductor section: 0.37- 2.55mm²
Installation method: hole installation
Connectors
Material: Copper
Wiring form: screw connection
Screw tightening torque/test torque: 0.25Nm+
Wiringforms:screwfixing
Metal upper case/base
Material: Cast aluminum alloy
Surface treatment: high temperature powder coating
Locking device: stainless steel or iron galvanized
Operating temperature range: -40~+125

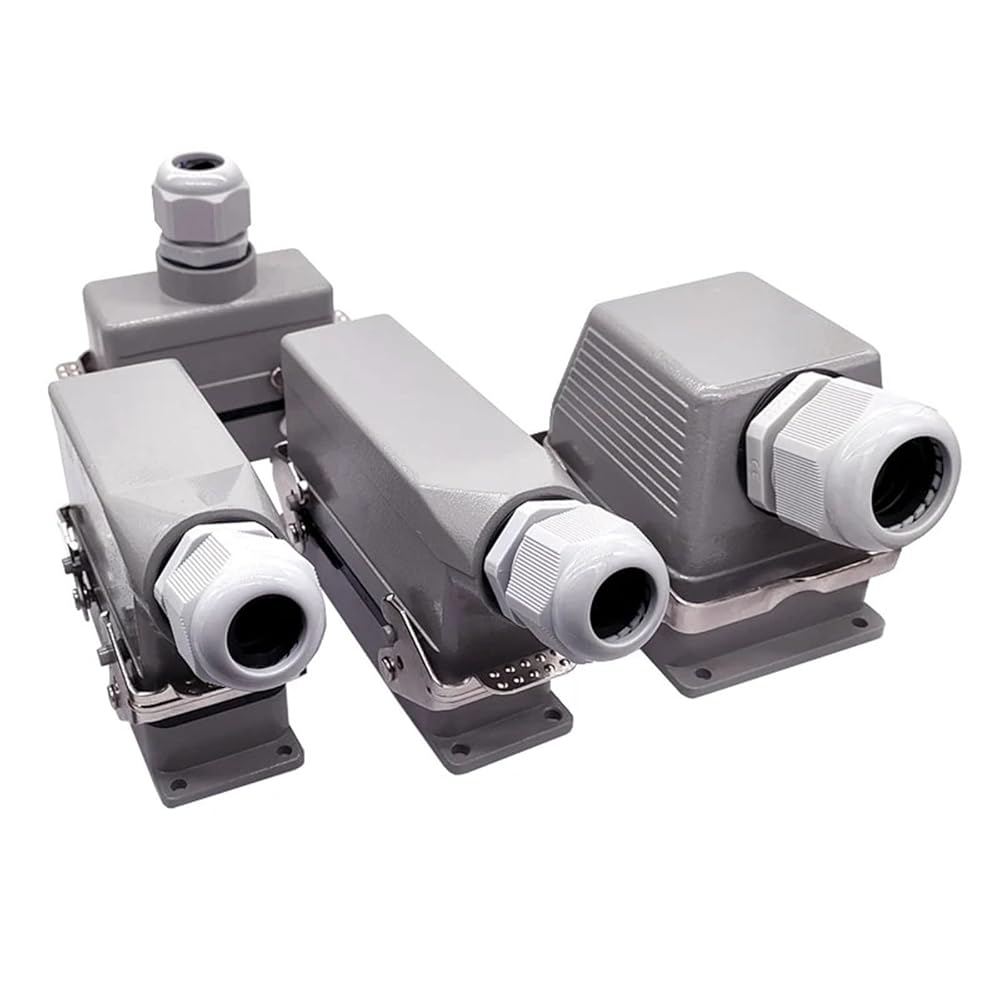

Model Number : HDC-HE-006 010 016 024 032 048
Voltage : 24V
Origin : Mainland China
