Filter Valves
Product information
Medium: Cold water, Hot water or 50% Glycol solution
Body material: Brass

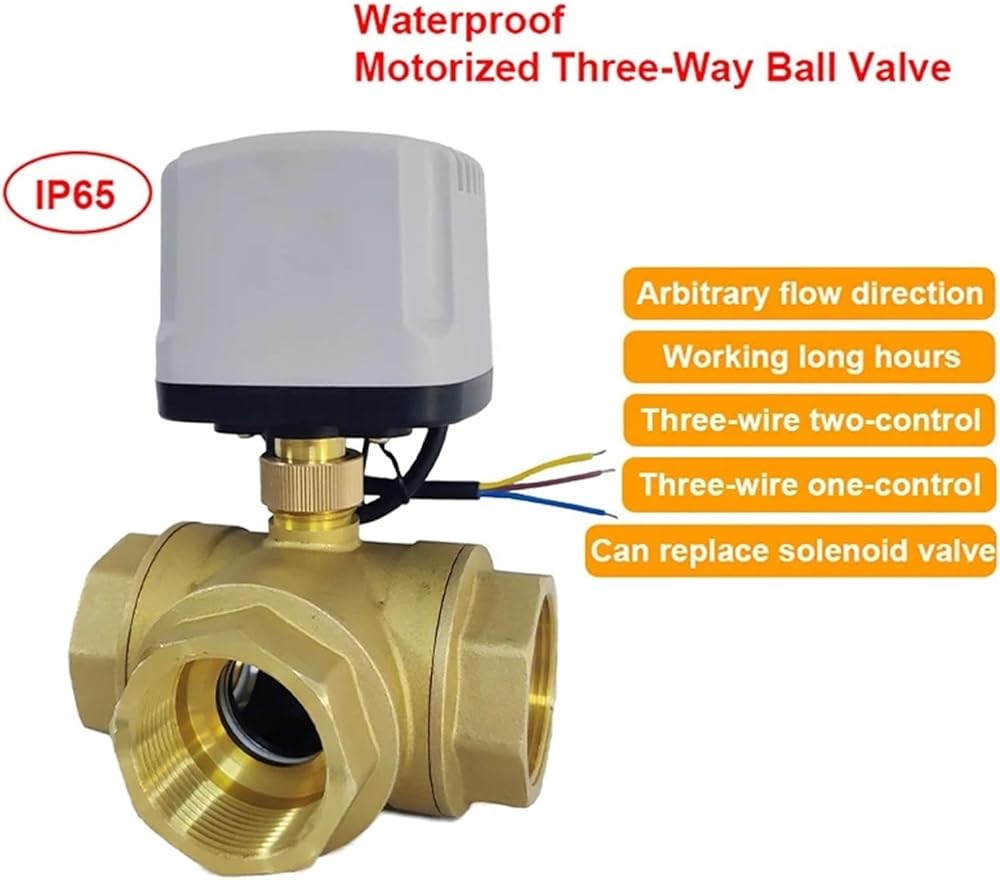

Wiring mode: Three-Wire two-control Three-Wire one-control
Driving voltage: 220VAC, 24VDC, 12VDC
Power consumption: 6 W (only when the valve is opened and closed)
Applicable medium temperature: 0-95
Action time: 5-15 S
Nominal Pressure: 1.6 Mpa
Lead length: 30 CM
Connection method: Female thread
3. Package list: Valve*1

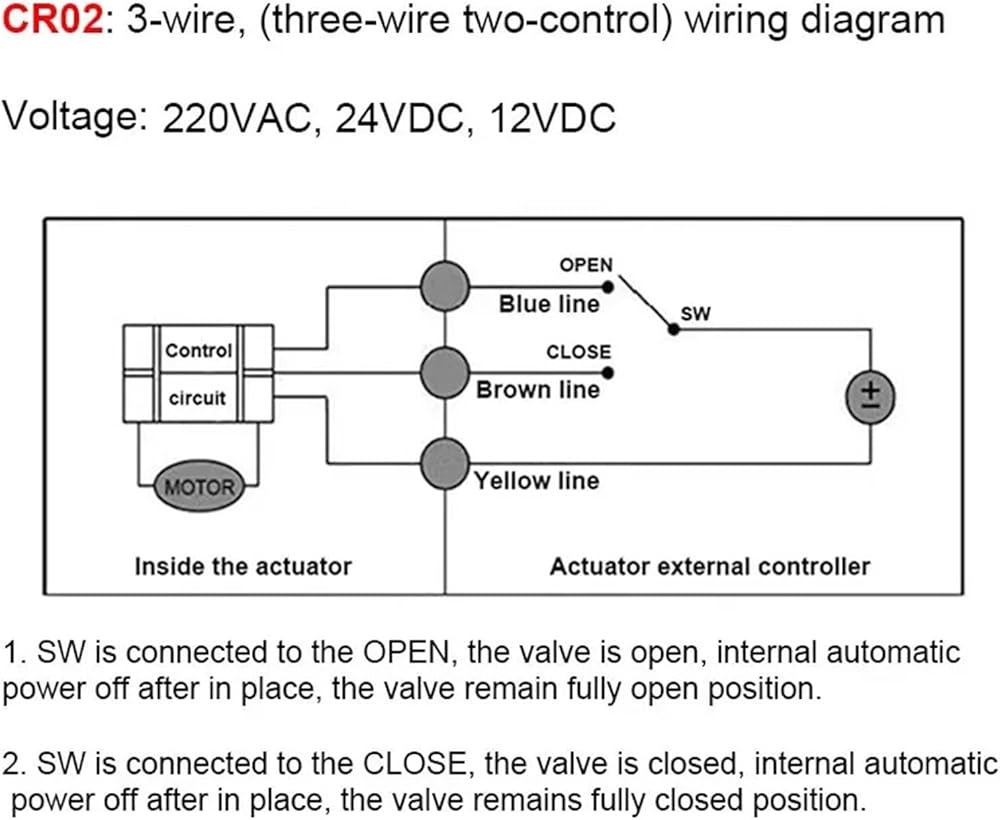

1. SW is connected to the OPEN, the valve is open, internal automaticpower off after in place, the valve remain fully open position.
2. SW is connected to the CLOSE, the valve is closed, internal automaticpower off after in place, the valve remains fully closed position.

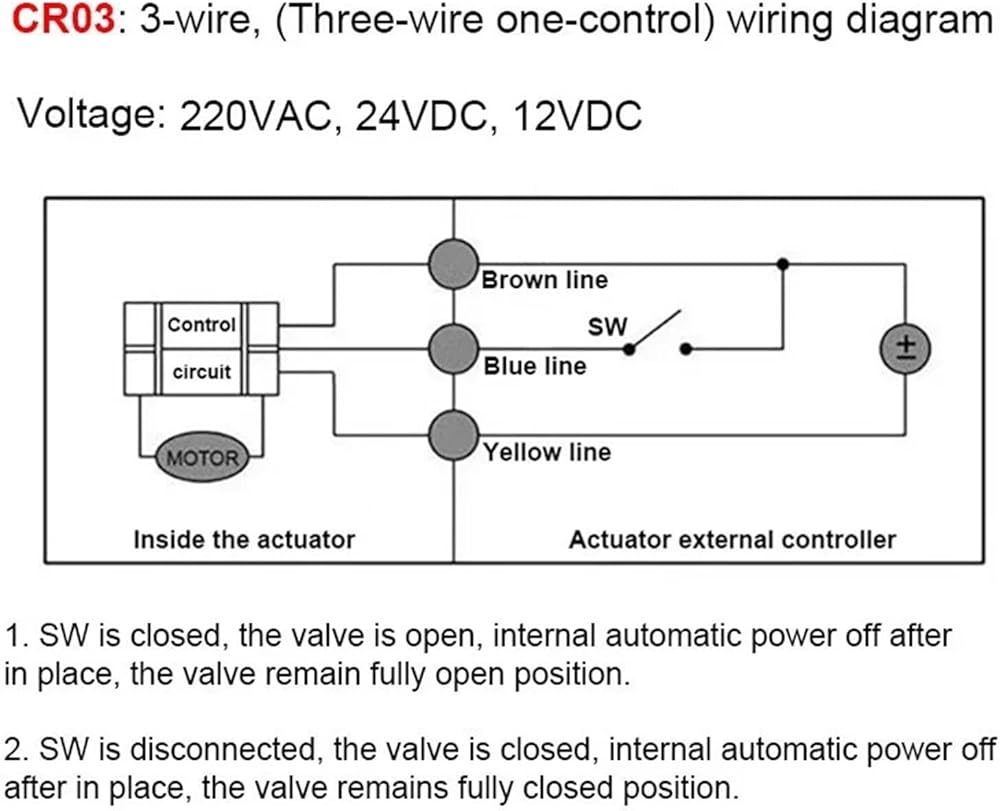

1. SW is closed, the valve is open, internal automatic power off afterin place, the valve remain fully open position.
2. SW is disconnected, the valve is closed, internal automatic power offafter in place, the valve remains fully closed position.
Structure : Ball
Media : Water
Material : BRASS
Standard or Nonstandard : Standard

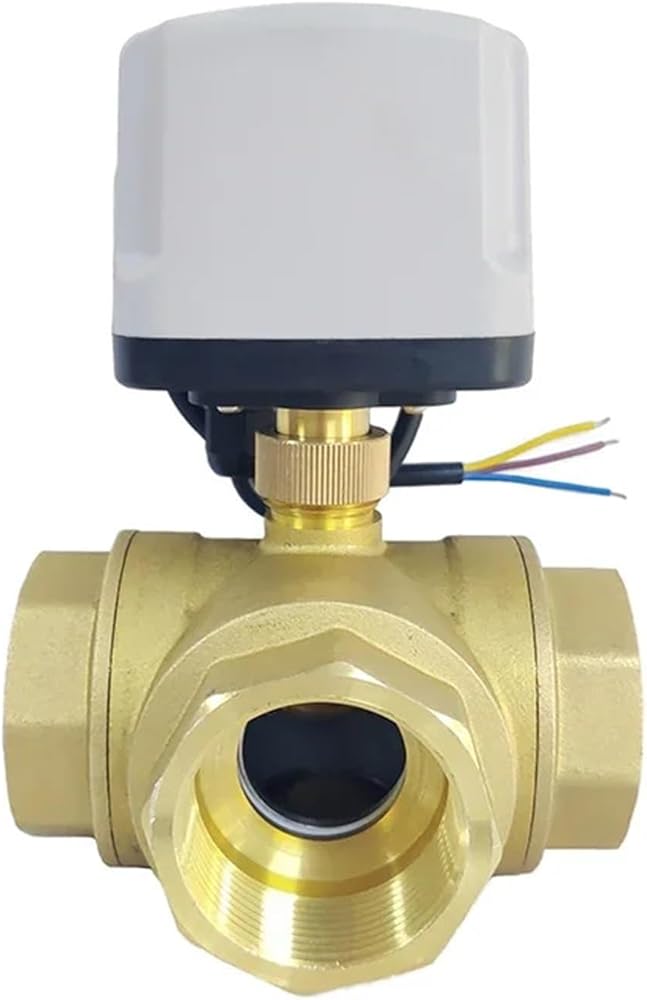

Model Number : Electric Three-Way Ball Valve
Medium : Cold water, Hot water or 50% Glycol solution
Body material : Brass
Wiring mode : Three-Wire two-control Three-Wire one-control
Driving voltage : 220VAC, 24VDC, 12VDC
Applicable medium temperature : 0-95
Power consumption : 6 W (only when the valve is opened and closed)
Action time : 5-15 S
Nominal Pressure : 1.6 Mpa
Lead length : 30 CM
Connection method : G female thread
