Filter, Regulator & Lubricator Combos

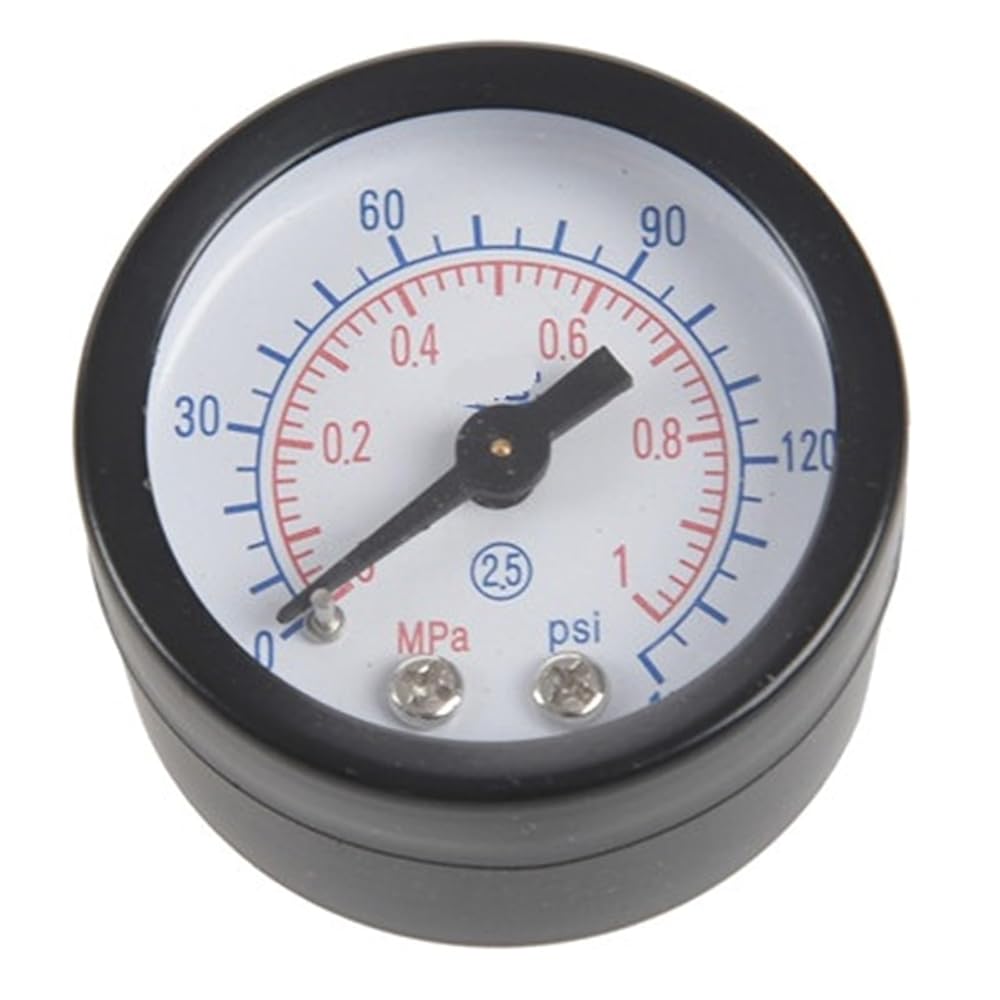

AFR-2000 Pneumatic Filter Regulator Air Handling Unit Pressure Switch Pressure Gauge AFR2000
feature:
AFR2000 air filter regulator adjusts the air pressure in the main channel to the pressure value required by the control device after decompression and filtration.
Regardless of the inlet pressure and flow fluctuations, always maintain a stable outlet pressure
Light weight, small size, easy installation and maintenance
Can filter fine particles to keep the air clean
If the output pressure is higher than the set pressure, the atmospheric pressure is exhausted to maintain a stable output
Application: Air compressor, pneumatic tools and other gas connection devices, effectively filter moisture in the air.
Specification:
Model: AFR2000 (AFR is the model, 2000 is the port size)
Material: Body (aluminum alloy die-casting), container (polycarbonate)
Fluid: Air
Interface size: G1/4
Filter accuracy: 5m
Operating pressure range: 0-1.0MPa (manual drainage: 0-9.5kgf/cm2, differential pressure drainage: 1.5-9.5kgf/cm2)
Temperature: 5～60°
Instrument caliber: G1/8
Treatment cup capacity: 15CM3
Length: Approx. 15 cm
Installation and Usage:
Install in the direction indicated by the arrow on the valve body, which is the direction of gas flow.
Package Included:
1pcs filter regulator
==========
Type: Source Processing Unit
Model:afr-2000
Origin: Mainland China
