Filter, Regulator & Lubricator Combos
Product Parameters
Max Flow Rate: 227 LPH (60 GPH).
Application: .
Port Size (SAE J1927) 3/4"-16 UNF.
Dimensions (H x W x D): 292 mm (11.5 in) x 147 mm (5.8 in) x 122 mm (4.8 in).
Clean pressure drop: 0.25PSI (1.7 kPa).
Maximum pressure: 15PSI (1bar).
Water Capacity: 3.7 oz (109 ml).
Operating temperature: -40°C to +124°C / (-40°F to +255°F).
Package List

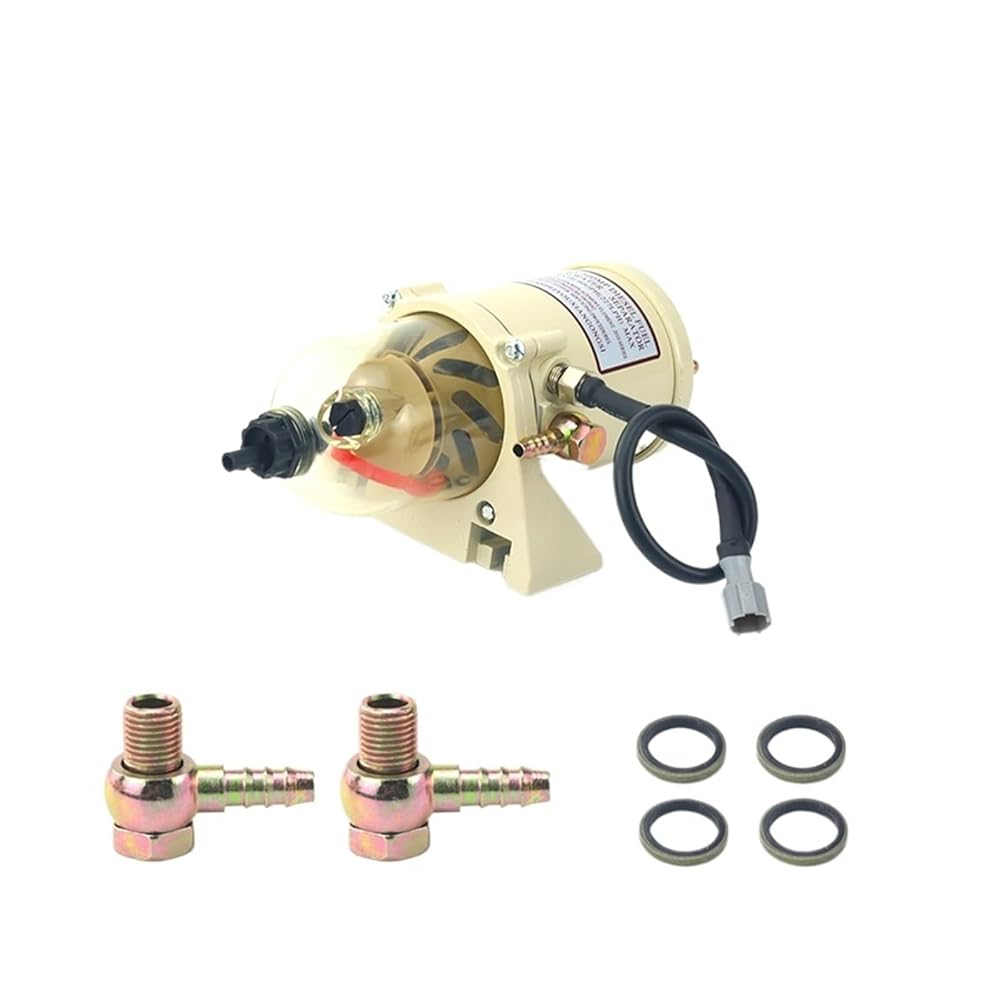

500FG fuel filter + filter element (30 micron) + connector + heating tube
==========
Other part numbers: 500FG/500FH
Vehicle placement: 500FH
Country/Region of Manufacture: China
Interchange part number: 500FG/500FH
Special function: oil-water separator
Material Type: Cast Iron
Product weight: 2KG
Product height: 120mm
Item width: 144mm
Product length: 298mm
Manufacturer Part Number: 500FG/500FH
Origin: Mainland China
OEM No.:500FG
