Specification:
Item Type: Optical Fiber Splicer
Material: ABS
Applicable Fiber: SM(G.652 and G.657), MM(G.651), DS(G.653), NZDS(G.655) and Custom Fiber Types
Battery: 11.1V Li Ion Battery x 1(5200mAh) (Included)
Splice Loss: 0. 02dB (SM), 0.01dB (MM), 0. 04dB (DS/ NZDS)
Return Loss: Excellent 60dB
Typical Splice Time: 6 Seconds
Typical Heating Time: 15-26 seconds (Heating Time can be set, Heating Temperature can be adjusted)
Fiber Alignment: Fine Alignment, Core Alignment, Cladding Alignment
Fiber Diameter: Cladding Diameter 80-150μm, Coating Diameter 100-1000μm
Cutting Length: Coating Layer Below 250μm: Approx. 8-16mm/0.31-0.63in, Coating Layer 250-1000μm: Approx. 16mm/0.63in
Tension Test: Standard 2N (Optional)
Fiber Fixture: Multifunctional fixture for silver fibers, pigtails, patch cords, and skin cords, replacement of the fixture can be applied to SC and other connectors for a variety of FTTx fiber optic cables.
Magnification: 300 Times (X Axes or Y Axes)
Heat Shrinkable Tubing: 60mm, 40mm and a series of micro tubing
Display: 5.0 Inch TFT Color LCD Display

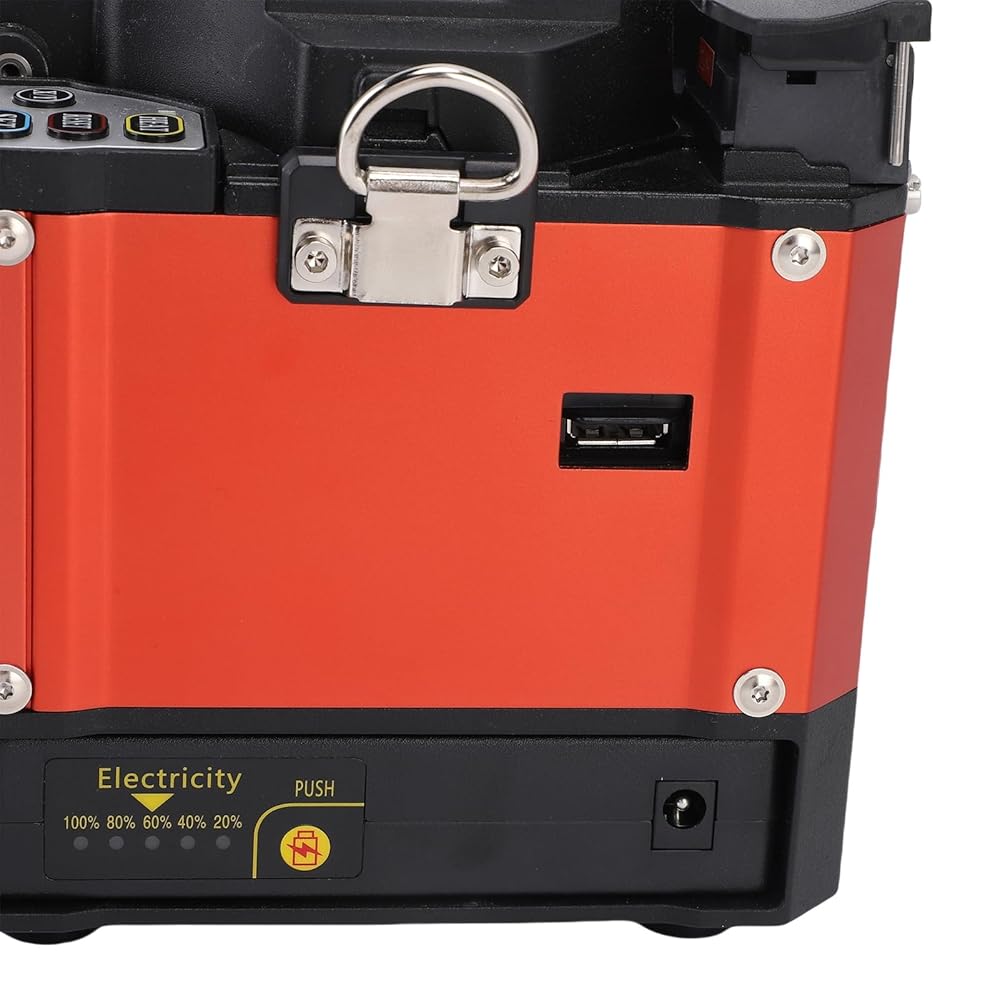

External Interface: USB Interface, Easy to download the data software update
Fusing Mode: 17 Groups of Use Modes
Heating Mode: 9 Groups of Use Modes
Splice Loss Storage: Built in memory to save 5000 of the latest splicing results
Built In Battery: Can be fused continuously, heated for at least 200 times
Power Supply: Built In Li Battery 11.8V Power Supply, Charging Time ≤ 3 Hours, External Adapter, Input 50, 60HZ, Output DC 13.5V 4.81A
Power Saving Features: Typical environment can save 15% Li battery power.
Working Environment: Temperature: -10-+50 ℃, Temperature: Lighting: Convenient for placing fiber optic at night.

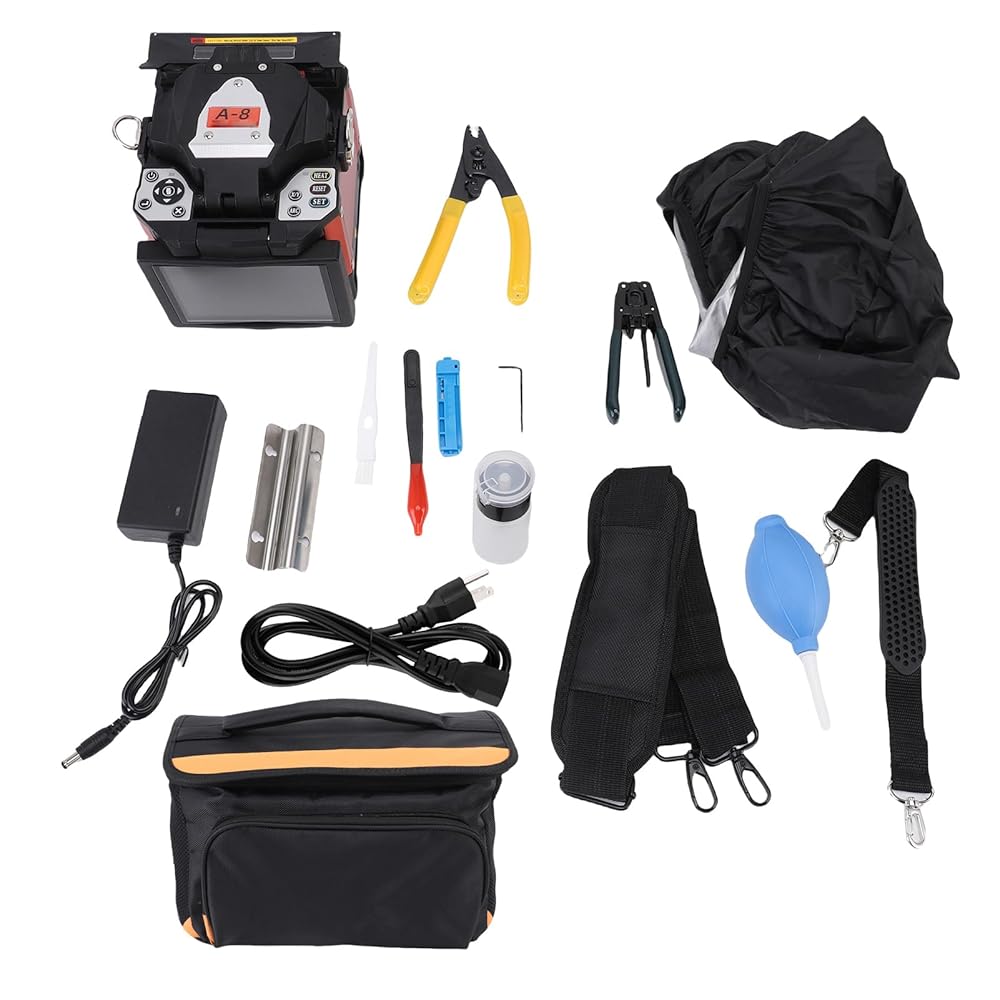

PackageList:
1 x Fiber Optic ​​ Splicer
1 x ​​ Splicer Bag
1 x Cord Stripper

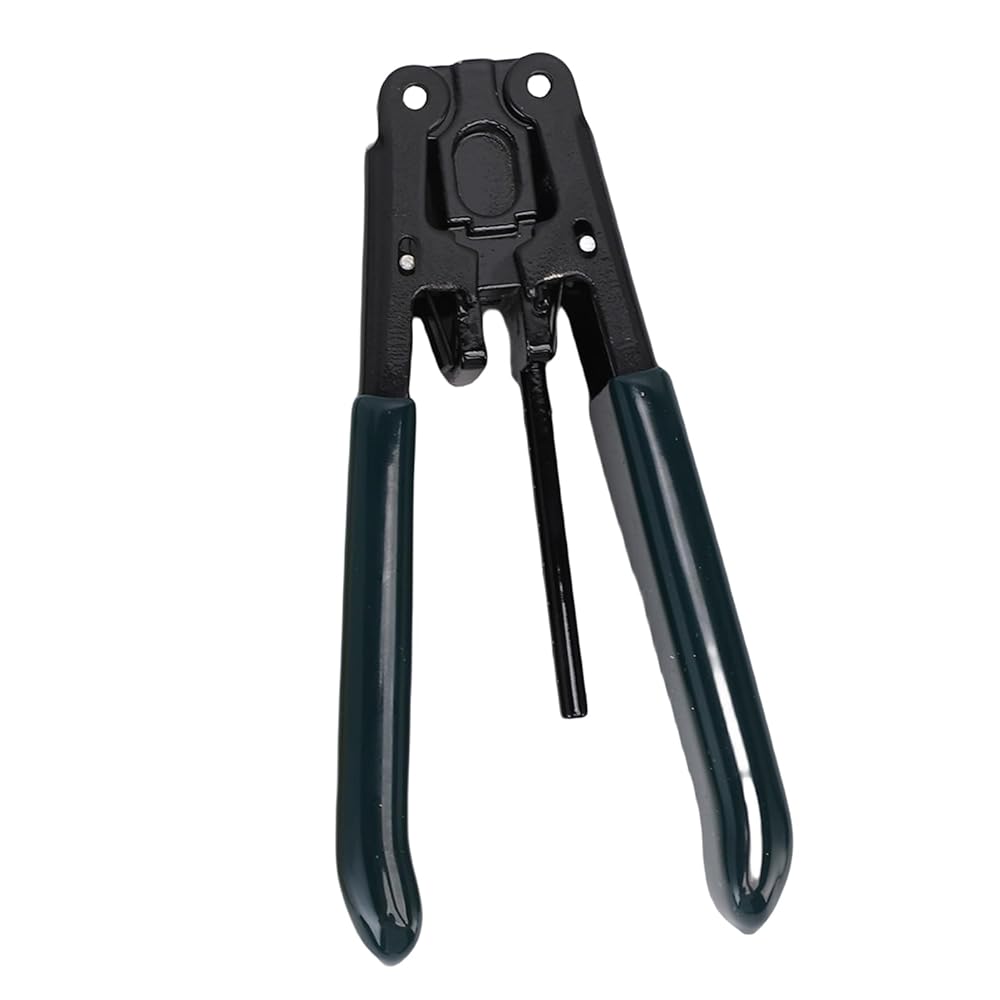

1 x CFS-3 Fiber Stripping Pliers
1 x Adapter
1 x Power Cord Plug
1 x 60ML​
