Specification:

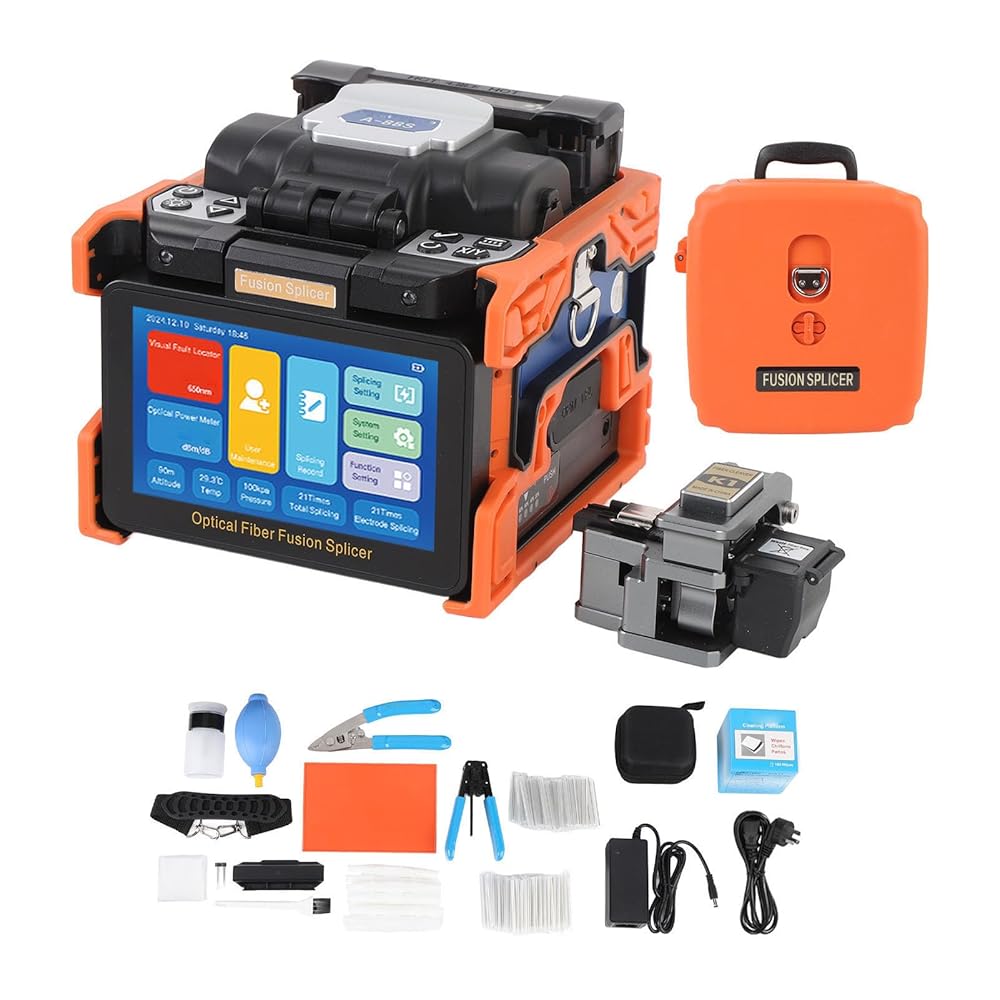

Item Type: Fiber ​​ Splicer Kit
Material: Aluminum alloy, tungsten steel, ABS, silicone

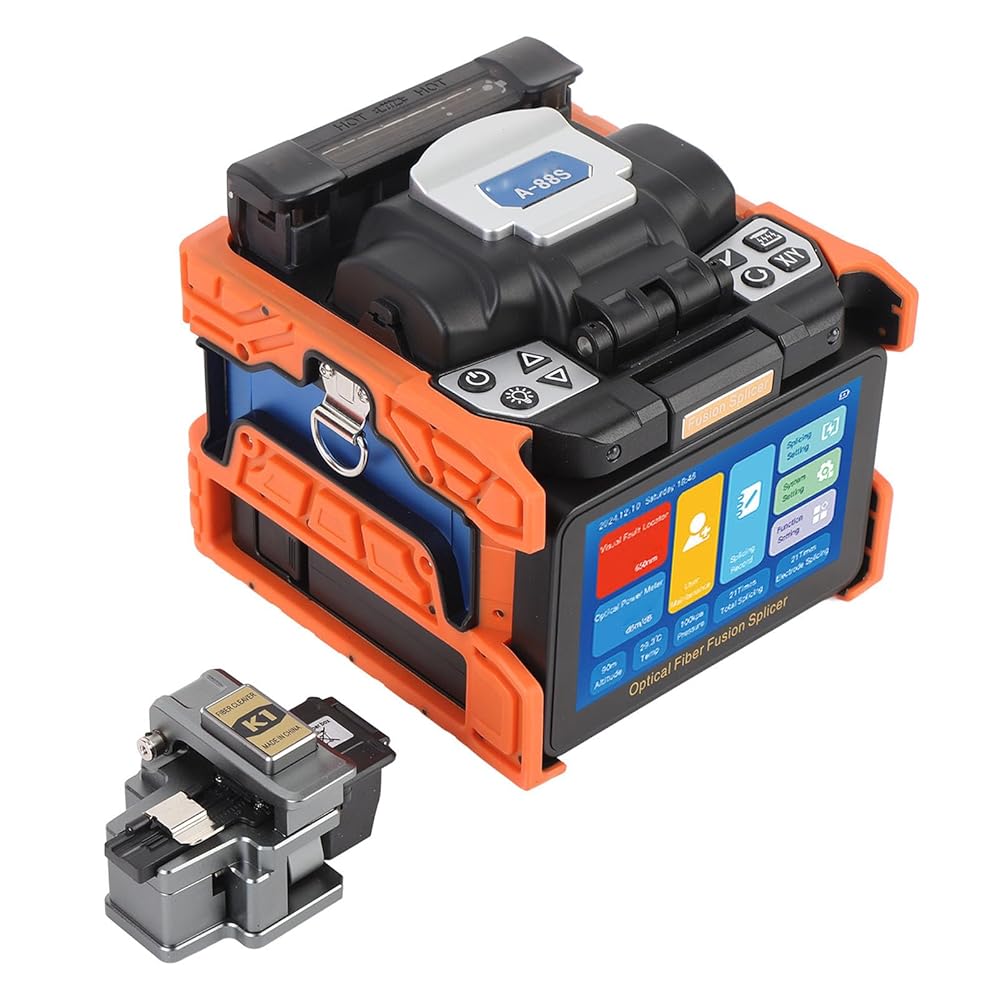

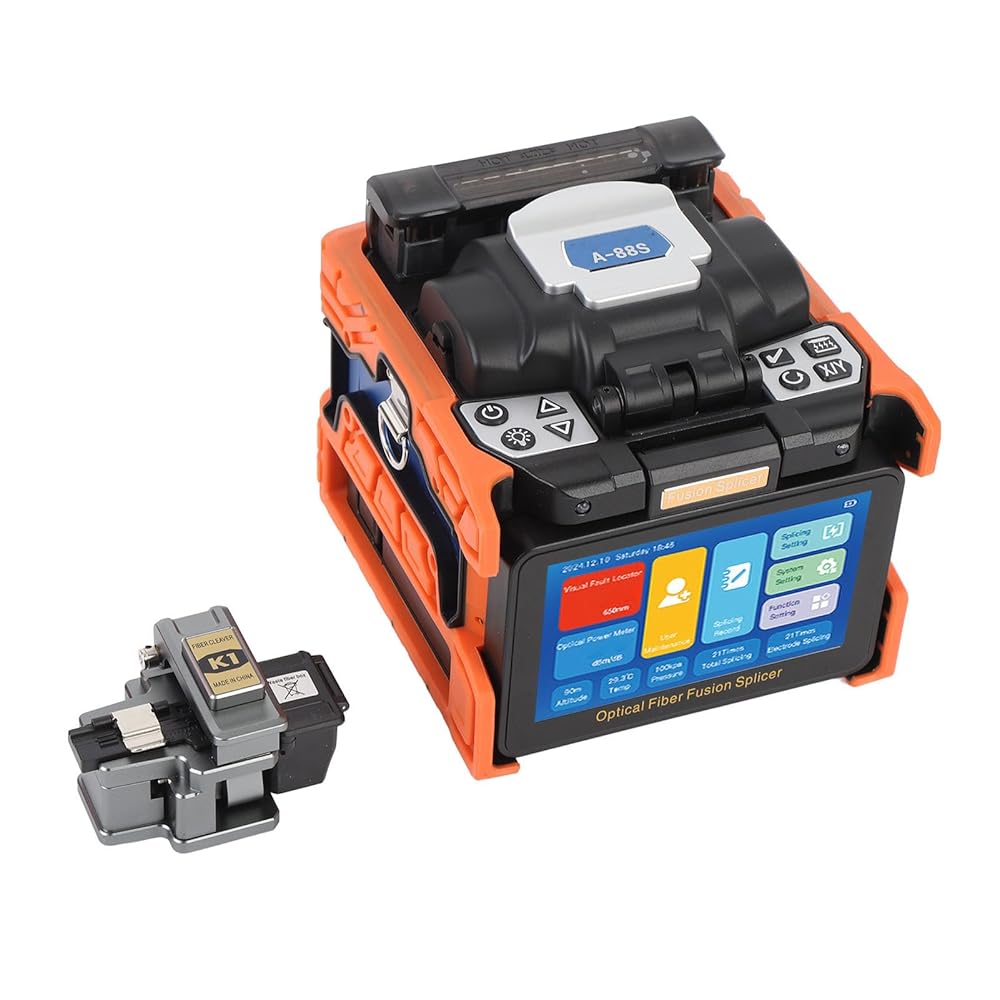

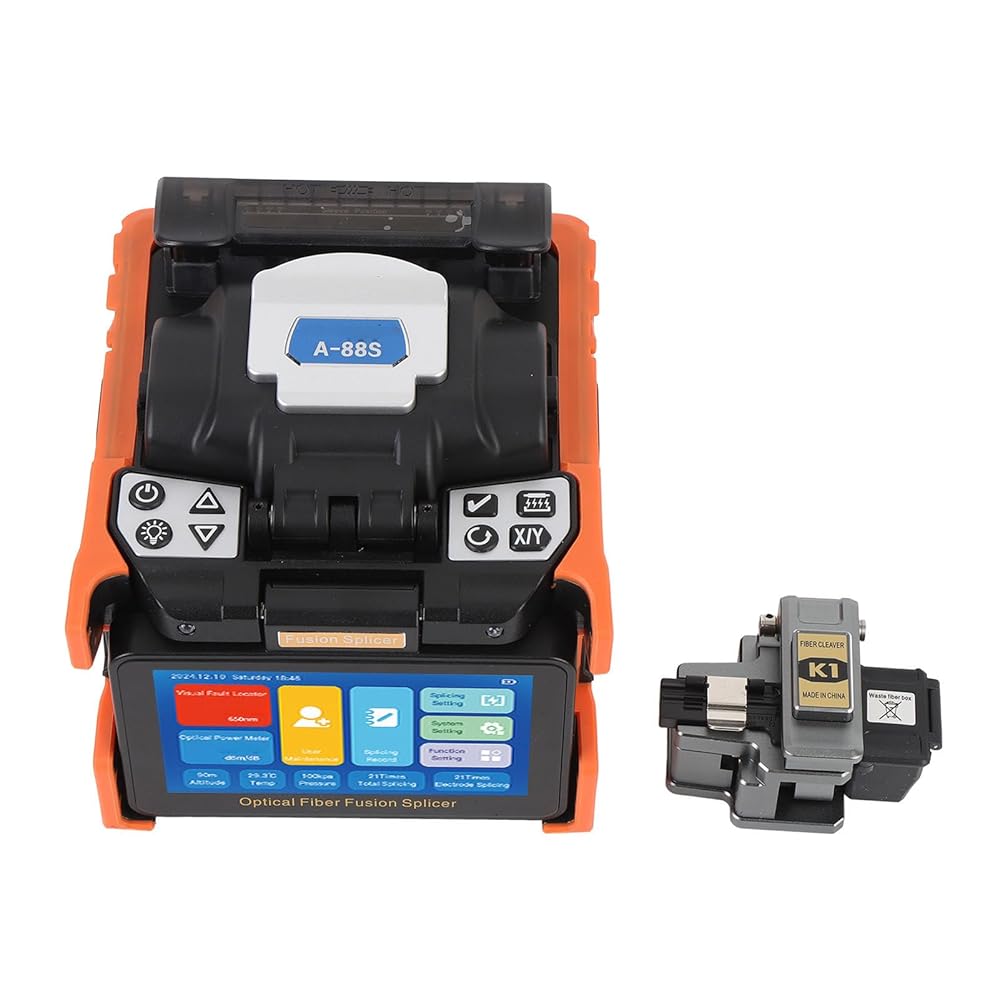

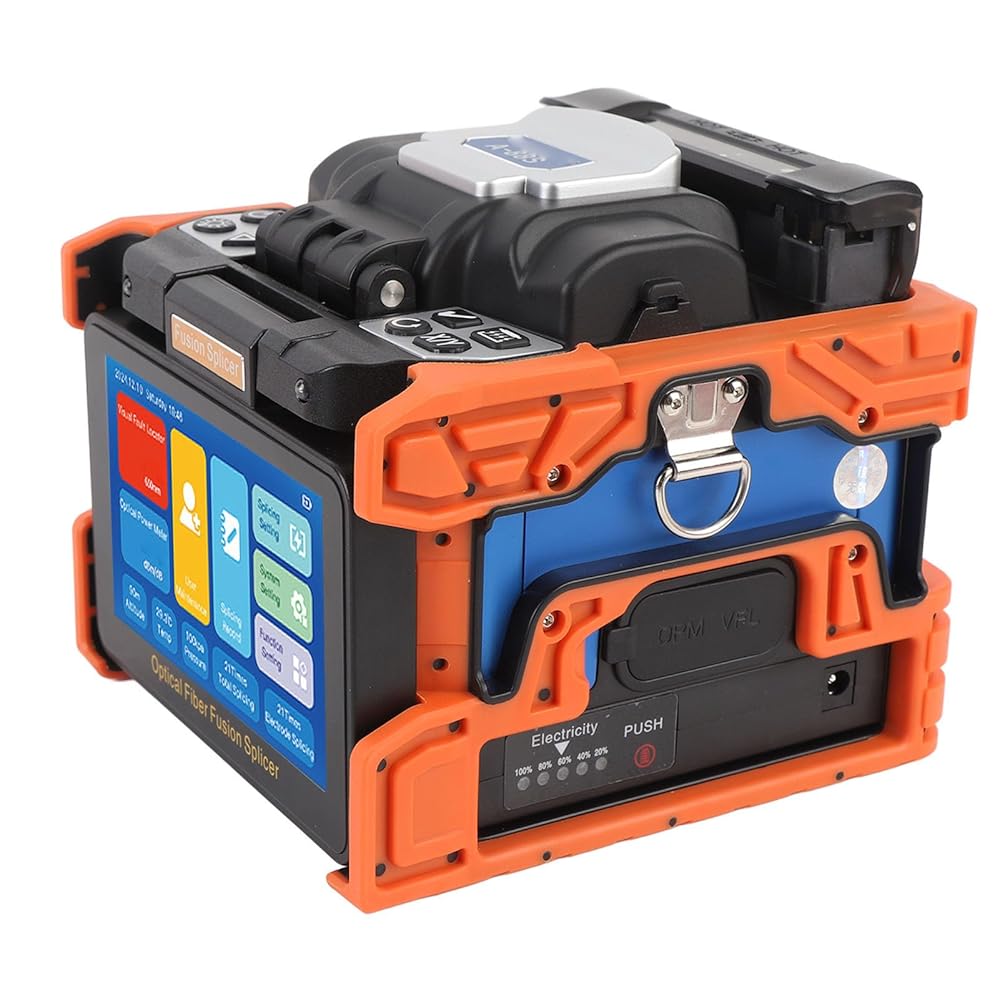

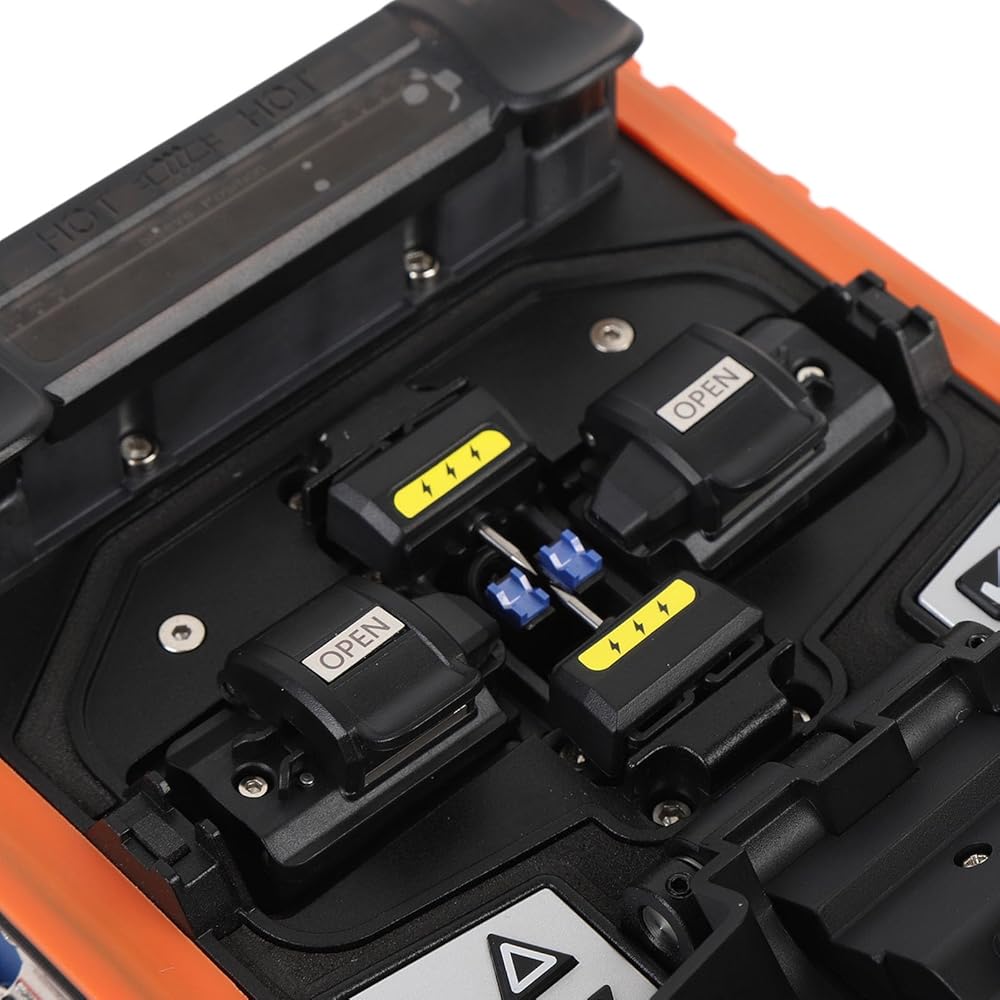

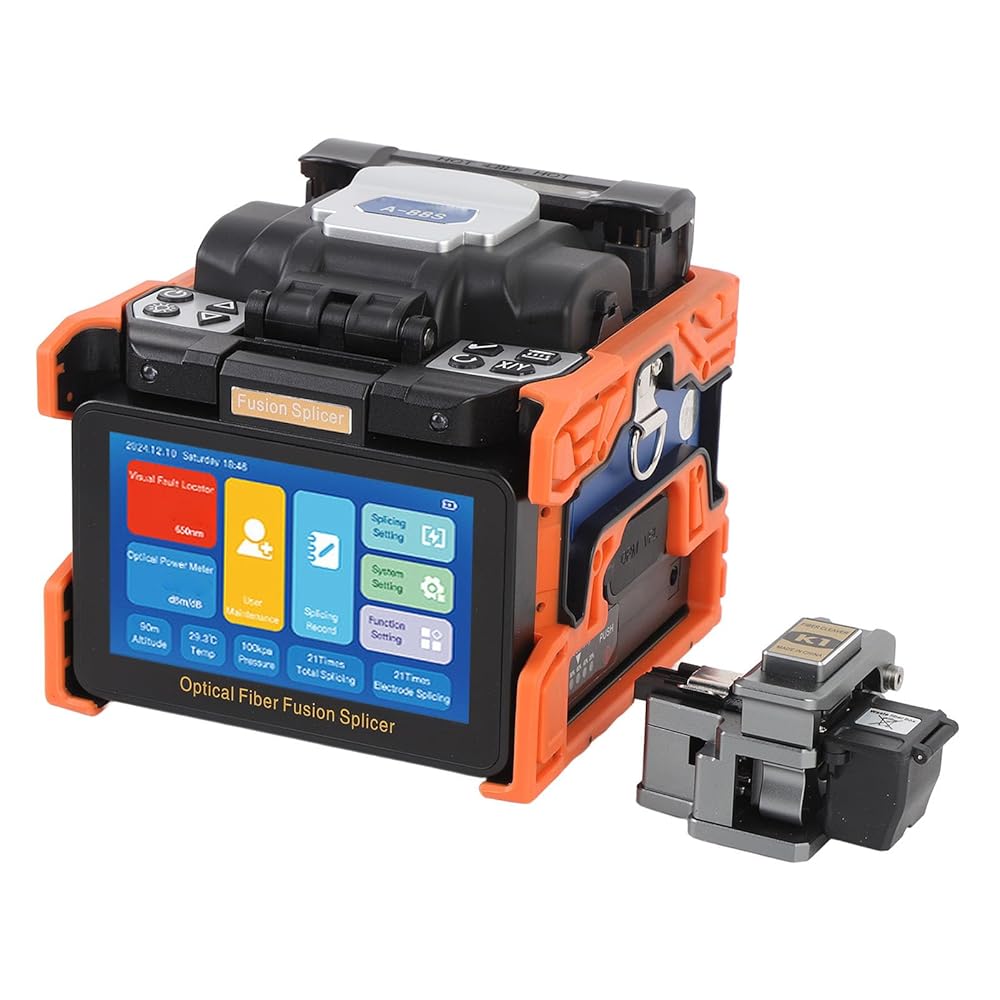

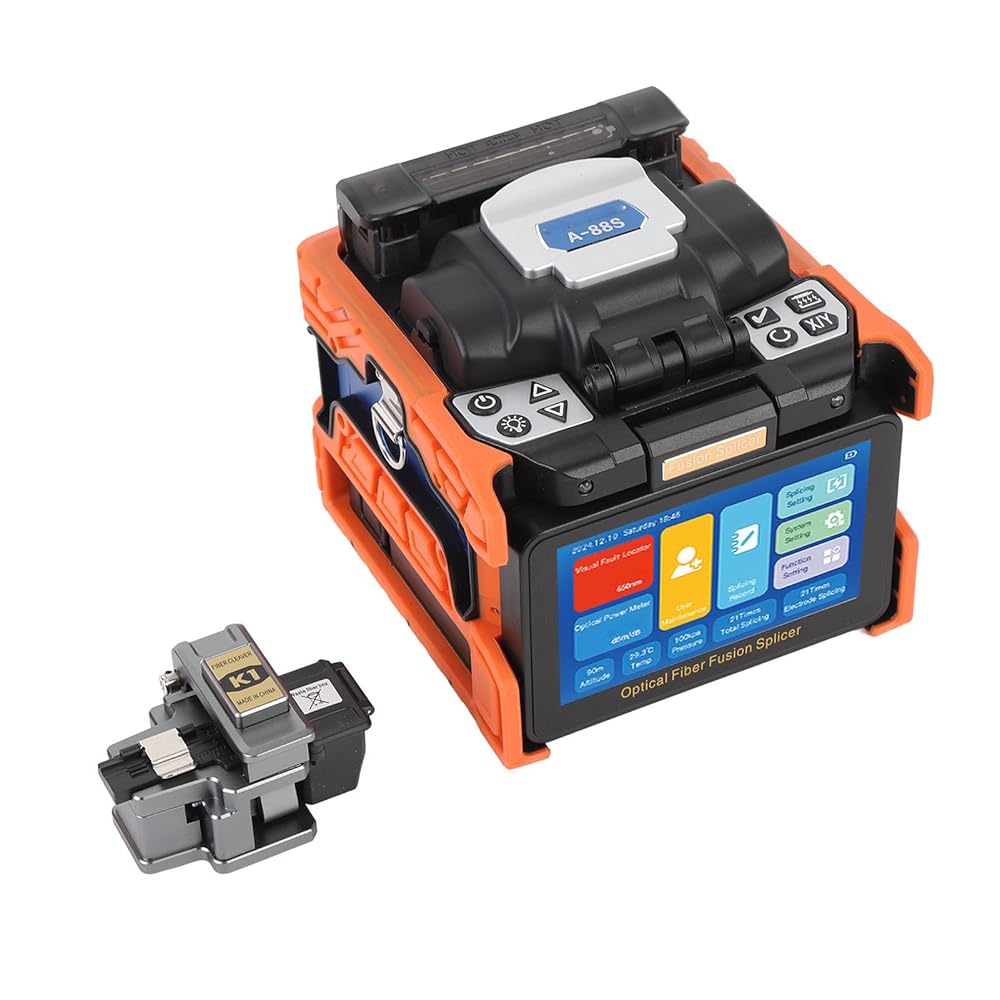

A-88S Fiber ​​ Splicer:
Suitable Fiber: SM (G.652 and G.657), MM (G.651), DS (G.653), NZDS (G.655), and customized fiber types
Fiber Diameter: Cladding Diameter 80~150μm, Coating Diameter 100~1000μm
Continuous Loss: 0.02dB (SMF), 0.01dB (MMF), 0.04dB (​​/NZDs) measured by ITU-T cutback method
Alignment Method: Fiber cores, cladding
Focusing Method: Six motors automatic focusing
Splicing Modes: Full automatic, semi automatic, manual
Splicing Time: 8s (SMF typical value)
Tensile Test: 1.96N~2.1N
Image Display: 5 inch HD capacitive touch screen, key/touch double control, content can be flipped and operated in both directions
Magnification: 300X (X/Y Axes)
Splicing Records: 1000 Groups
Typical Heating Time: 18s
Heating Modes: Adjustable heating time/temperature, supports automatic or manual heating
Heat Shrink Tube Sleeve: 20-60mm
OPM: Range (dBm): -70~+10dBm; Wavelength 850-1650nm (10 bands)
VFL: 15km
Control Interface: GUI graphical user control interface
System Upgrade: USB (Data export, function upgrade, power output)
Electrode Life: About 3000 times
Lighting: LED
Battery Capacity: 6700mAh (200 times of typical splicing and heating)
Power Supply: 11.8V lithium cell x 1 (Built in)
Charging Time: About 3.5 hours
Language Supported: Chinese, English, French, Russian, Italian, Portuguese, Polish, Spanish, Thai, Arabic
Working Environment: Temperature: -15 to +50℃; Humidity: ≤90%RH (Non condensing); Altitude: 0-5000m; Wind Speed: ≤15m/m
Storage Conditions: Temperature: -40 to +50℃; Humidity: 0-95%
Splicer Size (LxWxH): Approx. 151x163x145mm / 5.94x6.42x5.71in

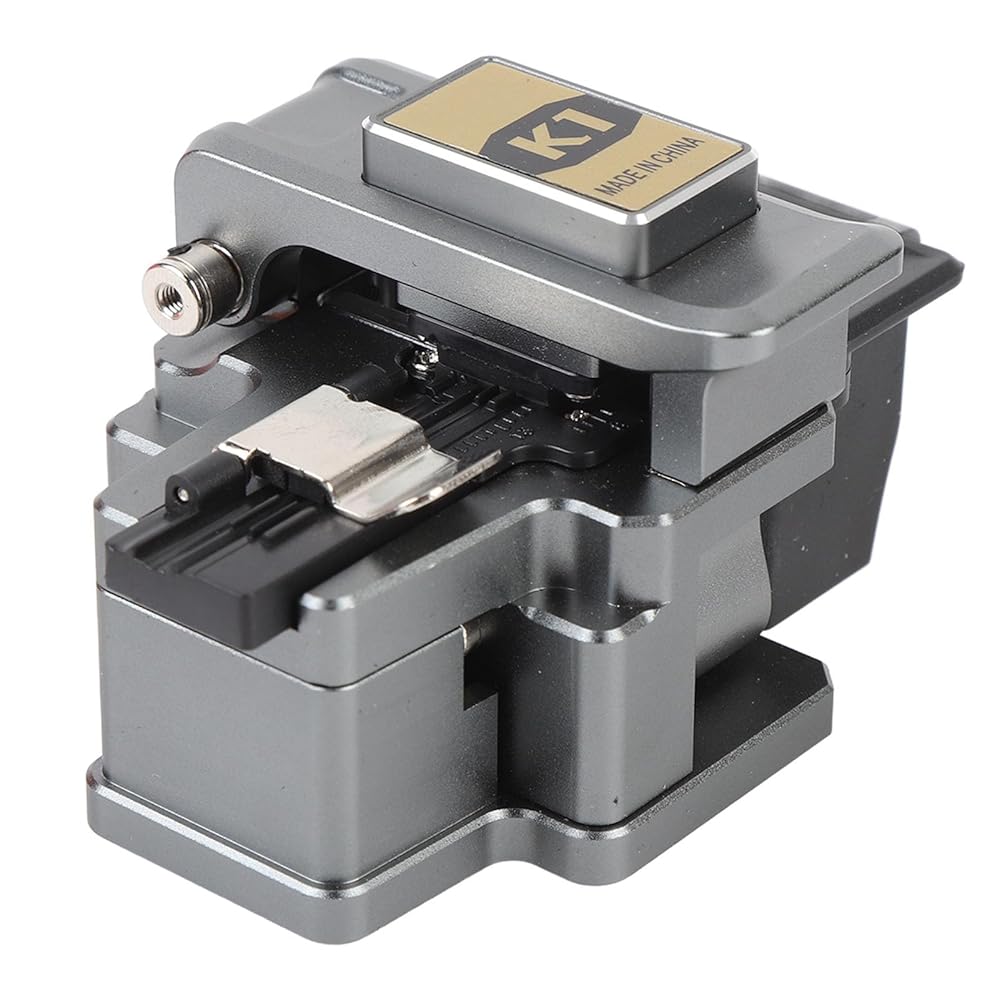

K1 Fiber Cleaver:
Cutting Angle: ≤5°
Cutting Length: 9-16mm (Dia0.25), 10-16mm (Dia0.25)
Fiber Diameter Type: 125μm
Suitable Fiber Type: 0.25mm and 0.9mm
Lifespan: About
