1PC 24V DC 25/50/75/100mm Stroke Max Thrust 1200N High Speed Linear Actuator for Electric Bicycle or Home Appliance(70mm s 50N,50mm Stroke) in Saudi Arabia

5mm s 1200N 50mm stroke

SAR 514
Brand
ZNNRKMYO
Weight
499 g
Color50mm Stroke
Size5mm s 1200N
– 1 +

Special Features

  • High-Performance Efficiency：Our Linear Actuator Motor offers outstanding performance with a precise and smooth operation, ensuring consistent and reliable motion control. It's designed for applications requiring high accuracy and repeatability, making it perfect for industrial automation, robotics, and other engineering projects.
  • Robust and Durable Construction：Built with materials, this motor is designed to withstand harsh environments and heavy-duty usage. Its robust construction ensures long-term durability, reducing the need for frequent replacements and maintenance.
  • Low-Noise, High Versatility: With a noise level below 60db, our linear motion actuator seamlessly fits into various applications, from furniture to automation systems, mechanical equipment, transportation and more. It's versatile and ready for various tasks.
  • Easy Installation and Integration：Featuring a user-friendly design, the Linear Actuator Motor is easy to install and integrate into existing systems. Its plug-and-play capability saves time and effort during setup, allowing for quick and efficient deployment in any project.
  • Energy-Efficient Operation：Engineered to minimize energy consumption, this motor provides an eco-friendly solution without compromising on power or performance. Its energy-efficient design not only lowers operational costs but also supports sustainable practices in your projects.

Description

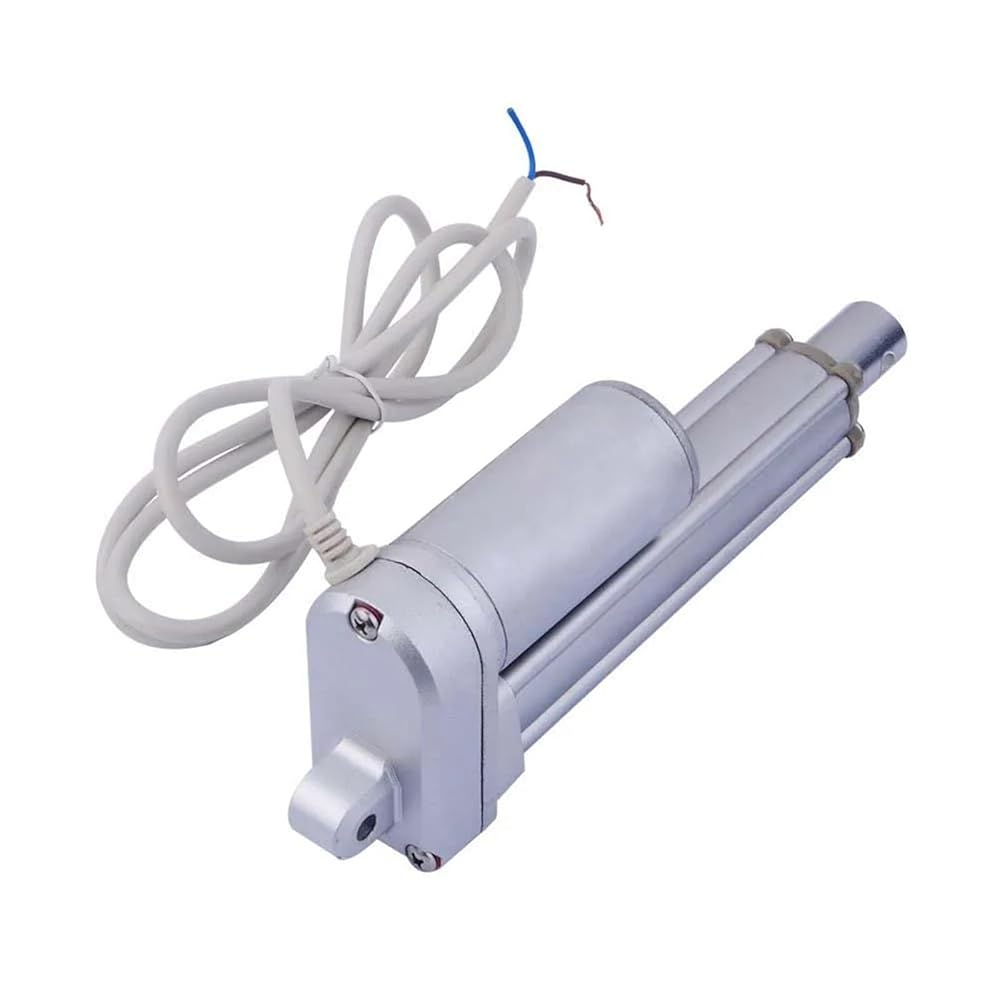

1PC 24V DC 25/50/75/100mm Stroke Max Thrust 1200N High Speed Linear Actuator For Electric Bicycle or Home Appliance
Product parameters:
1.Drive voltage: 24VDC
2.Maximum Thrust: 120KG/1200N
3.Minimum installation size (fully retracted around in the middle of the distance between the two holes): L1= Stroke+105 mm
4.Maximum installation size (fully extended around the middle of the distance of the two holes):L = 2xS(stroke)+105mm
5.Ambient temperature :-26 to +65 degree
6.Protection class: IP 54
7.Built-in limit switches(When completed stroke, linear actuator automatically stops!)
8.Low noise design, noise levels below 70 db
9.Work rule: 10%. Loading rated thrust need 10% work rule. In 20 minutes, 2minutes work 18minutes rest. If lower load can extend work time.
10.Maximum self-locking force 2300N
Usage : BOAT,Car,Electric Bicycle,Fan,Home Appliance
Construction : Permanent Magnet
Type : Gear Motor
Protect Feature : Drip-proof
Commutation : Brush
Output Power : 30W
