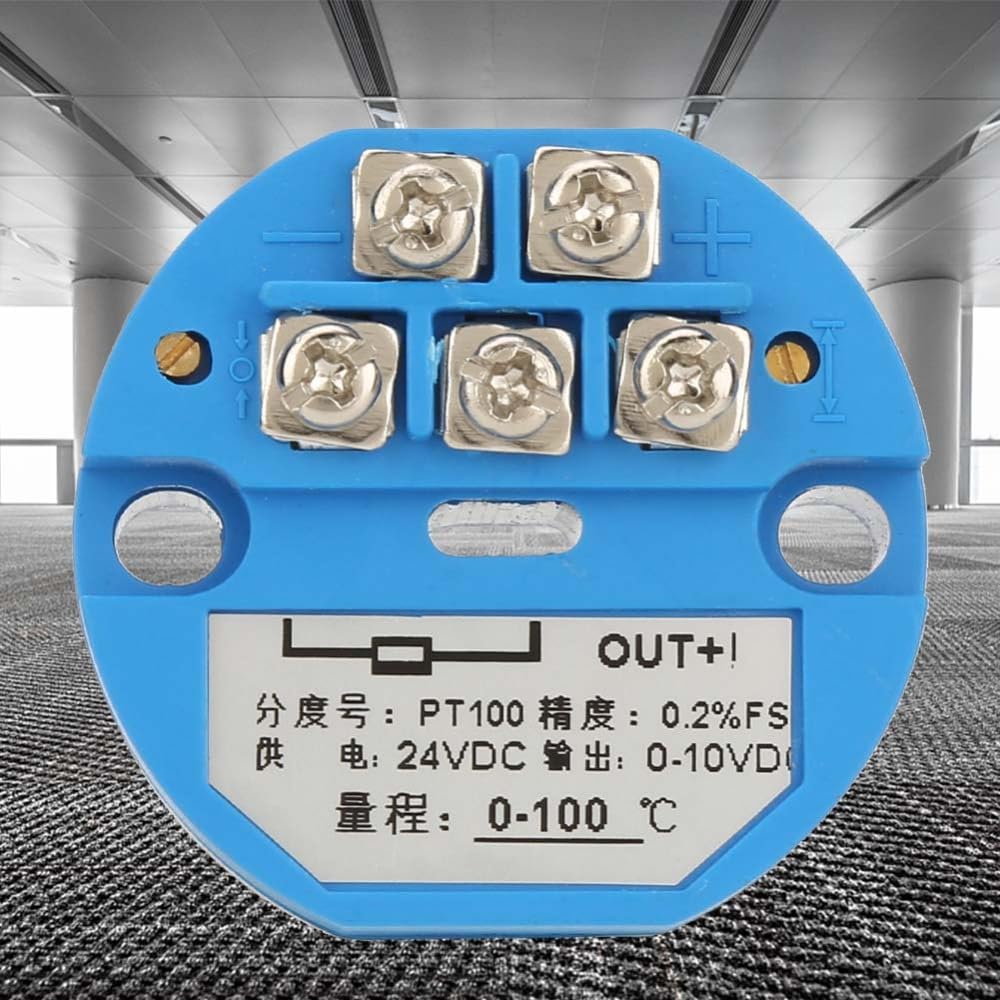

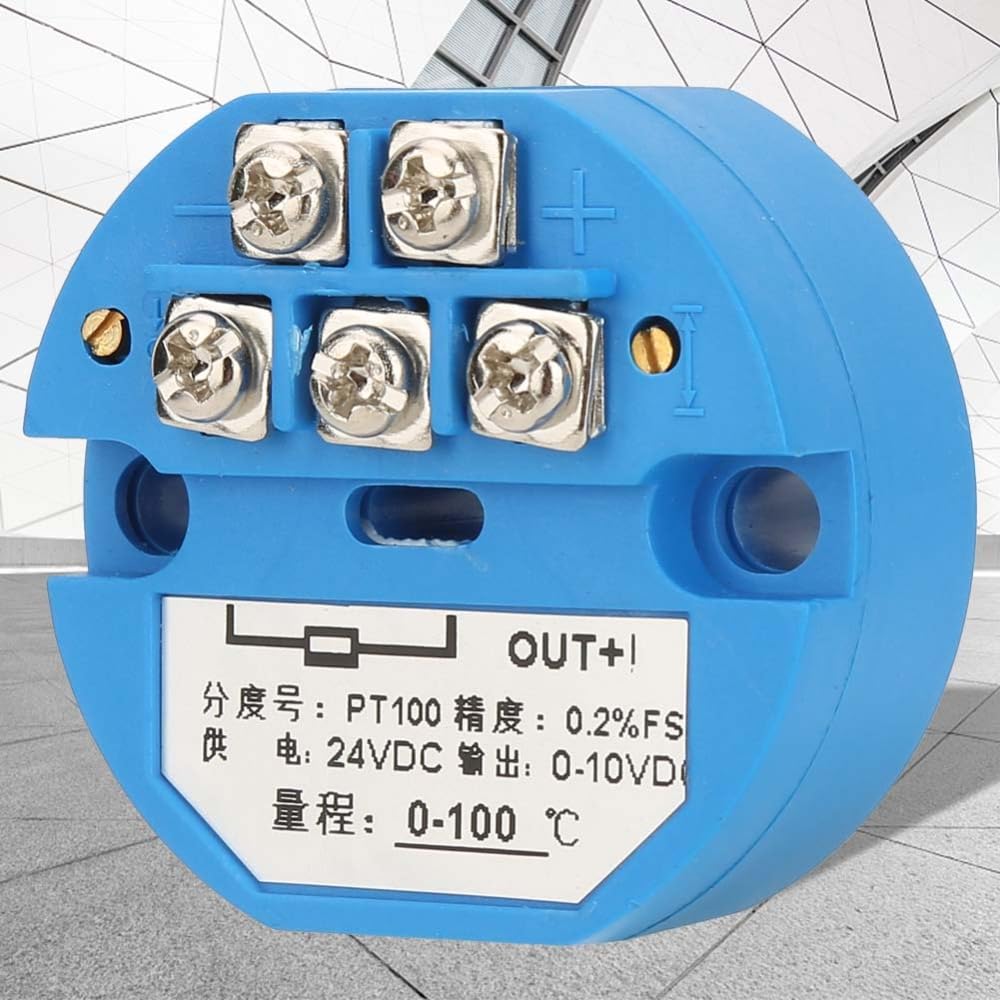

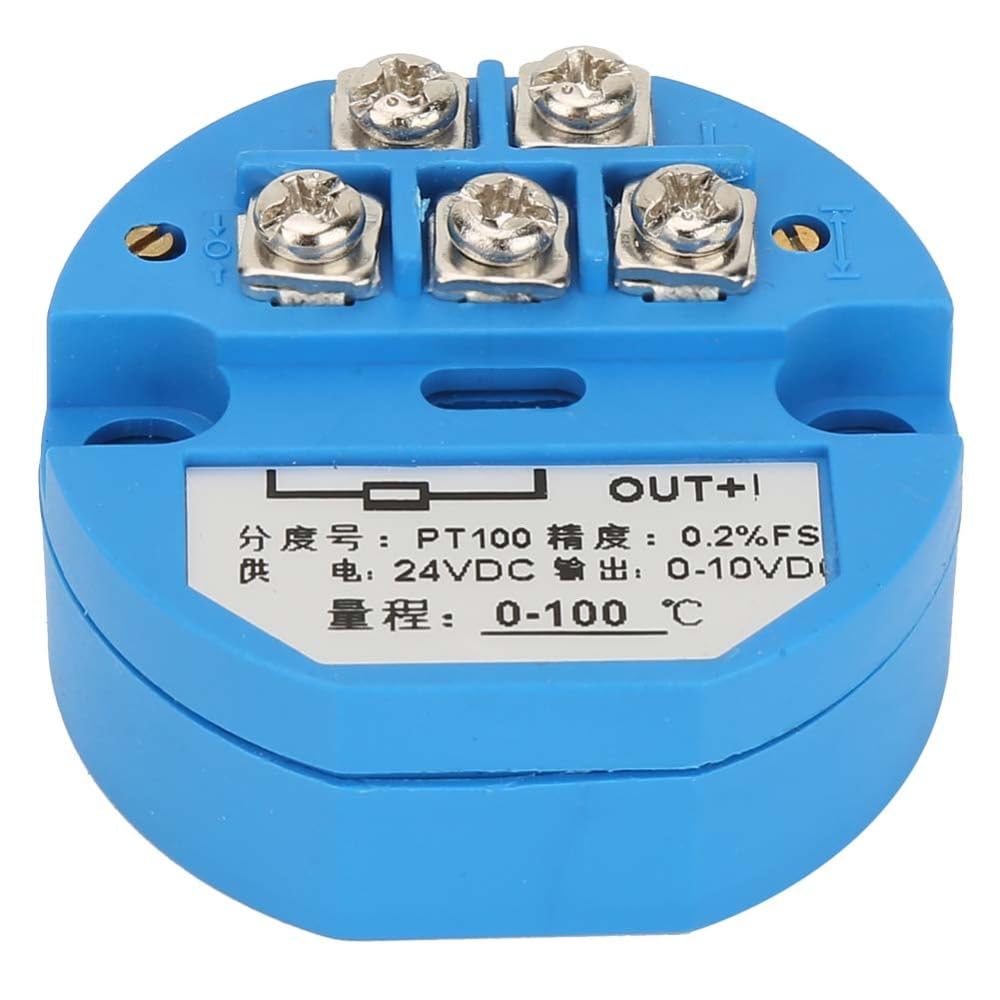

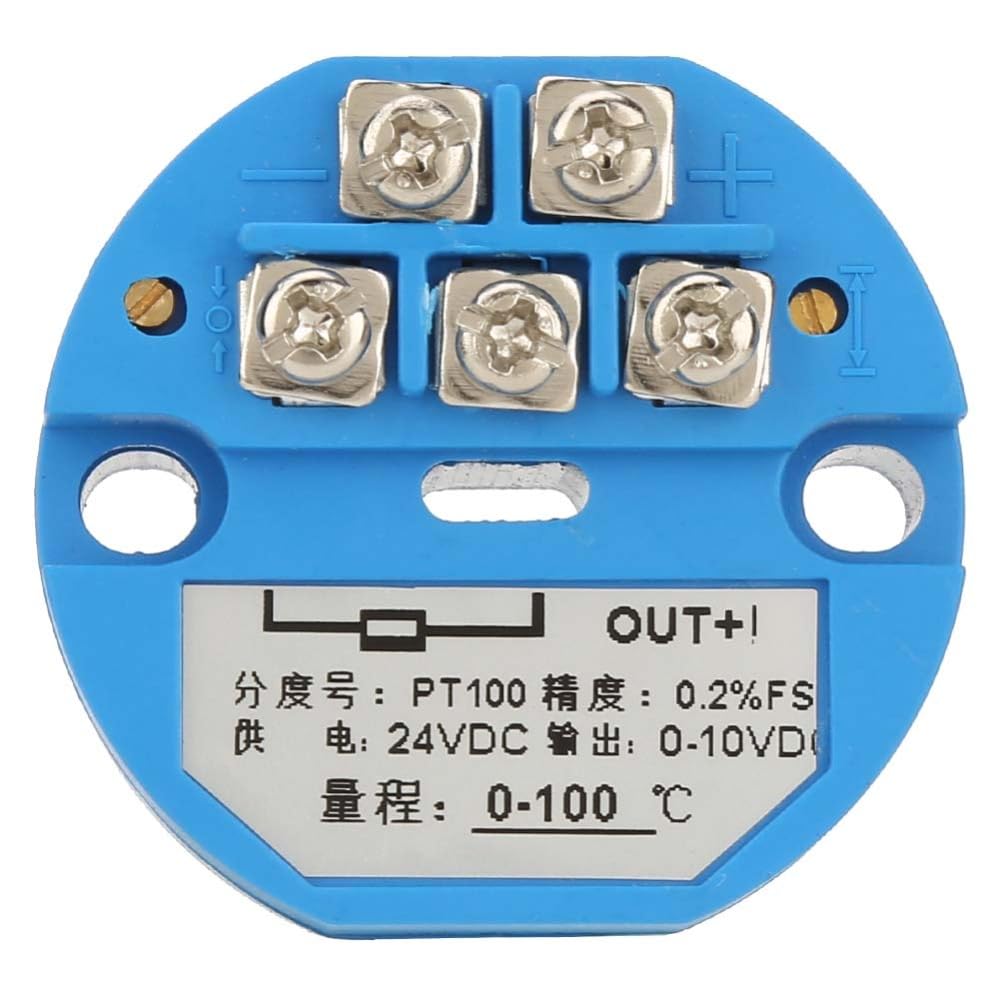

PT100 temperature transmitter converts thermal resistance signals into precise 0-10V linear output signals for industrial temperature monitoring applications. This DC 24V powered sensor delivers reliable data transmission to PLC systems and control instruments with 0.2% accuracy
Operate by connecting the transmitter to your PT100 thermal probe. It calculates temperature through resistance variation and outputs proportional 0-10V signals compatible with most data acquisition systems. The potentiometer adjustment allows custom range calibration while 250ohm load capacity ensures stable performance
Specification:
Model: SBWZ
Division number: PT100
Power supply: DC24V
Output: 0-10V
Output: 2-wire 4-20mA
Shell material: PA66
Range: 0-100℃
Accuracy: 0.2%
Cold junction compensation: 0~50℃±1℃
Adjustment mode: potentiometer
Load capacity: 0 ~ 250 ohm
Working temperature: -30-80 ℃
Transportation and storage temperature: -40-120 ℃
Environmental humidity:
Color: Blue

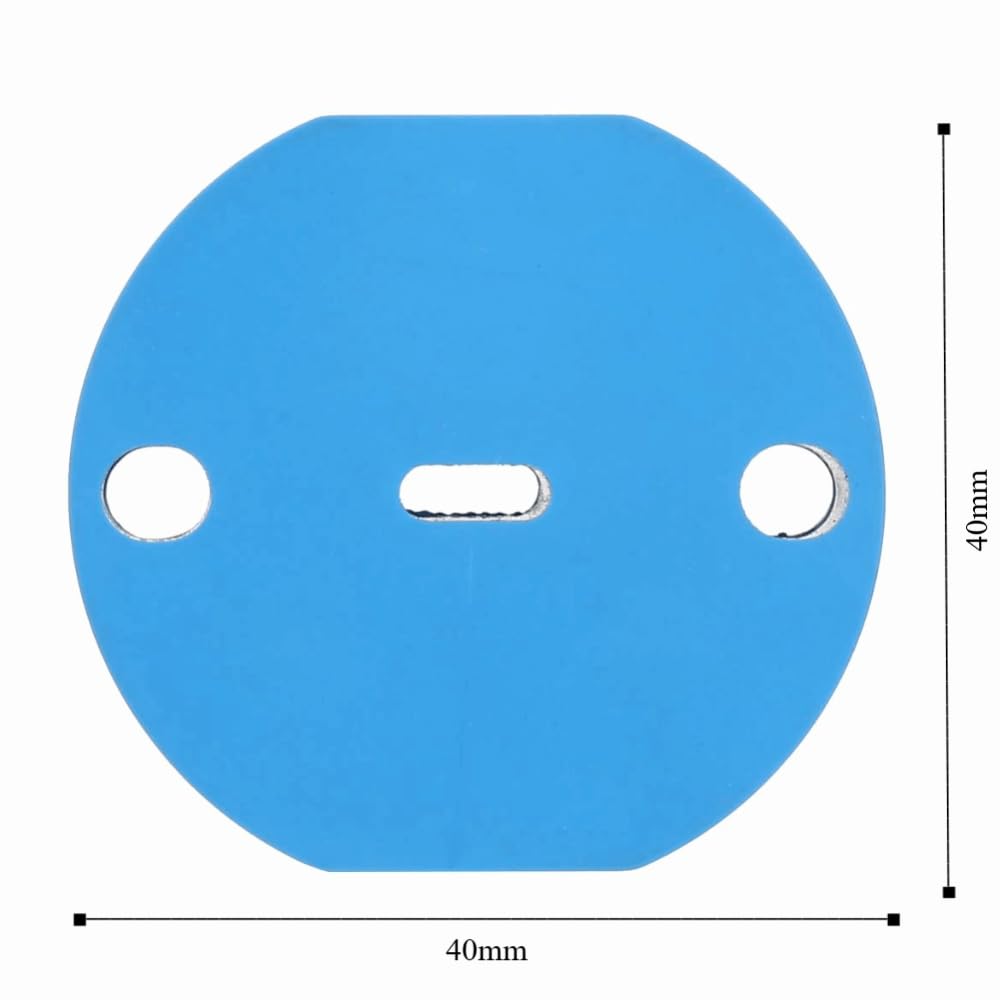

Size: 40 * 40mm(1.57 * 1.57in)
Temperature transmitter:
1. Calculate the current temperature by confirming that the resistance is different
2. Then send the corresponding standard signal (0-10V) value according to the range of the thermal resistance
Namely: temperature change -- thermal resistance -- resistance change -- temperature transmitter --0-10V signal
Weight: 75 g / 2.6 oz(approx.)

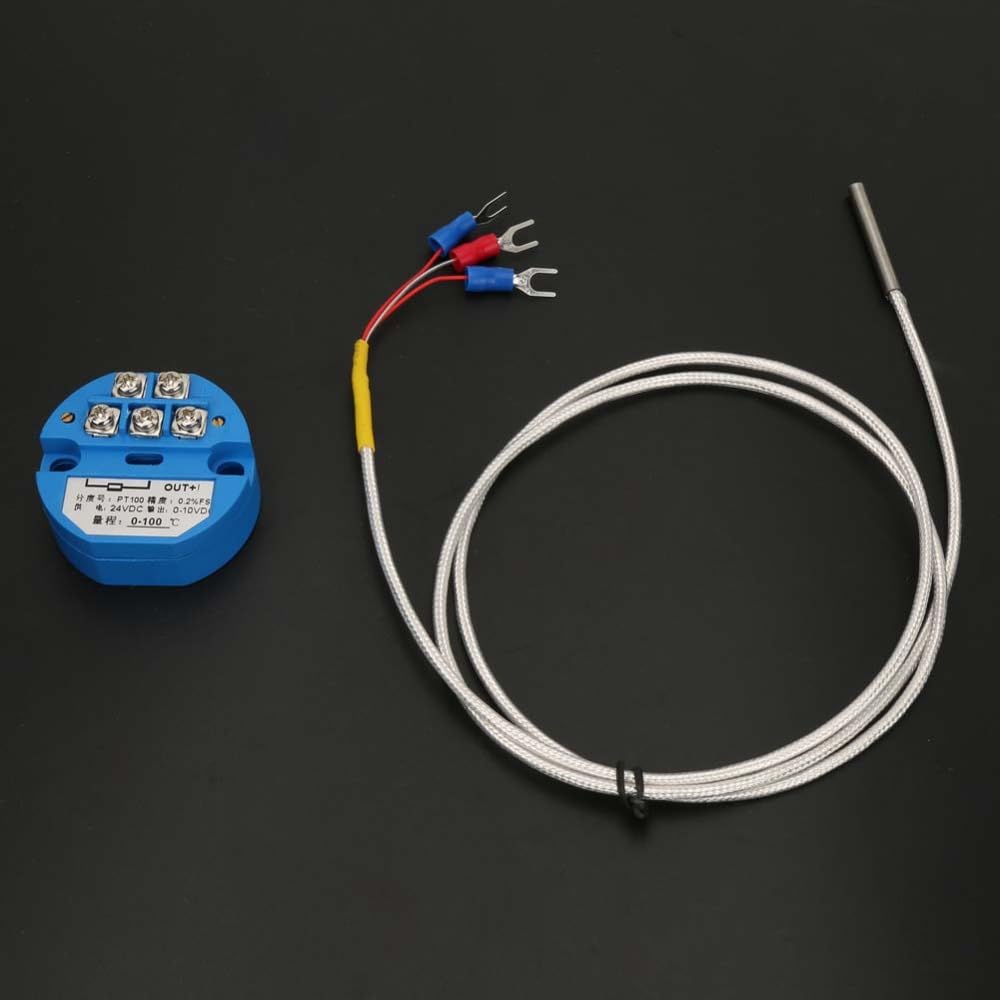

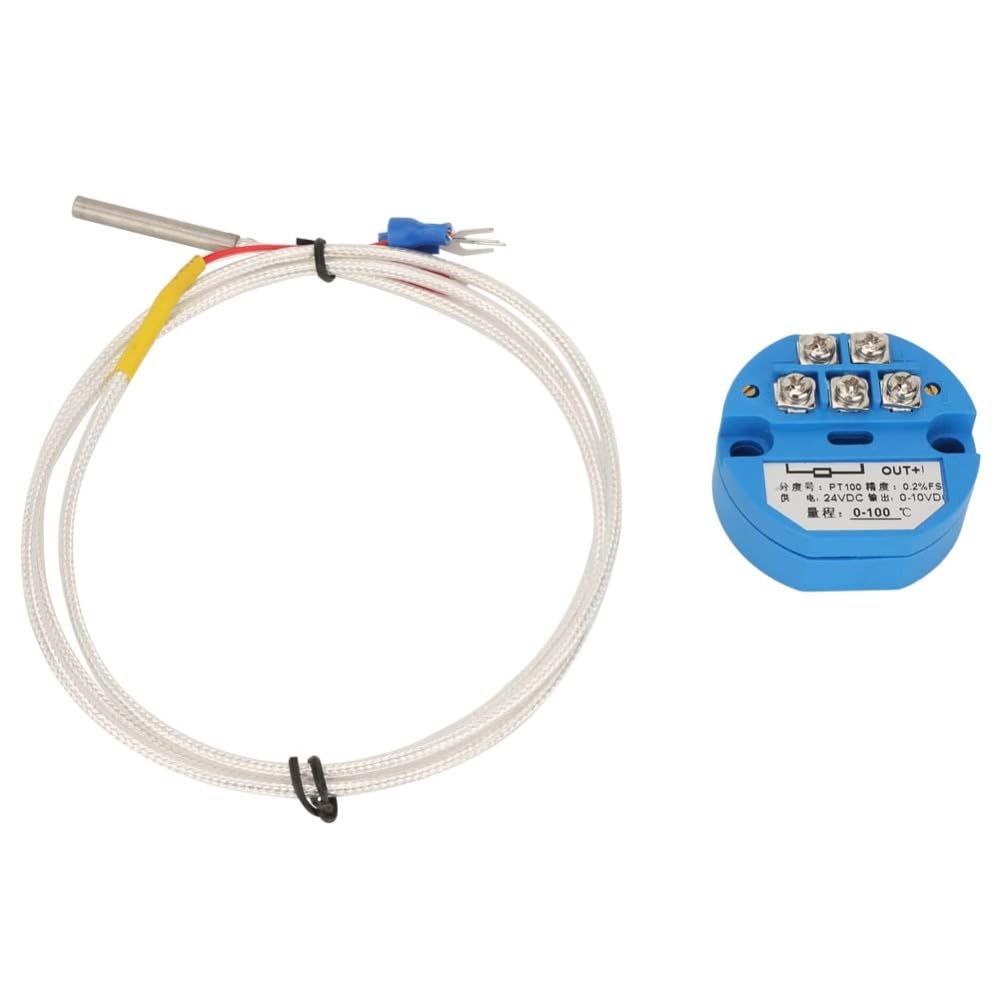

Package list:
1 x Temperature transmitter module
1 x 1M thermocouple
Note:
1. Due to the difference between different monitors, the picture may not reflect the actual color of the item
2. Please allow slight dimension difference due to different manual measurements. Thank you for your understanding
