Vacuum Pads

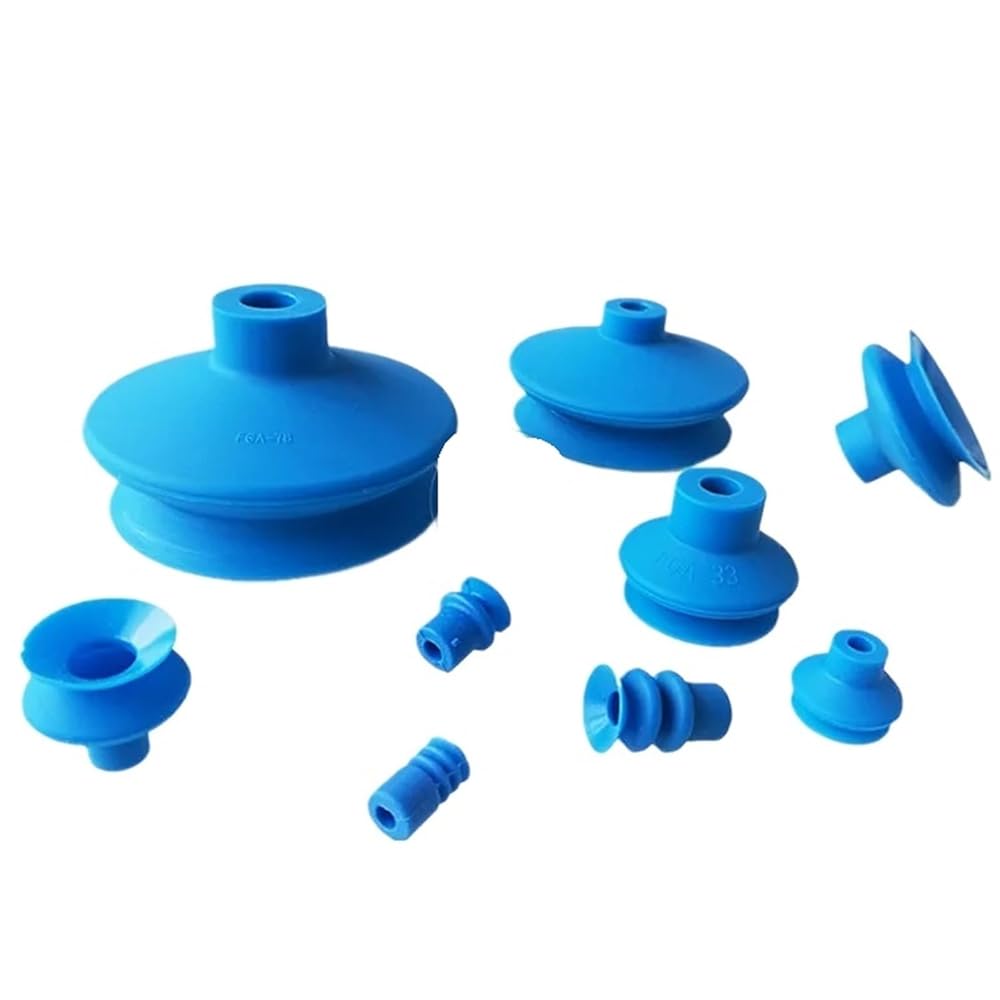

Suction Cups FSGA (1.5 Folds)
Applications Round, bellows suction cup with 1.5 folds for handling of extremely sensitive workpieces (optimum damping effect due to folds and smooth sealing lip)
Handling of workpieces with uneven surfaces, such as pipes (folds permit optimal adaptation to concave and convex surfaces) Design
Robust, wear-resistant suction cup FSGA (3) with single sealing lip, consisting of suction cup FGA (2) with 1.5 folds and connection nipple (1)
All nipples are plugged in
Suction cups with a diameter of 25 mm or more with supports on the bottom
With each nipple family, the replacement cups and nipples can be combined as desired
Our Highlights... Your Benefits...
Wide range of diameters and materials
For a wide range of different workpieces
Soft, tapered sealing lip
Very good adaptation to curved or uneven workpiece surfaces
1.5 folds; supports on the bottom (diameter > 25 mm)
High suction force and optimum damping effect during placement on workpieces
Very stiff top fold
Good resistance to horizontal forces at high acceleration values
Designation Code Bellows Suction Cups FSGA (1.5 Folds)
Suction cup FSGA (elastomer part + connection nipple) is delivered unassembled (diameters of 33 mm and more are assembled).
Suction cup of type FGA elastomer part, available in various diameters and materials
Connection nipple of type SA-NIP available with various threads
Available spare parts: suction cup FGA, connection nipple SA-NIP
Bellows suction cup (round) for very uneven workpieces
Size: 9-78mm
Suction cup material:
Nitrile rubber NBR
Material hardness: 55 °Sh
Number of folds: 2.5
Bellows suction cup (round) with optimal adaptation to uneven surfaces
Size: 9-78mm
Suction cup material:
High temp material HT1
Material hardness: 60 °Sh
Number of folds: 1.5
Material property: imprint-free
Suction cup connection nipple
Nipple: N 018
Thread G1: G1/4"-M
Overall length: 28.8 mm
Fitting length: 4 mm
Nominal size: 4,40 mm
Material: Aluminium
Spanner size SW2: 5 mm
Suction cup connection nipple
Nipple: N 018
Thread G1: G1/4"-F
Overall length: 28.8 mm
Fitting length: 15 mm
Nominal size: 4,40 mm
Material: Aluminium
Spanner size SW2: 5 mm
Bellows Suction Cups FSGA (1.5 Folds)
Design Data Bellows Suction Cups FSGA (1.5 Folds)
==========
High-concerned chemical : None
Type : Actuator
