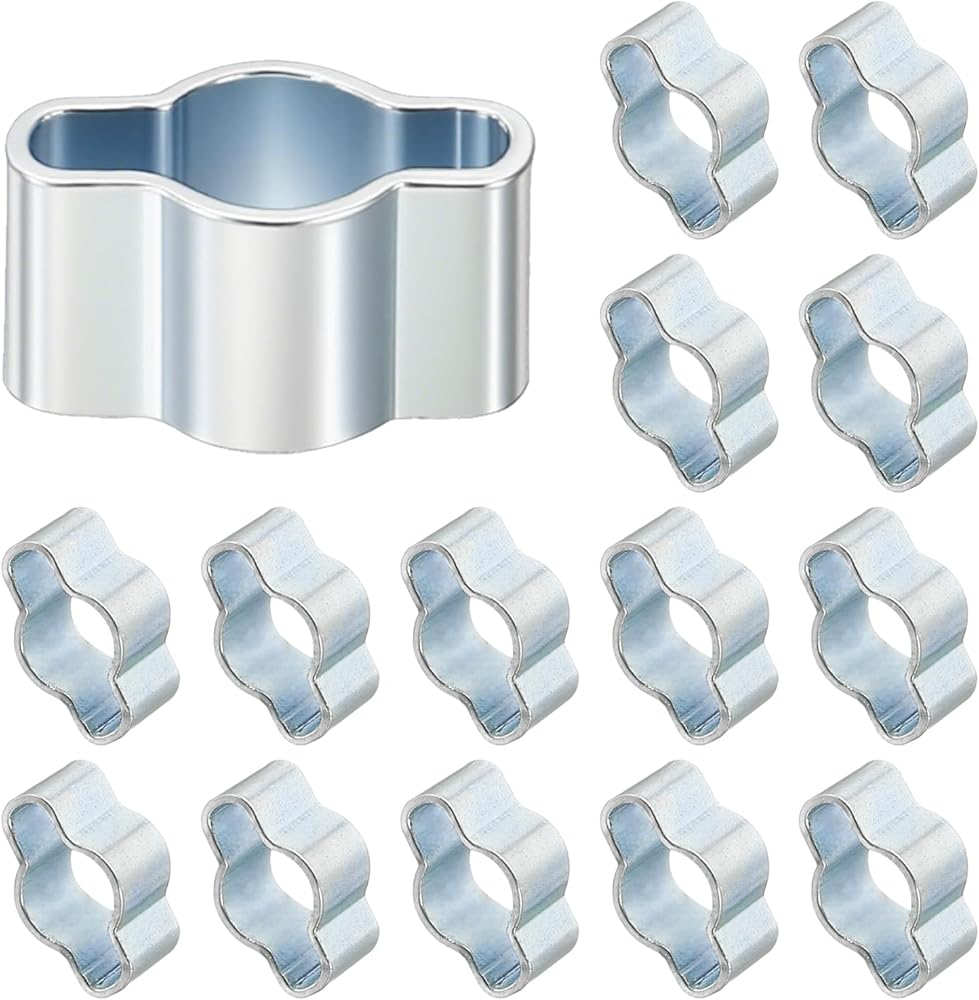

Material: Galvanized Carbon Steel; Fit Tube Diameter Range: 13-15mm/ 0.51-0.59 inch; Size: 15 x 17.5 mm /0.59 x 0.69 inch (ID*OD); Width: 7mm/ 0.28 inch; Thickness: 1mm/ 0.04 inch; Clamping Force: 3000N; Packing List: 24 Pcs x Double Ear Hose Clamp
Application: These double ear hose clamps are versatile and suitable for securing hoses in a variety of industries, including agriculture, automotive, aviation, marine, plant construction, and commercial vehicle manufacturing. They are suitable for connecting silicone or rubber hoses used in fuel, gasoline, water, air, and various other fluids, providing a secure, tight connection.
Advantage: Made from galvanized carbon steel, these hose clamps provide a smooth, scratch-resistant surface and excellent resistance to corrosion and heat. The zinc coating acts as a protective layer, preventing rust and extending service life. Features a 360-degree clamping mechanism that evenly distributes pressure around the hose, preventing leaks and ensuring a secure connection. The two-ear design increases the clamping range and provides enhanced tightening force.
Instruction: When installing these hose clamps, you can determine the proper clamping force by observing how far the two ears are clamped. Simply position the clamp over the hose and use the pincers to crimp it, creating a secure connection, ensuring a quick and efficient installation process.
NOTE: Please note that both ears need to be clamped with equal force to ensure the same gap between the ears to achieve the maximum seal.
